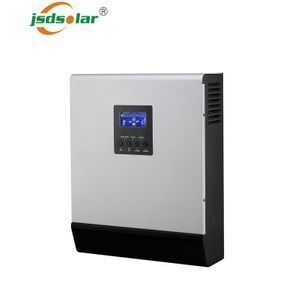

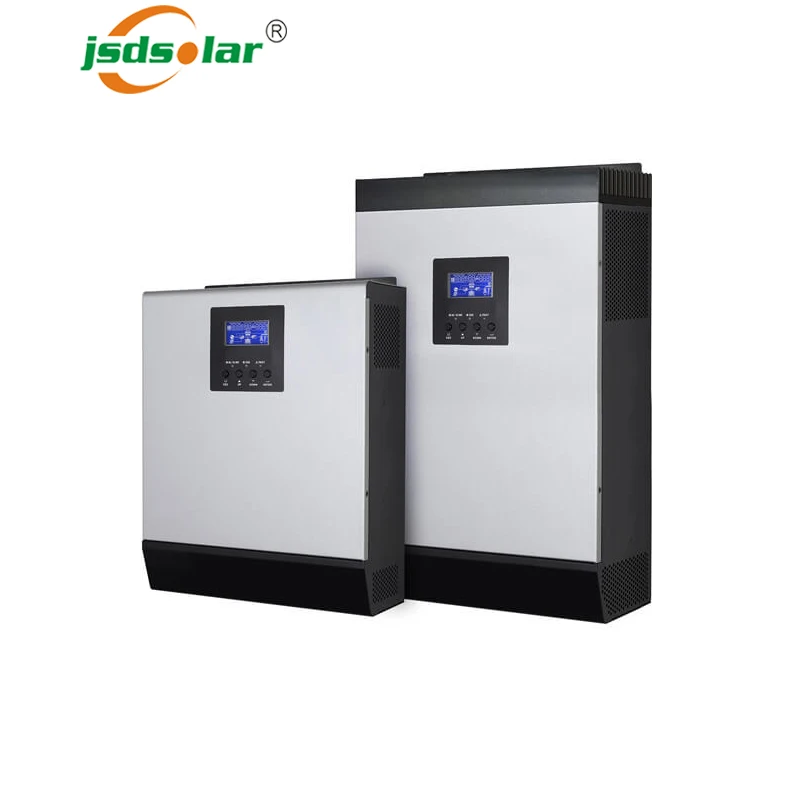

2kw 3kw 4kw 5kw off grid hybrid solar inverter with mppt charge controller
-
Supplier: Shenzhen Jinsdon Lighting Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Rosalind tang -
Price: $300.00 / >=10 pieces -
Min. Order: 10 pieces
| Output Current: | 60A/80A; | Efficiency (Peak) PV to INV.: | 96.8%; |
| Weight: | 8-12kg; | Waveform: | Pure Sine Wave; |
| Operating Temperature: | 0℃~55℃; | Selling Units: | Single item; |
| Output Type: | Single; | Product Dimension(W*H*D): | 300*440*100mm; |
| Model Number: | solar inverter; | Place of Origin: | Guangdong China (Mainland); |
| Output Voltage: | 230V; | Rated Power: | 1-5KW; |
| Input Voltage: | 230V; | Type: | DC/AC Inverters; |
| Storage Temperature: | -15℃~60℃; | Input Voltage: | 230VAC; |
| Brand Name: | JSDSOLAR; | Single gross weight: | 12 KG; |
| Size: | 300*440*100mm; | Product name: | hybrid solar inverter; |
| Efficiency (Peak) Battery to INV.: | 94%; | Single package size: | 39X59X21 cm; |
| Package Type: | carton; | Transfer Time: | 10ms (For Personal Computers) ; 20ms (For Home Appliances); |
| Output Frequency: | 50HZ/60HZ; |
Introduction

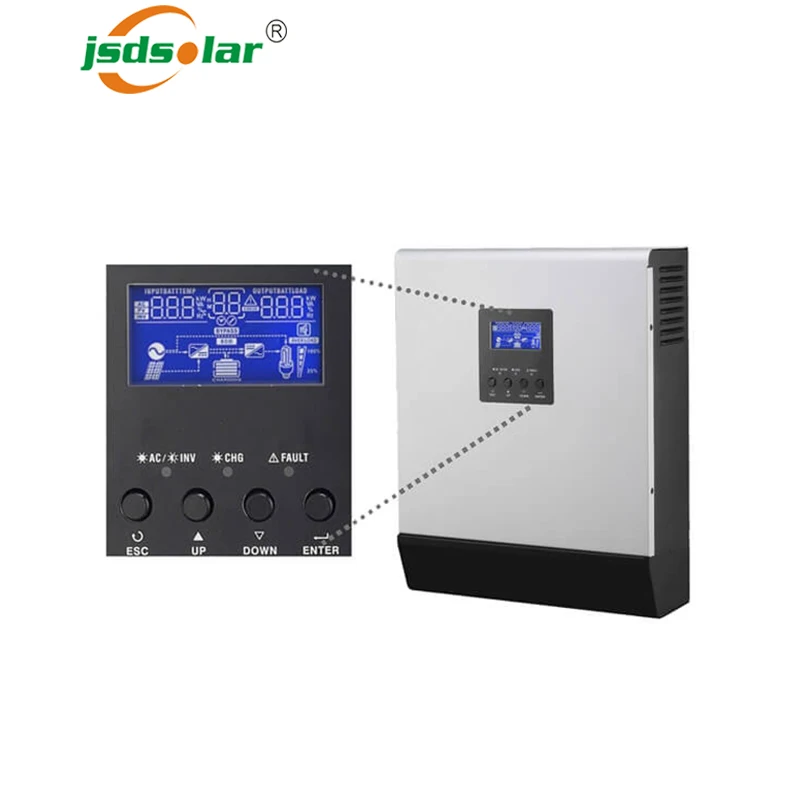

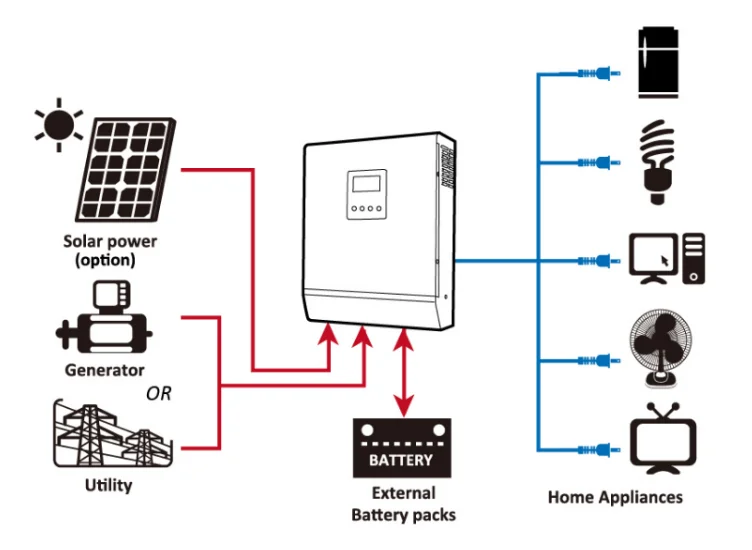

This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Optional Remote Control Panel available
| Rated Power | 3000W | 5000W |
| Input | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) | |
| Frequency Range | 50Hz (Auto sensing) | |
| Output | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC ± 5% | |
| Surge Power | 6400W | 10000W |
| Efficiency (Peak) PV to INV. | 96.80% | |
| Efficiency (Peak) Battery to INV. | 94% | |
| Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) | |
| Waveform | Pure Sine Wave | |
| Battery | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 63 VDC |
| MPPT Solar Charge & AC Charge | ||
| Maximum PV Array Power | 4000W | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| MPPT Range@ Operating Voltage | 120~450 VDC | |
| Maximum Charging Current | 80A | |
| Maximum AC Charge Current | 60A | |
| Maximum Charging Efficiency | 98% | |
| Physical | ||
| Product Dimension(W*H*D) | 300*440*100mm | |
| Package Dimension(W*H*D) | 390*590*208mm | |
| Net Weight | 9.2 | 10.2 |
| Grass Weight | 10.2 | 12 |
| Ncommunication Interface | ||
| Operating Environment | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0℃~55℃ | |
| Storage Temperature | -15℃~60℃ | |
Q1: Are you factory or trading company?
A: We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
Q2: Does the lamp light on automatically?
A: Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q3: Can I can a sample order for solar street light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4: What about the lead time?
A: 3 workdays for sample, 5-10 workdays for batch order.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q6: Can the lamp be used in strong wind environment?
A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send replacements with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
-
