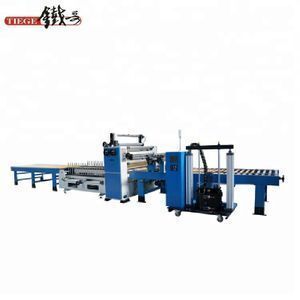

MDF wall panel laminating and wrapping machine with PUR hotmelt

Supplier: Guangzhou Tiege Woodworking Machinery Co., Ltd.
Region: China
Contact: Ms. Doris Lee
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Feeding Speed:	0-25m/min;	Model Number:	FMF-PUR(860);
Supply Ability:	200 Set/Sets per Year;	Dimension(LWH):	700012001800mm;
Power(W):	30KW;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of origin:	Guangdong China;	Delivery Detail:	30 WORKING DAYS;
Certificate:	ISO9001:2000;	Type:	Hot Glue Wrapping;
Port:	Guangzhou;	Warranty:	1 Year;
Packaging Detail:	Foam packing,wooden case;	Certification:	CE;
Place of Origin:	Guangdong China (Mainland);	Covered Material:	Veneer,pvc,high glossy pvc ,paper ,leather;
Certification:	CE;	Weight:	2500kg;
Model Number:	TMD-I;	Voltage:	380V 50HZ;
Payment Terms:	L/C,T/T;	Condition:	New;
Brand Name:	Tiege;	Brand Name:	Tiege;
Based profile:	WPC,MDF,HDF,PLYWOOD ,PARTICLE BOARD,STEEL,ALUMINUM;	Glue Type:	PUR Hot Melt Glue;

Product Description

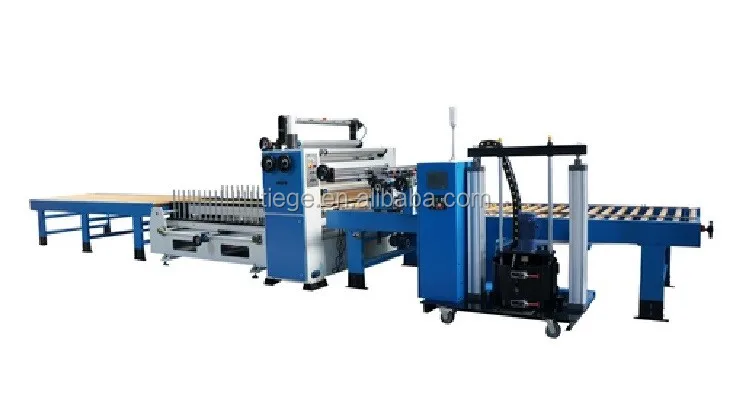

Laminating and wrapping machine :

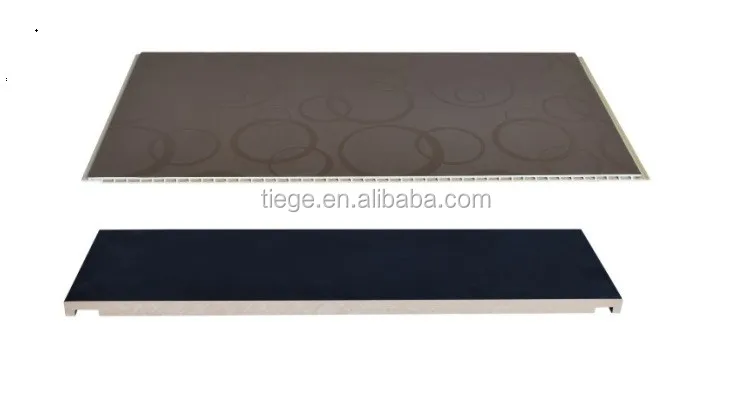

This machine use PUR hotmelt ,apply to wwrapping wall panel,door panel ,cabinet and so on .

Detailed Images

Conveyor:

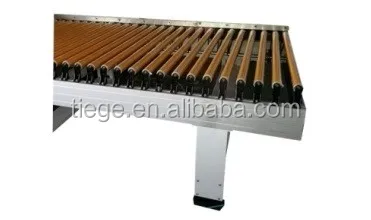

1.Feeding conveyor :Feeding conveyor is made of good quality steel tube , feeding stable, length of the roller is 1000mm,using the “8”type belt to feed ,feeding stable, shake smaller , no noise ,

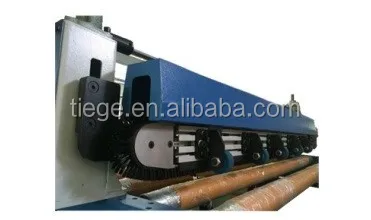

Dust cleaner:

Dust clean machine: German technical skills,horizontal dust clean,can clean the dust at 95% .Sticking the High glossy PVC or paper on MDF board,the MDF board must clean very well.If have the dust on the surface,it will result the oranges. Reducer motor: RV50,motor: 0.5KW.

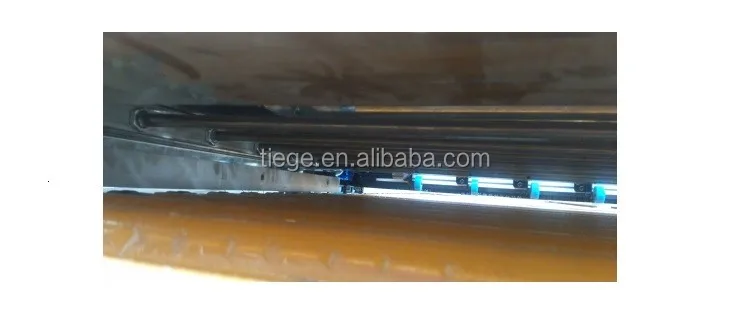

Infrared lamp oven

Preheating board by infrared lamps ,heating fast,save power,focus temperature .

Preheating oven:

Adopts bending welding structure ,this structure can control the temperature independently according to the actual requirement .
Here work purpose is to effectively prevent the glue film generated when the cold plate and the heat glue ,effective reduction of water ripple is generated .

. PUR Glue spread

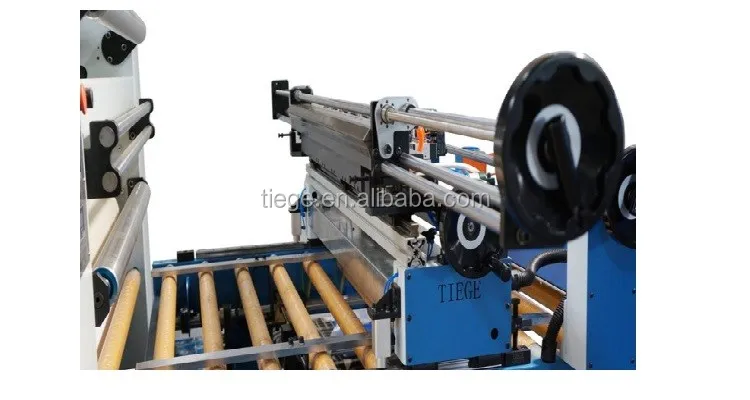

closed scrap cutter， the cutter apart from the middle,single side wheel with digital display.
The PUR glue will go though the glue hose after melting.

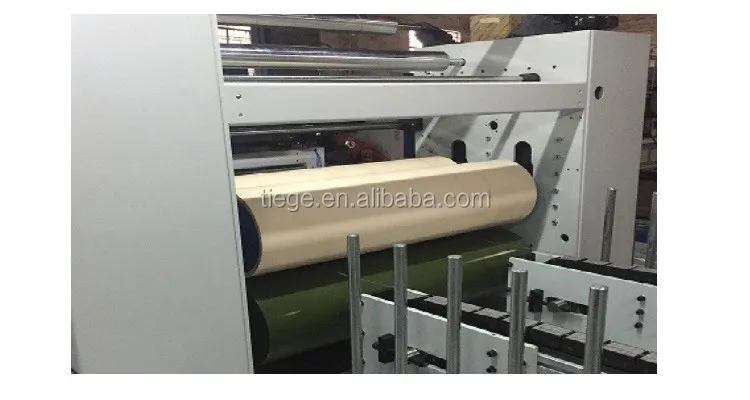

Two groups laminating machine.

Two groups rubber roller in diameter Φ240mmx 900mm(length),the upper rollers are silicon roller,the bottom roller is steel roller,the surface with telfon.
