2 ton model asphalt mixing plant mobile asphalt mixing plant asphalt recycling 100% for road repair asphalt mixer

Supplier: Shandong Youyi Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr yu Wang
Price: $30000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 year	Showroom location:	Malaysia, Australia
Product name 5:	Waste asphalt recycling for road maintenance	weight:	2.5T
port:	Qingdao	Core components:	engine, motor
Mechanical test report:	if	Dimensions (LWH):	957025003180mm
Packaging Details:	Bare/or plastic film wrapping; Mobile, machine repairing road maintenance machinery; Road maintenance machinery------ 13 major equipment advantages 1. Equipped with large capacity heat transfer oil heating asphalt tank 2. Equipped with imported diesel burners 3. Equipped with small Storage bin 4. Equipped with hydraulic reclaimed material lifting device 5. Equipped with roller support 6. Equipped with hydraulic outlet 7. Equipped with double stirring bins, double heating, to ensure the stirring temperature	brand:	entertainment
Local service location:	Malaysia, Australia	application:	Road Pot Repair/Maintenance
Product name 2:	Multifunctional road maintenance machinery	payment terms:	letter of credit, wire transfer
Marketing Type:	Hot Products of 2019	Certification:	ISO9001
Voltage:	220V	strength:	310W
Unique Selling Points:	Recycling of old and new asphalt concrete	After-sales service provided:	Video technical support, online support, free spare parts
Supply capacity:	20 pieces per month	Health status:	new
place of origin; place of origin:	China	Packaging Preview:
Core Components Warranty:	1 year	Product name 1:	Multifunctional road repairing machinery
Video external inspection:	if	After Warranty Service:	Video technical support, no service, online support, spare parts, on-site maintenance and repair services
Product name 3:	Road / Pavement Asphalt Crack / Pothole Repair	Applicable industries:	Construction engineering, road repair machinery
Product name 4:	Asphalt recycling for road repair

2 ton model asphalt mixing plant mobile asphalt mixing plant asphalt recycling 100% for road repair asphalt mixer

Road Repair Plant Construction Machinery Road Repair Pavement Refurbishment Asphalt Mixer Moving Road

Road Asphalt Mixing Plant Road Maintenance Machinery Pavement Asphalt Mixer Asphalt Plant

system	thing	technical parameter
Heating system	Stirrer burner power	310kW
	Asphalt Tank Burner Power	100kW
Dust removal system	Dust removal method	Cyclone dust removal + water dust removal
	Dust removal power supply	hydraulic motor
	Dust removal ability	1100m³/h
Asphalt spray system	Asphalt tank capacity	1000L
	Manual asphalt spraying speed	80-100L/min
	Asphalt heating time	1000L/2-3h
	temperature range	120-180℃
Old Asphalt Recycling Tank System	Disposable Recycled Materials	1000kg
	Fuel consumption	4-6L/T
	mixed form	Hydraulic motor drive with reducer Force vertical blending
	Unloading method	Continuous discharge
	Exhaust gas temperature	120-180℃
	heating method	The burner adopts heat-resistant plate + hot air circulation for indirect heating
feeding system	feeding method	Single hydraulic cylinder lifting chain climbing type
	Hopper capacity	300kg
Hydraulic system	System pressure	16Mp
	Hydraulic system rated total flow	140L/min
Emulsified Asphalt Spraying System	Asphalt tank capacity	120L
	Spraying speed	10-60L/min
	High pressure air self-cleaning	0.7Mpa
Caulking and Spraying Units	Adopt automatic cleaning electric heating tube not less than 6m
Equipped with hydraulic cranes, it is convenient for small construction equipment to be transported on the vehicle, such as small road rollers.

Advantages

Waste Asphalt Regeneration for Road Maintenance Vehicles/Road Sealing/Alpha Spraying/Maintenance Machinery

It is a multifunctional road maintenance equipment vehicle mainly integrated

3 functions in one!

^{1: Road repairing machine: this car with road repairing machine as its main function}

^{(Rehabilitation of roads using the mixed recycling function of waste)}

^{2: Road crack- Sealer: sealing and repairing of road gaps/cracks}

^{3: Alphalts spray function}

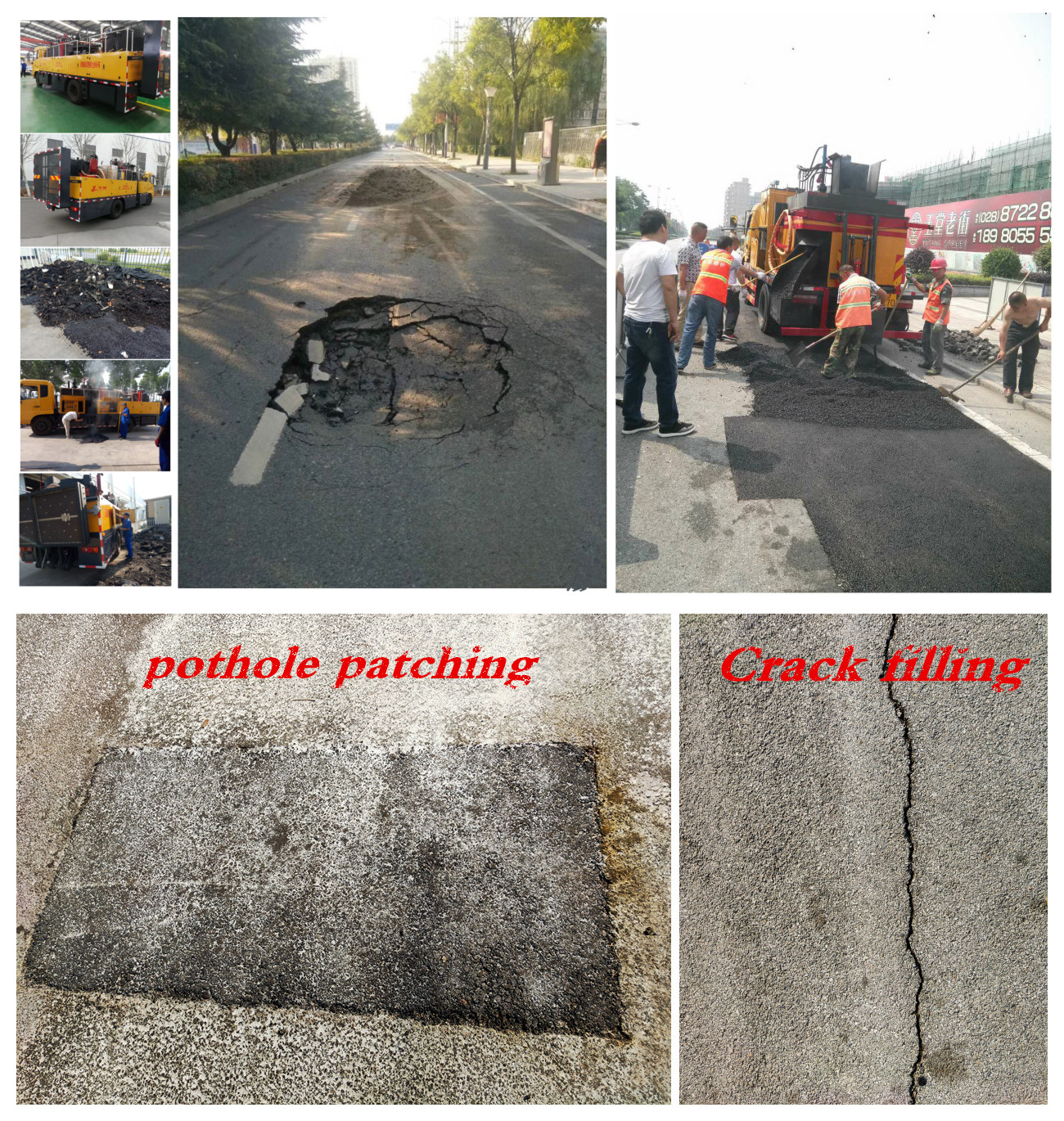

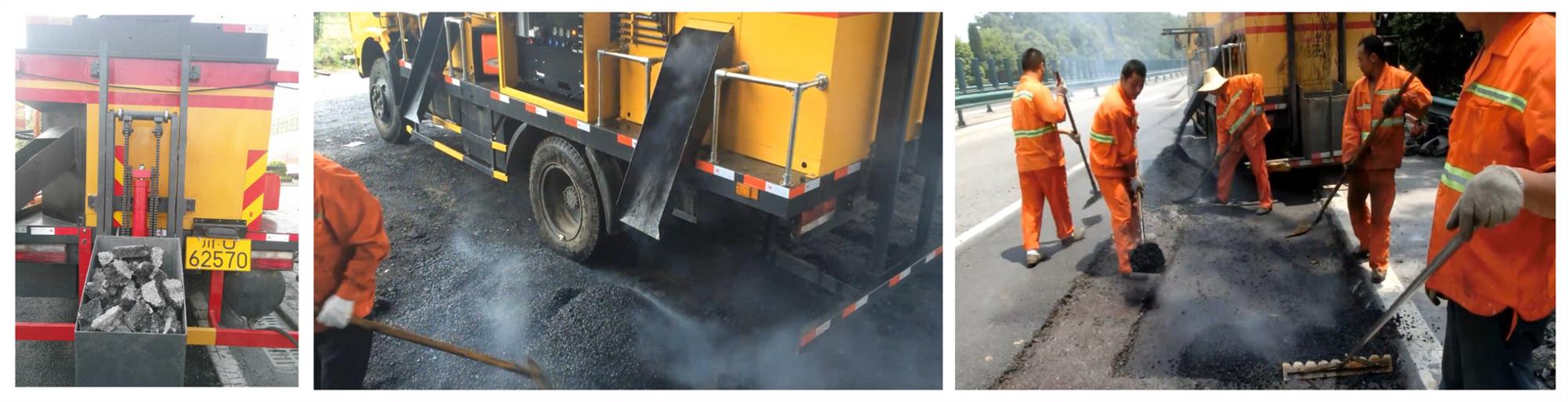

road maintenance site

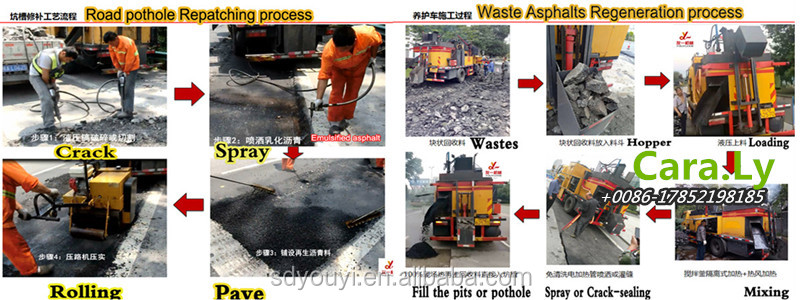

Road Restoration Repair Equipment/Trucks/Vehicles with Waste Asphalt Recycling Road Restoration Theory Road Restoration Theory Road Restoration Theory Road Restoration Theory

Road Maintenance Theory

3. The regeneration function of waste asphalt can be recycled:
