Liyuan series high/low power automatic AC water pump control box solar water pump controller

Supplier: Guangdong Jiangmen Liyuan Pump Co., Ltd.
Region: Guangdong, China
Contact: Ms Scarlett tu
Price: $29.90 / 1 - 49 pieces
$25.90 / 50 - 99 pieces
$19.90 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	pear orchard	Rated input voltage:	AC 220V/50/60HZ
Certificate:	ISO9001, CE	model:	LYC1-S2
type:	centrifugal pump	motor:	AC Pump/Motor
Output current:	0.37-2.2KW	Single package size:	17X18X8 cm
output type:	Simplex	Warranty:	1 year, 1 year
Rated output:	0.37-2.2KW	Name:	water pump controller
product name:	water pump	Sales unit:	single product
Gross weight per piece:	2.500 kg	Voltage:	220V
Protection class:	IP54	place of origin; place of origin:	Guangdong, China

1. Liyuan pump series is a high-performance wear-resistant submersible electric pump produced by introducing advanced pump-making technology from Italy and the United States. The drive part adopts American and Italian submersible motor standards.

2. The fuselage is made of stainless steel, and the lamp core is made of high-quality wear-resistant alloy and composite stainless steel material, and is equipped with a special multi-layer alloy wear-resistant bearing structure and wear-resistant rubber friction.

3. The pump has the characteristics of small diameter, large flow, strong adaptability, sand control, wear resistance, long life, energy saving and so on. It is an ideal equipment for pumping water in industry, household drinking water, agriculture, geology, hydrology and precipitation engineering.

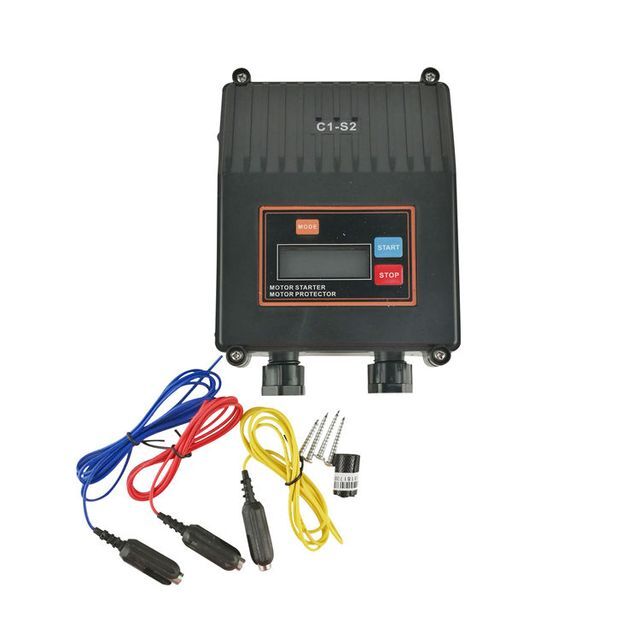

CI-S2

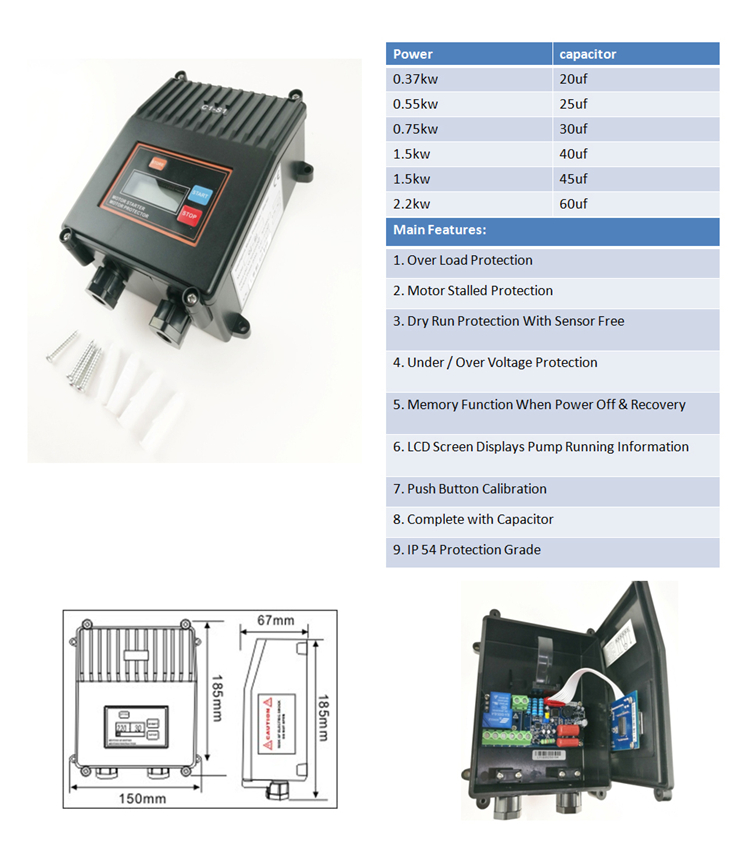

Main Specifications:

Rated input voltage: ac220v/50hz, single phase

Rated output power: 0.37kw-2.2kw (0.5hp-3hp)

Protective function:

Overload protection

Undervoltage/Overvoltage Protection

Motor stall protection

Sensorless idling protection

Main Fartures:

Control characteristics: pulse electrode probe/float switch/point contact pressure gauge/pressure switch
Display function: high-definition LCD full English dynamic display
Control mode: manual/automatic control
Full protection for both manual and automatic
Last 5 failed record queries
Check the cumulative running time of the pump
Spindle anti-embroidery point program
error alarm
One-click quick setting
Quickly add water when power off
Liquid level transmission distance: ≥200m
set status indicator

describe	Submersible pumps, submersible motors
Card	Liyuan, ATA
Specification	1", 2", 3", 4", 5", 6", 8", 10"
Moderate	Shimizu
Motor Power	Single Phase: 0.3Hp to 3Hp; Three Phase: 0.3Hp to 200Hp
Voltage	110V - 440V
frequency	50Hz -60Hz
pump impeller	plastic, stainless steel, cast iron
Motor top cover	copper, cast iron, stainless steel
Motor rotor and stator	100% copper wire
Max head	1000 meters
pump outlet	1", 1.25", 1.5", 2", 3", 4", 5", 6"
strength	municipal, solar
use	Home, farming, irrigation, industry.

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A1: Yes, we are the manufacturer.

Q2: Can you do OEM brand?

A2: Yes, we can do OEM brand.

Q3: Can you accept customized products?

A3: Yes, we can accept customized products. If you can provide us with your special requirements or special samples, we have a strong R&D team to accept your specific order.

Q4: What is the delivery time?

A4: Delivery time is 15-30 days
