Bule DC/AC 7500W Hober Technology Hybrid MPPT IP65 Solar Water Pump Inverter

Supplier: Shenzhen Hober Technology Electronics Ltd
Region: Guangdong, China
Contact: Ms Orange Zhou
Price: $550.00 / 1 - 9 pieces
$538.00 / 10 - 29 pieces
$525.00 / >=30 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	10000pcs solar water pump inverter per month	Output frequency:	0-50/60Hz
payment terms:	L/C, Western Union, T/T, Paypal	Solar water pump inverter operation:	automatic
brand:	Hope	Output current:	18A
port:	Shenzhen, China	type:	DC/AC Inverter
Packaging Details:	Solar water pump inverter packaging: carton + foam box	Solar water pump inverter color:	blue
Origin:	Guangdong, China	model:	HSPL7500H
intellectual property:	65	output type:	three times

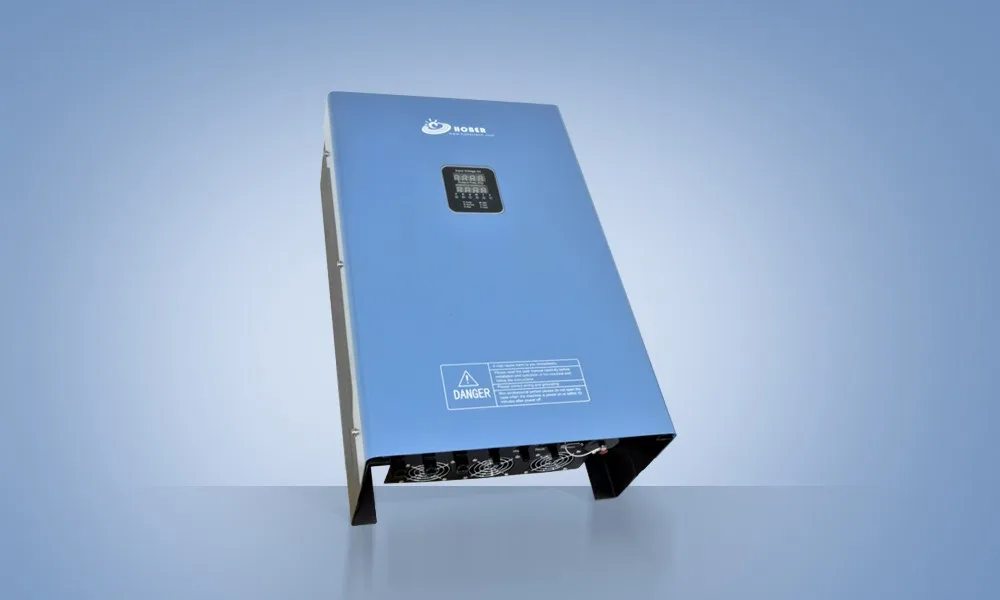

7500WThree Phase AC Solar Water Pump Inverter

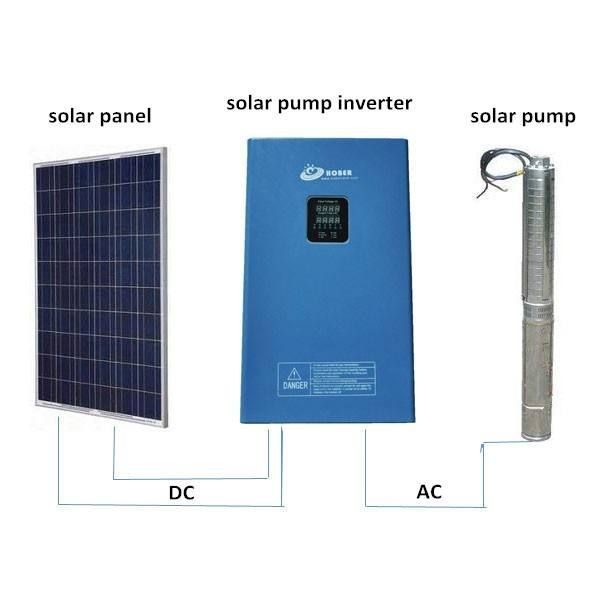

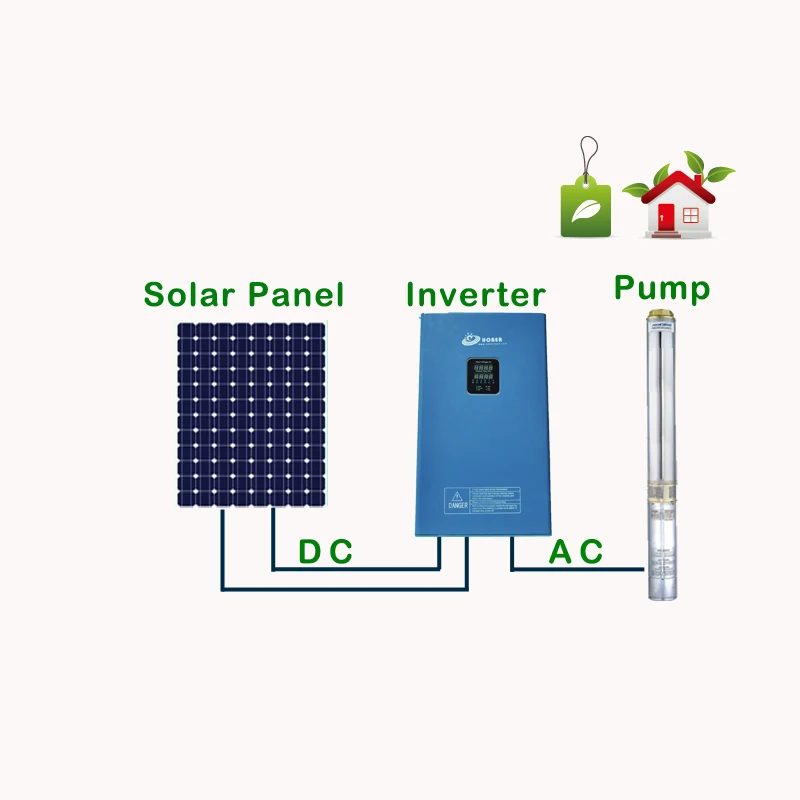

1. The solar water pump system consists of 3 parts:

1. Solar panels

2. Solar water pump inverter

3. AC water pump

2. Product introduction:

Main functions of solar water pump inverter:It converts DC power into AC power to drive the water pump, and adjusts the output frequency in real time to achieve maximum power point tracking.

3. Product features:

1. Suitable for water pumps using three-phase asynchronous motors;

2. Dynamic VI adopts the maximum power point tracking algorithm, which has fast response speed, good stability, and MPPT efficiency of 99%;

3. Fully automatic operation, the speed range of the pump can be freely set according to the actual situation

4. Using high-efficiency SVPWM algorithm, the reliability of the main circuit is high, and the conversion efficiency can reach up to 98%;

5. Intelligently identify the input voltage range, no need to manually adjust the open circuit voltage and maximum power point voltage

6. There is no automatic operation button, only one switch to control stop and start;

7. The maximum flow rate supports manual control to prevent repeated shutdown and startup when there is little water or less water demand

8. The protection motor has complete functions, and the upper and lower water level monitoring control circuits can be selected to prevent dry pumps or overcurrent pumps;

9. Aluminum alloy shell, protection grade IP52, ambient temperature: -20°C~+50°C

10. Wide input voltage range allowed, L type 200-450Vdc, H type 460-750V

11. With over-voltage, over-current, over-temperature protection

12. Input anti-reverse connection function

13. Small size and light weight

4. Product advantages

Solar water pump off-grid inverter converts DC power (from solar panels) to AC power to drive the water pump

1. MPPT(99.9%) + VFD (Variable Frequency Drive) to improve the efficiency of the AC water pump

2. Adopt efficient SVPWM algorithm (98%)

3. Fool-like operation, no need to set any parameters, just one knob

4. Wide input voltage range

5. GPRS communication, telephone/computer monitoring control

6. Support AC switch, mixed DC and AC input.

7. Overvoltage, overcurrent, overtemperature, short circuit protection pump function

8. OEM service, design service, buyer label service

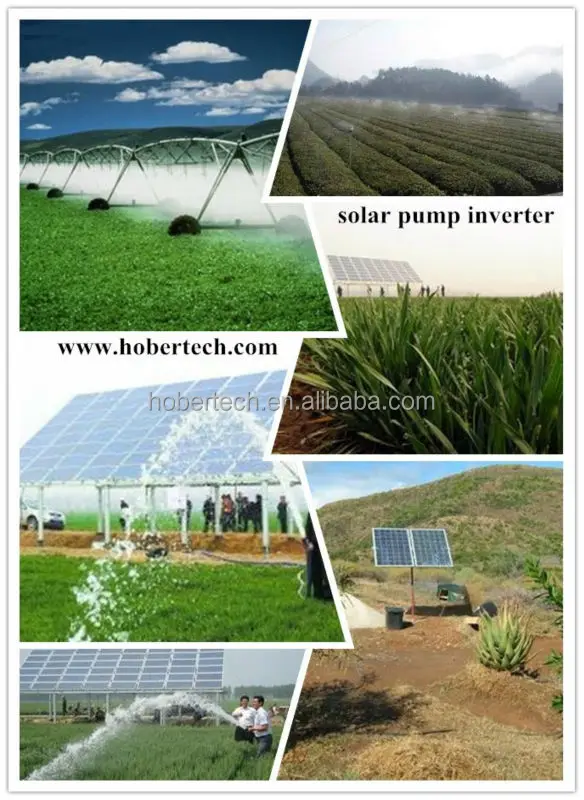

5. Applications include:

a) Domestic water for residents

b) irrigation

c) Desert Control

d) Livestock

e) Water application island

f) watering livestock

g) Water treatment engineering, etc.

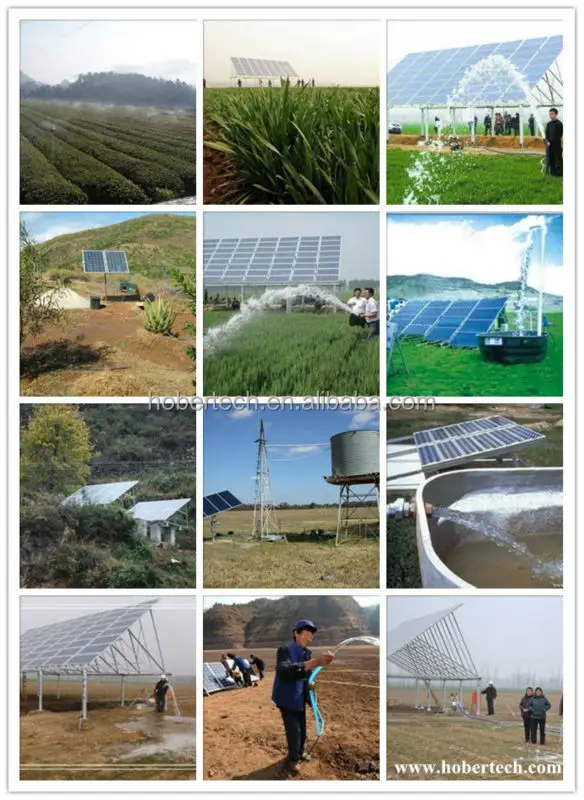

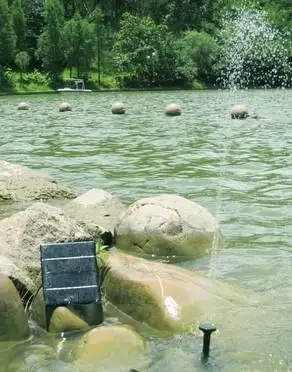

6. Application:

7. Product parameters:

Technical Parameters		HSPL7500H
Solar panel DC input	Rated power (W)	7500W
	Minimum DC input voltage (V)	400V
	Maximum DC input voltage (V)	780V
	Recommended Vmp	≥500V
	MPPT efficiency	>99%
Mixed AC input	Voltage	380V three phase
	AC switch	automatic
Hybrid battery input	Voltage	480V
AC output	The output voltage	380V three phase
	Output frequency(Hz)	0~50~60
Water level sensor (water tank)		Yes
GPRS monitor		Elective
exhibit		LCD display shows Pin/Iin/Vin/Iout/Freq
protection level		IP65
protection type		DC input low/overvoltage DC input reverse connection Output overload, output short circuit overheating Tank empty/full sensor (tank empty and tank full) Lightning phase loss dry run automatic
Operating environment:	Noise (1 meter)	<50dB
	Working temperature	-10 to 60 degrees Two fans start running at 50 degrees internally

	humidity	15%-+95%RH
	Use height (m)	<4000 Altitude higher than 1000m please consider using less load)
	others	Prohibited installation locations: direct sunlight, dense dust, corrosive gas or oil mist, flammable gas, liquid, etc.
Suitable pump	life value	≤10HP
	Rated power (W)	≤7500W
	Rated frequency (Hz)	0~50~60
	Rated voltage (Vac)	AC-380V -3 phase

8. About us:

Haobo Technology is a high-tech company specializing in the design, development and sales of solar energy systems and embedded systems. It was established in 2006. The company has inherited rich experience in the solar energy and embedded field, and has achieved remarkable results in this field with computer technology, advanced management methods and operation modes, and has a strong influence in the company's field.

9. Returns and Warranty

•The item has been strictly inspected and in original condition before shipment.

• Warranty: 7 days money back / 2 years repair.

Returns are accepted within 7 days of buyer receiving the item.

If the item is defective upon receipt, the customer may exchange it for a new item or return the item for a full refund within 7 days of receipt.

If you're not completely satisfied with your purchase, you can return it to us for a prompt exchange, or we'll refund your money.

However, if you are simply dissatisfied with the item and not a defect or quality problem in the way, the shipping fee will not be refunded.

Please understand that shipping and handling charges are non-refundable. The buyer is responsible for the shipping costs incurred to ship the product back
