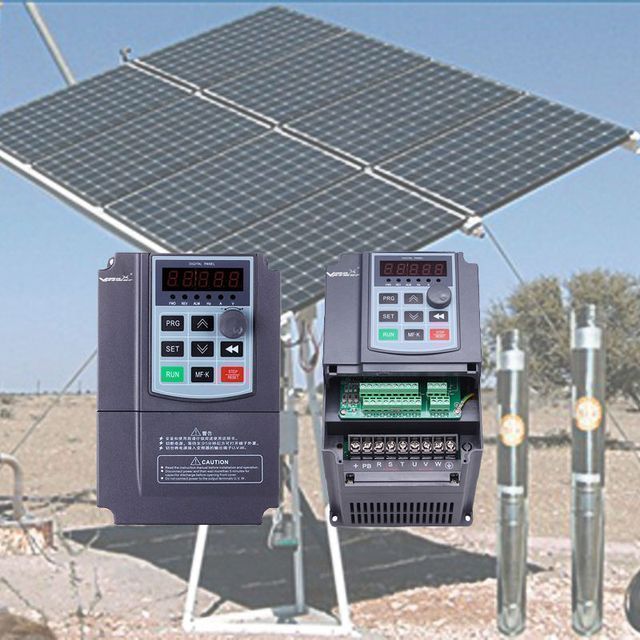

7.5KW Three Phase DC/AC Input to AC Output MPPT Controller Solar Pool Pump Inverter for Submersible Pump and Surface Pump

Supplier: Beijing Multifit Electrical Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Victor Yu
Price: $172.00 /set
Min. Order: 1 set

Click here to contact

Product details

Features:	slow start	application:	agricultural irrigation
Processing:	accept customization	Certificate:	CE ISO9001, CE/RoHS/ISO 9001
brand:	V max power	Single package size:	40X30X30 cm
Output current:	17A	product name:	Solar water pump inverter
Protect:	overload	model:	MTLS-7K5KWP-4T
Sales unit:	single product	Gross weight per piece:	10.000 kg
Package preview:		stage:	Three-phase 380V
exhibit:	LCD Monitor	Output frequency:	50Hz/60Hz
Warranty:	2 years, 2 years	output type:	380V-460VAC
place of origin; place of origin:	Guangdong, China	Inverter type:	AC DC Inverter
Packaging Details:	Carton

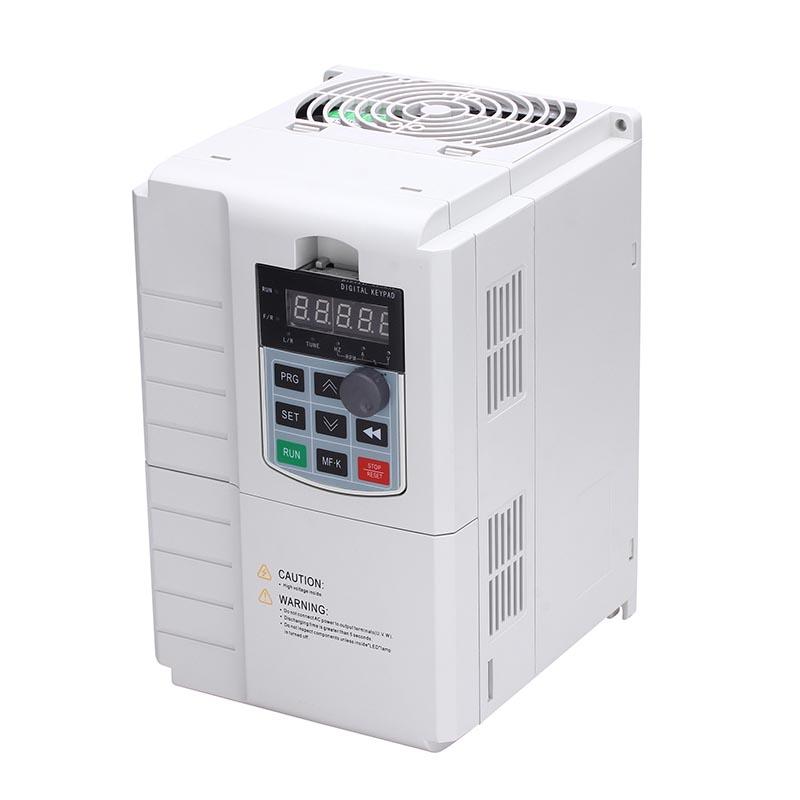

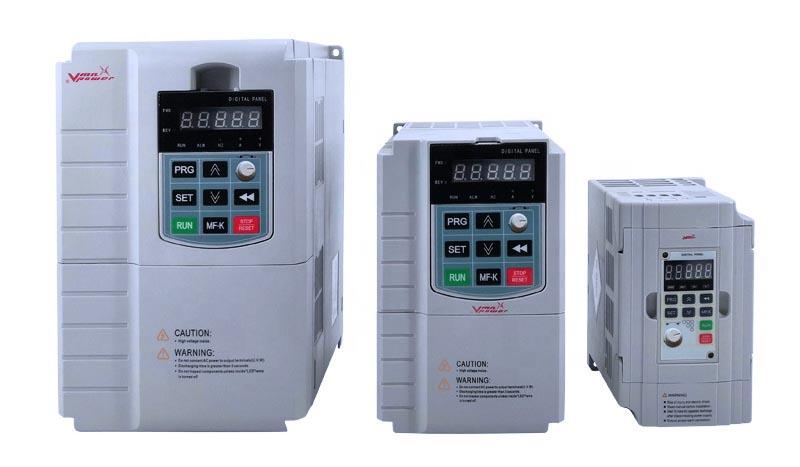

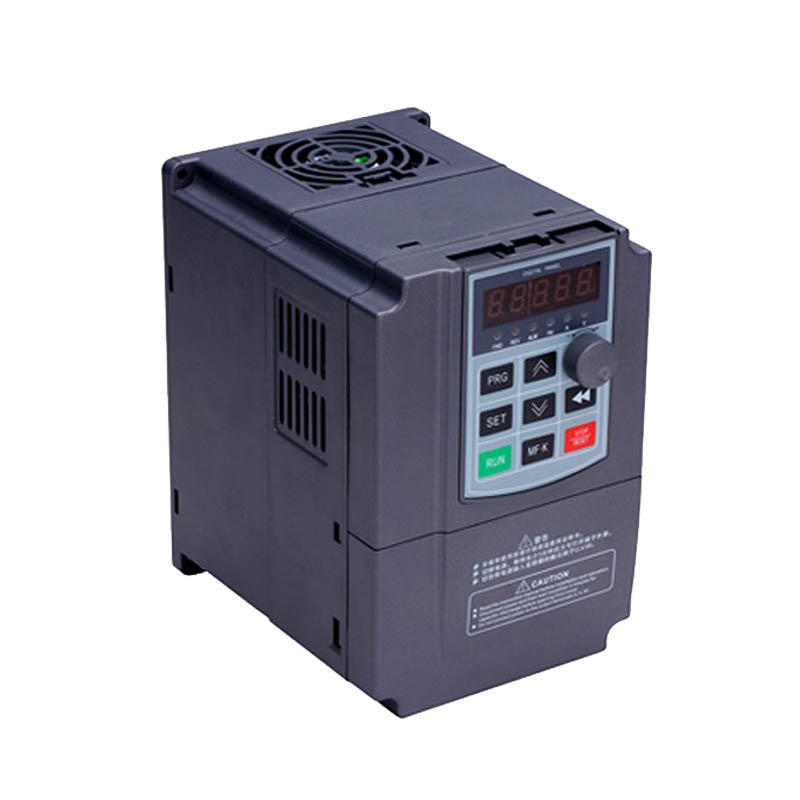

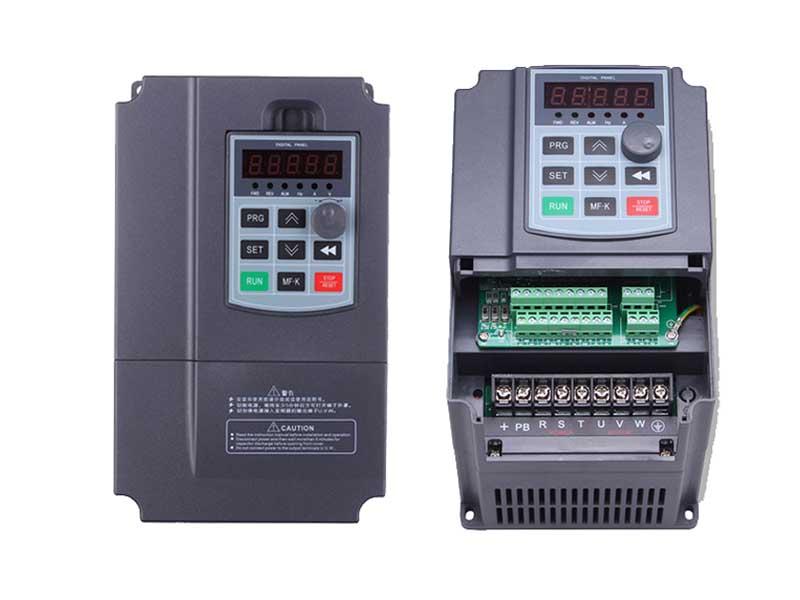

Solar water pump inverter

Product Description

software design

1. Dual power supply mode - solar DC and grid AC compatible

2. Compatible with all pumps, IMs and PMSMs

3. Trial run function

4.Automatic start and stop

5.Pump maximum current protection setting

6.Water tank level detection function

hardware design

1. Dual CPU innovative design

2. Good ventilation and low temperature

3.Full fault protection design to ensure that the IGBT is not damaged

4.Infineon IGBT Module

5.Long-term service life design

6. GPRS remote control is optional

feature

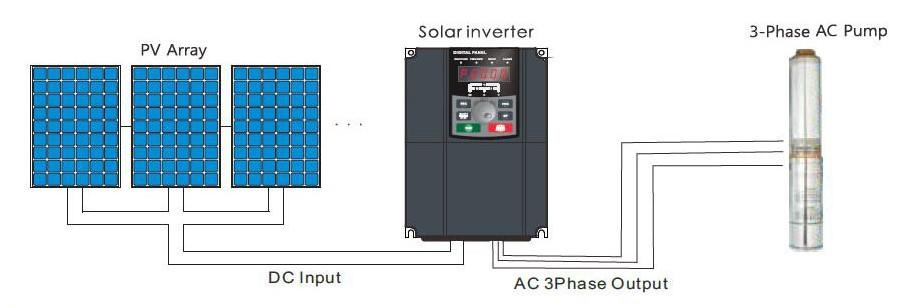

* The solar water pump inverter adopts advanced MPPT control technology to detect the power supply voltage of the solar panel in real time, track the highest voltage and current, and the efficiency is as high as 98%.

* It can automatically enter the sleep mode when the sunlight intensity is weak, and automatically exit the sleep mode when the sunlight intensity becomes stronger.

* High water level automatically sleeps, low water level automatically restarts, and realizes automatic water level control.

* A variety of power supply designs, the power input can be solar photovoltaic DC power supply, or
It can be single-phase or three-phase AC power supply, and the wiring is simple.

* Intelligent operation, water level detection and operation panel to prevent overflow and dry pumping.

* Failure self-protection, improve the reliability of the whole system.

Product parameters

Model

capacity

speed

current

Max DC/

Working DC

Dimensions (mm)

Package

Dimensions (mm)

northwest

(Kilogram)

150~450VDC or 200~240VAC input, three-phase 220~240VAC output

MTLS-0K7KWP-2S

0.75KW

450V/ 250~350V

143*86*114

178*133*150

0.9

MTLS-1K5KWP-2S

1.5KW

450V/ 250~350V

143*86*114

178*133*150

0.96

MTLS-2K2KWP-2S

2.2KW

10A

450V/ 250~350V

185*118*157

232*172*212

1.67

MTLS-4K0KWP-2S

4.0KW

13A

450V/ 250~350V

247*160*178

302*212*231

2.9

250~900VDC or 380~480VAC input, three-phase 380~460VAC output

MTLS-1K5KWP-4T

1.5KW

3.7A

900V/ 500~650V

143*86*114

178*133*150

0.9

MTLS-2K2KWP-4T

2.2KW

900V/ 500~650V

143*86*114

178*133*150

0.9

MTLS-1K5KWP-4T

1.5KW

3.7A

900V/ 500~650V

185*118*157

232*172*212

1.6

MTLS-1K5KWP-4T

2.2KW

900V/ 500~650V

185*118*157

232*172*212

1.62

MTLS-4K0KWP-4T

4.0KW

10A

900V/ 500~650V

185*118*157

232*172*212

1.67

MTLS-5K5KWP-4T

5.5KW

13A

900V/ 500~650V

247*160*178

302*212*231

2.9

MTLS-7K5KWP-4T

7.5KW

17A

900V/ 500~650V

247*160*178

302*212*231

MTLS-011KWP-4T

11KW

22A

900V/ 500~650V

247*160*178

302*212*231

3.63

MTLS-015KWP-4T

15KW

30A

900V/ 500~650V

247*160*178

302*212*231

3.63

MTLS-018KWP-4T

18KW

37A

900V/ 500~650V

171*277*180

440*340*310

MTLS-022KWP-4T

22KW

45A

900V/ 500~650V

217*335*190

440*340*310

MTLS-030KWP-4T

30KW

60A

900V/ 500~650V

285*463*225

560*410*350

17.6

MTLS-037KWP-4T

37KW

75A

900V/ 500~650V

285*463*225

560*410*350

19.8

MTLS-045KWP-4T

45KW

90A

900V/ 500~650V

385*600*270

680*525*410

25.3

MTLS-055KWP-4T

55KW

110A

900V/ 500~650V

385*600*270

680*525*410

26.2

MTLS-075KWP-4T

75KW

150A

900V/ 500~650V

385*600*270

680*525*410

26.2

MTLS-090KWP-4T

90KW

180A

900V/ 500~650V

385*600*270

890*610*550

43.7

MTLS-110KWP-4T

110KW

220A

900V/ 500~650V

473*700*307

890*610*550

MTLS-132KWP-4T

132KW

260A

900V/ 500~650V

579*930*375

890*610*550

MTLS-160KWP-4T

160KW

310A

900V/ 500~650V

579*930*375

1040*780*610

150~450VDC or 200~240VAC input, 1 phase 220~240VAC output

MTLS-0K7KWP-21D

0.75KW

450V/ 250~350V

143*86*114

178*133*150

0.96

MTLS-1K5KWP-21D

1.5KW

10A

450V/ 250~350V

185*118*157

232*172*212

1.67

MTLS-2K2KWP-21D

2.2KW

13A

450V/ 250~350V

247*160*178

302*212*231

2.9

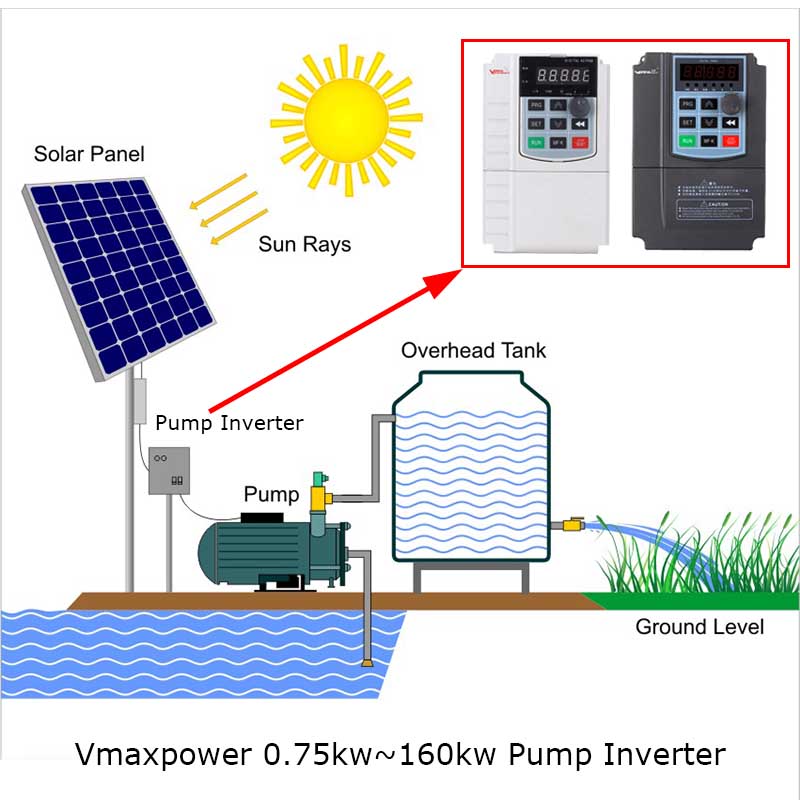

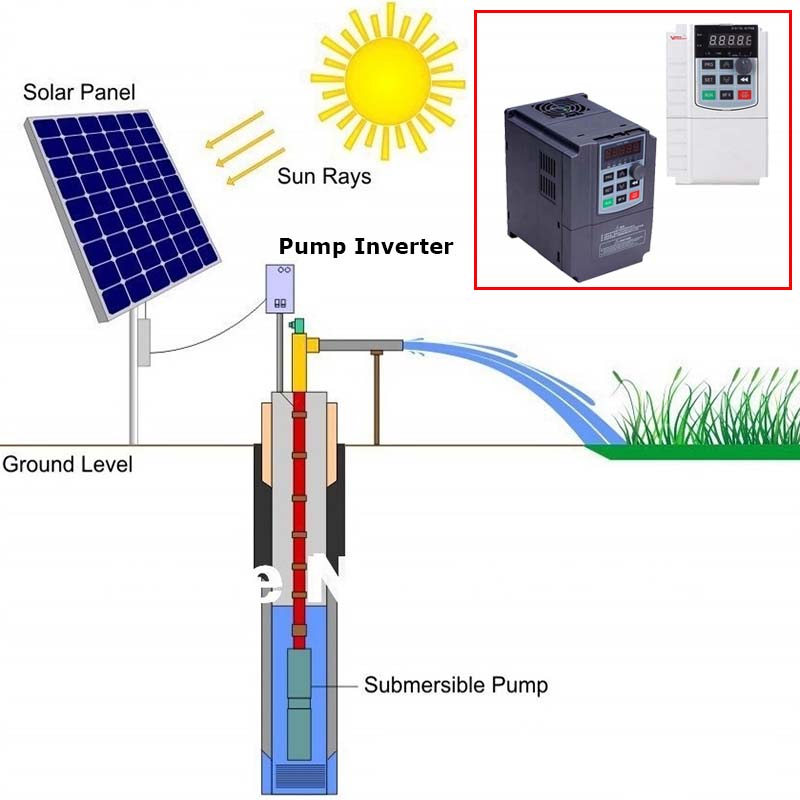

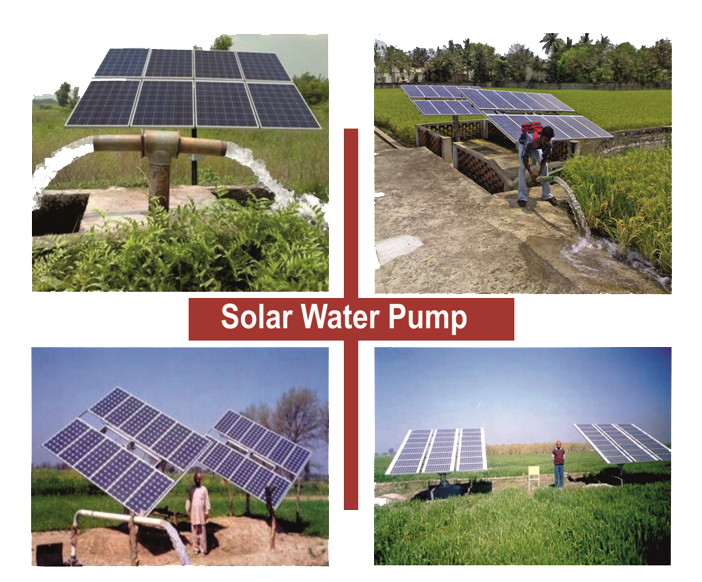

Application of solar water pump system

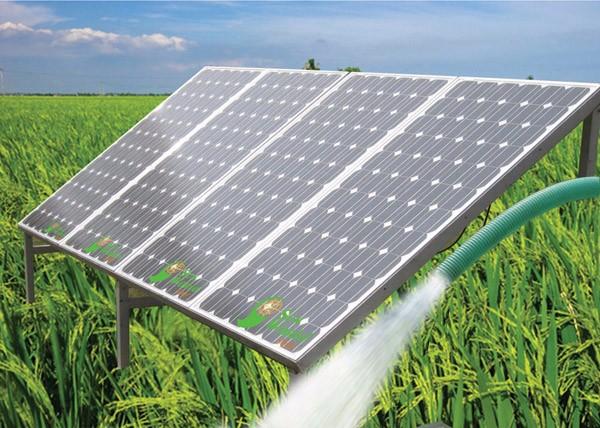

Agricultural greenhouse water supply

Solar agricultural greenhouses use solar modules installed on the roof of the greenhouse to meet the diverse needs of light, irrigation, temperature, ventilation, light, and nutritional supplements, realize the three-dimensional and efficient use of solar energy and land resources, and truly realize the meaning of ecological agriculture and agricultural technology.

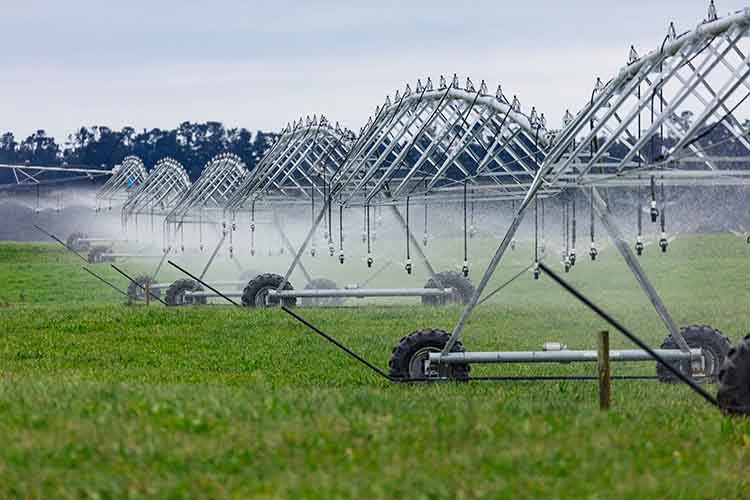

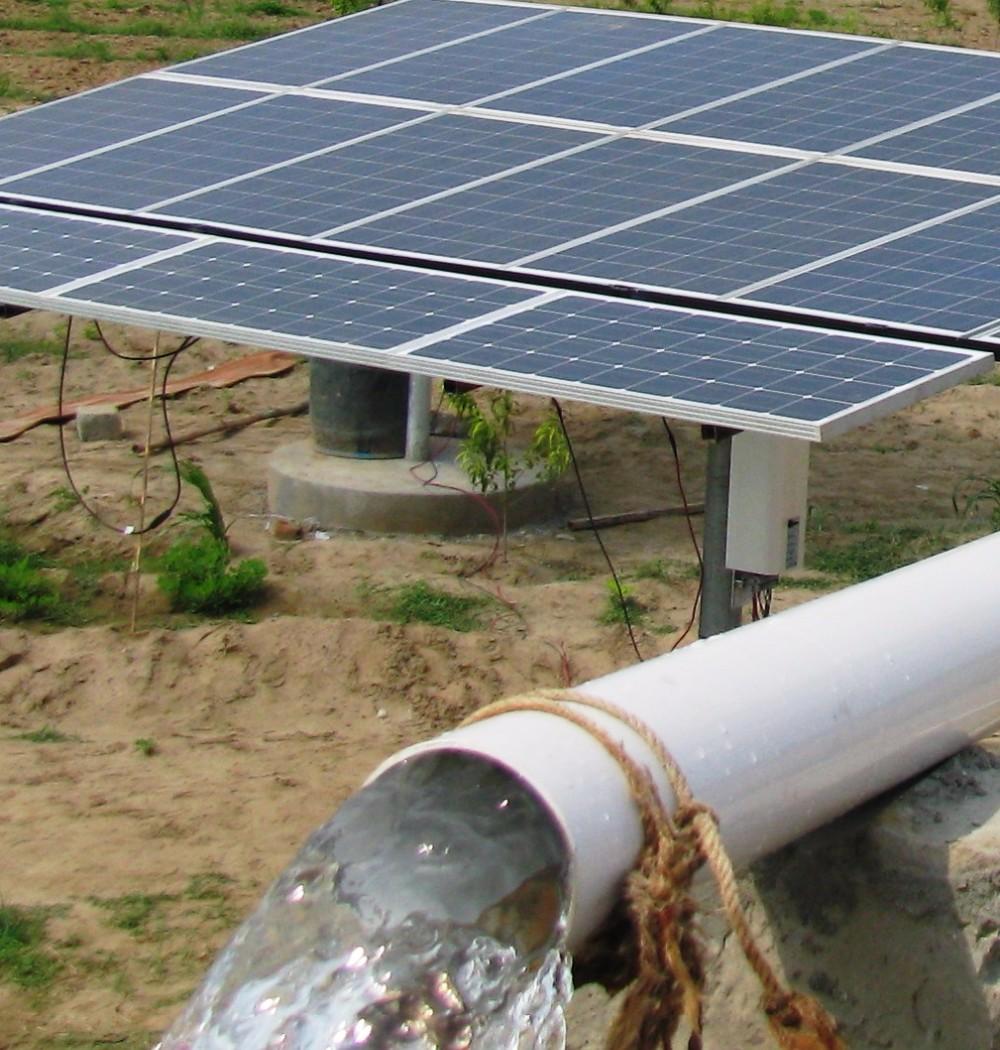

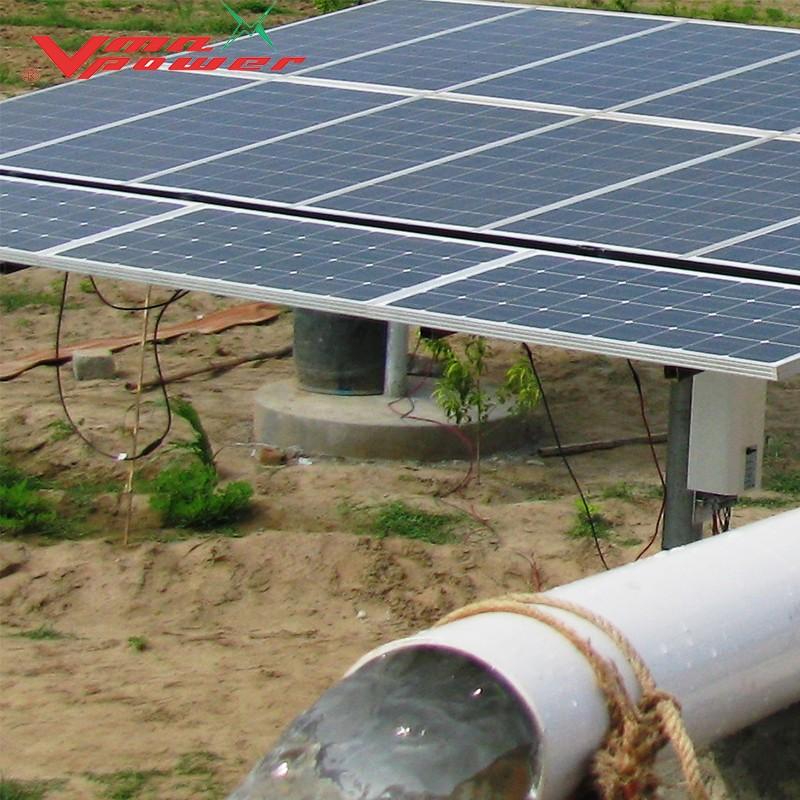

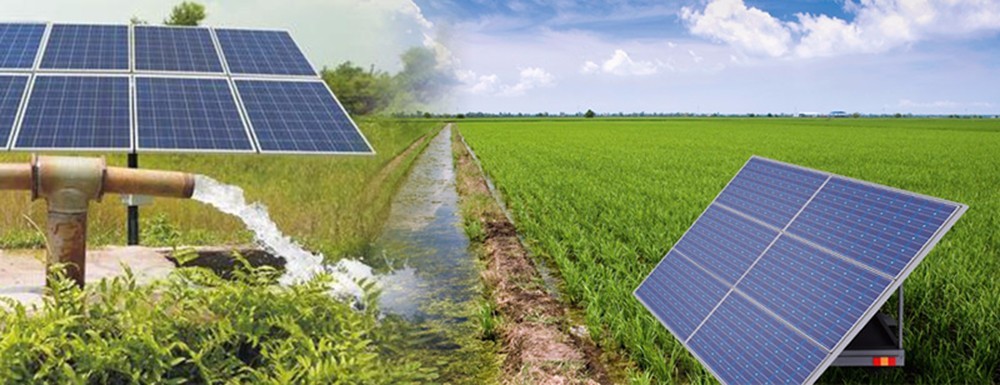

agricultural irrigation

The solar water pump system can effectively provide safe and efficient power supply solutions for remote areas. Can effectively meet the irrigation water demand.

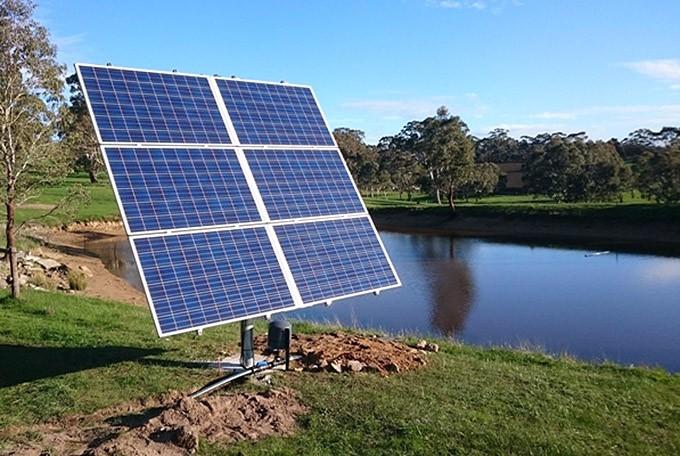

landscape fountain

Solar pumping systems are widely used in outdoor garden ponds, park ponds, artificial grass, swimming pools, etc., which are conducive to the development of garden economy, beautification of parks, construction of colorful fountains, and oxygenation of fish ponds or shrimp ponds.

Certificate

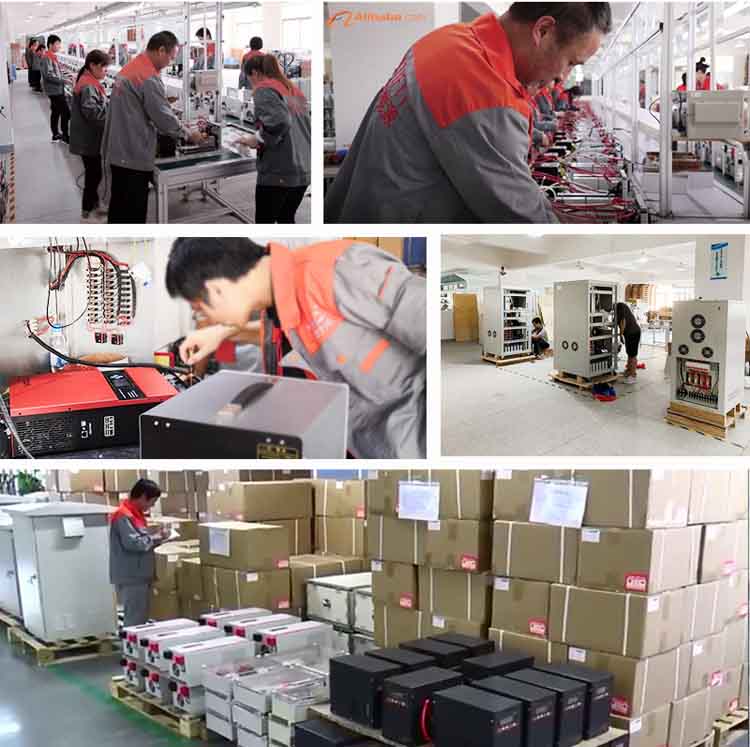

About Multifit

Multifit is an ISO9001, ISO14001 expert, manufacturing TUV, CE, SONCAP and CCC solar products to more than 60 countries since 2009. Covering solar inverters, controllers, solar panels, solar cells, solar cleaning robots, solar street lights, etc.

Multifit has an experienced team in the design and installation of solar systems, whether off-grid or on-grid. This capability helps us better support our customers' ability to win new sales and perform outstanding maintenance.
