0.75kw 1.5kw 2.2kw 3.7kw Solar Water Pump Inverter DC AC 220v 380v MPPT Solar Inverter Without Battery

Supplier: Shenzhen Canroon Electrical Appliances Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Zou
Price: $65.00 / 1 - 99 pieces
$58.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

application:	solar pumping	model:	CV900S-00BG-14TF
Protect:	dry protection	Certificate:	EU CE certification
Sample delivery time:	1-3 days	Protective function:	Overcurrent protection. Overload protection
port:	Shenzhen	Warranty:	18 months
Hybrid:	AC and DC input	Supply capacity:	10000 pieces per month
Bulk order delivery time:	10-25 days	OEM:	Accept OEM logo
Output frequency:	0-300Hz	strength:	0.75 kW
Package preview:		Origin:	Guangdong, China
MPPT (Maximum Power Point Tracking):	99% efficiency	brand:	Canron
output type:	AC output	Solar water pump systems include:	3 modes
payment terms:	L/C, Western Union, T/T	Output current:	2.5A
Packaging Details:	carton or wooden box

0.75kw 1.5kw 2.2kw 3.7kw solar water pump inverter DC AC 220v 380v MPPT solar inverter without battery

Product Description

Model	-12SF	-14TF
AC input voltage (V)	220~260(1PH)	380~480(3PH)
maximum. DC voltage (V)	400	800
Starting voltage (V)	180	280
Minimum working voltage (V)	150	250
Recommended DC	200~400	300~750
Input voltage range (V)	200~400	300~750
Recommended MPP voltage (V)	330	550

Product number

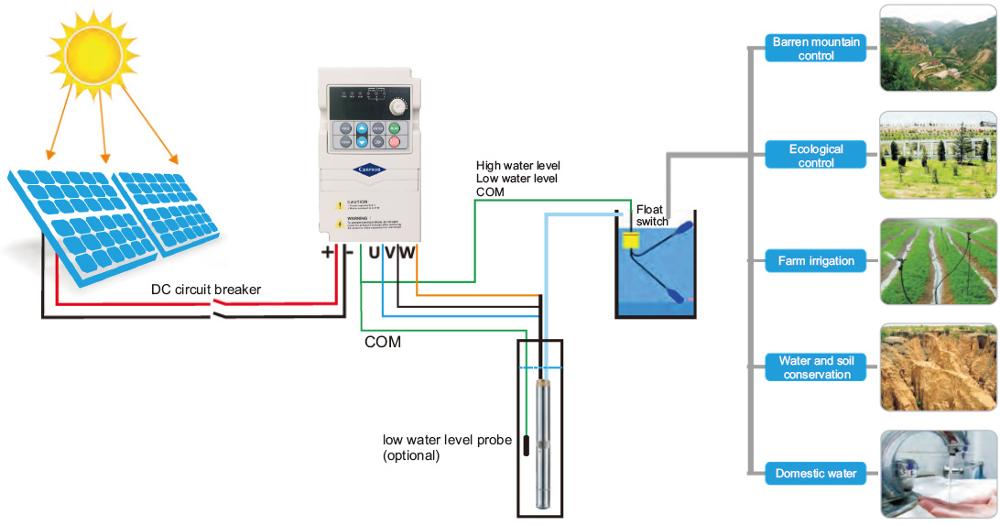

The solar water pump system consists of 3 parts: solar array, solar inverter and water pump.
The CV990 series solar water pump inverter is specially designed and manufactured by Canroon for this system. It uses the electricity generated by the solar panel to power the water pump and deliver the groundwater or water from the river to farmland irrigation, desert greening, garden fountain and other applications.

Three-phase 220-260V output
model.	Rated output power (KW)	maximum. DC input current	Rated output current (A)
model.	Rated output power (KW)	(A)	Rated output current (A)
CV900S-00BG-12SF	0.75	7.5	4.5
CV900S-001G-12SF	1.5	10	7.0
CV900S-002G-12SF	2.2	18	10
...	...	...	...
CV900S-011G-12SF	11	42	11
Three-phase 380-480V output
model.	Rated output power (KW)	Rated input current	Rated output current (A)
model.	Rated output power (KW)	(A)
CV900S-00BG-14TF	0.75	4.5	2.5
CV900S-001G-14TF	1.5	7.5	3.7
CV900S-002G-14TF	2.2	10	5
CV900S-004G-14TF	4	18	9
CV900S-005G-14TF	5.5	20	13
CV900S-007G-14TF	7.5	30	number 17
CV900S-011G-14TF	11	40	25
CV900S-015G-14TF	15	50	32
CV900S-018G-14TF	18.5	60	37
CV900S-022G-14TF	twenty two	80	45
CV900S-030G-14TF	30	100	60
CV900S-037G-14TF	37	119	75

If it is above 37KW, it needs to be produced accordingly, because there is no redundant inventory

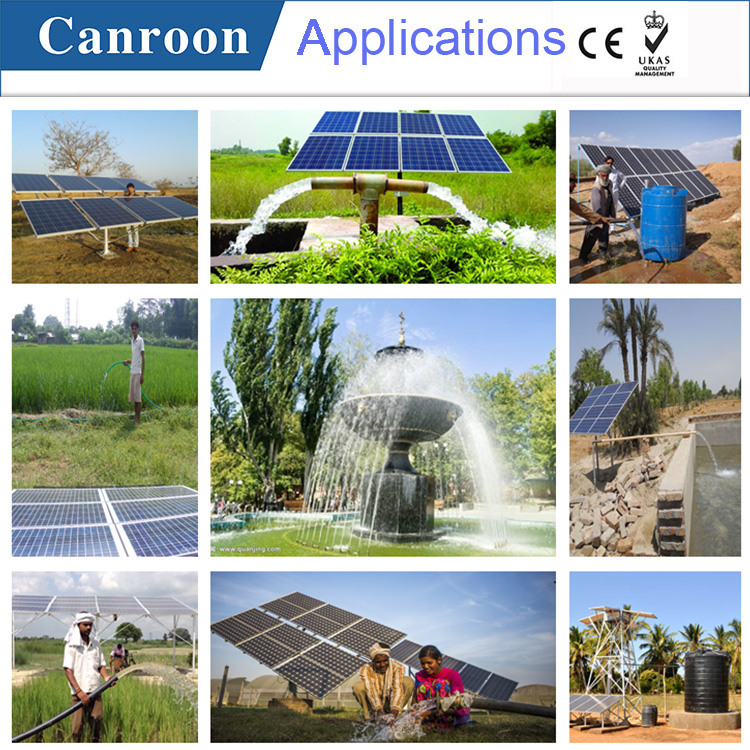

Application field

plant

About Jialong

Canroon is an excellent provider of energy-saving solutions, focusing on frequency converters for more than 10 years, and its products and solutions are widely used in shipbuilding, aviation, automobiles, metallurgy, chemicals, oil pipeline construction, new energy, new energy and other fields.

Materials, new energy and other fields.

Canroon has a professional R&D team dedicated to transforming wisdom into leading products andServices to meet the needs of different customers and continue to create value for customers

exhibition
