Port: | Shenzhen port; | Packaging Detail: | Waterproof carton for computer offline UPS 400-1500VA with AVR; |
Protection: | Overvoltage; | Output Voltage: | 220VAC/120VAC; |
Type: | Standby; | Weight: | 5.42Kg; |
Application: | Computer; | Payment Terms: | L/C,T/T,Western Union; |
Place of Origin: | Guangdong China (Mainland); | Brand Name: | SRUPS; |
Phase: | Single Phase; | Model Number: | KS 500~1500VA; |
Description: | With AVR and CPU control; | Supply Ability: | 10000 Piece/Pieces per Month; |
Product name: | computer offline UPS 400-1500VA with AVR, CE certificate; |

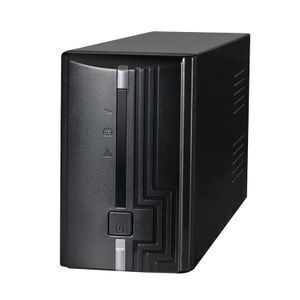

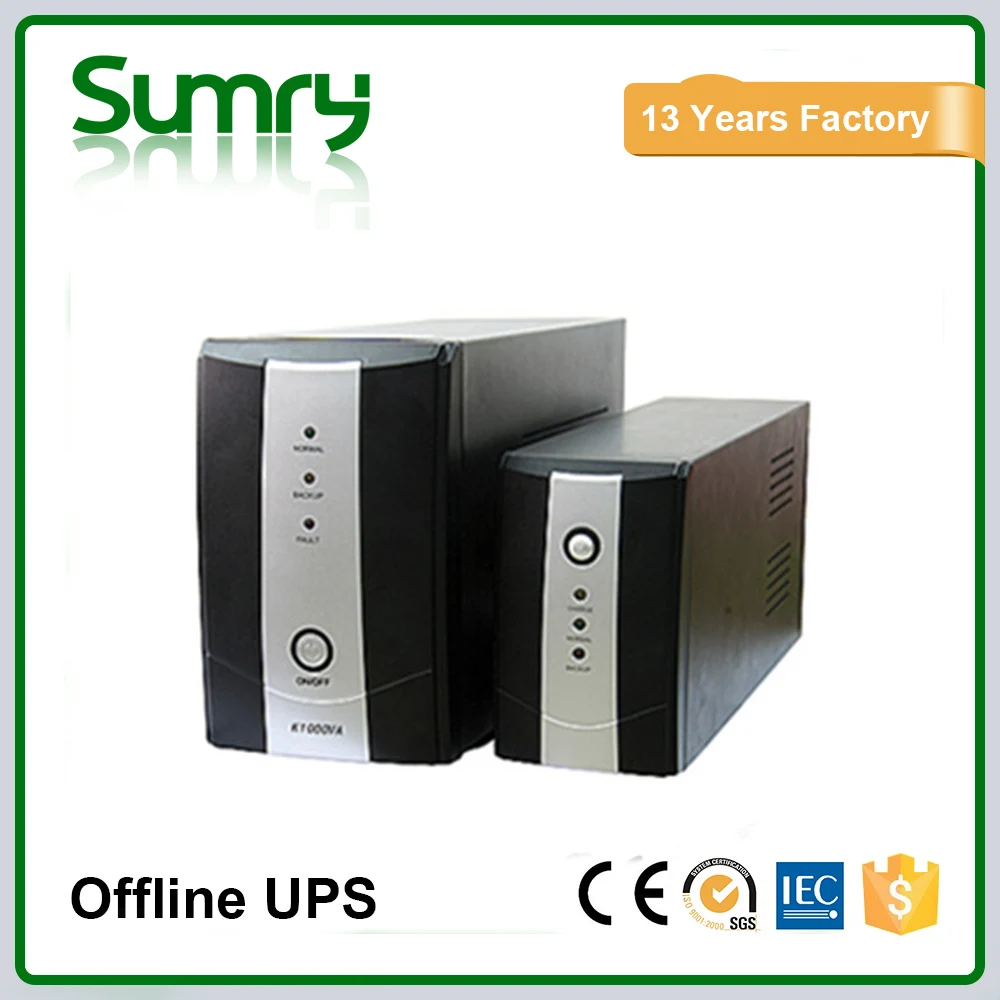

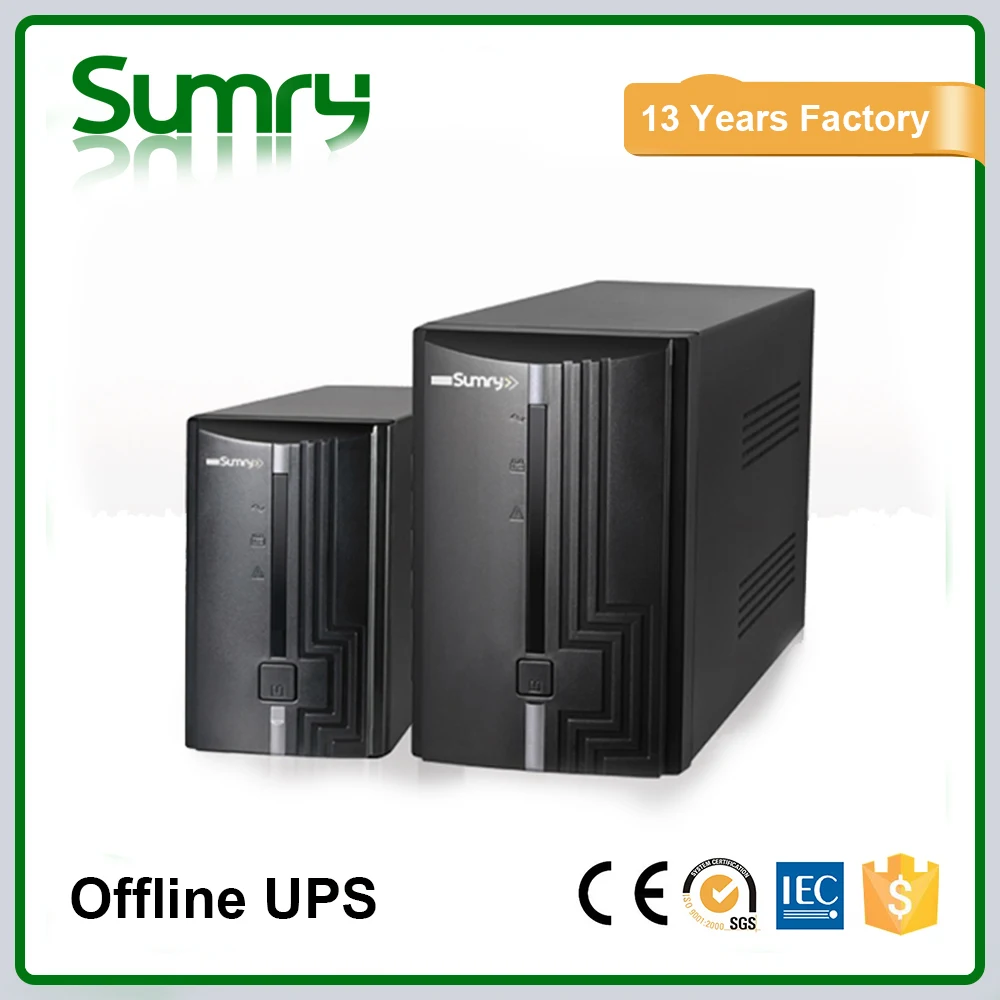

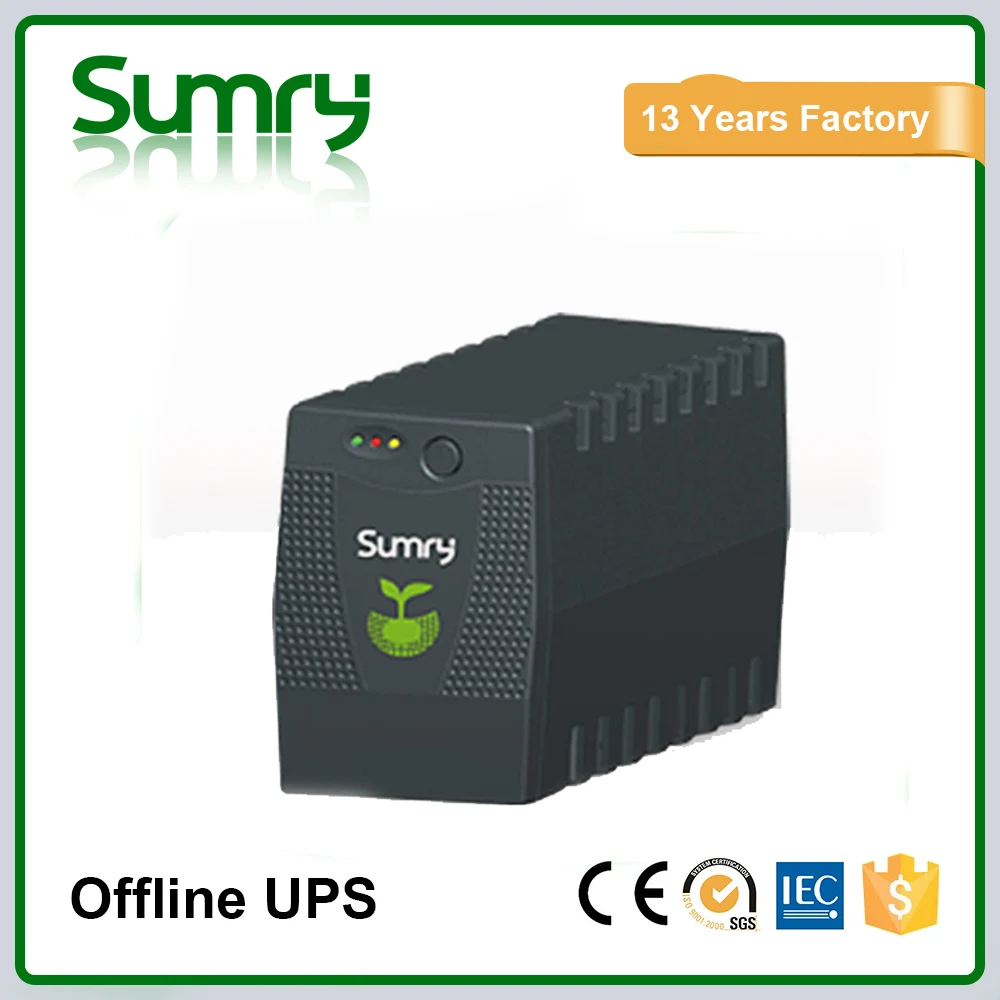

Computer offline UPS 400-1500VA with AVR, CE certificate
Offline UPS Features:
1.Microprocessor control guarantees high reliability
2. Equipped with Boost and Buck AVR to stabilize input voltage
3. Built-in DC start function enables UPS to be started up without AC power supplied.
4. Smart RS-232 Communication Port with Free Download Software from the Internet.
5. Auto restart while AC recovery.
6. Compact size, light weight
7. Provides Modem/Phoneline Surge Protection.
8. Provides Overload Protection.
9. USB, RJ 45/11 Optional
Offline UPS Specification:
Product Series | Offline UPS | ||
Model | KS 500/600 | KS 1000/1200 | |
Rated Power | Battery Power Backup (BPB) | 500VA/300W 600VA/350W | 1000VA/600W 1200VA/700W |
Auto Voltage Regulator (AVR) | 300VA | 600VA | |
Input | Nominal Voltage | 220VAC | |
Voltage Range | 162~286VAC | ||
Nominal Frequency | 50Hz ±5% | ||
Protection | Non-Fuse Breaker (NFB) | ||
Output on Battery | Voltage | 220Vrms ±10% | |
Frequency | 50Hz ±1Hz | ||
Output on Mains | A.V.R | 176~266VAC | |
Battery | Type | Sealed Lead-Acid, Maintenance free (Panasonic) | |
Backup Time | 10 min / 18 min | ||
Recharge Time | 4-6Hours max. | ||
Overload Capability
| Line Mode | BPB: 110% for 1 min, 130% immediate shutdown | |
AVR: NFB | |||
Battery Mode | BPB: 110% for 10 sec., 130% immediate shutdown | ||
LED indicators | Type | Red and Green LED | |
Status | Normal , Back up, Overload, Fault | ||
Audible Alarm | Battery discharge | Beeping sound every four seconds after utility power fails. Every second if battery approaches final discharge | |
Fault | Continuous beeping sound | ||
Acoustic Noise | At 1 meter distance | < 45 dBA | |
Output Receptacles | Type | IEC320 or NEMA5-15R | |
BPB | 3 pieces | 4 pieces | |
AVR | 2 pieces | ||
Network Surge Protection Port | RJ45 Connector | Network (RJ45) or Fax/Modem (RJ11) compatible jacks | |
Communications | DB-9 Port | ||
Environmental | Operating Temperature | 0 ~ 40°C | |
Relative Humidity | 20% ~ 90% Non-condensing | ||
Weight | Net/Gross (kg) | 4.8/5.3 | 8.3/10 |
Dimensions | W x D x H (mm) | 425 x 400x 455 | 422 x 364x 475 |
Sunray's Quality Policy
Qaulity is a system, quality is a project,it can contains all the activities of the whole factory,Suray's belief is "behave
ourseleves firstly, then keep the materials &produce in good level, finally assure the products's quality.everyactivity
effect the quality, so every one is the QC staff in factory.
All the running of Sunray Company is compliant with the ISO9001-2008 and ISO 14001-2004
What are you waiting for? pls no more hesitate to give us an inquiry now!
Production Machinery: | ||||
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Wave Crest Soldering Machine | FM-350 | 2 | 5 | Acceptable |
Chip Surface Mount Machine | SM451 | 1 | 5 | Acceptable |
Reflow Soldering Machine | RD-RF-8820PC-C | 1 | 5 | Acceptable |
Testing Machinery: | ||||
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Oscilloscope | TDS-2014C, TDS-340, DSO-X | 18 | 4 | Acceptable |
Data Acquisition / Switch Units | Agilent & 34970A | 2 | 4 | Acceptable |
Manufacture Defects Analyzer | TR518FE | 2 | 3 | Acceptable |
Temperature & Humidity Programmable Chamber | SANMON | 1 | 2 | Acceptable |
DC Power Supply | GPC-6030D | 12 | 4 | Acceptable |
R / RCD Load | 3KM | 1 | 2 | Acceptable |
Drop Tester | ZH-AS-100 | 1 | 2 | Acceptable |
Vibration Testing Machine | ZH-520 | 1 | 2 | Acceptable |
AC Standard Meter | PF2010S | 1 | 2 | Acceptable |
Why choose us?
1. 11 years gold credit supplier on Alibaba.
2. 13 years UPS and Power Inverter export experiences.
3. 14 years UPS and Power Inverter manufacturer experiences.
4. 13years of high-level OEM experience.
5. 5 production lines
6. 400 employees.
7. 10,000 square meters factory size (Sq.meters)
8. 80,000pcs monthly capacity
9. Export percentage: 90%
10. Hi-tech advanced R&D team with 32 senior engineers .
11. Certifications--applied with CE,SONCAP, ISO 9001, ISO14001 etc
12.Quality guarantee—warranty.
