Customizable factory direct sales of high quality mine slurry irrigation and concentration tanks

1. Equipped with a degassing chamber to prevent dirt from adhering to the air bubbles and forming a parachute phenomenon.
2. The ore inlet pipe is located below the liquid level to prevent air from being brought into the ore.
3. The feeding box moves down and is equipped with a feeding plate to make the feeding slurry fall evenly.
Stable to prevent rolling phenomenon due to residual pressure of feed.
4. There is an inner overflow weir to make the slurry flow according to the pre-designed route, avoid short circuit and expand the settlement area.
5. The pattern of the overflow weir is made into a zigzag shape, which eliminates the local water absorption phenomenon caused by the unevenness of the overflow weir.
6. The blade is changed from a slash to a curve, the discharge bottom flow density is higher, and the processing capacity is enhanced.

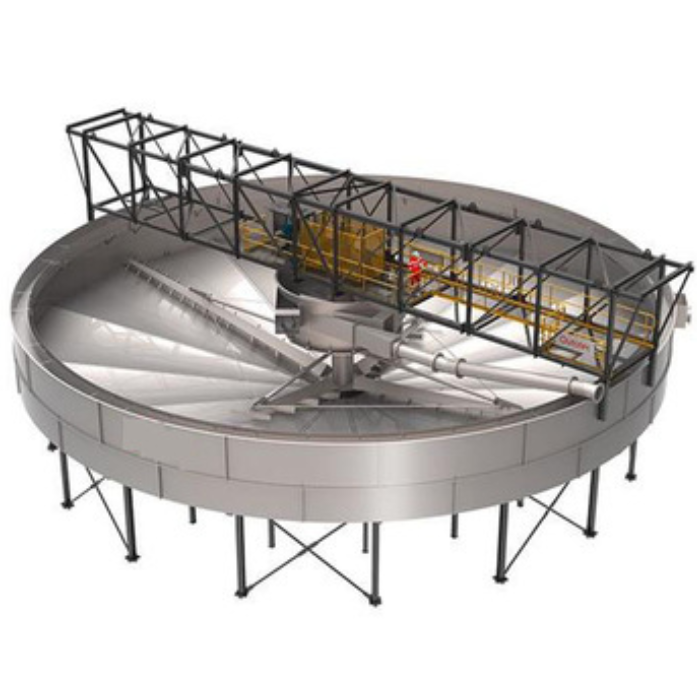

The thickener consists of a circular thickener and a rake scraper. The solid particles are suspended in the thickener and settle by gravity, and the upper ore pulp becomes clear water to achieve separation. The sludge of the sediment at the bottom of the thickener is continuously scraped off by the rake, and the overflow is cleaned up from the upper part.
