Central drive high-efficiency concentration mining machine

Product details
type:Mills, mine thickenersShowroom location:Indonesia, Chile, Malaysia
Core components:engine, motorport:Qingdao or other ports
Health status:new, newVideo external inspection:if
Dimensions (L*W*H):each modelWeight (kg):1000
Warranty:1 yearMarketing Type:New Products 2020
Mechanical test report:ifpayment terms:wire transfer
application:ore, oreAfter-sales service provided:On-site installation, commissioning and training
Production capacity:5~1400t/dKey words:Slurry thickener
Supply capacity:30 sets per monthMotor Type:AC motor
Core Components Warranty:1 yearPackaging Details:Container, bulk or other as buyer's request
color:customizedfeature:long lasting
Applicable industries:Energy and Miningbrand:Jinpeng , Jinpeng
Certification:ISO9001:2008place of origin; place of origin:China (Mainland), Shandong, China
Product Description

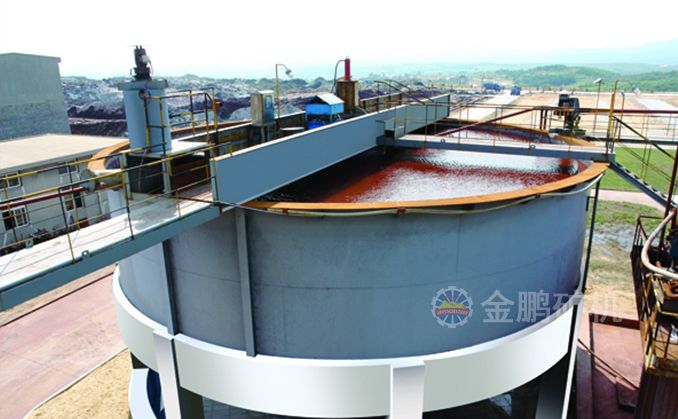

Highly efficient reforming thickener
Compared with the ordinary thickener, the high-efficiency thickener has a large production capacity (the processing capacity can be increased several times). Applicable materials: materials, coal slime, waste water, waste residue, etc.
Scope of application: metallurgy, mining, coal, chemical, building materials, environmental protection and other departments
structure

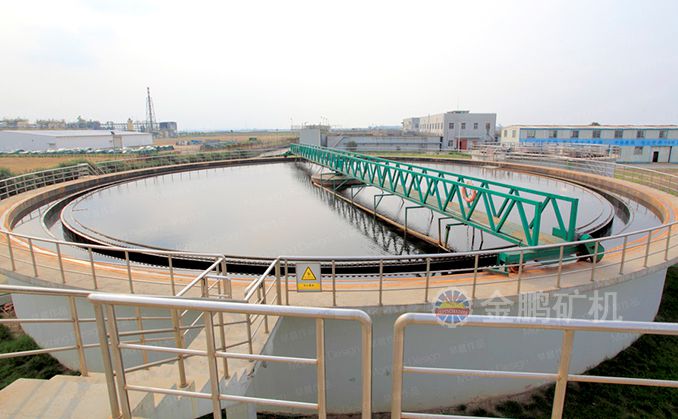

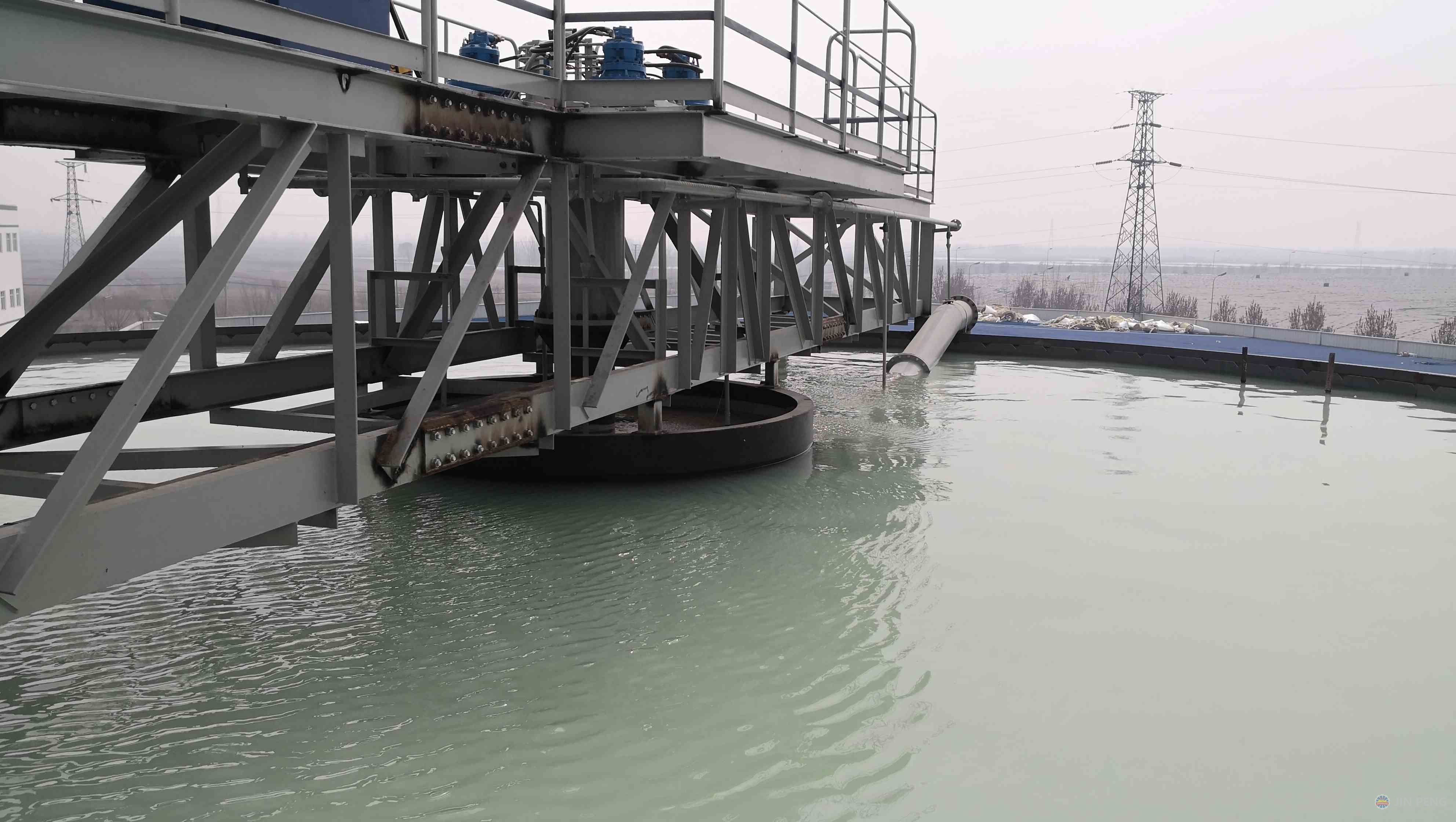

The thickener is mainly composed of two parts: a circular thickening tank and a rake scraper:
The particles suspended in the slurry in the concentration tank settle by gravity, and then the clear water is on top,
So as to achieve solid-liquid separation. The slurry deposited at the bottom of the thickening tank is continuously scraped to the bottom of the thickening tank.
The center of the tank bottom is discharged from the water outlet by the rake scraper, and the clean water overflows from the top edge
concentration tank.
advantage

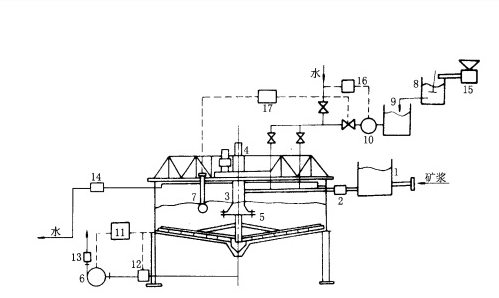

The introduction of American technology production. The new mechanical structure enhances the flocculation of solid particles by the flocculant. Flocculant addition systems, as well as automatic control systems for flocculant addition and high-efficiency thickeners are available.
Model
XBJ1.0×1.75
XBJ1.5×1.5
Specification
Φ1000×1750
Φ1500×1500
Effective volume
1.1
2.2
motor model
Y132S-8
Y132S-6
Motor Power
2.2
3
weight
530
1260
Product parameters
Model
GX-3.6
GX-5.18
GX-9
GX-12
GX-15
GX-18
GX-20
Inner diameter (m)
3.6
5.182
9
12
15
18
20
Cell body height (m)
1.7
2.15
3.56
3.723
3.6
4.4
4.4
Stacking area (m2)
10
twenty one
63.6
112
176
254
318
Rake speed (r/min)
1.1
0.8
0.3
0.267
0.2
0.13
0.13
Lifting height (m)
0.2
0.3
0.35
0.35
0.4
0.4
0.4
Drive motor model
Y100L-6
Y132M1-6
XWD6-43
XWD6-47
Y160L-6
Y180L-6
Y180L-6
Drive motor power (kw)
1.5
4
4
4
11
15
15
Lifting motor model
XWD4-87
XWD4-87
XWD3-43
XWD3-43
Y132M2-6
Y132M2-6
Y132M2-6
Lifting motor power (kw)
0.75
0.75
0.75
0.75
5.5
5.5
5.5
Tank weight (kg)
2829
5341
15980
25102
31635
49694
59365
Gross weight (kg)
6650
10460
23680
39321
55202
65992
81238
