Health status: | new | Voltage: | 0.25-0.4Mpa |
Advantage: | high performance | Applicable industries: | Energy and Mining |
After-sales service provided: | Video technical support, online support | Video external inspection: | if |
brand: | oil man | product name: | best price jet mud mixer/mud mixing hopper |
Marketing Type: | normal product | Core components: | motor |
Core Components Warranty: | 1 year | Key words: | jet mud mixer |
density: | ≤2.8g/cm3 | Packaging Details: | Export plywood case |
Dimensions (L*W*H): | 2200*1840*1100mm | Warranty: | 1 year |
Mechanical test report: | if | weight: | 1800kg-2000kg |
Main selling point: | easy to operate | Local service location: | not any |
capacity: | 60m3-240m3 | Certification: | API |
Gross weight per piece: | 60.000 kg | Sales unit: | single product |
Showroom location: | not any | Viscosity: | ≤120s |
place of origin; place of origin: | Shandong China | Single package size: | 100X40X40 cm |

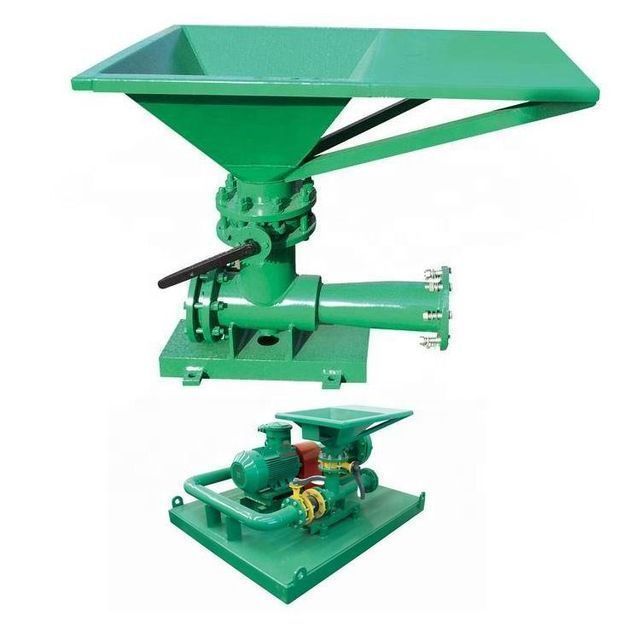

best price jet mud mixer/mud mixing hopper
Product Description:
Jet mixer is an equipment matched with drilling solids control equipment. It is often used to configure drilling fluids, increase specific gravity, and change density, viscosity, and water loss. It is better to use with the shear pump, and can also be designed as a double jet mud mixer according to the requirements.
Features:
1. Safe and stable, easy to move.
2. The unit includes a sand pump and a jet mixing hopper
3. The effect is more obvious when used with Shear Pump.
4. It is specially designed for solid control bentonite mud mixer and drilling mud tank jet mixer.
5. Double jet mud mixer can be made according to user requirements.
Model |
SLH150-50 |
SLH150-40 |
SLH150-35 |
SLH100-25 |
Matching pump |
SB8×6-13J(55Kw) |
SB6×5-13J(45Kw) |
SB5×4-13J(30Kw) |
SB4×3-11J(15Kw) |
capacity |
240m³/h |
180m³/h |
120 cubic meters/hour |
60 cubic meters/hour |
pressure |
0.25~0.40Mpa |
0.25~0.40Mpa |
0.25~0.40Mpa |
0.25~0.40Mpa |
Inlet size |
150mm |
150mm |
150mm |
100mm |
nozzle size |
50mm |
40mm |
35mm |
25mm |
Hopper diameter |
750×750mm |
750×750mm |
600×600mm |
500×500mm |
load speed |
≤100Kg/min |
≤80Kg/min |
≤60Kg/min |
≤40Kg/min |
density |
≤2.8g/cm³ |
2.4g/cm³ |
≤2.0g/cm³ |
≤1.5g/cm³ |
Viscosity |
≤120s |
≤120s |
≤80s |
≤60s |
