RF module, 433Mhz, 868Mhz, 915Mhz, Radio data 300M-12Km, RS232/RS485/TTL data transmitter, Wireless transmitter and receiver

RF Module, 433Mhz, 868Mhz, 915Mhz, 300M-12Km Wireless Data Modem:

Most distinctive:
*IC: Based on Xinkang CC1020 RF chip, high SINAD;
*The exposed volume is small, suitable for embedding;
*Narrowband and anti-jamming are commendable;
*Power saving mode: hardware wake-up, COM port wake-up, Air wake-up;
*Transparent data interface, applicable to any standard or non-standard user agreement;
* Automatically filter false data generated in the air, and can transmit long data frames;
* Long-term use reliability, low failure rate, suitable for indoor and outdoor use

Product main features:
*Carrier frequency: 315M, 433M, 434M, 450M, 670M, 868M, 915MHz or ISM others.
* Provide rich interfaces: Standard: RS-232/TTL/RAS-485;
* Interface format: 8N1/8E1 user-defined, or customize other format interfaces;
* 8 channels, which can be expanded to 16/32 channels according to customer requirements;
* Baud rate: 1200/2400/4800/9600/19200/38400bps;
* Transceiver and half-duplex integration;
* Low power consumption and sleep function;
* Working temperature: -20~+65℃ (industrial-grade customized bulk orders);
temperature range. -40 to 80 degrees Celsius (-40 to 176 degrees Fahrenheit).
* Impedance: 50Ω (SMA antenna port, a variety of antennas are optional);
* Complies with EN 300220 and ARIB STD-T67;

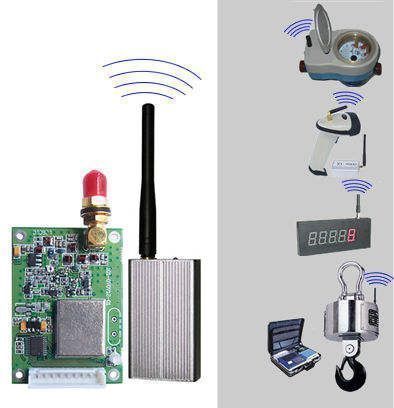

Application areas:
* Automatic meter reading (AMR) and home automation;
* Supervisory Control and Data Acquisition (SCADA);
* Remote control, industry data collection;
* Remote system monitoring
* Production reports for active systems
* Wireless remote control alarm, wireless sensor;
* Sports training and competition;
* Wireless POS, PAD, wireless intelligent terminal;
* Electronic bus stops and intelligent transportation;
* Wireless electronic display screen and queuing machine;

OEM and customizable software.
One year quality warranty and lifetime maintenance.
