UBNT Wireless Bridge airFiber 60 5 GHz Long Range Radio System AF60

Product details
place of origin; place of origin:Guangdong, ChinaWarranty:1 year
model:AF60brand:UBNT
product name:AF60Packaging Details:New in the box.
type:Enterprise Wireless Access PointPackaging Preview:
port:szpayment terms:L/C,Western Union,D/P,T/T,MoneyGram
Supply capacity:50 pieces per week

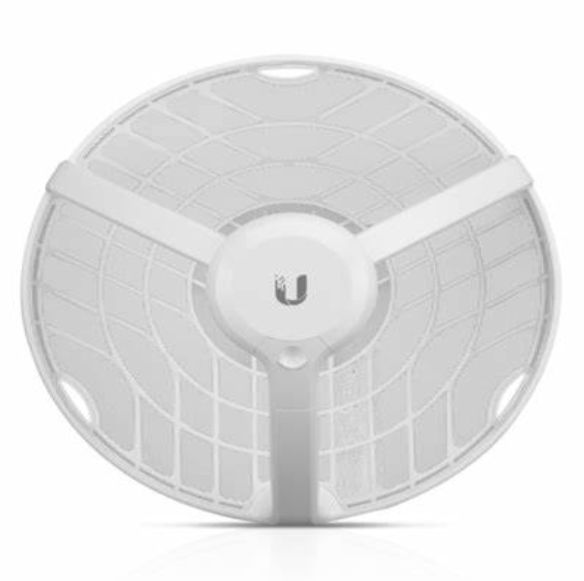

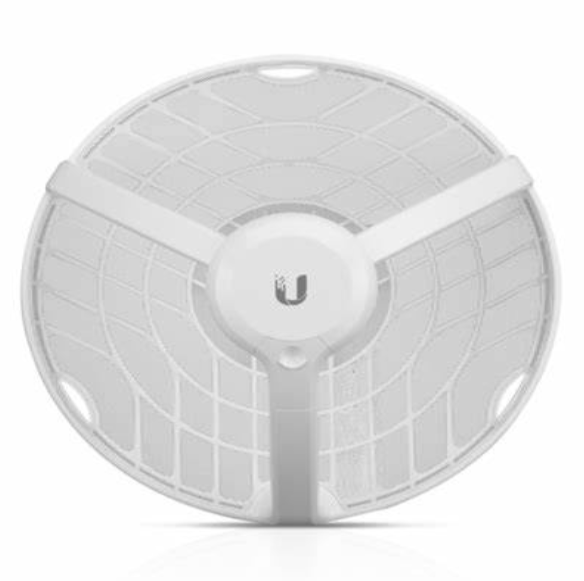

UBNT Wireless Bridge airFiber 60 5 GHz Long Range Radio System AF60



illustrate

airFiber 60 GHz/5 GHz radio system with 1+ Gbps throughput


The AF60 is a 60 GHz radio for low interference and high throughput connections. It integrates a high gain dish antenna for long range and high performance. For 60 GHz links, the AF60 supports two channel width options: 2 GHz and 1 GHz - automatically switching between the two options based on link performance.

feature:

    • 60 GHz radio and 5 GHz radio backup
    • Low-interference 60 GHz spectrum
    • Long distance, up to 2 km
    • Low latency up to 1 Gbps
    • Integrated GPS
    • Full bandwidth and half bandwidth support



Specification


AF60
aspect 413 x 413 x 320 mm
(16.26 x 16.26 x 12.60")
weight
no mount
with mount

1.4 kg (3.09 lbs)
1.8 kg (3.97 lb)
shell Aluminum, UV-stabilized polycarbonate
Antenna gain
5GHz
60GHz

11 dB
38 dB
Network Interface (1) 10/100/1000 Mbps Ethernet port
maximum. energy consumption 11W
power method Passive PoE, pins 4, 5+ and 7, 8-
power supply 24VDC, 0.5A Gigabit PoE Adapter (included)
voltage range +22 to +26VDC
led Power/Ethernet/5G/60G/GPS
Install Pole mount (included)
wind load 420 N @ 200 km/h
(94.4 lbf @ 125 mph)
wind resistance 200 km/h
(125 mph)
ESD/EMP protection ± 24kV contact/air
Operating temperature -40 to 60°C
(-40 to 140°F)
Working humidity 5 to 95% non-condensing
Certification FCC, IC, CE
system
maximum throughput 1.8Gbps
maximum range 2+km
encryption WPA2-PSK (AES)/WPA2 Enterprise
operating system airOS GP
radio
maximum. Conducted transmit power
5/60 GHz combination

25 dB
channel bandwidth
60GHz
5GHz

2160 MHz
20/40/80 MHz
Operating frequency (MHz)
USA / Canada
U-NII-1
U-NII-3

5150 – 5250
5725 – 5850
57,000 – 66,000
worldwide 5180-5875
57,000 - 66,000
Managed Radio (MHz)
worldwide 2412 - 2472
USA / Canada 2412 - 2462
