UBNT Rocket M2/M5 RM2/RM5-Ti high-power wireless bridge wireless AP engineering wifi coverage

Supplier: Shenzhen Toptoday Network Co., Ltd.
Region: Guangdong, China
Contact: Ms helen lin
Price: $103.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

model:	RM2/RM5-Ti	Warranty:	1 year
payment terms:	L/C, Western Union, D/P, T/T, MoneyGram	type:	Enterprise Wireless Access Point
Package preview:		product name:	RM2/RM5-Ti
Packaging Details:	The new one is in the box.	brand:	UBNT
port:	size	Origin:	Guangdong, China
Supply capacity:	50 pieces per week

UBNT Rocket M2/M5 RM2/RM5-Ti high-power wireless bridge wireless AP engineering wifi coverage

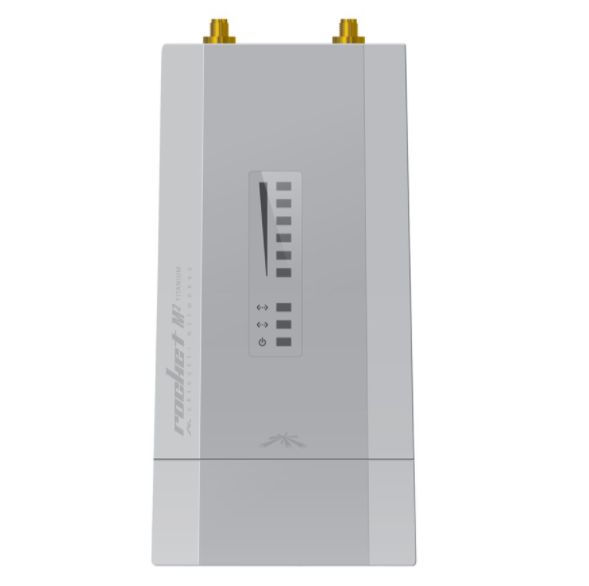

Ubnt Rocket M2 Titanium (RM2-Ti) Description

The Ubnt Rocket M2 Titanium is a Ubiquiti product featuring Mimo technology and industrial design, supporting true TCP/IP output speeds of 150 Mbps. Ideal for point-to-point (PtP) bridging or point-to-multipoint (PtMP) airMAX applications. The rocket radio, airMAX antenna are designed to work together seamlessly.

hardware overview

1. RP-SMA antenna connector
For connecting RF cables (not included).
2. Traffic lights
In airOS®, you can modify the wireless signal strength thresholds for each LED on the Advanced tab under Signal LED Thresholds, or you can configure the LEDs to show GPS connection quality (RM5-Ti only). The default values are as follows:
3. GPS indicator light
(RM5-Ti only) GPS LED indicates airSync™ activity. Three or more satellite connections are required.
4. Auxiliary Ethernet LED
The Aux Ethernet LED will be solid green when there is an active Ethernet connection to the Aux Ethernet port and blink when there is activity.
5. Main Ethernet LED
The Primary Ethernet LED will be solid green when there is an active Ethernet connection to the Primary Ethernet port, and blink when there is activity.
6. Power Indicator
The power LED will glow green when the device is connected to a power source.
7. Reset button
To reset to factory defaults, press and hold the reset button for more than 10 seconds while the device is powered on.
8. Major ports
The Gigabit Ethernet port is used for power connection and should be connected to a LAN and a DHCP server.
9. Secondary ports
10/100 Ethernet port for bridging.
10. GPS SMA connector
(RM5-Ti only) Used to connect GPS antenna.

Specification

RocketM titanium alloy
aspect	160 x 80 x 44mm
weight	350 grams
Network Interface	(1) 10/100/1000 Ethernet port (primary) (1) 10/100 Ethernet port (auxiliary)
RF connector
RM2-Titanium	2 RP-SMA (waterproof)
RM5-Ti	2 RP-SMA (waterproof), 1 SMA (GPS)
shell	die cast aluminum
maximum. energy consumption
RM2-Titanium	6.5 watts
RM5-Ti	8 watts
power supply	48V, 0.5A PoE adapter (included)
power method	Passive PoE (pair 4, 5+; 7, 8-)
Operating temperature	-30 to 75°C
Working humidity	5% to 95% condensing
ESD/EMP protection	30KV Contact/Air for Ethernet
Shock and Vibration	ETSI300-019-1.4
certified	CE, FCC, CCC
