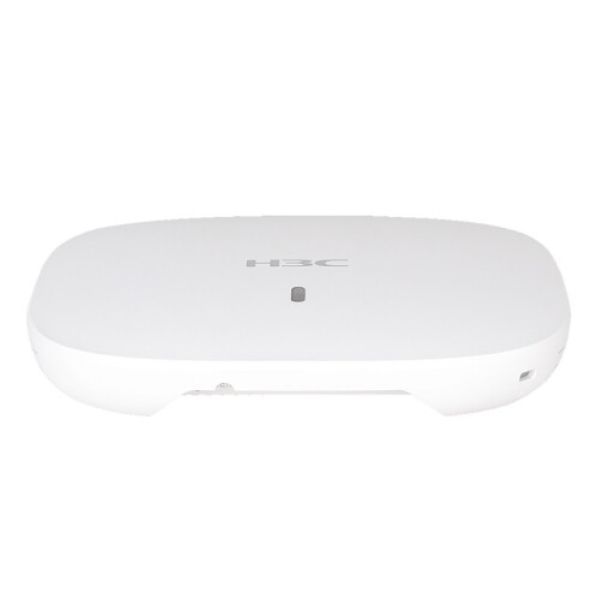

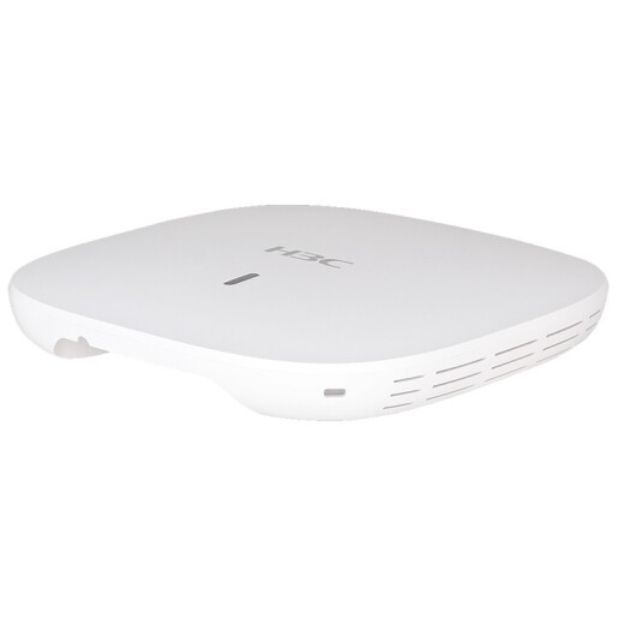

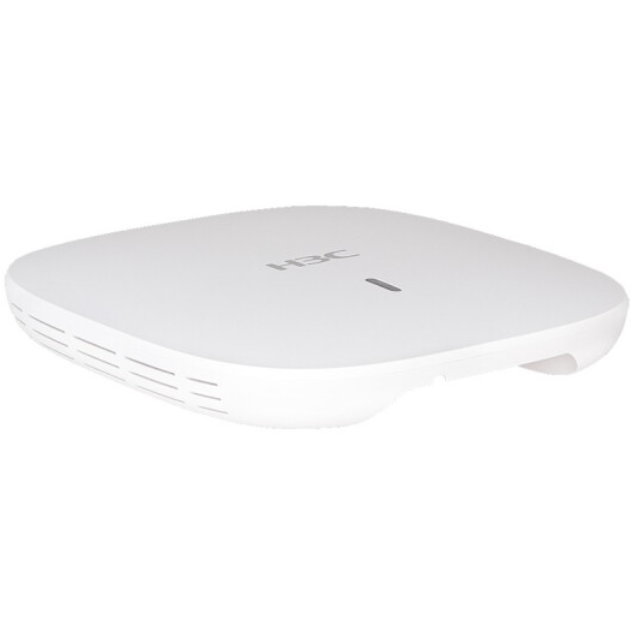

H3C Wireless AP EWP-WA6320-SI-FIT Built-in Antenna Dual-Band Quad-Stream 802.11ax/ac/n Wireless-FIT Access Point

Product details
Warranty:1 yearSales unit:Single product
Packaging details:There are new ones in the box.Place of origin:Guangdong, China
Gross weight of single piece:3.000kgproduct name:EWP-WA6320-SI-FIT
Single piece packaging size:57X5X32 cmtype:Enterprise Wireless Access Point
brand:1 yearmodel:EWP-WA6320-SI-FIT
Package preview:

H3C Wireless AP EWP-WA6320-SI-FIT built-in antenna dual-band four-stream 802.11ax/ac/n wireless access point-FIT

Overview

H3C WA6320 wireless product is a new generation 802.11ax product independently developed by H3C Technology Co., Ltd. (H3C). The whole machine adopts dual-band four-stream 802.11ax design and can be widely used in enterprises, schools, and medical scenarios.

WA6300 currently has a variety of products including WA6320. WA6320 has a built-in smart antenna, supports dual-band access, is compact and beautiful, and has flexible installation methods. Suitable for wall-mounted, ceiling-mounted, 86-box and other installation methods.







Specification




Main achievement
product type wireless access point
network standards 802.11ax/ac/not applicable
802.11ax/b/g/n
Frequency Range Tri-band (5.1GHz, 5.8GHz, 2.4GHz)
Network Interface 1 100/1000M port
Other interfaces console port
antenna
Antenna type Built-in smart antenna system
Function parameter
Safety performance Safety specifications: GB4943, EN60601-1-2 (medical), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
network management Traps, HTTP(S), SSH, Telnet, FTP/TFTP
Other parameters
Status Indicator Blink alternating flashing mode, orange, green and blue flashing mode in different working states, terminal access breathing flashing mode
How to supply power 802.3at/af compatible power supply and 54V DC support
Power supply ≤12.95W
Product Size 185×185×33mm
product weight 0.4kg
environmental standards

Working temperature: -10℃-55℃
Storage temperature: -40℃-70℃
Working humidity: 5%-95% (non-condensing)

Storage humidity: 5%-95% (no condensation)

Other features Bt: built-in Bt 5.0, supports iBeacon
protocol, scalable to rich Bt applications, such as vibration and positioning Transmission power (maximum single channel): 20dBm
Power adjustment granularity: 1dBm
Reset/restore factory configuration: supported
EMC: GB9254, EN301 489, EN55022, FCC 15, RSS-210
Radio frequency certification: FCC Part 15, EN 300 328, EN 301 893, Ministry of Industry and Information Technology radio transmission equipment model approval
Health: FCC Notice OET-65C, EN 50385, IC Safety Code 6
Mean time between failures: >250,000 hours
Protection level IP41
