Plastic shoe machine PVC injection shoe machine PVC shoe production machine

Supplier: Ezhou Green Machinery Co., Ltd
Region: Hubei, China
Contact: Mr Song Wang
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	letter of credit, wire transfer	Dimensions (LWH):	726039601790
Showroom location:	not any	Function:	Making casual/sneakers etc.
Local service location:	Turkey, India, Thailand	port:	yellowstone or wuhan
Power (W):	31.5	place of origin; place of origin:	Hubei, China
model:	GLJ-24	Packaging Details:	Packaging Details: 1. Standard export packaging and professional machine packaging as per customer requirements Delivery Details: Ship within 25 days after payment
Clamp style:	Scissors	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Packaging Preview:		Number of stations:	twenty four
Supply capacity:	30 sets of plastic shoe machine PVC injection shoe machine PVC shoe making machine per month	Certificate:	Chief Executive
Health status:	new	brand:	green machinery
weight:	13200Kg	Warranty:	1.5 years
motor:	Servo motors save up to 45% energy	Applicable industries:	manufacturing plant
Advantage:	Extensive experience (more than 40 years of experience)

Product Description

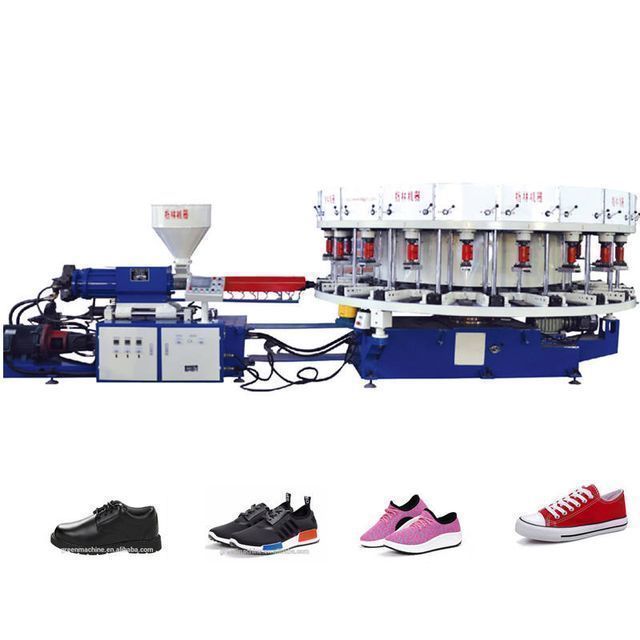

Plastic Shoe Machine PVC Injection Shoe Machine PVC Shoe Making Machine(GLJ-24)

Servo motor system (energy saving up to 45%)

feature:
1. PLC control, hydraulic motor pre-molding, full hydraulic drive, automatic circulation.
2. High plasticizing capacity, and the plasticizing temperature can be preselected and automatically controlled.
3. Using 16/20/24 point measurement, the injection volume can be selected according to the needs

Tooling requirements for each job location.

4. Provide empty mode selection function.
5. The indexing of the round table is optional with a frequency converter.
6. The scissor-type template closing mechanism is adopted, which is linked with the toggle system operated by the V-type single cylinder.

7. This machine is equipped with a secondary pressure injection system and the function of selecting the order of cramping, pressing and closing.

8. The indexing of the round table is stable and the movement adjustment is convenient.
9. Independent control of round table rotation, plasticization, oil injection and oil supply.
10. There are many workstations and the shaping time is long enough to ensure the quality of the sole shaping.

Main technical data
