Good Quality High Volume Sampler

Supplier: INSTRUMEX
Region: Maharashtra, India
Contact: Mr. R Kumawat
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Measuring principle:	Cyclonic flow;	Supply Ability:	20 Piece/Pieces per Month;
Place of Origin:	Maharashtra India;	Sampling Options:	TSPM & PM10;
Port:	Mumbai, India;	Payment Terms:	L/C,D/P,T/T;
Brand Name:	INSTRUMEX;	Packaging Detail:	Export Worthy wooden box international packing;
Delivery Detail:	Shipped in 30 days after payment;	Power supply:	230V AC, 50 Hz;
Flow range:	0.8 - 1.4 cc/min;	Flow Measurement:	Manometer;
Model Number:	IPM-115 BL/NL;

Product Description

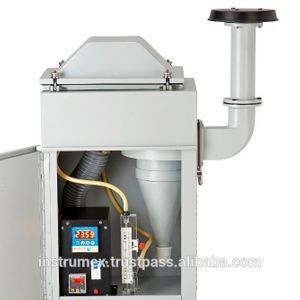

Instrumex High Volume Dust Sampler with Respirable Dust Sampling is one of the best instrument for sampling Particulate Matter less than 10 micron (PM-10) and Total Suspended Particulate Matter (TSPM).

Principle of Operation:

A heavy duty Brushless and Noiseless blower draws air through a size-selective inlet and through a 20.3 X 25.4 cm (8 X 10)” filter at a flow rate, which is typically 1132 L/min (1.32 cc/min) maintained by an Orifice. A cyclonic flow technique is used to separate the particles with aerodynamic diameter less than the cut-point of the inlet (PM10). These are collected by the filter. The particles greater than 10 micron are separated at the bottom of the cyclone into a dust collecting bottle. The mass of PM10 particles is determined by the difference in filter weights prior to and after sampling. The concentration of PM10 in the designated size range is calculated by dividing the weight gain of the filter by the volume of air sampled.

Specifications

• Particle size	Below 10m collected on filter paper and bigger than 10m will be collected in a separate sampling Bottle
• Flow Rate	0.9 to 1.4 meter cube/min
• Sampling Time	User Programmable
• Automatic Sampling	By- 24 Hrs Programmable Timer
• Voltage Stabilizer	Auto shut off beyond (170 – 270) Volts by a programmable Relay for superior Motor Protection
• Filter Media	(8x10)” suitable for EPM2000 and GF/A
• Power	230 V. 50 Hz. 1 Phase A.C.
• Overall size	Approximate (400X300X650) mm

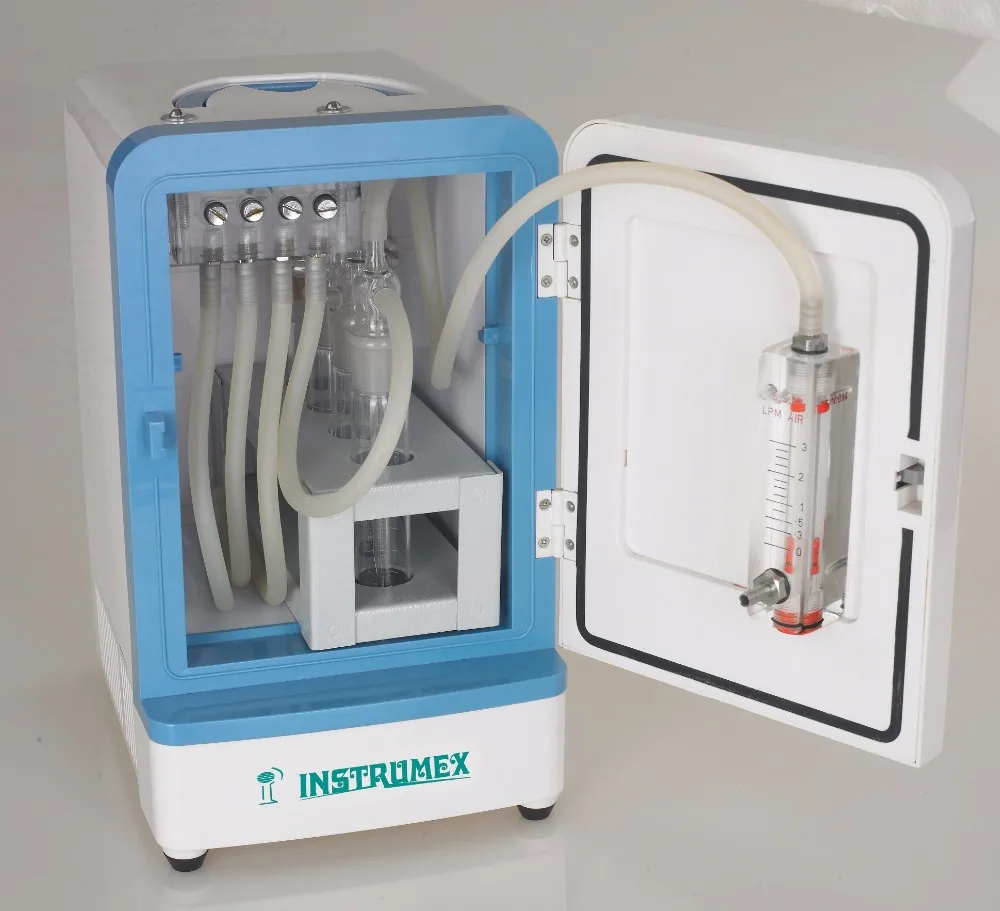

Gaseous Sampling

Options for Normal Gaseous Sampling or Thermoelectric Gaseous Sampling Attachment

Gaseous Sampling Attachment consists of following:
- Impinger Box & Impinger stand with provision of 4 nos. of glass impingers.
- 4 Way acrylic manifold with 4 separate needle valves of precision flow control
- 0.3-3LPM rotameter for flow adjustment
- Ice Tray
- 4 Nos. of Borosilicate glass Impingers.
