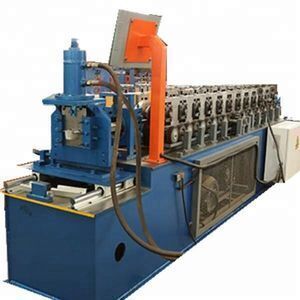

DryWall Framing System Stud Track Furring Metal Bead Corner Angle Ceiling Channel Roll Forming Machine
-
Supplier: Shanghai Aofa Machinery Co., Ltd. -
Region: Shanghai, China -
Contact: Ms. Abby Song -
Price: $15500.00 /set -
Min. Order: 1 set
| Dimension(L*W*H): | 6X1.2X1.2m; | Material: | PPGI GI; |
| Place of Origin: | Shanghai China (Mainland); | Color: | As your requirement; |
| Warranty: | 1year; | Power(W): | 4kw; |
| Condition: | New; | Usage: | Building material; |
| Model Number: | AF-U40; | Work Pressure: | 230MPA; |
| Supply Ability: | 10 Set/Sets per Month for DryWall Framing System Stud Track Furring Metal Bead Corner; | Production Capacity: | 25M/MIN; |
| Cutting system: | Auto cutting; | Payment Terms: | L/C,T/T; |
| Certification: | CE; | Delivery Detail: | 30days for DryWall Framing System Stud Track Furring Metal Bead; |
| Driven type: | Chain; | wheel roll forming machine: | High quality and low price; |
| Container: | 1'40 container; | Life time: | 10 years; |
| Weight: | 4T; | Packaging Detail: | naked for 40 feet container for DryWall Framing System Stud Track Furring Metal Bead Corner Angle Ceiling Channel Roll Forming Machine; |
| Brand Name: | AOFA; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Voltage: | 380v; | Material thickness: | 0.3-0.8mm; |
| Port: | Shanghai; | Product Name: | Stud Track Furring Bead Corner Angle Ceiling Roll Forming Machine; |
| Type: | Steel Frame & Purlin Machine; |

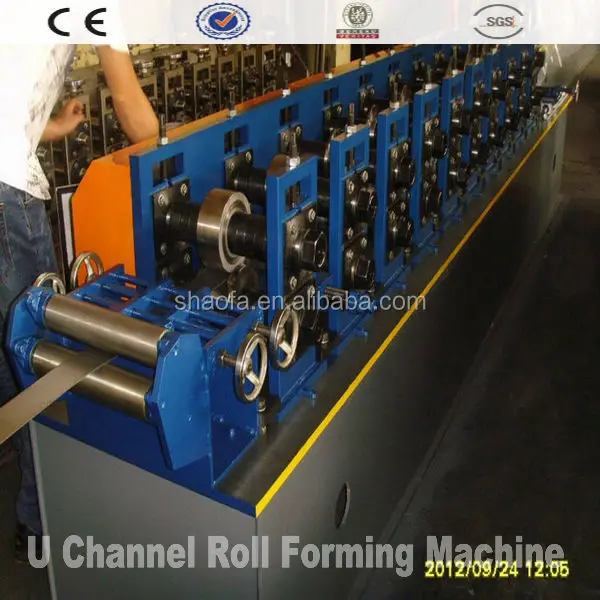

DryWall Framing System Stud Track Furring Metal Bead Corner Angle Ceiling Channel Roll Forming Machine
Shanghai AOFA Machinery Co.,Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.

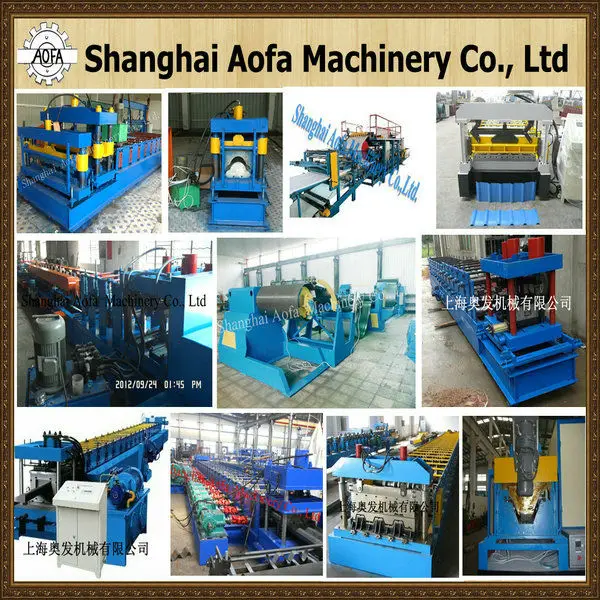

Main Product | We produce all kind of roll forming machine,now the fasteset speed can reach 50m/min. Our product:color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine, and so on. |
Profession | Shanghai AOFA Machinery Co.,Ltd. is professional manufacturer and exporter and specializes in designing, manufacturing, developing, sales and services in roll forming machine.Our engineer has beed in this feild about 20years. |
Experience | We are proud of our own professional team with more than 18 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services. |
CERTIFICATE

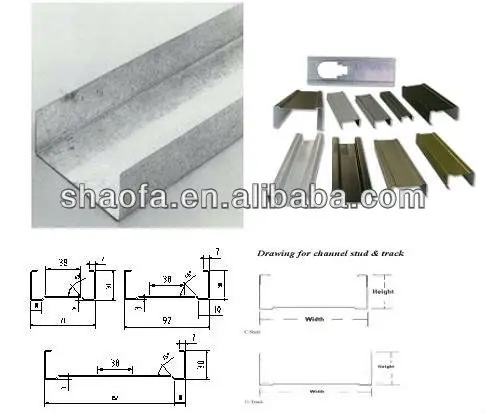

Profile drawing:
Working flow:
Decoiler-----feeding------roll forming ------ punching-----cutting----output table

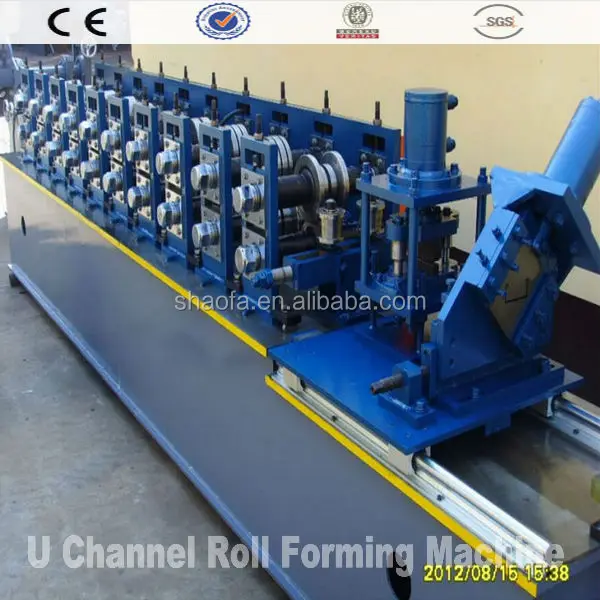

Machine components:
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Punching device | 1Set |
4. | Hydraulic Cutting Device | 1 Set |
5. | PLC Control Box | 1 Set |
6. | Output table | 1 Set |
Technical Parameters
Material specification | Galvanized and pre-painted galvanized steel. |
Thickness | 0.3 mm to 0.7mm. |
Main motor power | 5.5 kw. |
Hydraulic station power | 3 kw. |
Feeding width | 124mm. |
Cover width | 60mm. |
Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed | 12 m/minute. |
Cutting Tolerance | ±2mm |
Manual Uncoiler | Max. Capacity: 5000kgs. |
Voltage | As per customer’s request. |

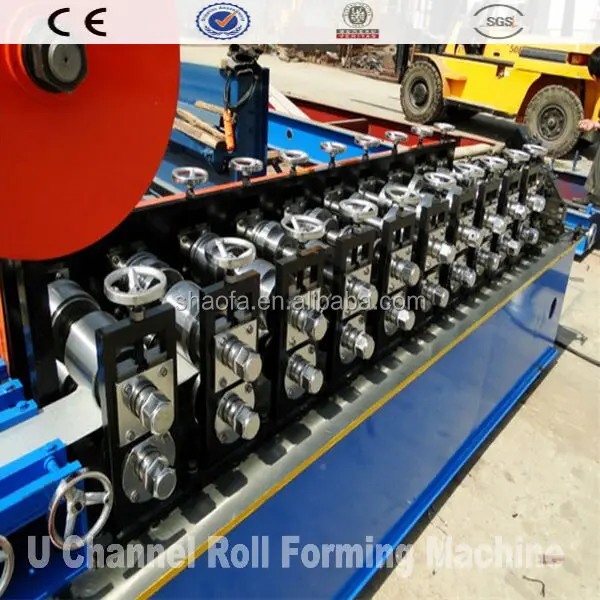

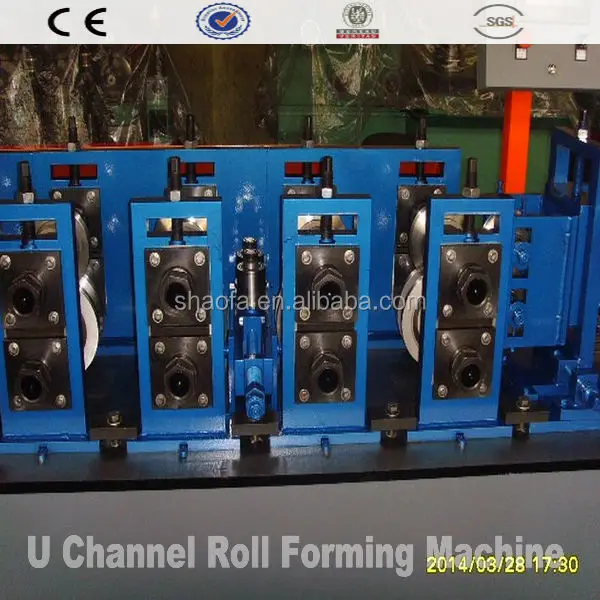

Numbers of stands | 11 stands/stations/pairs. |
Roller material | 45# steel polished and coated with chrome HRC55-60° |
Shaft diameter | 70mm |
Shaft diameter | high grade No.45 steel after treatment |
Type of cutting | Roll-formed and length-set profile cutting. |
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
1.We are factory and located in Shanghai,China,offer best quality machines
2. Customers Design ,Size,Color&Logo are accepted.
3. With20 years professional manufacture experience
4. Prompt Delivery&Competitive Price
5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
We can produce machine as different profile drawing.
Contact person: Belle Song
Mob/WhatsApp: 0086-18631771224
WhatsApp:0086-18717894416
If you arrive at Shanghai, i can go to airport or your hotel to pick you up.
WHY CHOOES AOFA COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
-
