API China Manufacturer 500HP Price Mud Pump For Drilling Rig

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $86500.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Type:	Drilling Mud Pump;	Certification:	API 7K ISO 9001:2008;
Valve:	API 5#;	Power rating HP/KW:	500/373;
Gear ratio:	4.286;	Max. liner (in/mm):	6-3/4"/170;
Package Type:	40 Container in Nude;	Model Number:	F-500;
Single gross weight:	68 KG;	Selling Units:	Single item;
Weight:	9770kg;	Stroke rating SPM:	165;
Applicable Industries:	Energy & Mining;	Delivery Detail:	0 days after payment;
Single package size:	120X20X30 cm;

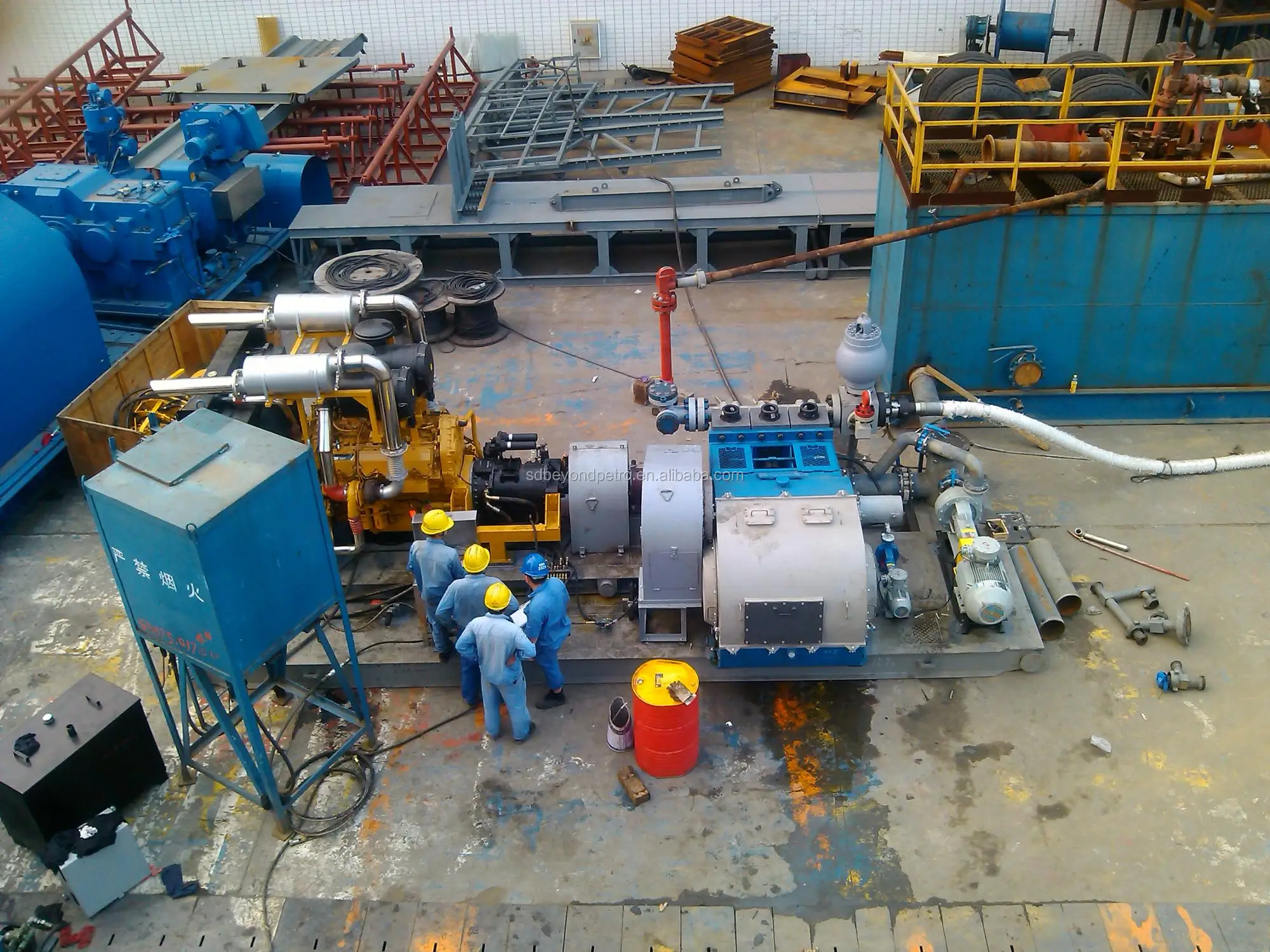

1. Unitized Mud Pump Package:

We can design and manufacture utilized mud pump packages at customers’ requirement. Our unitized mud pump packages include power, transmission and mud pump, and they are ready to work after installation and commissioning at site.

Two drive mode for mud pump package: Diesel engine drive and Electric motor (AC/DC motors) drive.

The transmission can be: gear reducer, Hydraulic Coupler and Hydraulic Torque converter.

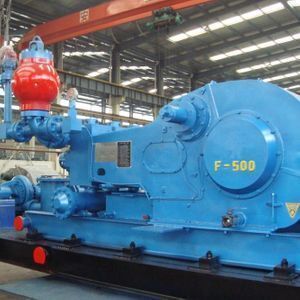

2. F-500 Mud Pump With Cummins

F series mud pump fetures:

1). F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.

2). F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.

3). The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.

3. General Description:

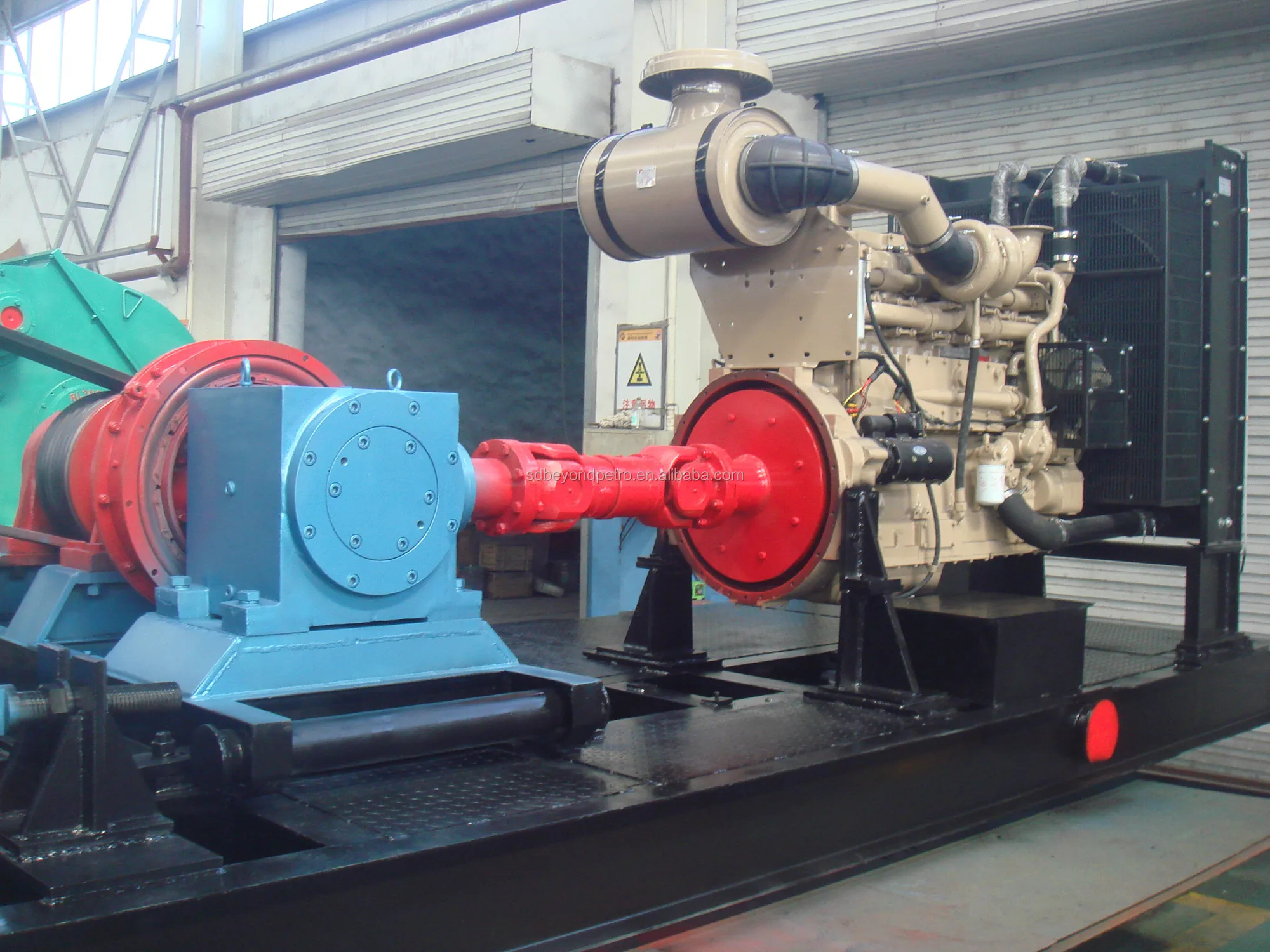

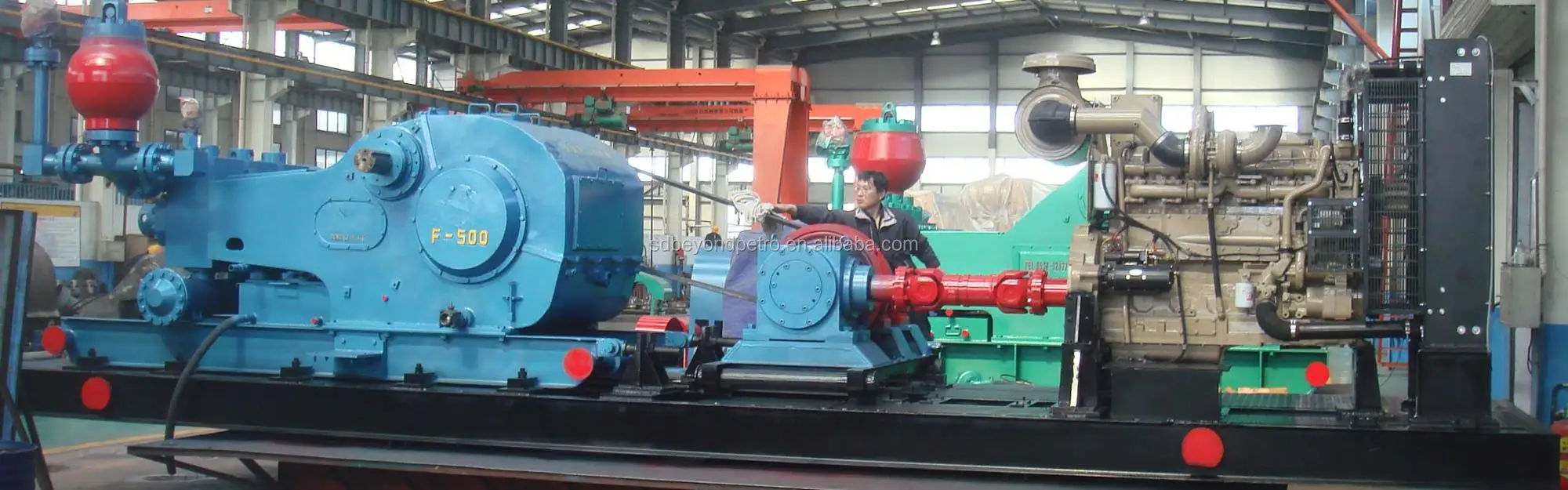

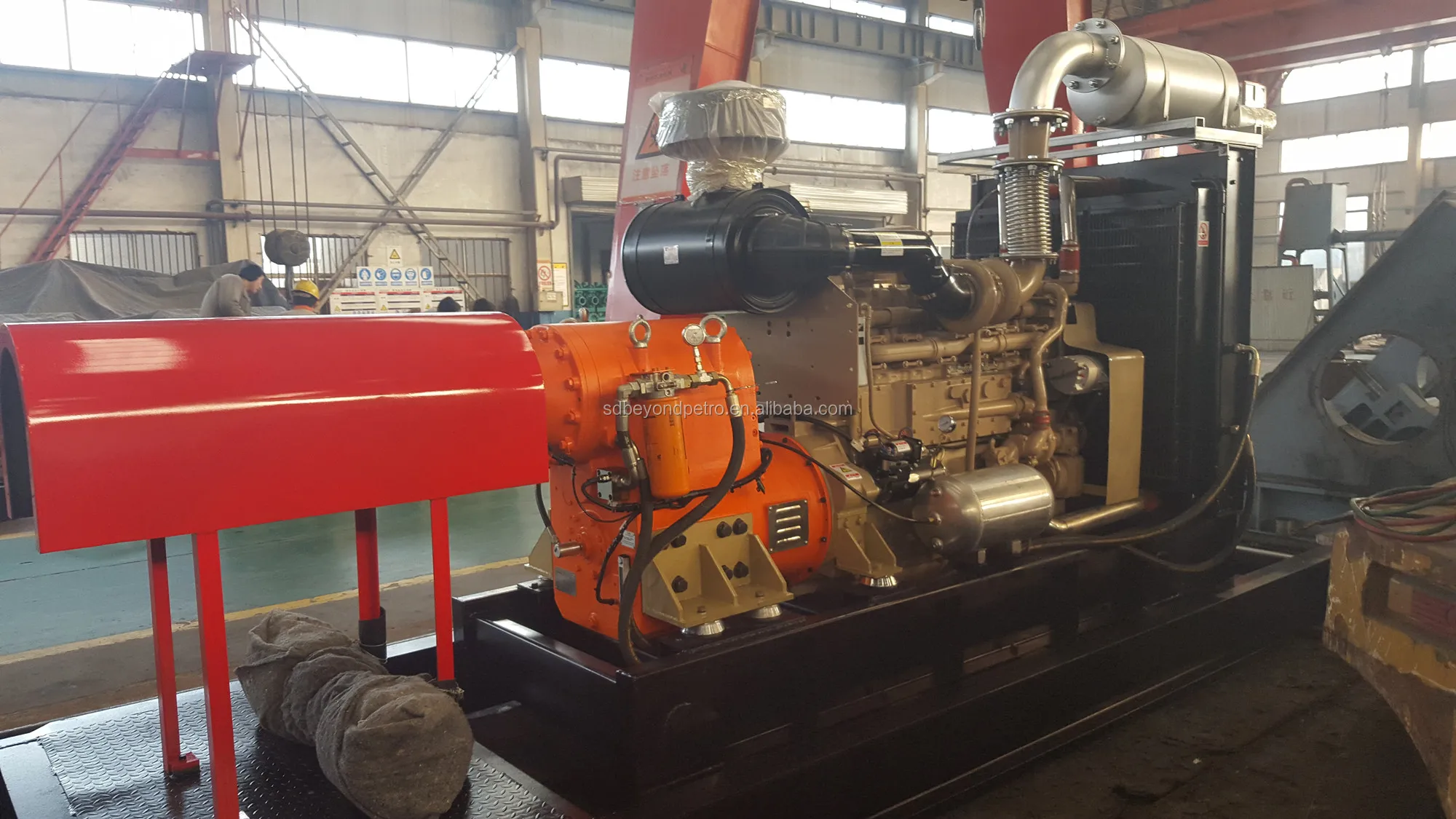

1). The whole unit is in the form of “L”. The transmission way: the power from the diesel engine (KTA19-C700) is transferred through NT-1041 four-shift gear box and cardan shaft to drive the pump and makes it work. The charging pump will greatly strengthen the suction effect of the mud pump.

2). The power and transmission system is assembled on the same skid, which brings great convenience to the transportation, assembling and commissioning.

4. F Series Mud Pump Technical Parameters:

Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5” /190.5	9”/228.6	10”/254	12”/305	12”/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8”/203	10”/254	12”/305	12”/305	12”/305
Outlet Dia. (in)	4” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4”/170	6-3/4”/170	6-3/4”/170	7”/180	7”/180
*Overall Dimension LWH(mm)*	36582709 2231	39633025 2410	42673167 2580	46173260 2600	46153276 2688
Approx. Weight (kg)	9770	14500	18790	24572	24791

5. About us:

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.

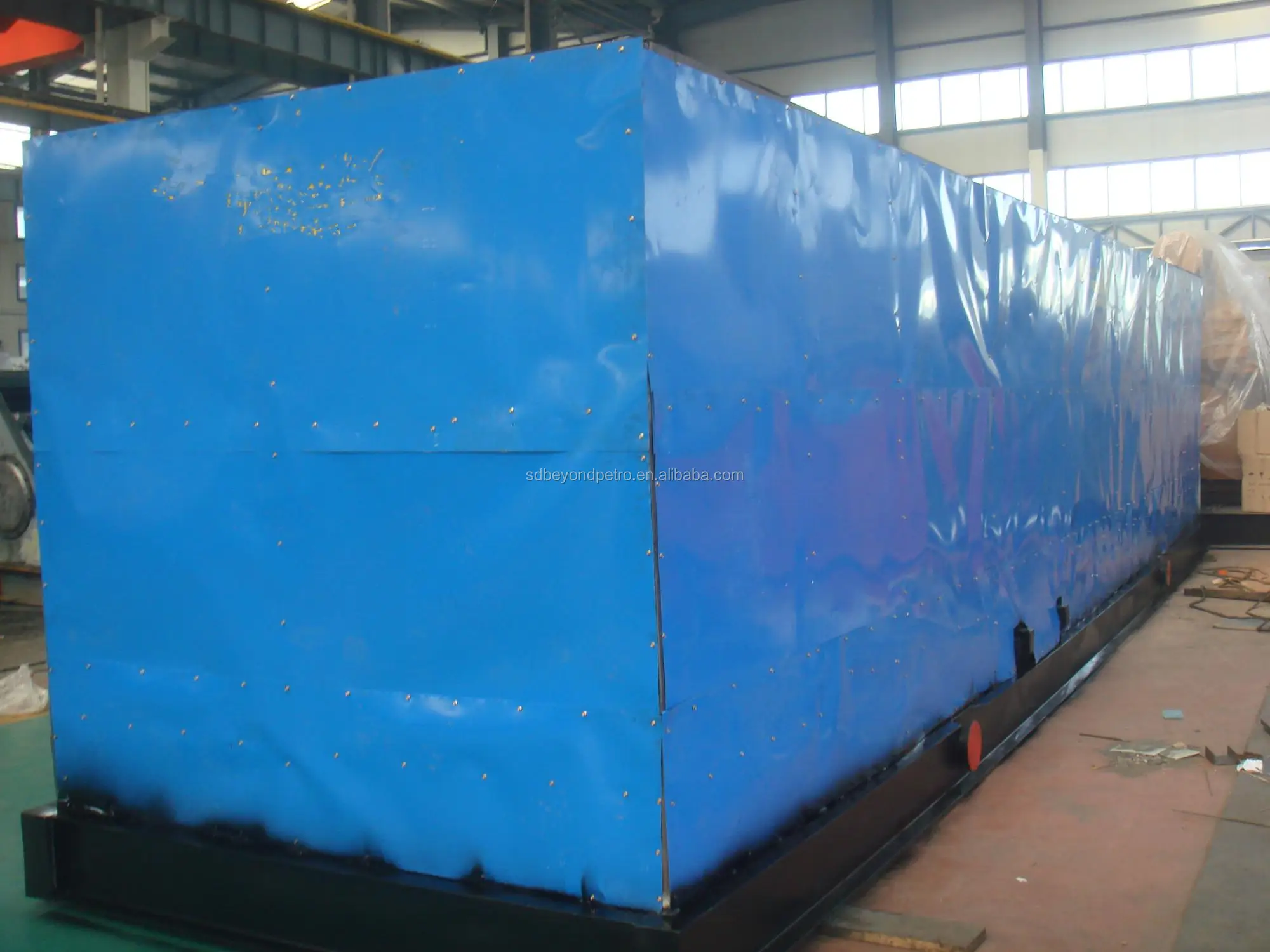

6. Packing:
