Hot sell digital pressure comparator

Supplier: Beijing Spake Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Marilyn Lee
Price: $500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Model Number:	223;	Power Supply:	Large-capacity li-ion or adapter;
Packaging Detail:	Aluminum box packing;	Unit:	10 units;
Comunication Capability:	HART;	Supply Ability:	3000 Unit/Units per Month;
Place of Origin:	Beijing China (Mainland);	Port:	Beijing,Tianjin,etc;
Dimension:	120x45mm;	Brand Name:	SPMK;
Application:	used with pressure pumps;	Power:	battery or adaptor;
Pressure range:	-1-250Mpa;	Feature:	pressure transmitter calibrate;
Function:	pressure calibrate;	interface:	M20X1.5;
Payment Terms:	L/C,D/A,D/P,T/T;

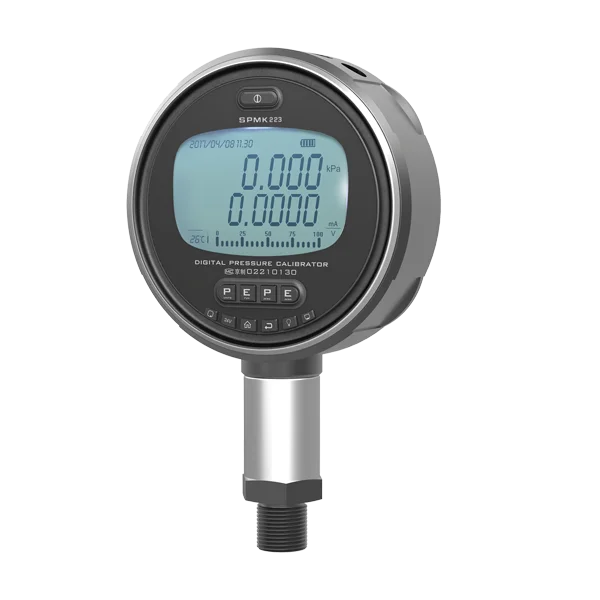

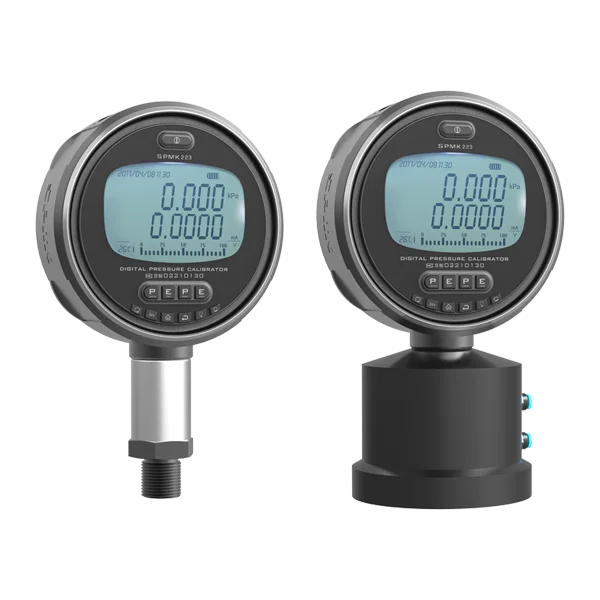

SPMK223 Digital Pressure Gauge Comparator

Overview SPMK223 Digital Pressure Gauge Comparator:

With advanced microprocessor technology and high-tech silicon pressure sensors, the SPMK 710 digital pressure calibrator provides a pressure calibration solution for gauges, transmitters and pressure switches in a wide pressure range. In a highly protable package, it can measure pressure precisely with a built-in pressure sensor and read the current or mV produced by the transducer, and can even supply a drive voltage to power sensors or transmitters during calibration.

Features SPMK223 Digital Pressure Gauge Comparator:

Built-in HART Communication,RS232 connector, can upload stored documents

Pressure ranges to 36,250 psi (2500 bar)

Accuracy: ±0.025%FS,±0.05%FS

Large LCD screen with backlit, 6 digits

Bar graph shows the ratio of pressure

Datas of 10 gauges can be stored

Optional 10 pressure units:Pa,Kpa,Mpa,mmHg,KFG/cm²,cmH2O,mmH2O,PSI,mbar,bar.

CE approved .(Certificate#.:AE 50188214 0001)

Technical Specifications of Digital Pressure Calibrator:

Environmental:

Temperature : 0~122°F (0~ 50°C)

Relative humidity: ≤85%R.H

Atmospheric pressure :0.86~1.06 bar ( 86~106kpa)

Power supply: Large-capacity li-ion or adapter

About the Li-ion: no-load 24V, can be used continuously for 60 hours after 4 hours charge.

Dimension: φ120×45(mm)

Net Weight: 0.7kg

Applications	Ranges	Accuracy
Current measure	±30.0000mA	±(0.01%RD+0.003%F.S)
Voltage measure	±30.0000V	Accuracy:±(0.01%RD+0.003%F.S)
Temperature measure	(0-50)℃	±1 ℃
Power output	DC24V (Max current output:50Ma)	±0.5V

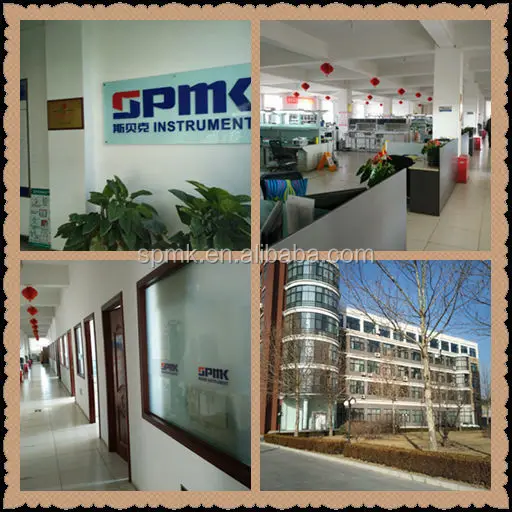

About our company: Beijing SPAKE Technology Co.,Ltd.

We are a perfessional manufacturer of pressure/temperature calibration instrument with 18 years experience in China and registered capital of 33.8 million yuan.Our main products are pressure calibrator,precision pressure gauge,pressure testing pump,multifunction process calibrator.temperature calibrator dry block. We got more than 10 utility model patents in 2009, and all products supporting test system software have got the software copyright certificate. In 2006, Our company passed the ISO9001: 2000 quality inspection.in 2010, most products have obtained CE certificate and Explosion-Proof Certificate.

So far, the SPMK series products have been widely used in military, electric power, petroleum, chemical, metallurgy, railway, metering, pharmaceutical, food and other industries in China. Some of the products have been exported to USA and Middle-East Countries. With the increasing of users, we should insist on customer value, abide by the corporate philosophy of Accurate calibration,Perfect Service. With a grateful heart , we are making SPMK a famous brand worldwide!
