Key words: | Wet mixing shoe making machine | Minimum turning radius: | 2.2m inside, 6m outside |
After Warranty Service: | Video technical support, no service, online support, spare parts | Warranty: | 1 year |
Voltage: | 380V | Applicable materials: | Wet Concrete Beton |
Drive mode: | Hydraulic four-wheel drive | Supply capacity: | 10 pieces per month |
Health status: | new | Maximum aggregate size: | 16mm |
brand: | union | Marketing Type: | New Products 2020 |
output: | 24 m3/h | Local service location: | not any |
After-sales service provided: | Video technical support, online support | Video external inspection: | if |
Hose inner diameter: | 50 mm | Dimensions (L*W*H): | 8600*2440*3500mm |
weight: | 16 tons | Unique Selling Points: | Wireless remote control operation |
Showroom location: | not any | place of origin; place of origin: | Hebei china |
Air consumption: | 10 cubic meters per minute | Core Components Warranty: | 1 year |
Applicable industries: | Construction work, spraying wet concrete | Way of walking: | Four Wheel Steering, Diagonal, Astrology, Steering in Place |
payment terms: | L/C,D/P,D/A,T/T | strength: | 93kw/2200rpm |
Mechanical test report: | Not available | application: | Automatic spraying of concrete |
maximum. Conveying distance: | 16m | Axle chassis system: | Dana/Carraro, Italy |
Concrete pumping pressure: | 8MPa | product name: | concrete sprayer |
port: | Hebei | Core components: | PLC, engine, bearing, motor, pressure vessel, pump |

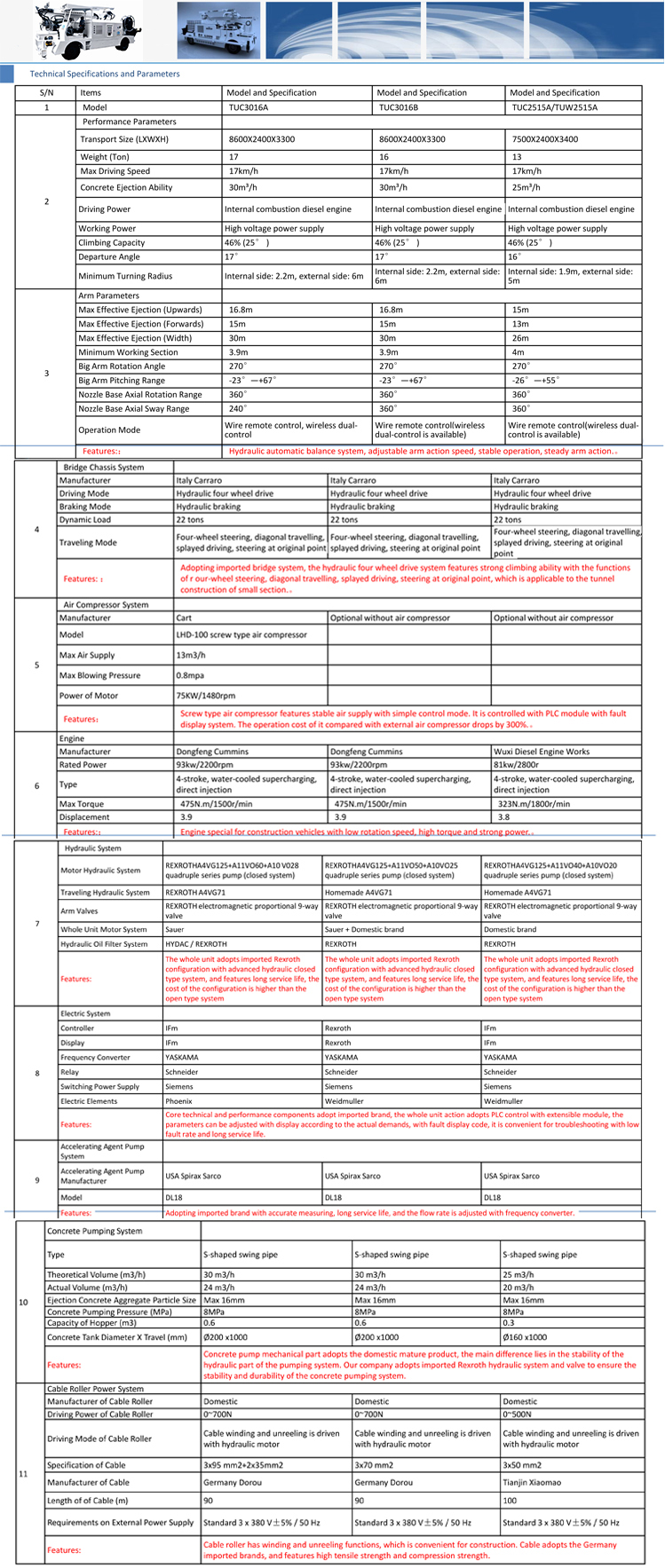

Technical Specifications and Parameters
