Core components: | gearbox, gear | Health status: | new |
Supply capacity: | 300 sets per month | Serve: | 24 hours online |
application: | Mining and Construction | Mechanical test report: | if |
place of origin; place of origin: | Shandong China | Capacity (tons/hour): | 150-600 tons/hour |
Packaging Details: | Export packaging standard. | type: | ZSW feeder |
Warranty: | Whole service life, 1.5 years | Install: | under the guidance of our engineers |
color: | according to your request | Packaging Preview: | |
brand: | Rongda | Showroom location: | Egypt, Vietnam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Kenya, South Korea, Chile, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan Stan, Malaysia |
Applicable industries: | Building materials stores, mechanical repair shops, food and beverage factories, printing shops, construction works, energy and mining, advertising agencies | Marketing Type: | normal product |
Function: | feed the powder | After-sale service: | whole service life |
port: | Qingdao | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
weight: | 5000kg | Core Components Warranty: | 1.5 years |
After-sales service provided: | Engineers can repair machinery overseas | spare parts: | Year-round supply |
Video external inspection: | if | Key words: | Grizzly Vibrating Feeder |
Power Type: | electrical | Dimensions (L*W*H): | According to the model |

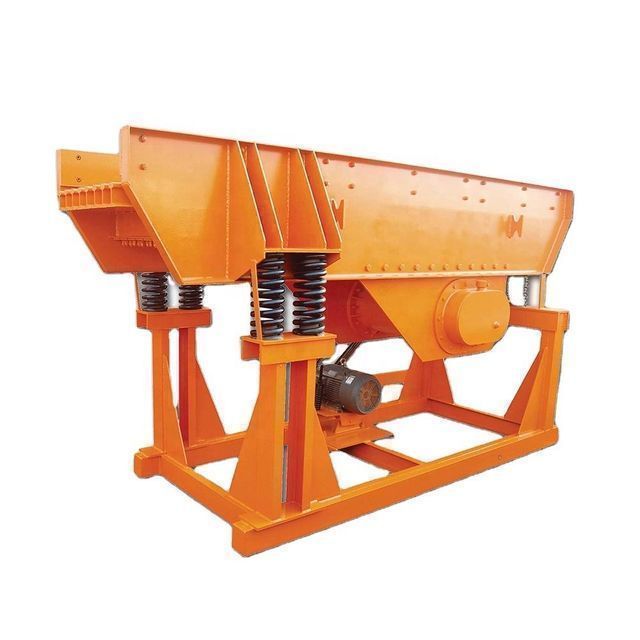

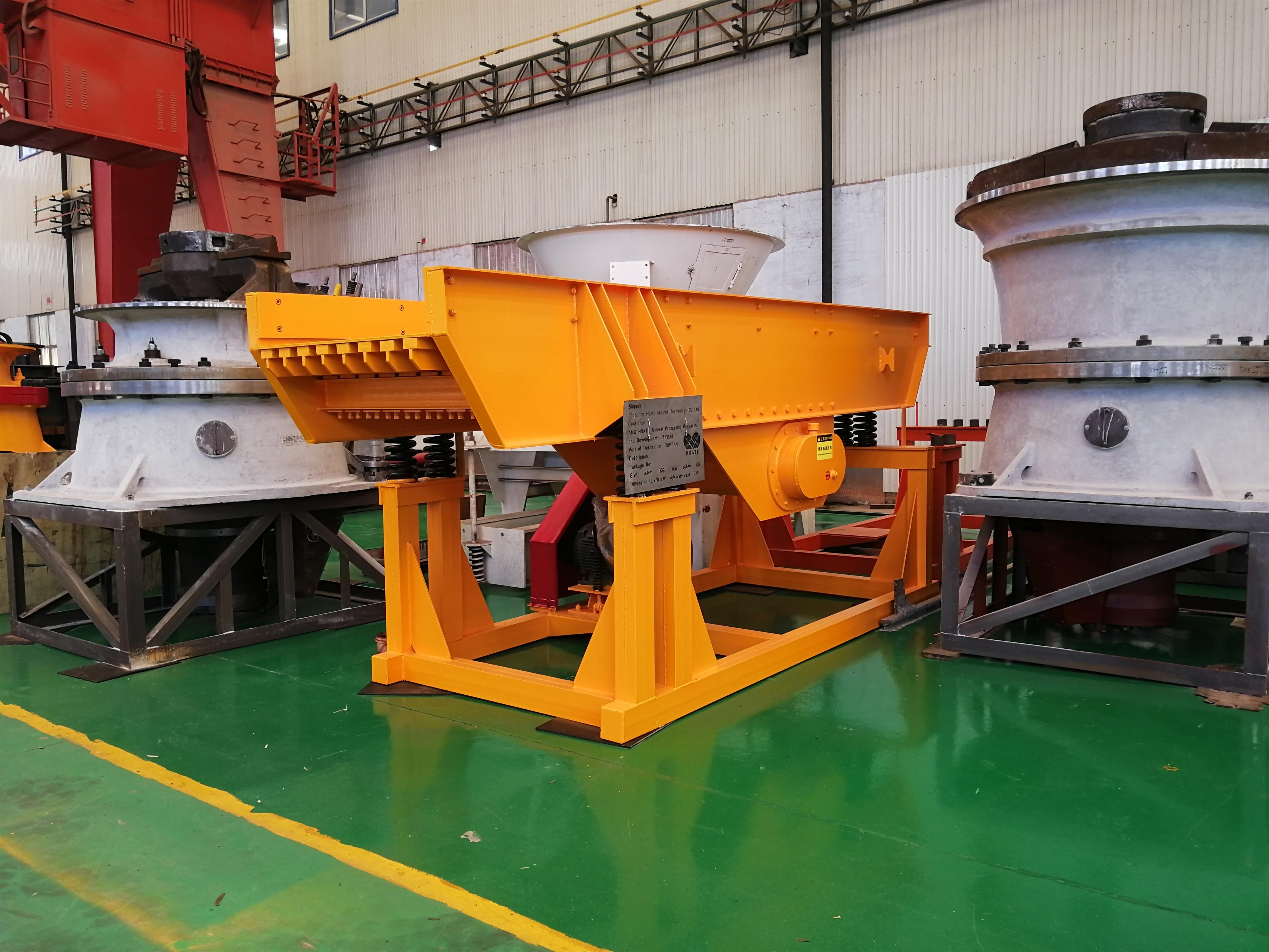

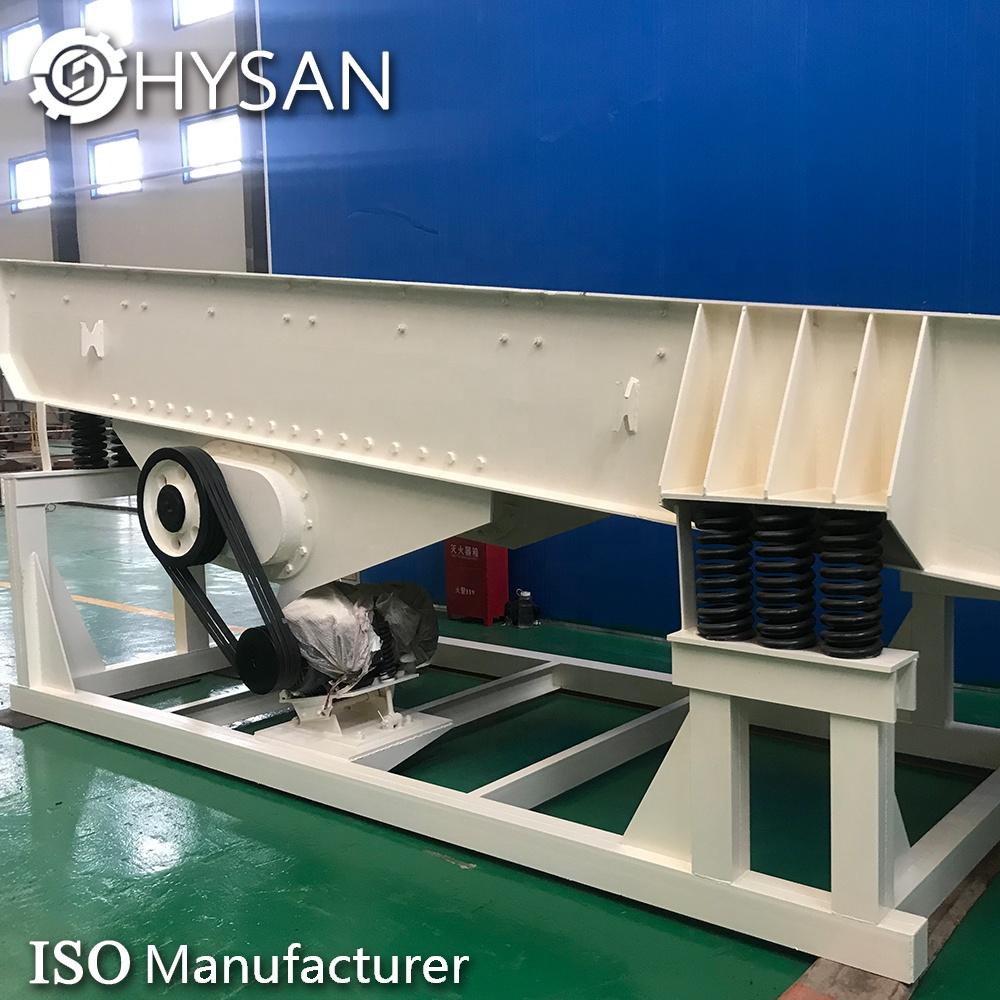

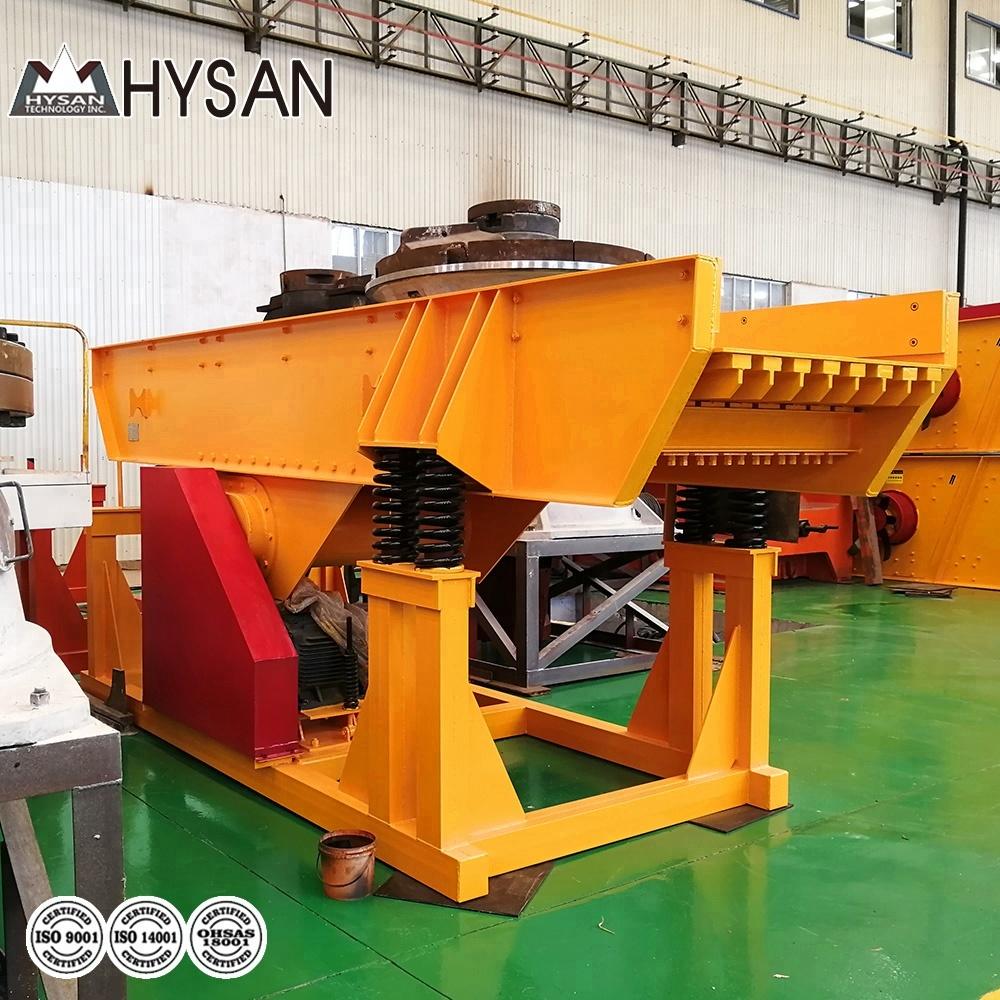

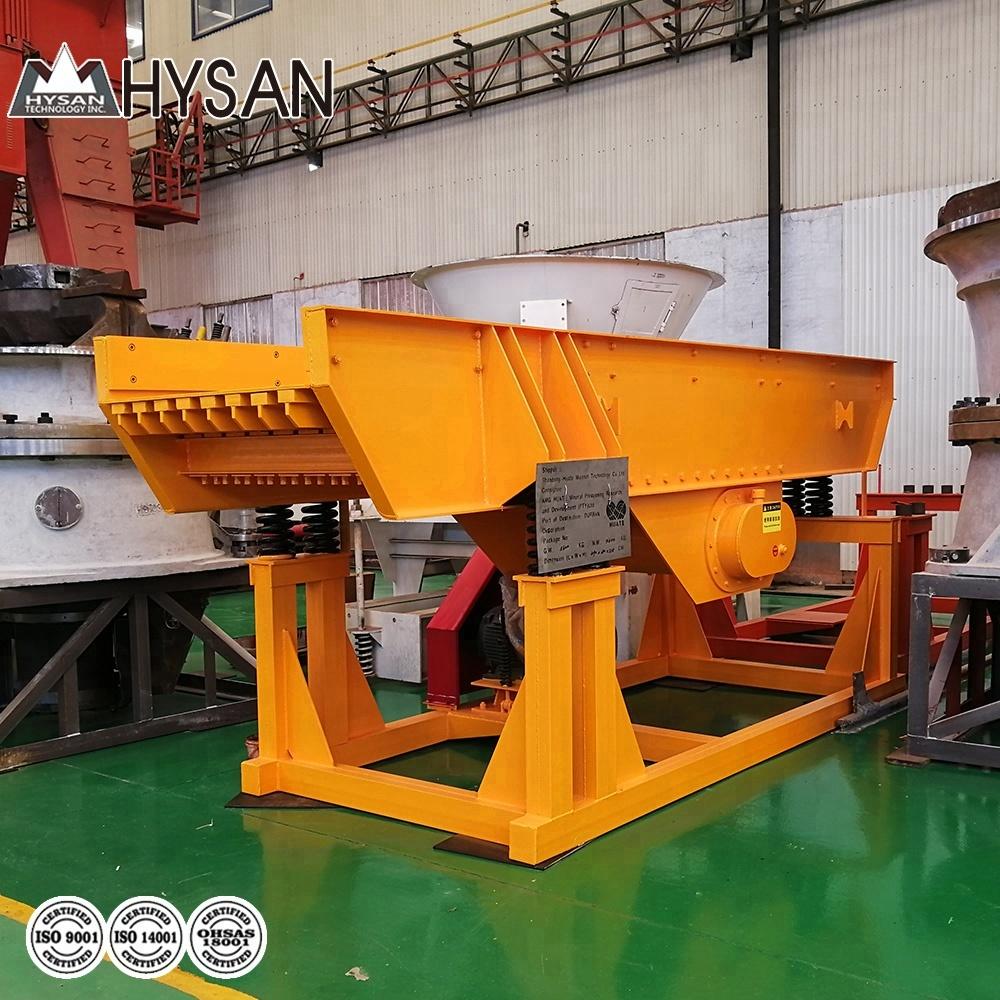

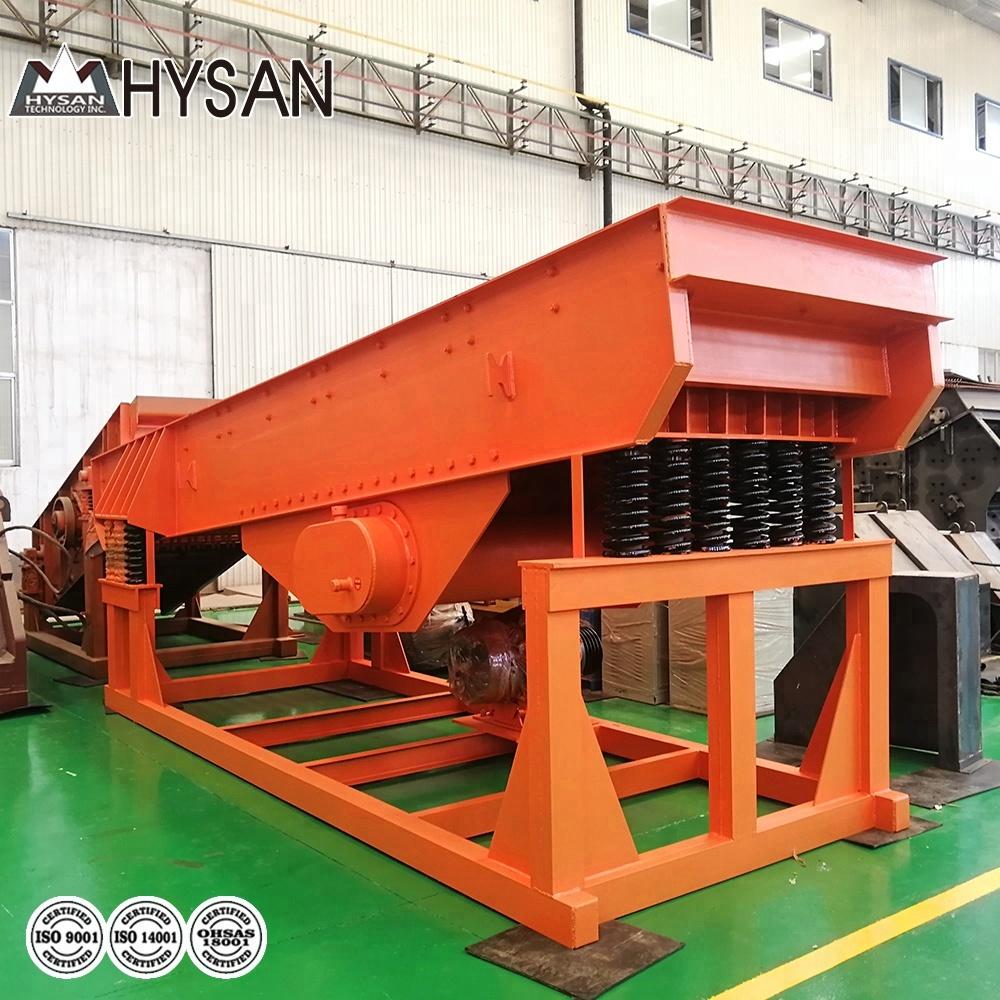

HYSAN ZSW series vibrating feeder
ZSW series HYSAN vibrating feeder is mainly used to feed materials into primary crusher uniformly and continuously. At the same time, the material can be screened to enhance the capacity of the crusher. The structure of the double eccentric shaft exciter is adopted to ensure that the equipment can withstand the impact of falling bulk materials and increase the feeding capacity. During the production process, the materials can be uniformly, regularly and continuously sent from the storage bin to the affected equipment in bulk and granular form, so as to prevent the affected equipment from crashing due to uneven feeding, thereby prolonging the service life of the equipment.
1. Smooth vibration

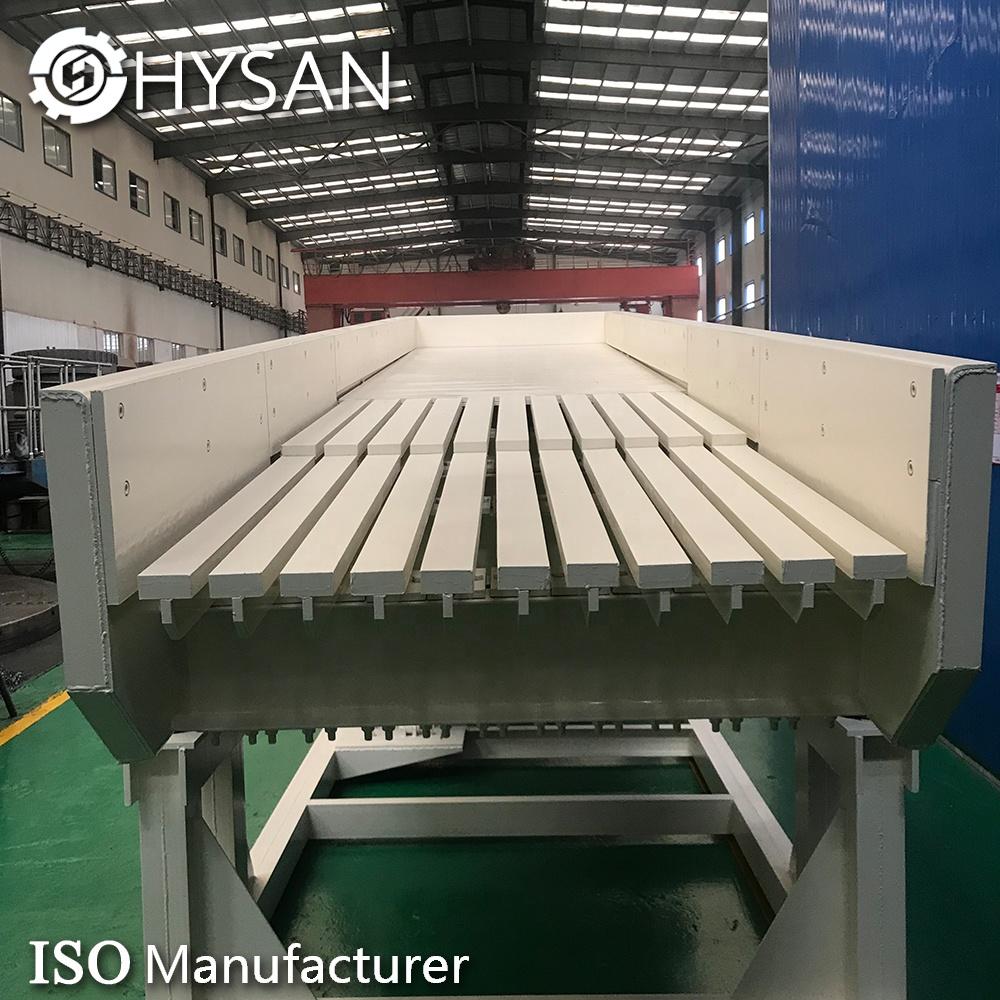

2. Special railings to prevent clogging of raw materials
3. The strip spacing is adjustable
4. The stepless speed regulating motor can be installed to control the feeding amount, and there is no need to start the motor frequently.
3 types of feeders | ||||

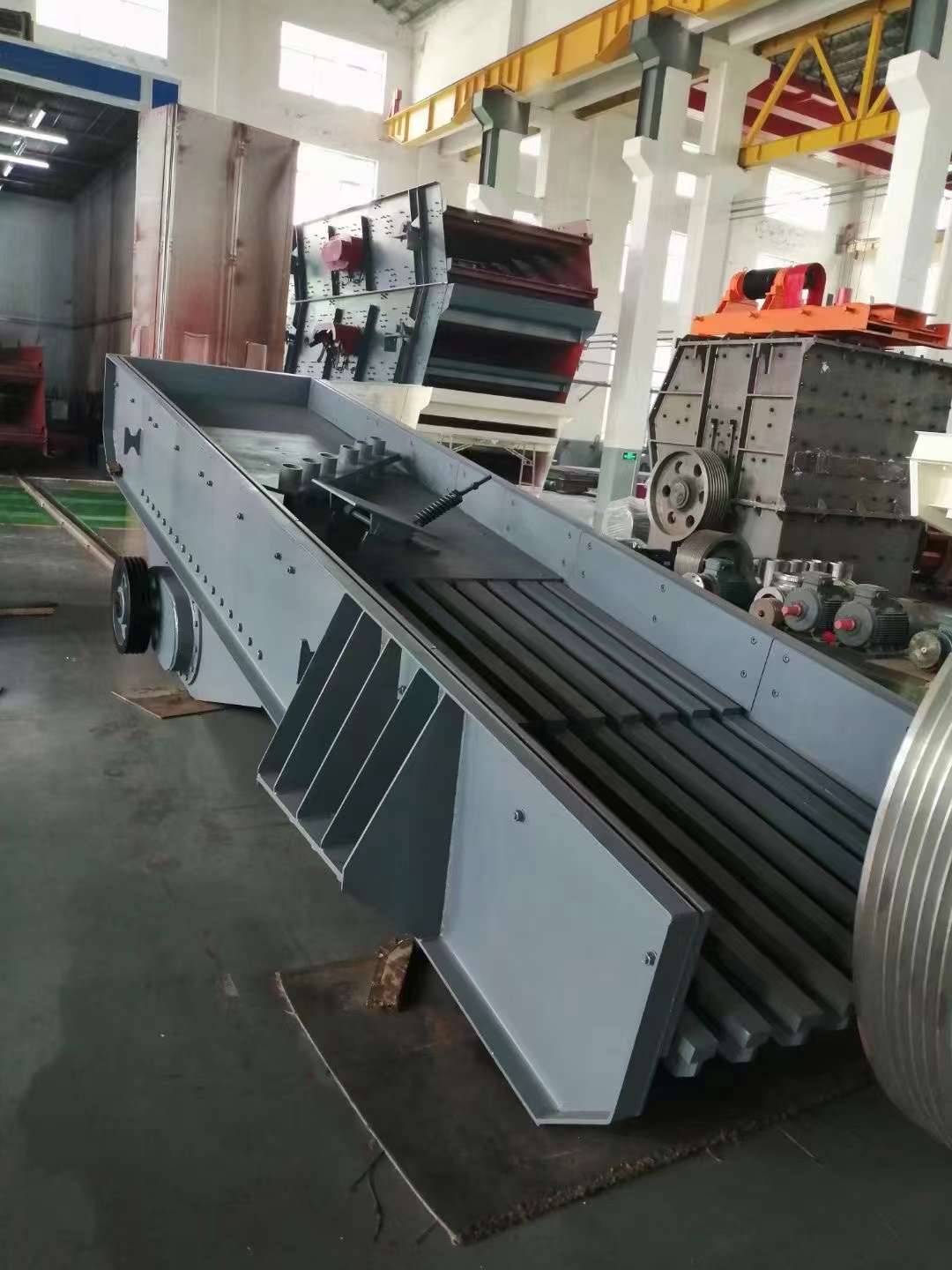

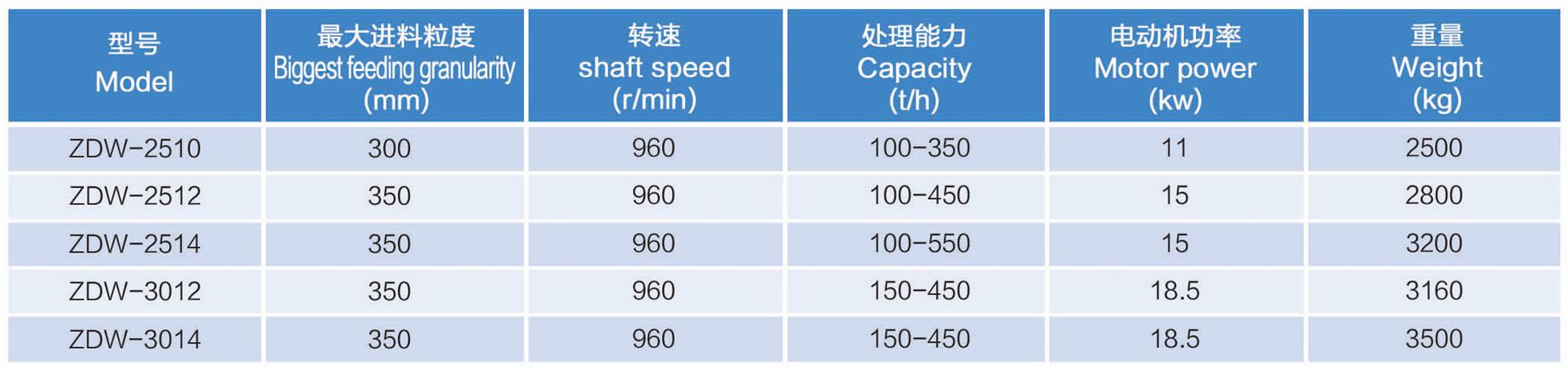

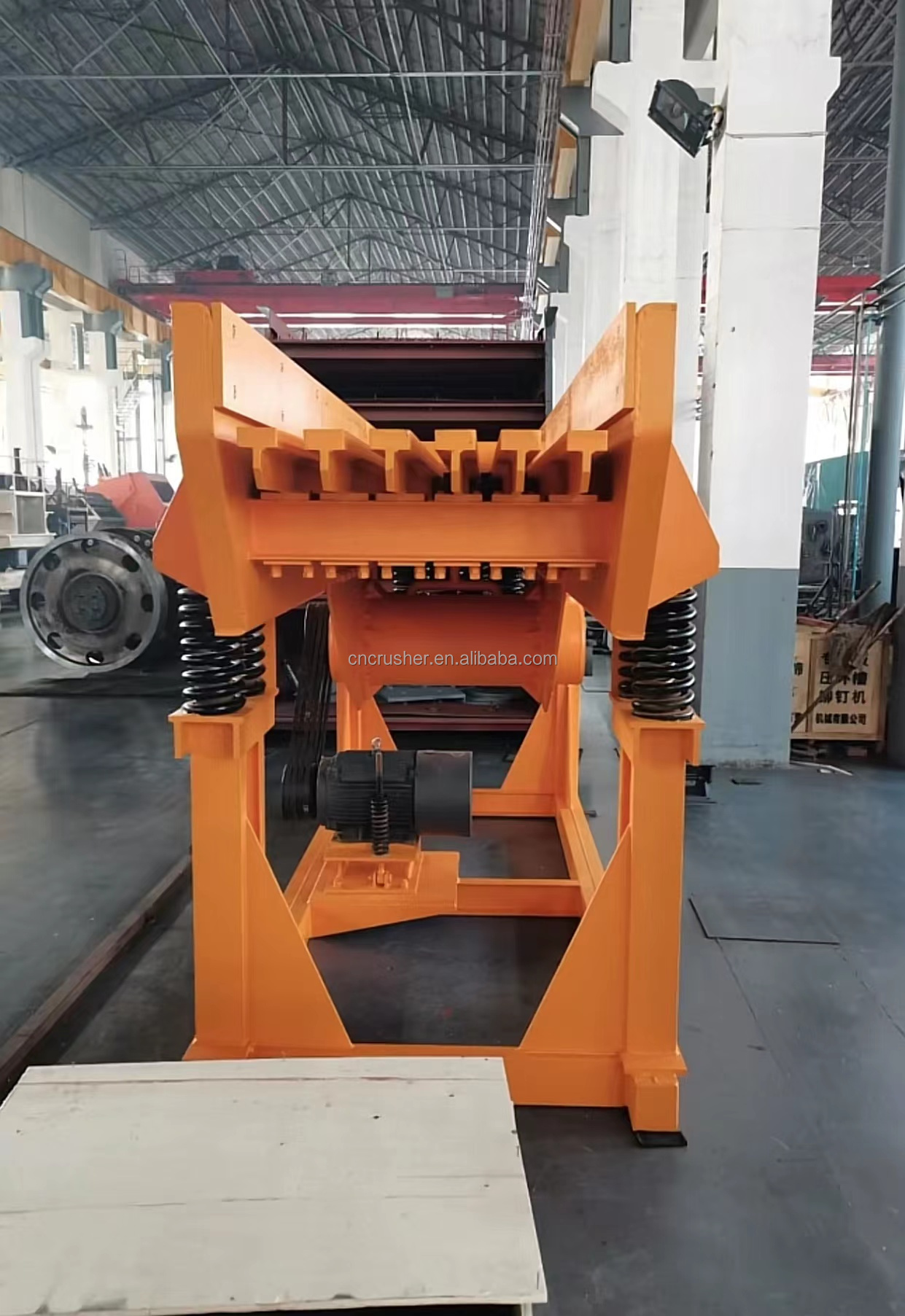

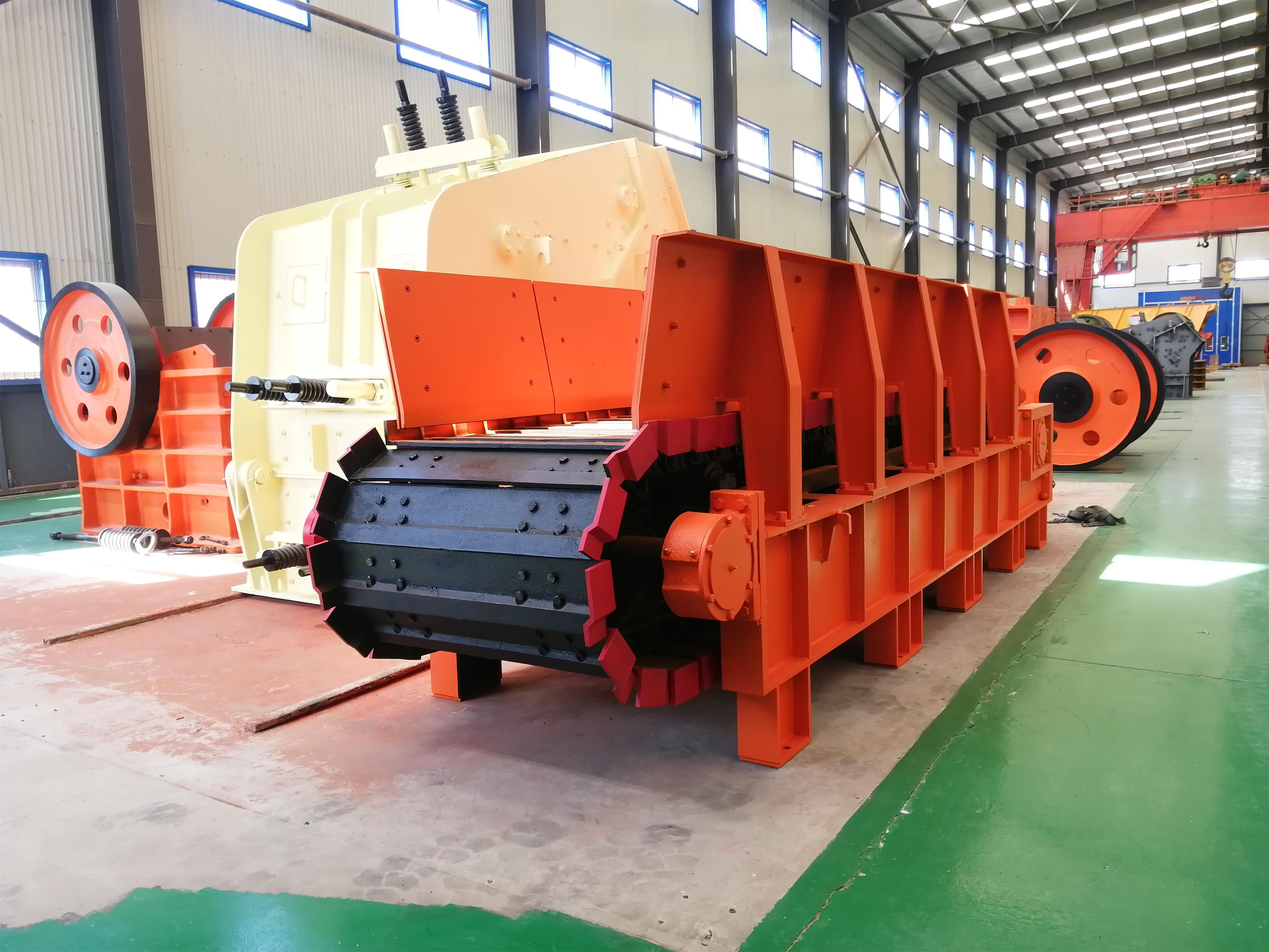

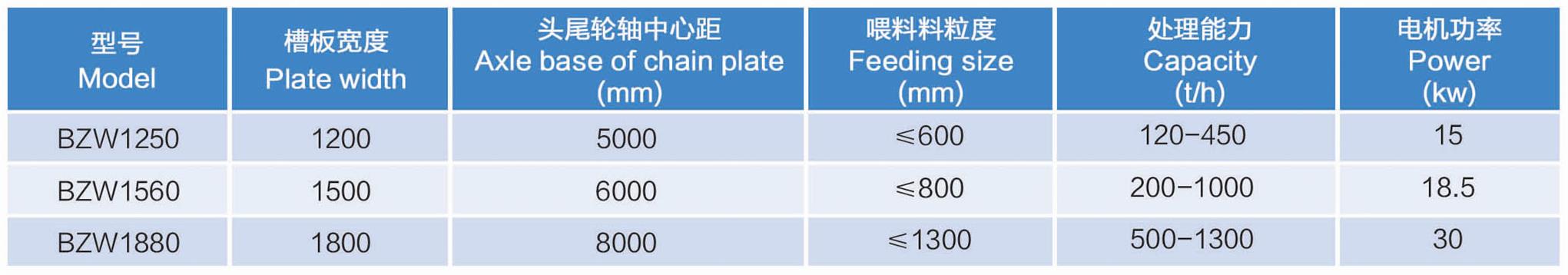

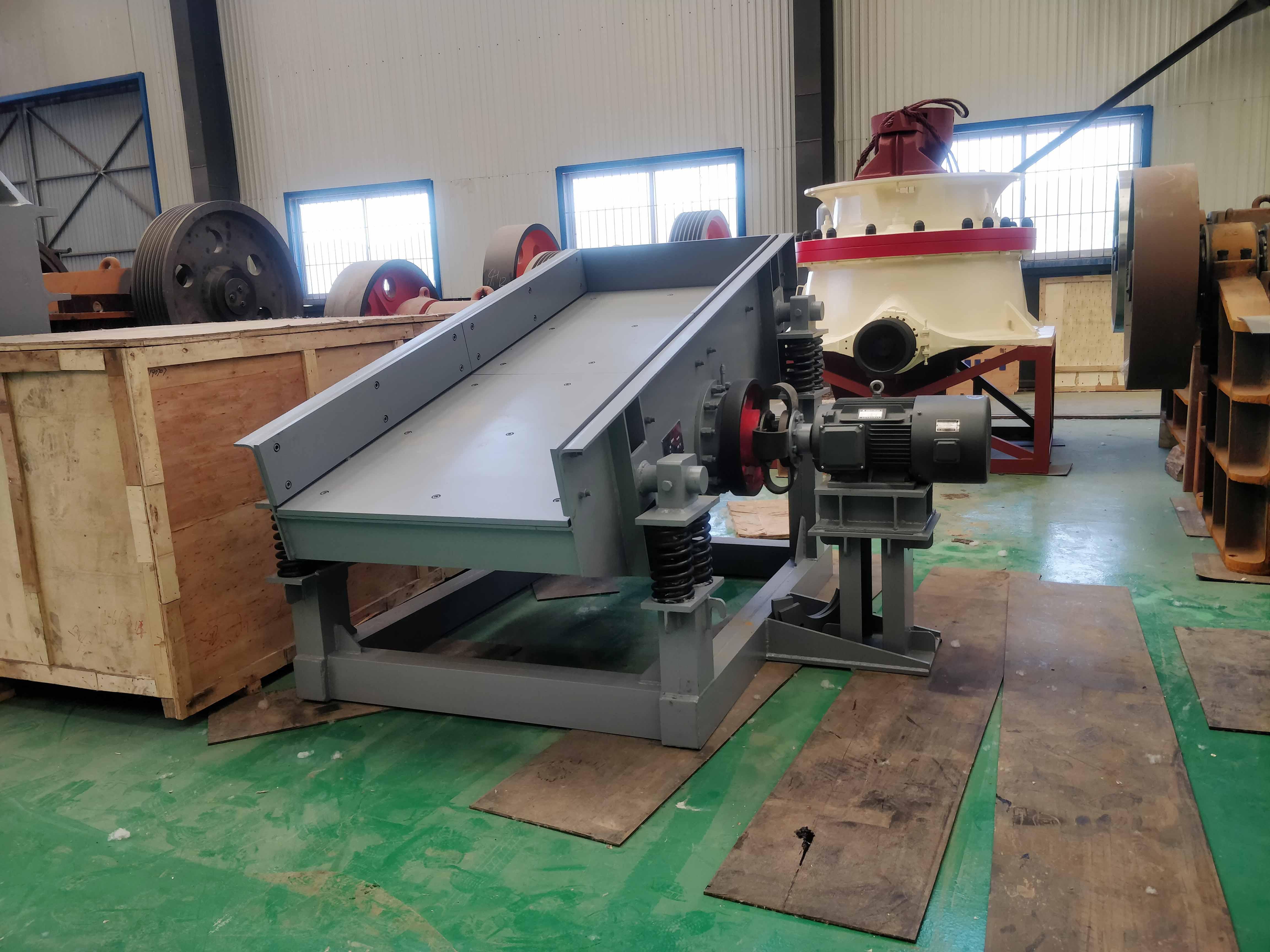

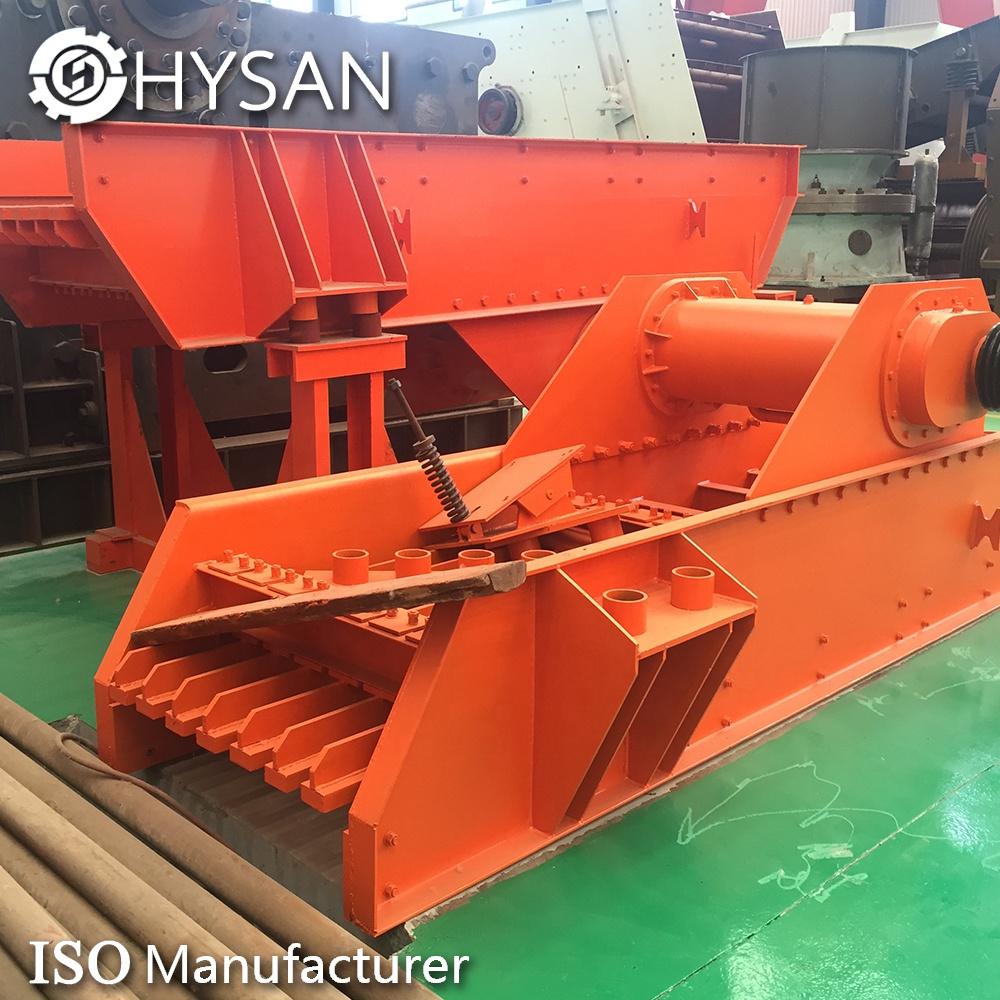

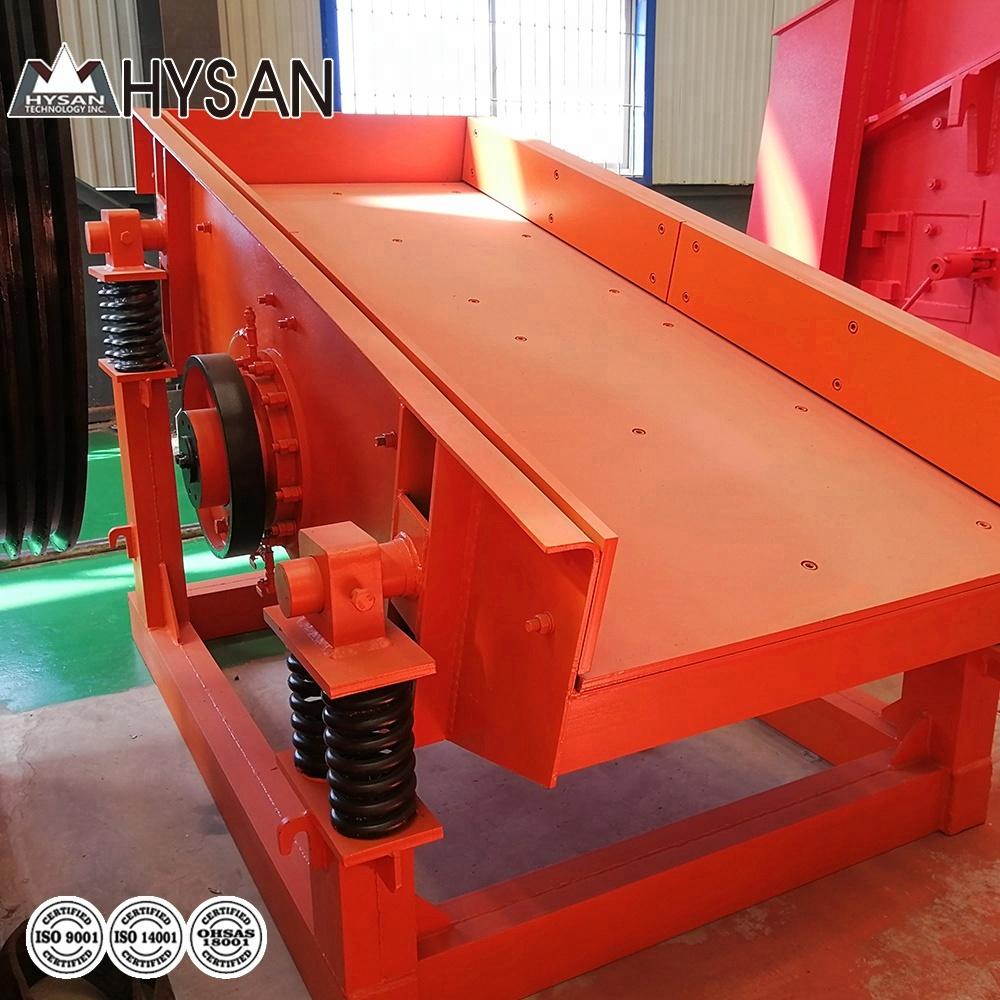

ZSW Grizzly Feeder | ZDW Flat Feeder | BZW Apron Feeder |

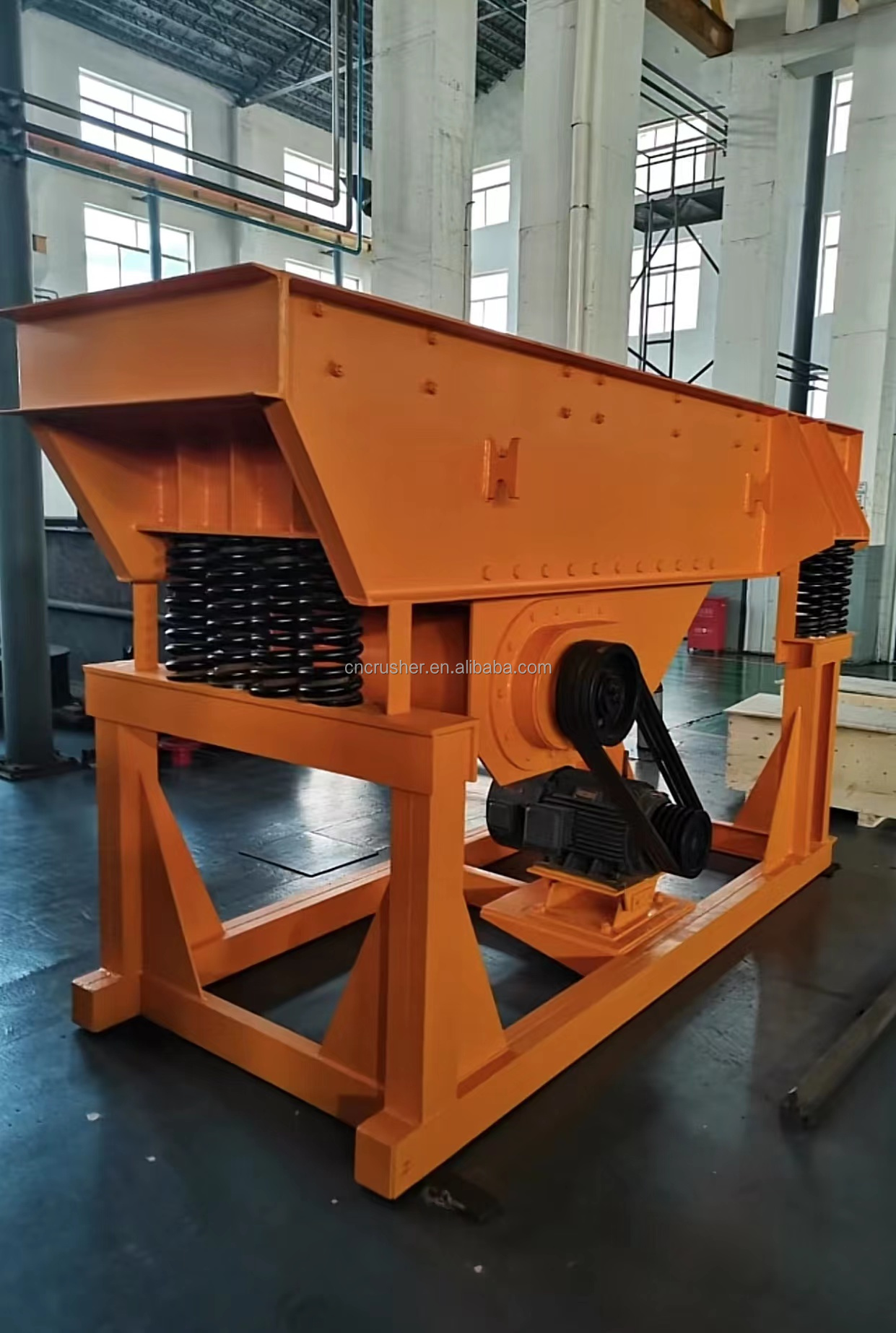

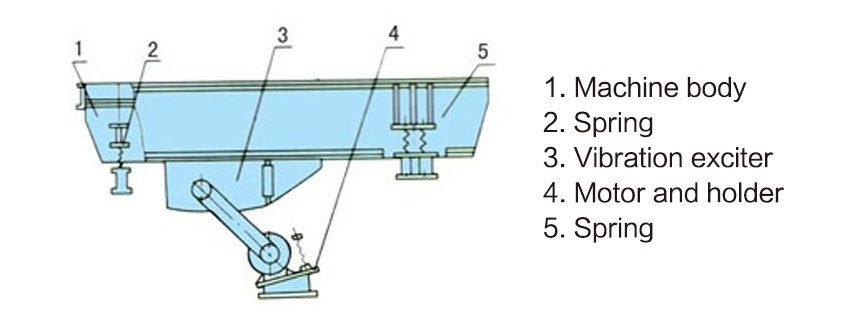

1. The vibrating feeder consists of a vibrating frame, a spring, a vibrator, a motor vibrating device and a motor.
2. The vibrator consists of two fixed eccentric shafts meshing with gears. When installed, two
The gears must be jogged as marked.
3. Driven by the motor, the two eccentric shafts start to rotate, generating a huge linear power,
Force the feeder to vibrate.
4. Through vibration, the material will slip on the hopper and thrown out, moving forward, when the material is
Through the sieving part, the smaller part will fall off and avoid further crushing, so sieving
can achieve the purpose.
