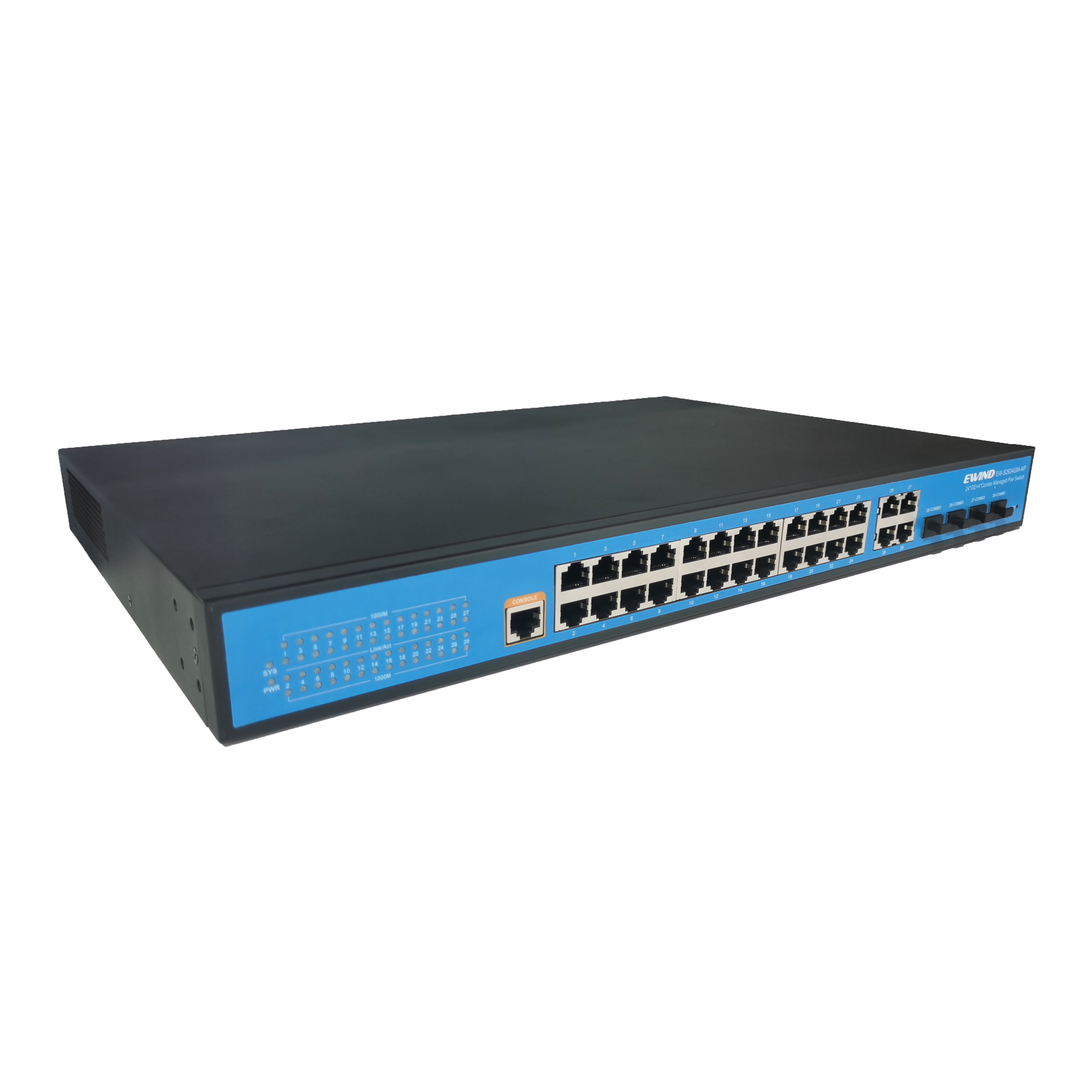

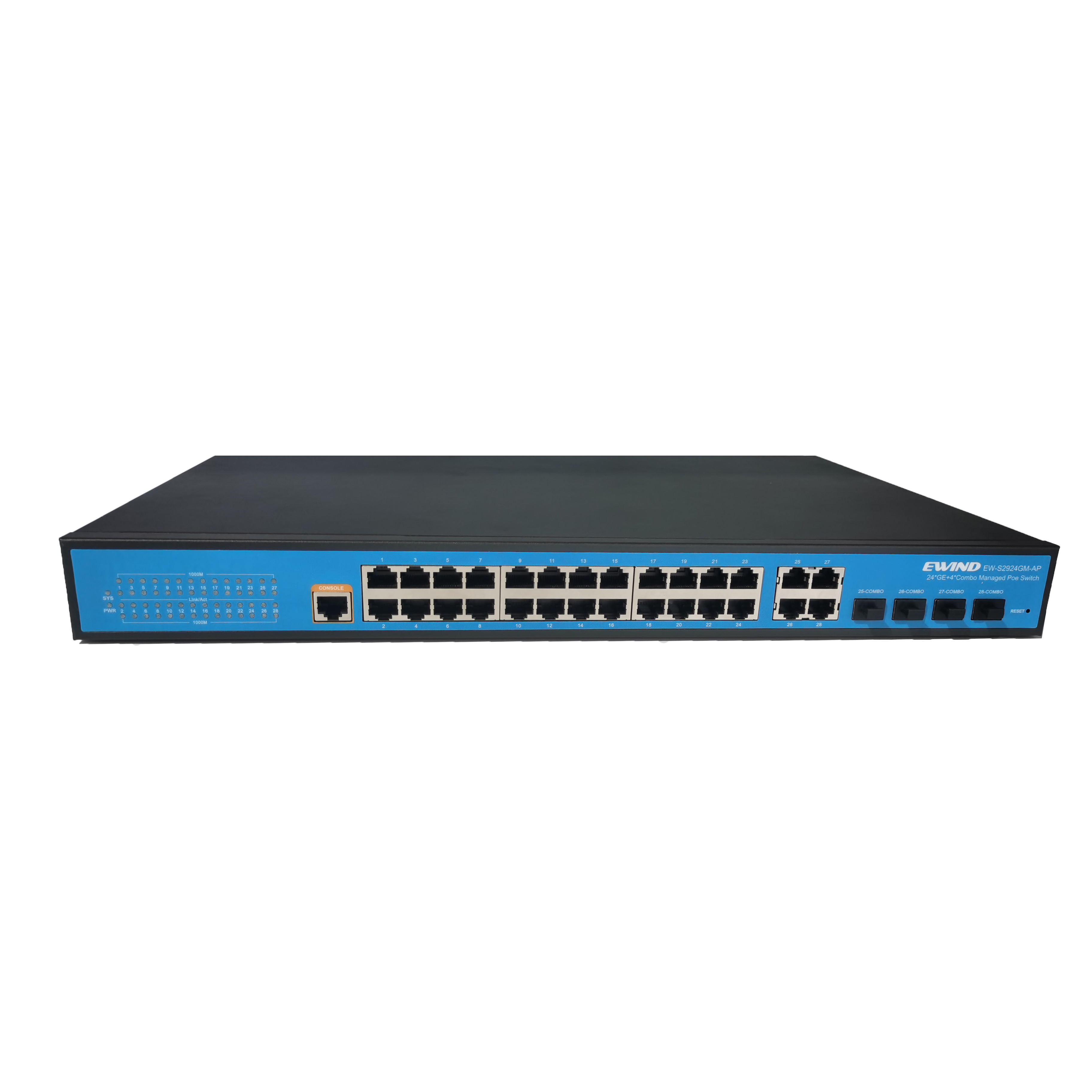

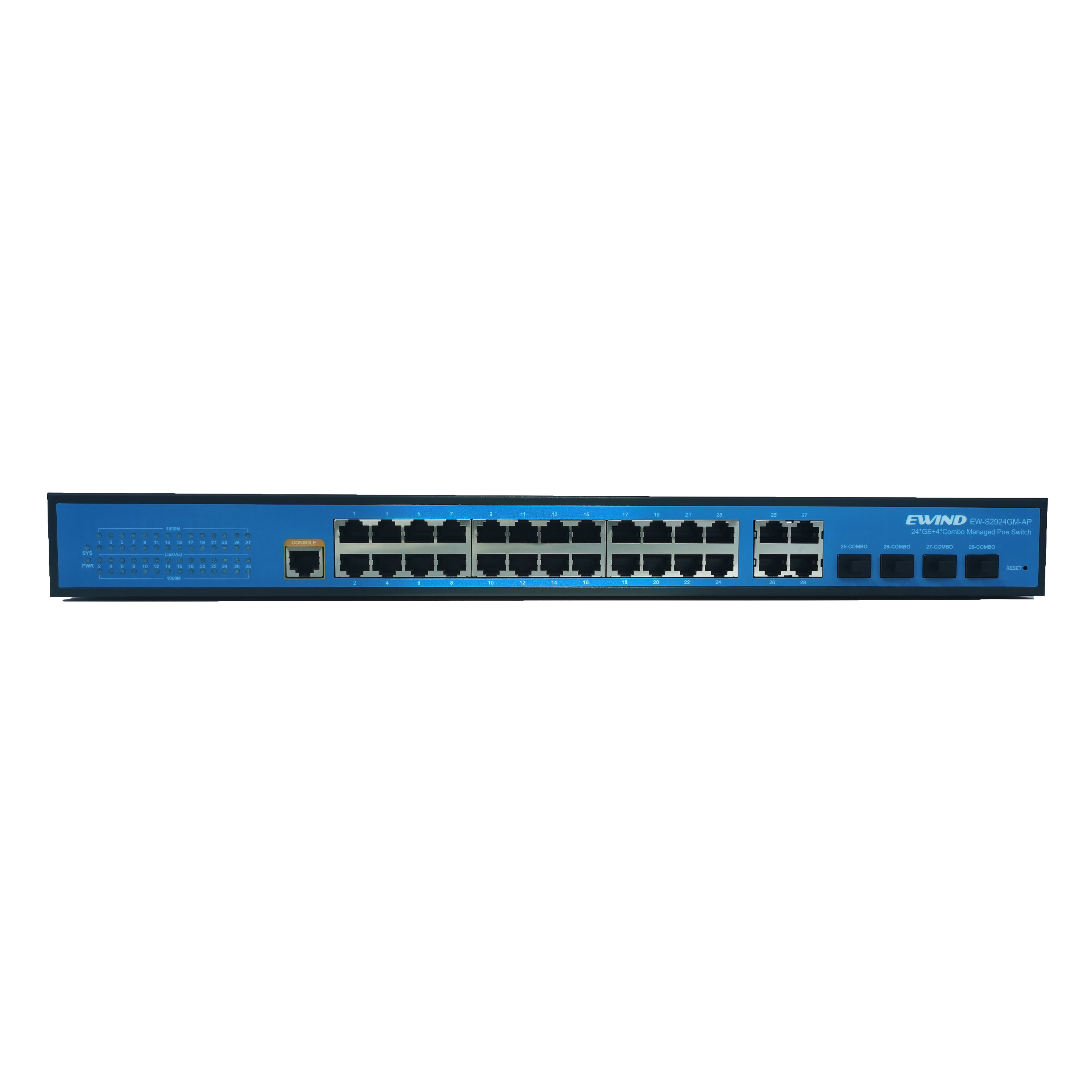

24-Port Gigabit PoE Switch 400W 4-Combination Managed Reverse Ethernet Network Switch

Product details
Original Equipment Manufacturer:acceptpayment terms:Western Union, T/T, MoneyGram, Alibaba hosting

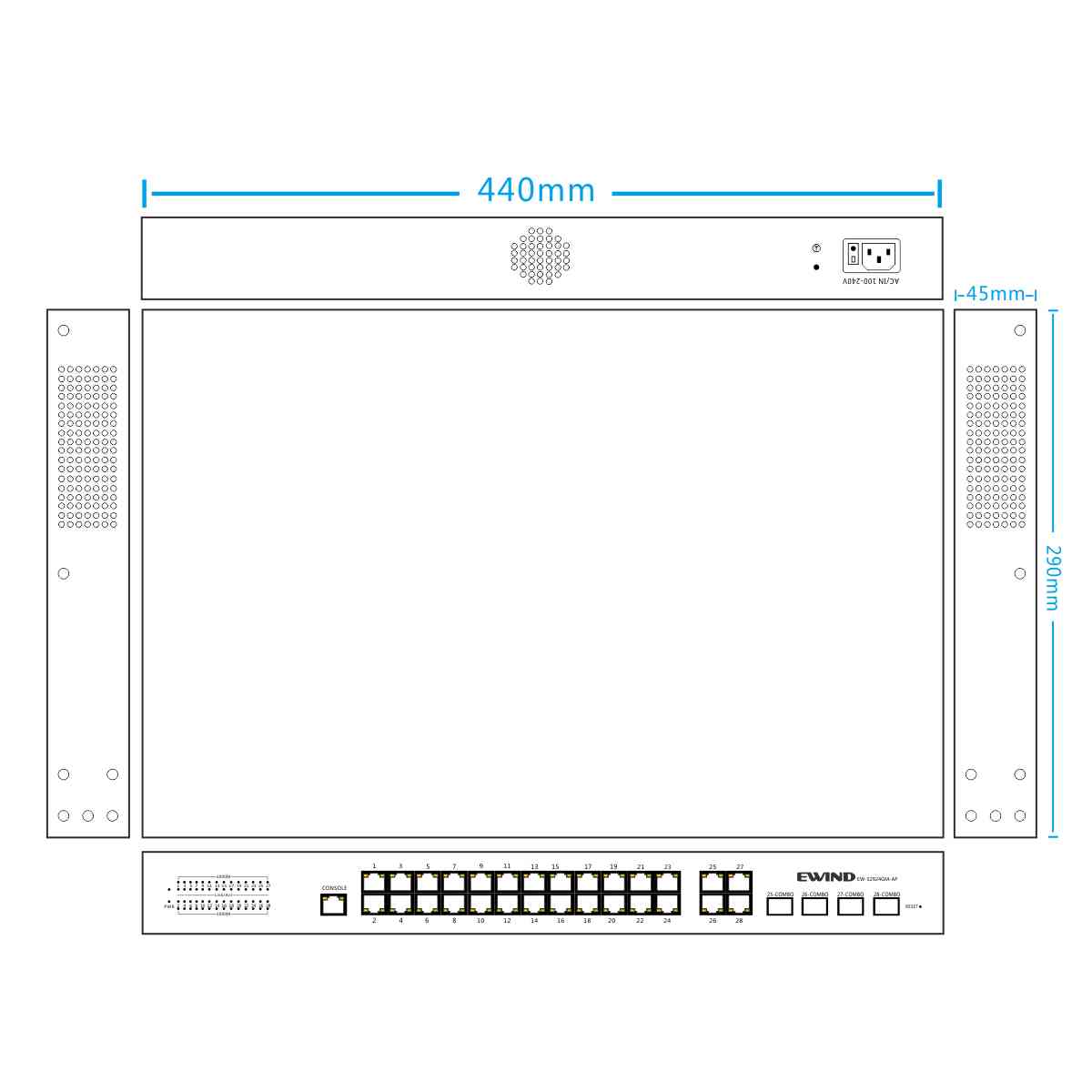

Supply capacity:10000 pieces per monthPackaging Details:Product size: 440*290*44.5mm Packing size: 525*390*95mm Packing box size: 550*410*500mm 5units/Carton
Warranty:3 yearsproduct name:24 Port Gigabit PoE Switch Managed 4 Combo Ethernet Network Switch
Key words:24-port switched networkmodel:EW-S2924GM-AP
Health status:100% original brandtype:Enterprise switch
Certification:FCC, CE, RoHSuse:Smart Home/Hospital/Transportation
power supply:AC: 100V-240V (50-60Hz)brand:easy wind
Function:watchdogplace of origin; place of origin:Guangdong, China
application:Telecom networkPackaging Preview:
port:Shenzhen Portport:24*10/100/1000Mbps
24-Port Gigabit PoE Switch 400W Managed 4 Combo
Ethernet network switch
➢ 24*RJ45 10/100/1000M + 4*1000M Combo Port PoE Switch, 1-24 ports support IEEE 802.3af/at;
➢ PoE port supports AF/AT intelligent identification. Standard power 15.4W/port, maximum power: 30W/port;
➢ Only supports 1,2(+)/3,6(-);
➢ Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS, etc.;
➢ Switching capacity: 56Gbps, MAC table: 8K;
➢ The POE port can be managed in real time, the machine can be switched on and off regularly, the POE working mode can be forced, and the power of the POE port can be displayed in real time;
➢ Compatible with 1U rack, built-in power adapter;
➢ 3 years warranty.
Product Description
specifications
Ethernet port
10/100/1000Base-T(X), auto-sensing, full/half-duplex MDI/MDI-X auto-sensing
Twisted pair transmission
10BASE-T: Cat3, 4, 5 UTP (≤100 meters)
100BASE-TX: Cat5 or higher UTP (≤100 meters)
1000BASE-T: Cat5e or higher UTP (≤100 meters)
SFP slot ports
Gigabit SFP fiber interface, default matching optical module
fiber optic cable
Multimode: 850nm 0~550M, single mode: 1310nm 0~40KM, 1550nm 0~120KM.
Network management type
L2+
Network protocol
IEEE802.3 10Base-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x
Forwarding rate@64byte
26.78Mpps
LED indicator
Power: PWR (green), System: SYS (yellow), Network: Link (yellow), Fiber Ports: L/A (green), PoE: PoE (green), Speed: Speed ​​(green)
PoE port
Ports 1 to 24, IEEE802.3af/at @ POE
PoE management
PoE power supply total power limit
PoE output power distribution, off&af&at
PoE output priority configuration
PoE working status
Delay power on
PoE Operations and Timing
Warranty
3 years, lifetime maintenance.
