Corrugated Carton Box Making Machines and Carton paper making machinery set with printing slotting and diecutting

Supplier: Higee Machinery (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Lotus Peng
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V/380V;	Power(W):	7.5KW;
Supply Ability:	30 Set/Sets per Month carton Box Making Machines;	Warranty:	1 Year;
Processing Type:	Box Making Machines;	Driven Type:	Mechanical;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Food Shop,Printing Shops,Food & Beverage Shops;	After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Advantage:	complete machine line;	Brand Name:	Higee;
Packaging Detail:	wooden case for Corrugated Carton Box Making Machines and Carton paper making machinery set with printing slotting and die-cutting;	Weight:	600kg;
Name:	Box Making Machines and carton paper making machine;	Product Type:	Box Making Machines;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Condition:	New;
Dimension(LWH):	280014001700mm;	Place of Origin:	Shanghai China (Mainland);
Production Capacity:	8000pcs/day;	Certification:	CE;
type:	All machines From raw paper to carton;	Port:	shanghai;
condition:	new;

Corrugated Carton Box Making Machines and Carton paper making machinery set with printing slotting and diecutting

The complete set of Box Making machines making from paper roll papercard to carton ,cartion making machine

1 single face corrugated machine

One-side corrugated cardboard machine

This line is a special equipment to produce one-side corrugated paperboard by corrugating the web, automatic gluing, pressure adhering and cutting. The type of flute is designed according to the international standard. Combine the international advanced structure, the line is characterized by its reasonable structure, new appearance, advanced technology, convenient operation, low energy- consumption and small floor space, suitable for small-medium package and color corrugated case production.

SPECIFICATGATIONS

Model	DW-1600
Max.width of paper used	1600mm
Type of flute	UV/A.B.C.E
Mechanical speed	0-30m/min
Heating method	electricity, steam, coal, gas
Cross cut length range	250-1500mm
Slitting width range	350-2000mm
Total power	38kw
Weight	8000kw

2. QDF1300 RE-FACE MACHINE

It mainly use gluing for corrugated cardboard ,paperboard and colour printing face paper then becoming a new cardboard. It is used for food, drink, home electronic equipment,light industry, weave gift packing industrial.

Technical parameters:

Model	Max spec.	Min spec.	Speed	Power supply	Dimention	Weight
QDF-1300	1250×1000M	350×400mm	0-50m/min	380v/kw	9300×1600×1200	3500kg

3. SBF Series Thin-blade Separating and Trace Pressing Machine

It’s mainly used to cut cardboard paper and make line.

Features: The machine is driven by stepless motor and its power is transmitted synchronically with gears and sprocket wheels. It is featured with low noise, smooth drive and easy adjustment of breadth. The paper separating blade is made of 1.2mm high-strength alloy and feeding rollers are made of rubber that leave no marks on paper. The machine is error-free in paper separating and good at saving electricity with lower power rate. Equipped with auto and manual blade milling unit, the machine can ensure smooth edges of the paper and non shrunken corrugations and is recognized as the ideal equipment for carbon box and packing industries.

Main technical parameters

Model(Unit mm)	SBF2200	SBF2500	SBF2800
Breadth	2200	2500	2800
Maximum feeding size	2100	2400	2700
Minimum separating size	120	120	120
Maximum blade diameter	φ260	φ260	φ260
Minimum blade diameter	φ225	φ225	φ225
Motor power rate	.3KW	4KW	4KW
Trace pressing wheels(set)	4	6	6
Paper separating lades(piece)	3	4	4
Weight(kg)	1500	1800	2000
Overall dimensions LWH	305014001350	335014001350	355014001350

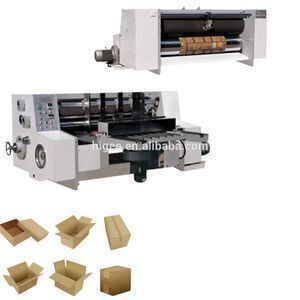

4. Semi-automatic ZSYC-D phase modulation four knives gear printing and slotting machine.

Features

Paper feeding
- Automation chain paper feed
- The prop fixes position, ensures that paper feed is accurate.
- Automatic counting.
Printing
- Planetary transmission and electrical positioning. 360-degreeadjustment in both dynamic and static condition
- The embossing rollers get apart from printing template once machine stops.
- The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
- Colors of 1 to 4 can be combined easily
- The pneumatic provides ink circulatory system from attracting style
- Top-quality paper separating and grooving blades are used

5. stapler

Features

1. Applicable for various corrugated paper box, high speed and high efficiency.

2. Single or double stapling are both available.
