Supply capacity: | 300 sets per month | port: | Qingdao |
Health status: | new | brand: | Yu Hong |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Skype: | Guo Yajuan 115 |
Core components: | Engine, Bearing, Motor | strength: | 18kW |
Video external inspection: | if | application: | Cement, active lime, bauxite, old forest, ceramsite, etc. |
Foundation drawing: | Supplied with machine delivery | Marketing Type: | normal product |
Main selling point: | long lasting | color: | according to your request |
weight: | 405 kg | Applicable industries: | energy mining, etc. |
production line: | we design for you | Mechanical test report: | if |
Core Components Warranty: | 1 year | Bearings: | NSK |
Packaging Details: | Standard export container, bare pack or other as per your requirement | Voltage: | 380V |
Warranty: | 1 year, 1 year | After-sale service: | lifelong |
Showroom location: | Malaysia | Install: | under the guidance of our engineers |
place of origin; place of origin: | Henan, China | Dimensions (L*W*H): | 3*20 |
After-sales service provided: | Engineers can repair machinery overseas |

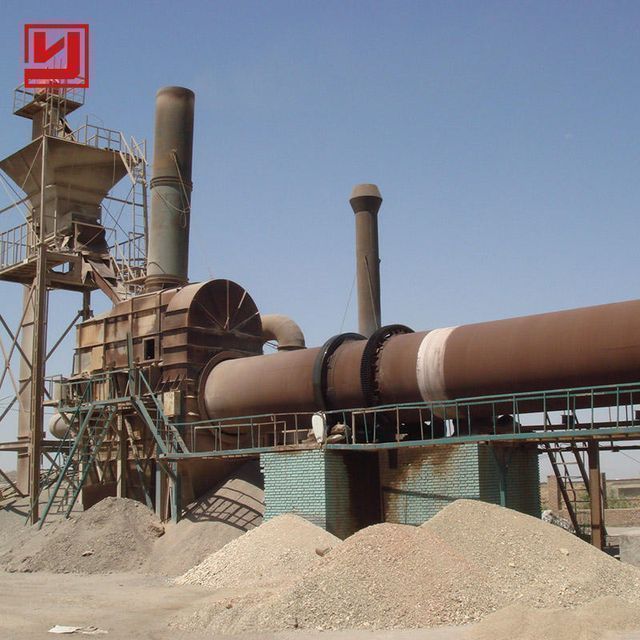

brief introduction
Applicable materials
The rotary kiln can process lime, cement, coal gangue, bauxite, mudstone, iron ore, lead-zinc ore, silver-manganese ore, molybdenum-rhenium ore, other metal ores and non-metallic ores. and many more
Product parameters
Model |
Rotating speed |
inclination |
capacity |
strength |
weight |
(rev/min) |
(%) |
(ton/day) |
(kilowatt) |
(t) |
|
Φ1.4×33 |
0.39~3.96 |
3 |
25 |
18.5 |
47.5 |
Φ1.6×36 |
0.26~2.63 |
4 |
40 |
twenty two |
52 |
Φ1.8×45 |
0.16~1.62 |
4 |
70 |
30 |
78.2 |
Φ1.9×39 |
0.29~2.93 |
4 |
75 |
30 |
77.59 |
Φ2.0×40 |
0.23~2.26 |
3 |
100 |
37 |
119.1 |
Φ2.2×45 |
0.21~2.44 |
3.5 |
150 |
45 |
128.3 |
Φ2.5×40 |
0.44~2.44 |
3.5 |
250 |
55 |
149.61 |

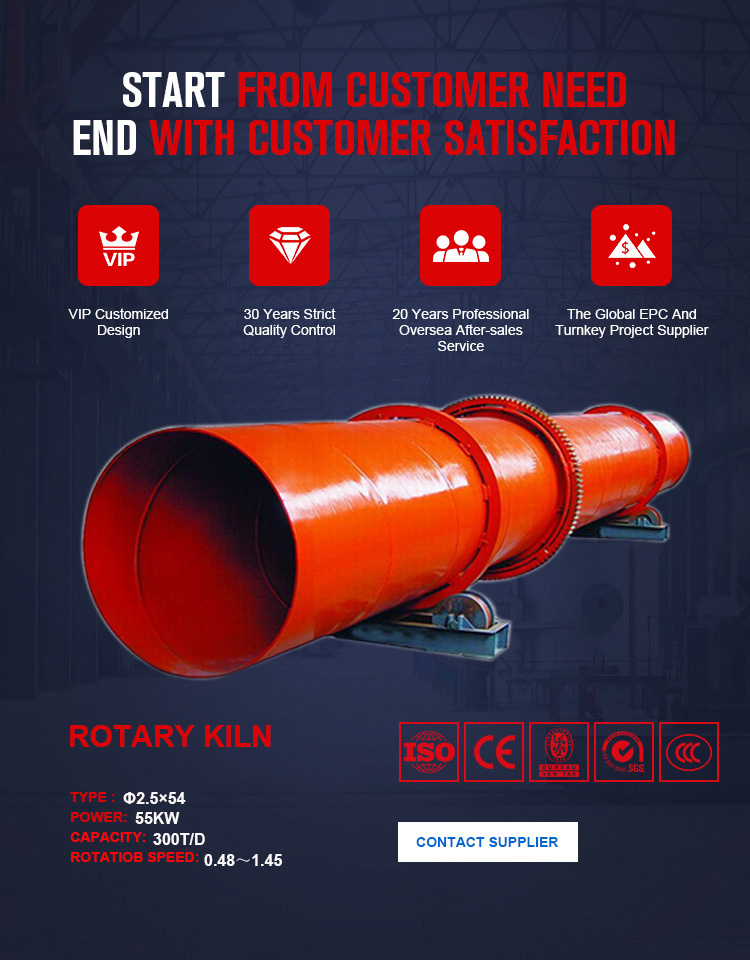

Φ2.5×54 |
0.48~1.45 |
3.5 |
300 |
55 |
196.29 |
Φ2.7×42 |
0.10~1.52 |
3.5 |
400 |
55 |
198.5 |
Φ2.8×44 |
0.437~2.18 |
3.5 |
600 |
55 |
201.58 |
Φ3.0×48 |
0.6~3.48 |
3.5 |
800 |
100 |
237 |
Φ3.2×50 |
0.674~3.37 |
3.5 |
1000 |
160 |
252.4 |
Φ3.5×52.5 |
0.6~3.6 |
3.5 |
1500 |
180 |
366.5 |
Φ4.0×60 |
0.396~3.96 |
3.5 |
2500 |
315 |
523 |
Φ4.3×64 |
0.4~3.96 |
3.5 |
3200 |
420 |
606.69 |
Φ4.8×72 |
0.39~3.96 |
3.5 |
5000 |
630 |
853.3 |
Φ5.2×61 |
0.38~3.79 |
3.5 |
5500 |
800 |
859 |
Φ5.0×80 |
3.5 max |
4 |
6000 |
800 |
1201 |
Φ5.6×87 |
4.23 max |
4 |
8000 |
800 |
1227.5 |

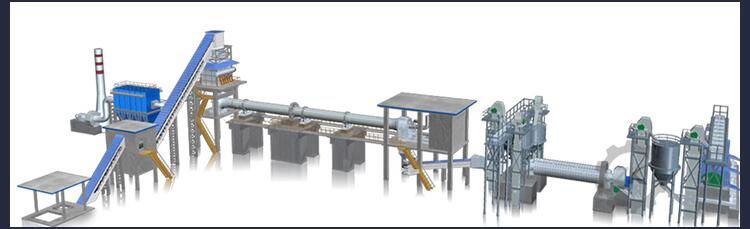

production line
Rotary kiln is mainly composed of kiln shell, refractory brick, supporting device, supporting device with stopper wheel, transmission device, lubricating device, mobile kiln head and kiln tail sealing device.
1.Supporting device: advanced shaft structure, automatic temperature measuring device, electric heating.
2.Grab wheel: including mechanical wheel and hydraulic.
3.Gears: single or double. Use buncher, DE machine and variable frequency motor to control the speed. Reliable, energy efficient and efficient.
4.Kiln shell tire pad: there are three types of bottom pads: fixed type, zoom type and floating type. The structure is simple, the replacement is convenient, and the cylinder is not damaged.
5.Sealing equipment: There are various options according to the kiln type, including cylinder edge sealing, spring edge sealing, graphite block edge sealing and the above combination. The sealing effect is very good.
6.Kiln hood: including fixed and movable.
FAQ
Q1: Why choose Yuhong Machinery?
A1: 1. Latest design, CAD calculation and simulation;
2. ISO, BV, SGS, CE quality control manufacturing;
3. More than 30 years of experience, exported to more than 50 countries;
4. The highest standard, suitable for operators;
5. World-class quality at an affordable price.
Note: The price depends on different models. Reply to a message and you'll get a 5% discount.
Q2: What are the requirements for rotary kiln materials?
A2: Our Yuhong has high standards in the selection of materials for rotary kilns.
1. The structural parts are made of high-quality steel plates (ie Q235, Q345);
2. Use wear-resistant steel (ie ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on the wearing parts;
3. Motors, reducers, bearings, belts and bolts are the top 5 brands in China;
4. Metallurgical properties must be considered when designing, cutting, bending, assembling and welding.
Q3: What information do we need to provide you with a reasonable model and the best quotation?
A3: 1. What are the raw materials?
2. What is heating fuel?
4. What is the hourly capacity?
Henan Yuhong Heavy Machinery Co., Ltd.
Henan Yuhong Heavy Machinery Co., Ltd. is a joint-stock mining machinery manufacturing enterprise integrating scientific research, production and marketing. Its main products include five series of crushing equipment, mineral processing equipment, milling equipment, drying equipment and kiln. From the perspective of "customer-oriented", Yuhong Group wholeheartedly provides customers with valuable service models, and strives to meet the product needs of different customers 100%.
