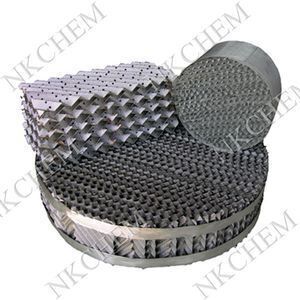

Stainless Steel Metal Structured Packing For Distillation Column

Supplier: Pingxiang Naike Chemical Industry Equipment Packing Co., Ltd.
Region: Jiangxi, China
Contact: Ms Alice Pan
Price: $800.00 /cubic meter
Min. Order: 1 cubic meter

Click here to contact

Product details

Brand Name:	NKCHEM;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	Shanghai;	Certification:	ISO9001;
Place of Origin:	Jiangxi China (Mainland);	Delivery Detail:	10-15days;
Model Number:	NK-MSP;	Packaging Detail:	wooden box, as the customers' requirements;
Supply Ability:	8000 Cubic Meter/Cubic Meters per Year;

Metal Structured Packing (Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.

Metal Structured Packing detail:

Metal Structured Packing (Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.

Material
Metal perforated plate corrugated packing is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.

Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.

The technical specification:

Type	specific surface are m2/m3	Void Volume %	Heaping Weight Kg/m3	Wave Height mm	Theoretical plate number m-1	Δ P Pa/m	Max F-factor m/s(kg/m3)0.5
125Y	125	98	85-100	25.4	1.0-2.0	150	3.0
250Y	250	97	170-200	12.5	2.0-3.0	200	2.6
350Y	350	94	240-280	9	2.0-2.5	300	2.0
500Y	500	92	360-400	6.3	4.0-5.0	180	1.8
