mountain solar ramming piling machine for solar pile driving MZ398Y

Supplier: Shandong Longye Machinary Co., Ltd.
Region: Shandong, China
Contact: Ms Tina Yu
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE & ISO;	Packaging Detail:	40' container for 2 sets, 20' container for 1 set, Machine in nude packing, spare parts in standard export wooden box.;
Brand Name:	LongYe;	drill diameter(screw):	Max 400mm;
Piling Speed(m/min):	3m/min;	drilling depth:	0--30m;
rotation speed (r/min):	0--110;	After-sales Service Provided:	Engineers available to service machinery overseas;
drilling boom swing(°):	left and right total 50;	Efficiency:	300 Posts /day;
Supply Ability:	120 Set/Sets per Month;	mast pitch (°):	120;
Port:	QingDao port;	Dimension(LWH):	530019502580 (mm);
drilling torque:	7600 NM;	once promotion(mm):	3200;
drill depth:	20--100 m;	drill diameter(DTH hammer):	90--300 mm;
Payment Terms:	L/C,T/T;	Model Number:	MZ398Y;
Delivery Detail:	deliver within 2 days after payment;	Condition:	New;
Place of Origin:	Shandong China (Mainland);	mast swing (°):	left and right total 40;
Weight:	5800 kg;

mountain solar ramming piling machine for solar pile driving MZ398Y

Product Description

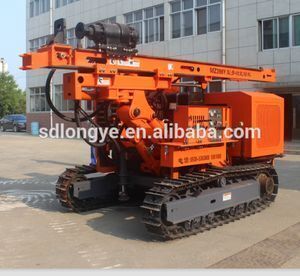

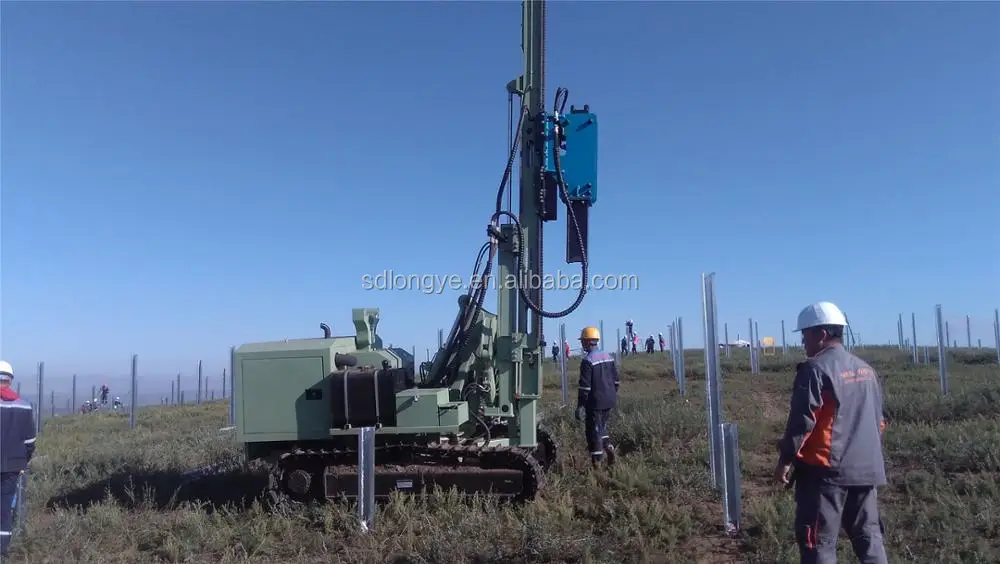

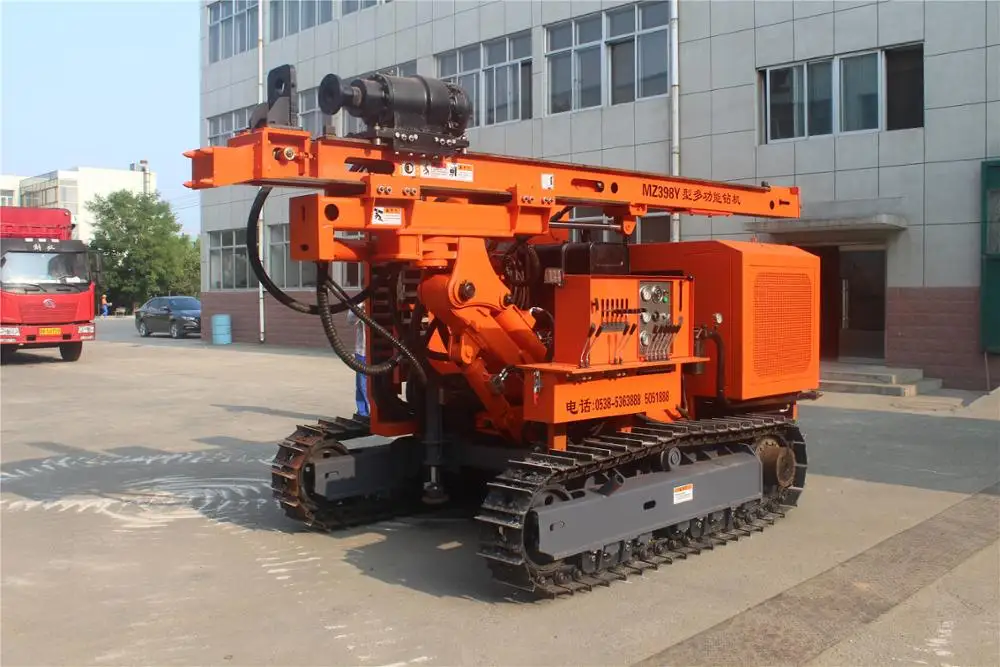

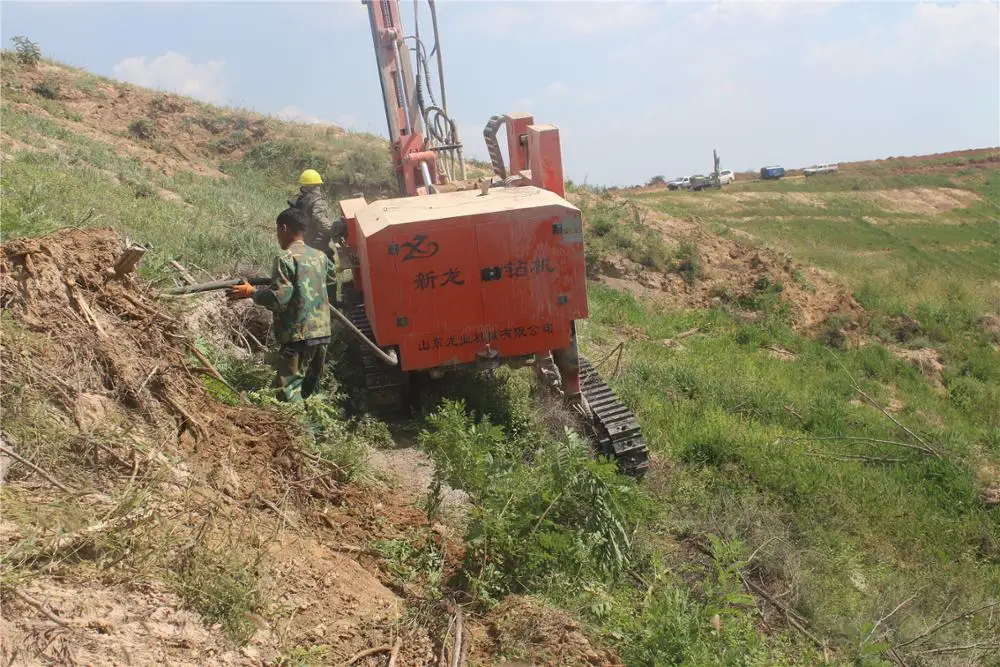

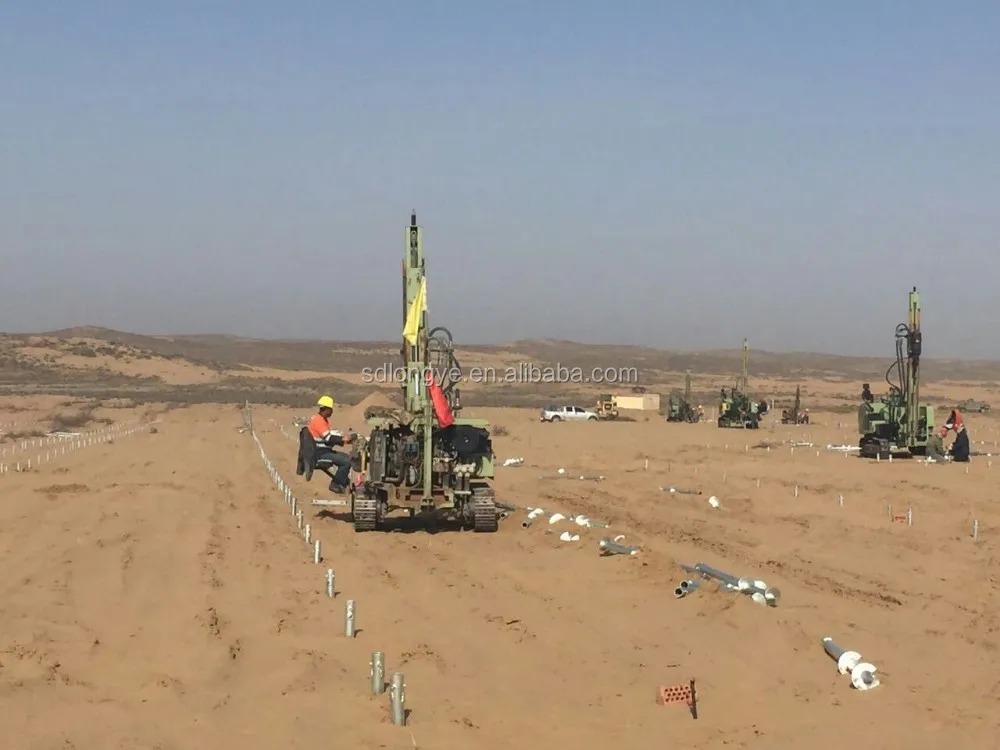

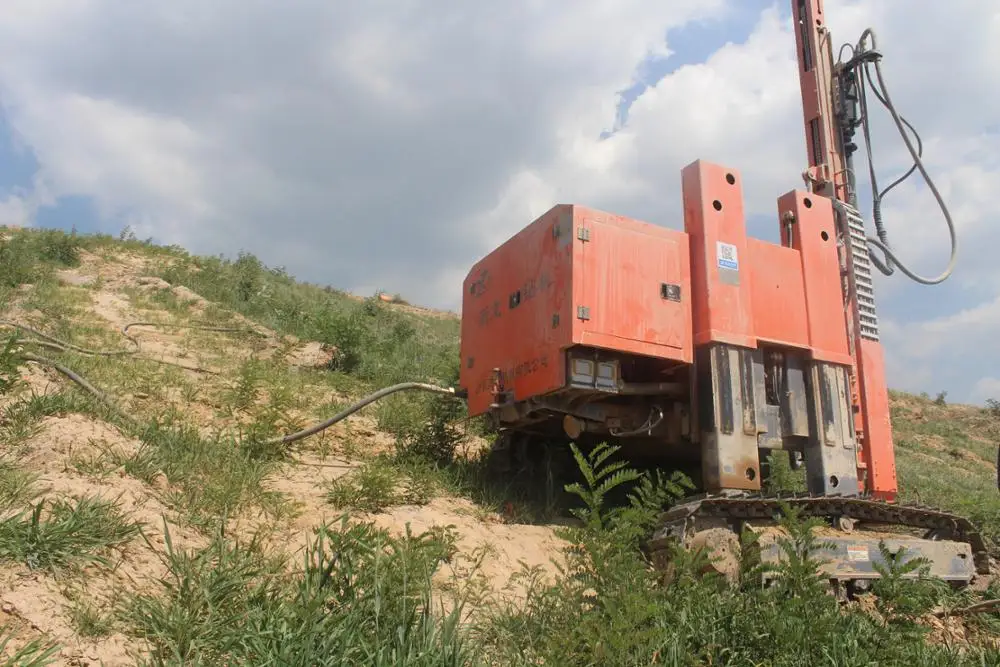

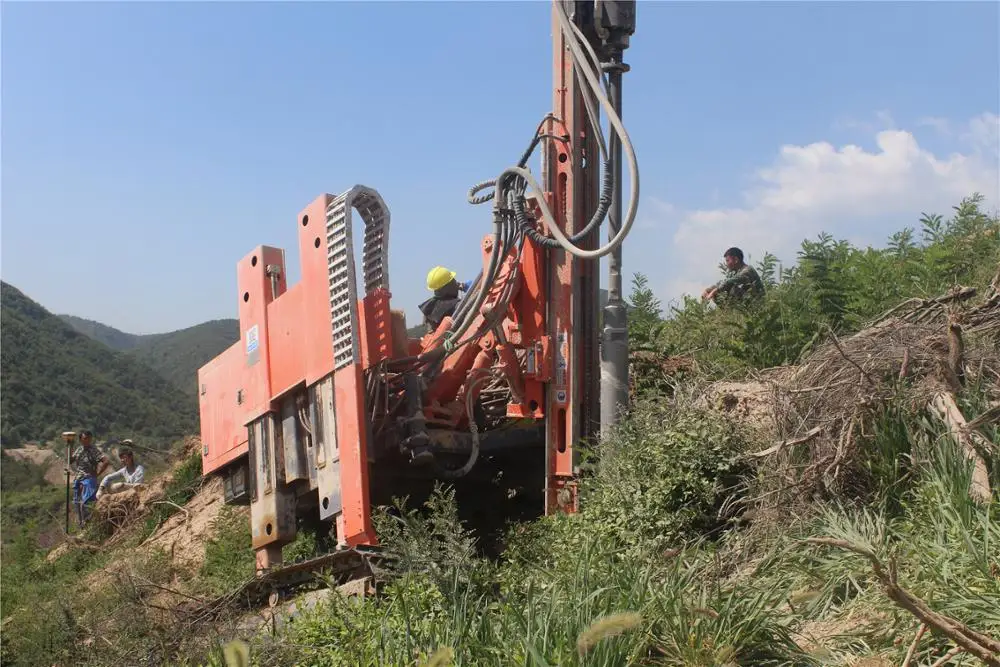

MZ398Y crawler hydraulic drilling rig, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on, the machine hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment; machine has compact structure, and mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability . MZ398Y piling machine has reliable performance, high efficiency, multifunctional applications. This MZ398Y solar piling machine is currently the strongest mountainous solar drilling rig in China !

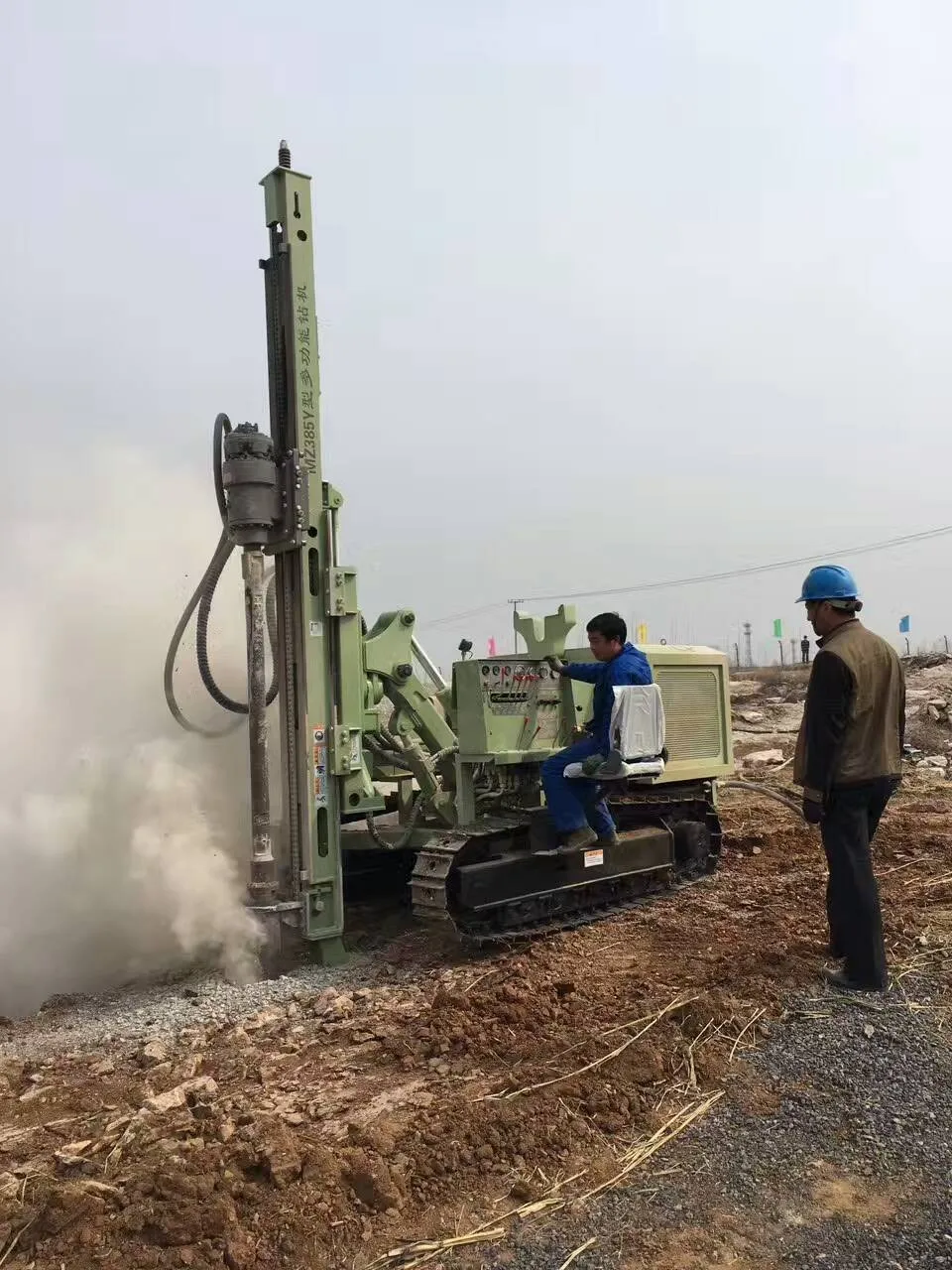

The MZ398Y drilling rig can also be used for anchoring, water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions .

Bore diameter(mm)	90-300
Bore depth(m)	20-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(medium pressure)
Air pressure(Mpa)	1.6-2.46(high pressure)
Pipe diameter(mm)	76/89
For rock(F)	6-20
Bore diameter(screw)(mm)	maximum 400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	3200
Skid pitch(°)	120
Swinging angle of skid(°)	left and right total 40
Boom swing angle(°)	left and right total 50
Rotation Speed(r/min)	0-110
Host Power (Kw)	84
Climb ability(°)	35
Dimension(LWH)(mm)	533021102850
weight(Kg)	7300
Walk speed(km/h)	0-2.5
