MZ398Y China's best quality large slope mountain hydraulic solar drilling rig vertical micro piling machine

Product details
Spacing between masts (°):120Speed ​​(r/min):0--110
Piling speed (m/min):3 m/minefficiency:300 posts/day
Gradeability (°):45Dimensions (L*W*H):5330*2110*2850 (mm)
model:MZ398YSupply capacity:120 sets per month
Drill diameter (auger):up to 400mmport:Qingdao Port
place of origin; place of origin:Shandong ChinaDrilling Torque:7600 nautical miles
Drilling depth:0--30mbrand:Dragon industry
Packaging Details:2 sets of 40'container, 1 set of 20'container, the whole machine is bare, and the spare parts are exported in standard wooden boxes.Drilling depth:20--100 meters
Boom swing (°):About 50 in totalState of health:new
payment terms:L/C, T/TCertification:Certification and ISO
Mast swing (°):About 40 in totalweight:7300 kg
Shipping Details:Ships within 2 days after paymentDrill diameter (DTH hammer):90--300mm
After-sales service provided:Engineers available to service machinery overseas







Product Description

Rig advantages:



1. Our machines cover nearly 60% of the domestic solar piling project market in China.

2. Our factory has produced special drilling rigs and pile drivers for more than 20 years.

3. Our machines 2 sets work more efficiently than other brands.

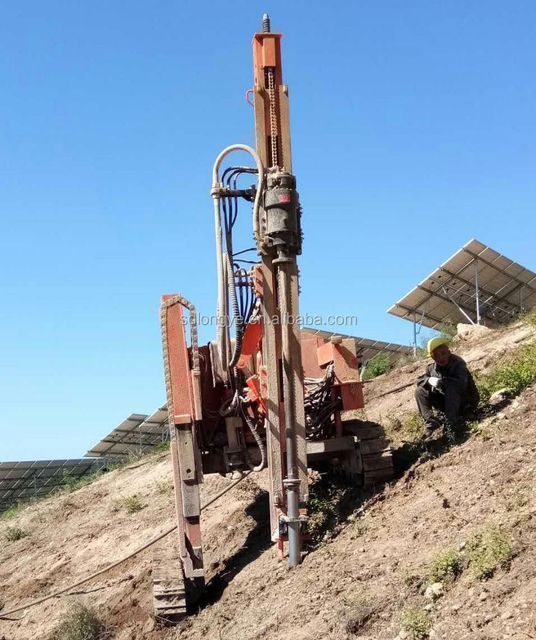

MZ398Y crawler hydraulic drilling rig adopts unique construction technology and climbing mechanism design, and can be adjusted according to the slope height. It is suitable for solar engineering construction with a slope of up to 45 degrees. This equipment is capable of various photovoltaic construction technologies: screw pile drilling, screw pile Hole drilling, rock down-the-hole hammer, pile driver, etc. The hydraulic parts of the machine adopt imported originals, which greatly improves the performance and stability of the equipment; the machine is compact in structure, and the mast has a telescopic compensation function. The mast is supported on the ground during work. Wellbore stability is high. MZ398Y pile driver is reliable in performance, high in efficiency, and multi-functional in application. This MZ398Y solar piling machine is currently the strongest mountain solar drilling machine in China!

The MZ398Y drilling rig can also be used for blast hole construction in anchorage, water wells, water conservancy, power plants, open-pit mining, and road construction.













Technical Parameters







Aperture(mm)

90-300

Drilling depth (m)

20-100

Air consumption(m³/min)

10-26

air pressure (Mpa)

0.7-1.6 (medium)

1.6-2.46(high)

Diameter (mm)

76/89

for rock (F)

6-20

Aperture (screw) (mm)

up to 400

Drilling depth (m)

0-30

Spiral diameter(mm)

130-400

Lift once (mm)

2000

Slideway spacing (°)

120

Skid swing angle (°)

About 40 in total

Boom swing angle(°)

About 50 in total

Speed(r/min)

0-110

Host power (Kw)

84

Gradeability (°)

45

Dimensions (L*W*H) (mm)

5330*2110*2850

Weight (Kg)

7300

Walking speed(km/h)

0-2.5
