2016 Hot Sale, Wobbler Feeder NWG2324

Product details
Weight:20t;Brand Name:Sinoma;
Color:Customers' Requirement;The Machines classification:Rock Feeder Machine;
Capacity(t/h):1000-1300t/h;Discharge size:50-80mm;
Port:Shanghai Seaport;Power(W):37kw;
Certification:ISO9001:2008;Installation:Engineer's Guide;
Supply Ability:100 Set/Sets per Month;Application:Mining Industry;
Model Number:NWG;Material:Convey clay, limetone, etc.;
Power Type:Electric;Delivery Detail:Within 60days upon receipt of order.;
Place of Origin:Jiangsu China (Mainland);Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Payment Terms:L/C,T/T;
Packaging Detail:There will be suitable package for different parts of this machine.;Warranty:One Year;
Max feed size:less than 1250mm;Model:NWG2324;

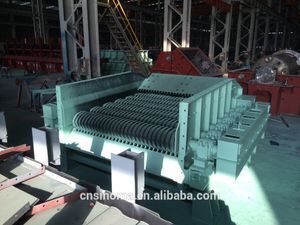

Wobbler/Roller Feeder NWG2324



Features:

       This machine, specially designed for continuous feeding of the crusher, is the equipment complex with both feeding and screening function. The mud-removal by screening reduces the burden of the crusher, avoids the plugging of the crusher, increases the production efficiency, and reduces the energy consumption.

Structural features:

  1. 1.       The screening of the required fine materials and clays in the raw materials increases the production capacity of the crushing system, reduces the wear of the crusher, and the work becomes more reliable.
  2. 2.       For full realizing the working efficiency, the feeding volume can be automatically adjusted according to the load of the crusher.
  3. 3.       This machine is particularly applicable to screening large lump materials. The mud scraper is under the roller, so this machine is also fit for screening viscous materials.
  4. 4.       This machine, with a dual function, no addistional space and no additional equipment cost, is suitable for being used during crushing silicon or aluminum ore.



Main Technical Data

Model

Max. Feed Size

(mm)

Discharge Size(90%)

(mm)



Width

(mm)

Length

(mm)



Capacity

(t/h)

NWG1238

≤600

≤50-75

1236

3650

120-200

NWG1252

≤600

≤50-75

1236

5160

120-200

NWG1538

≤800

≤50-75

1526

3650

200-350

NWG1552

≤800

≤50-75

1526

5160

200-350

NWG1852

≤1000

≤50-75

1826

5160

400-800

NWG2424

≤1500

≤90

2400

2400

1200
