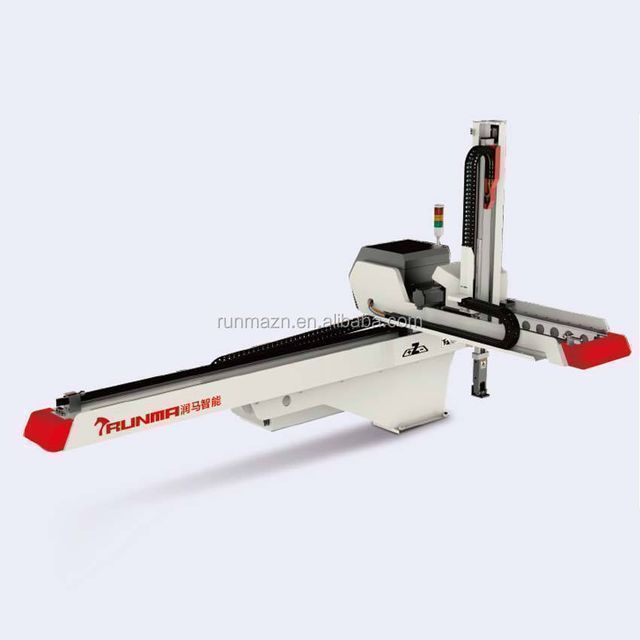

High-precision three-axis servo horizontal robot arm injection molding manipulator

Supplier: Dongguan Runma Intelligent Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Runzi Zhu
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE certification	Horizontal stroke(mm):	1400
Showroom location:	Vietnam, Philippines, Indonesia, Pakistan, Thailand	Maximum load:	5 kg
engine:	delta	Packaging Details:	Wooden box packaging Plastic film packaging
Supply capacity:	20 sets per month	usage:	multifunctional use
Vertical stroke(mm):	800	energy consumption:	2.8 kVA
port:	Shenzhen	weight:	190
After-sales service provided:	free spare parts	Types of:	fully automatic
Drive System:	Huacheng (China)	Applicable industries:	Manufacturing plants, food and beverage factories, food and beverage stores, plastic mold industry
Dry cycle time:	6.5 seconds	Warranty:	1 year
product name:	robotic arm	place of origin; place of origin:	Guangdong, China
Dimensions (LWH):	2190x1510x1610	Mechanical test report:	if
Number of control axes:	3 axis	color:	blue+white
brand:	run horse	State of health:	new
Video shipment inspection:	if	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Core components:	PLC, motor	Marketing Type:	New Products 2020
Local service location:	Vietnam, Philippines, Indonesia, Pakistan, Thailand, Malaysia	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Core component warranty:	1 year

Product Description

Applications

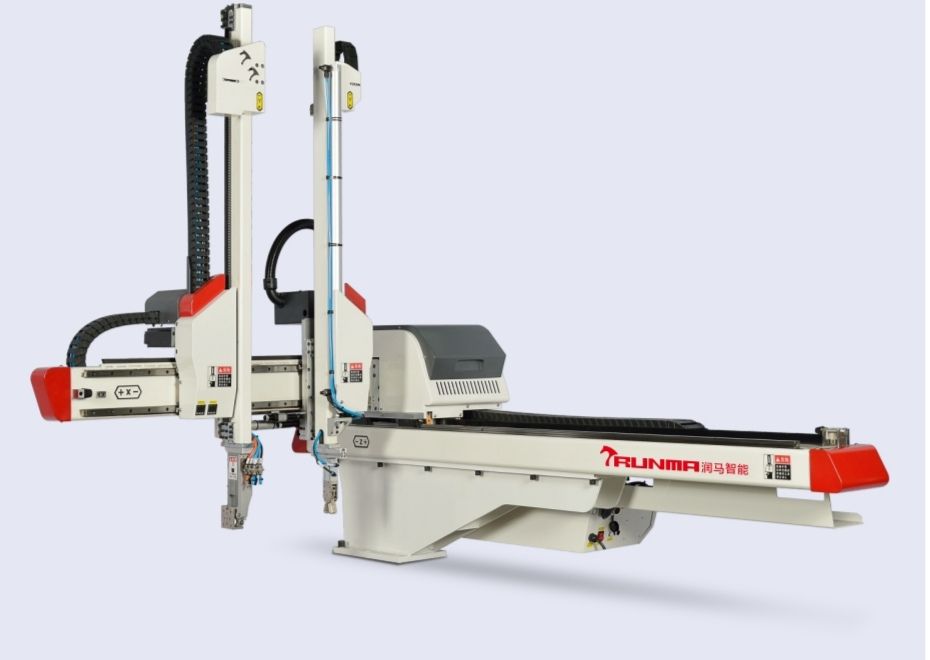

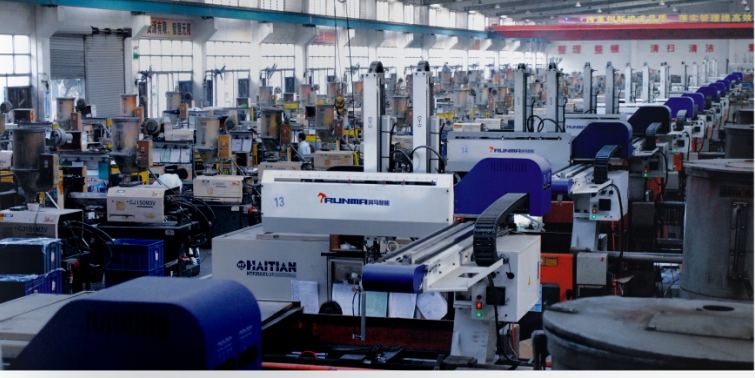

The series of medium-sized full-servo traverse manipulators are mainly used for taking out finished products of 180-320T horizontal injection molding machines. They adopt single-knife arm, X, Y, and Z three-axis AC servo motor drive mode, and are equipped with Japanese THK low-noise slide rails, which are quiet and smooth. match.

Specification
Applied to injection molding machine			Ton	180-320
travel	up and down	mm	800
		pull out	mm	140-830
		Interbank	mm	1400
time	take out	Second	1.4
		Side angle (degrees)	°	Post-90s
		empty loop	Second	6.5
Specification	Air consumption	nl/cycle	8
		energy consumption	kilowatt	2.8
		northwest	Kilogram	190

main feature

1) The linear structure is simple, easy to install and maintain.

2) Pneumatic components, electrical components and operating components all adopt advanced world famous brand components.

3) High-pressure double cranks control mold opening and closing.

4) High degree of automation and intelligence, no pollution

detailed image

drive

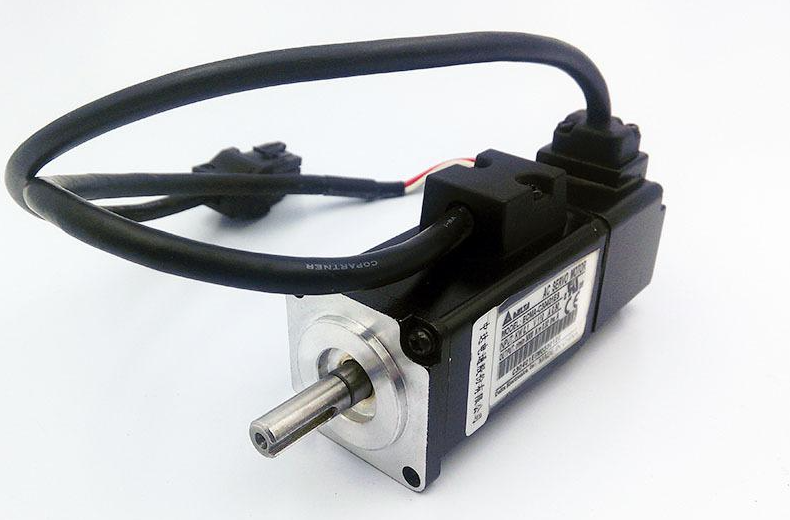

Name:AC servo motor

brand:delta

original:Taiwan, China

Domestic famous brand engine, strong power, low fuel consumption, high economic benefit 12F+4R sliding sleeve shifting.

main feature

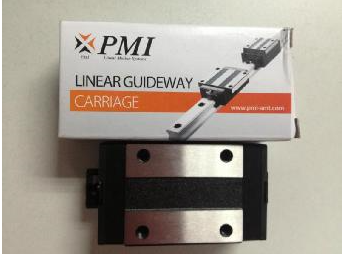

Name:Linear Guides
brand:Purchasing Managers Index
original:China
High precision and good repeatability.
Low frictional resistance, maintaining accuracy for a long time.
Easy to assemble and interchange.

Mechanical Parts

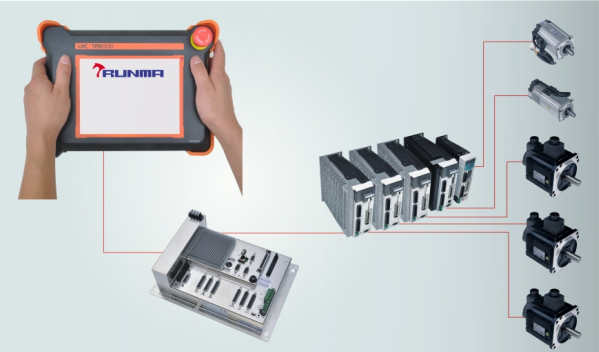

Name:Control System
brand:run horse
original:China
-Color screen, multi-line display on a single page, convenient for user parameter setting and signal monitoring
-32-bit dual CPU control, fast action response, smoother page switching
- Open program teaching mode, easy to learn, providing common fixed programs, users can also learn various complex mold processes by themselves.
- AC servo directions can be placed in multiple points, up to 99 groups.

main feature

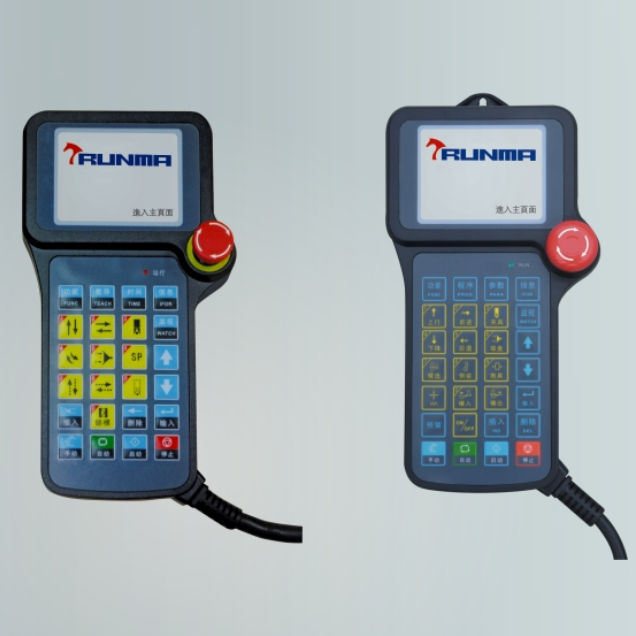

Name:Control System
brand:run horse
original:China
-8-inch color touch screen hand controller, more simple, convenient and humanized
- The open teaching method can easily realize the process requirements such as embedding and stacking, and has the auxiliary function of auxiliary equipment
-3-axis linkage function, can plan a variety of complex extraction paths.
-Position settings can be precisely set by the knob pulse trimmer
