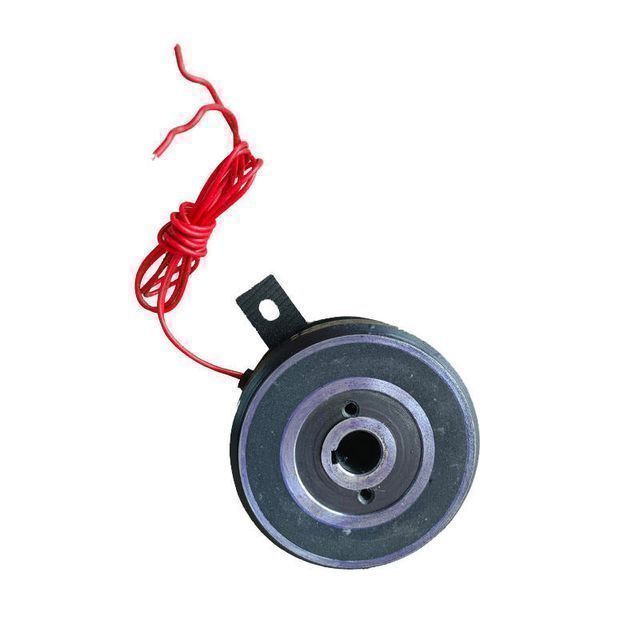

DLD6 series electromagnetic clutch 05~80

Supplier: Jingjiang Orlan Machinery And Industry Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jude Zhu
Price: $48.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Chain Falls:	1	Showroom location:	not any
brand:	Oran	Core component warranty:	1 year
Marketing Type:	normal product	place of origin; place of origin:	Anhui, China
Core components:	Bearings, motors, gears, yokes, armatures, coils, friction discs, gear sleeves	Applicable industries:	factory, other
port:	Ningbo	application:	Double girder crane
payment terms:	L/C, Western Union, T/T, MoneyGram	Types of:	electric hoist
Video shipment inspection:	Not available	Mechanical test report:	Not available
Sling Type:	chain	Weight (kg):	3.6
Maximum lifting height:	20 meters	Warranty:	6 months
State of health:	new	Supply capacity:	1000 pieces per month
Packaging Details:	Carton/wooden box	boost speed:	2~8m/min

product name	DLD6 05-80	color	anyone
State of health	new	transport bag	wooden box
Specification	05-80	customs code	8505200000

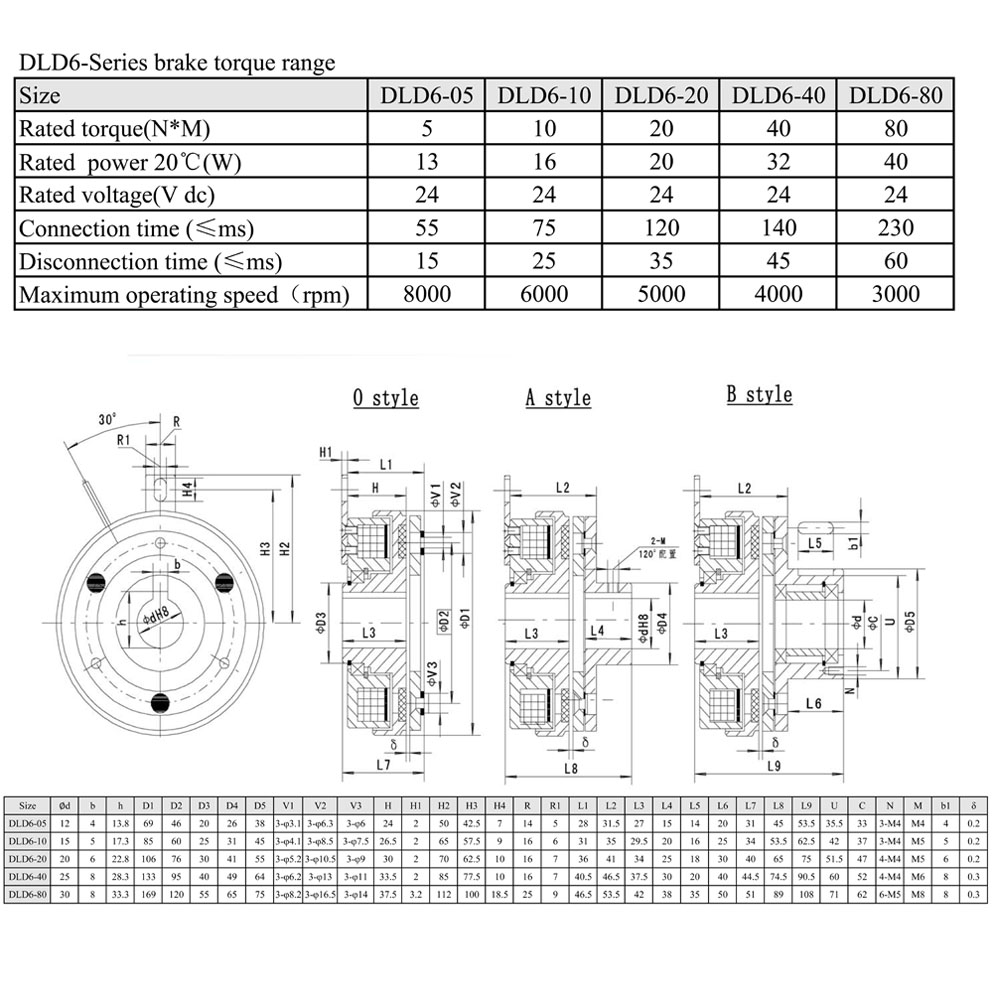

Specification:
Braking torque: 05-80Nm;
10 sizes, maintaining the interchangeability with national standard motor sizes;
Common voltage: 24, 96, 180, 205VDC, other voltages are available upon request;
Temperature class F (155°C), rotor heat resistance up to 200ºC;
Compact design, modular design, easy to disassemble and replace;
Preset brake clearance, adjustable air gap;
Optional single and double brake structure with mute device;
Optional manual release;
High-quality spring material, long service life, reasonable design, never fails;

application:

elevators, escalators
brake motor
Port Machinery
crane
conveyor belt
Lifting equipment
Metallurgical machinery
Material Handling Equipment
Light Industrial Packaging
controlled drive
automation technology
Textile
forklift
woodworking machinery
