5GHz Outdoor Remote Bridge for ubnt Ubiquiti LBE-M5-23 10KM Link Point to Point Bridge PowerBeam LiteBeam NanoBeam

  • Supplier: WIS NETWORKS LIMITED
  • Region: Hong Kong S.A.R., China
  • Price: $45.00 / 2 - 99 pieces
    $42.00 / 100 - 499 pieces
    $40.00 / >=500 pieces
  • Min. Order: 2 pieces
Product details
Wireless rate:867 Mbit/sAntenna gain:23 decibels
model:WIS-D523brand:Smart network
Ethernet port:1*100mGross weight per piece:16.000 kg
application:outdoorSales unit:Item
Packaging Details:10pcs/boxscope:10 kilometers
Single package size:58X40X32 cmTransmission power:20 decibels
Features:point-to-point transmissionfrequency band:5 GHz
Supplier type:wirelessplace of origin; place of origin:Guangdong, China
Types of:wireless bridgecolor:white
chipset:QCA9887power supply:Power over Ethernet 24V
Product Description

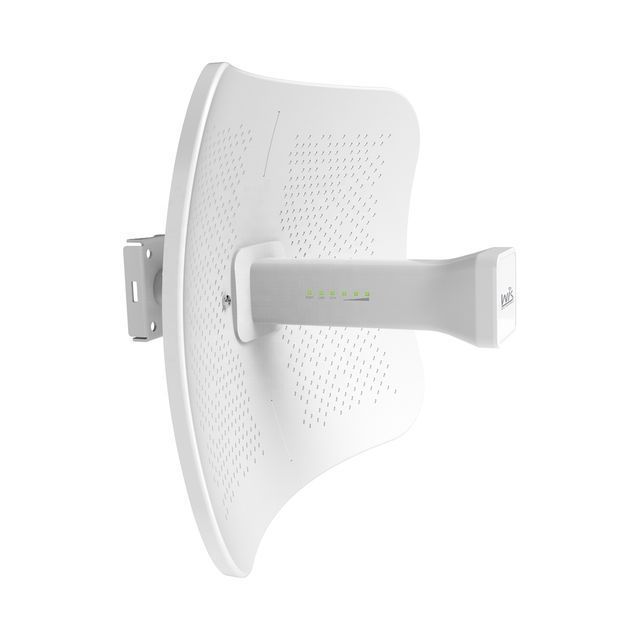

WIS-D523 is a 433Mbps outdoor wireless dish bridge based on 802.11a/n/ac technology. Industrial die-casting IP65 design, high performance, high cost performance, dedicated to long-distance wireless network solutions. WIS-D523 adopts the revolutionary WiD technology and is fully compatible with Wis network base stations and CPEs, thus greatly improving the scalability of the network in terms of throughput and delay. With a 23dBi dish antenna, a pair of WIS-D523 can easily establish a 10km+ long-distance wireless connection and maintain a high speed. WIS-D523 is most suitable for industrial wireless solutions such as rural wireless Internet access and wireless backhaul.
feature
incredibly remote
● Up to 20dbm Tx power ● 23dBi dish antenna ● Wireless speed up to 433Mbps ● Narrower beamwidth for noise immunity
revolutionary design
● Cost-effective passive PoE ● IP65 waterproof ● Disassemble the dish design ● 360 gimbal antenna alignment ● IP66 waterproof
Full functionality and performance

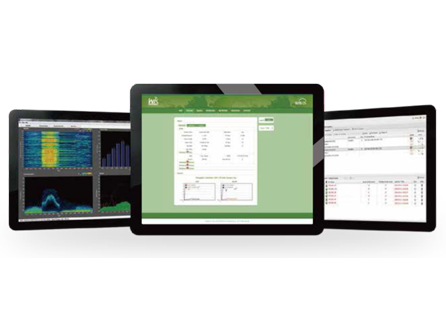

● Full WisOS support ● Automatic distance adjustment ● Availability over 10 km ● Fully managed by WiController
Features and Benefits
- 23dBi dish antenna builds a robust wireless PtP link - Compliant with 802.11ac/n/a, wireless speed up to 433Mbps - Wireless monitoring solution - 5km throughput 100Mbps+ - Channel bandwidth selectable 80/40/20MHz - Easy to deploy and Adjustable mounting kit available - Passive POE (24VDC), flexible deployment - Weatherproof design for outdoor environments - Up to 8kV ESD protection
Network Diagram
Product parameters





radio
- 802.11a/n/ac radio
- Wireless speed up to 867Mbps
- Frequency Range:- 5.150-5.250GHz
- 5.250-5.350GHz (support DFS)
- 5.470-5.725GHz (Support DFS)
- 5.725-5.825GHz
- Transmission power up to 20dbm
- Receive sensitivity
- 300M:-71dBm@10%PER
- 54M:-75dBm@10%PER
- 1M:-95dBm@10%PER

antenna
- 23dBi dish antenna
- Beam width (HPBW) Horizontal: 12, Vertical: 12°
- Open space 5-10KM


physical parameters
- Size: 300*400mm
- Weight: 1.5kg - Shell: (plate)
- ESD protection: 8kV
- Working temperature: -20 ~ 50°C
- Storage temperature: -30 ~60°C
- Working humidity: 10%~95% non-condensing
interface
1 x 10/100 Base-T Ethernet (LAN with passive PoE)

Safety
integrated firewall
-WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP)
Encryption; 64/128 bit WEP;

to lead
- switch
- LAN: on/off/flashing
- WLAN: on/off/flashing
- RSSI signal: 1,2,3
strength
- 24VDC, 0.75A
- Power Consumption: 6W
certified
- CE, RoHS

Package Contents
- WIS-D523 radio
- Quick setup guide
- Power adapter with passive PoE
- Mounting brackets and kits
Antenna Information

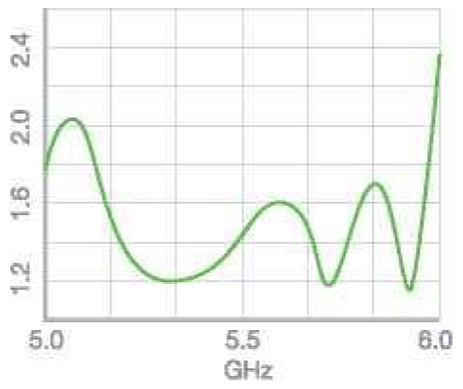

VSWR

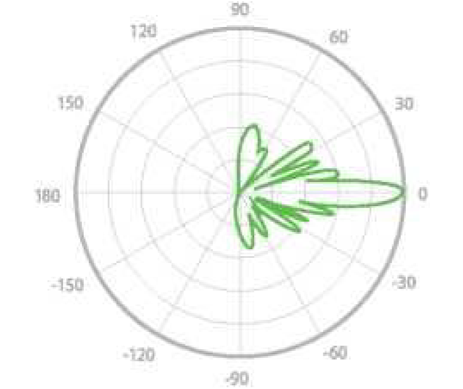

vertical azimuth

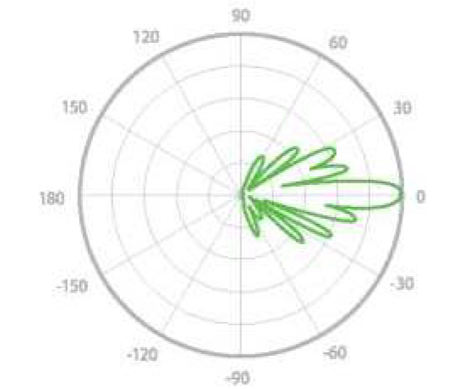

vertical height
