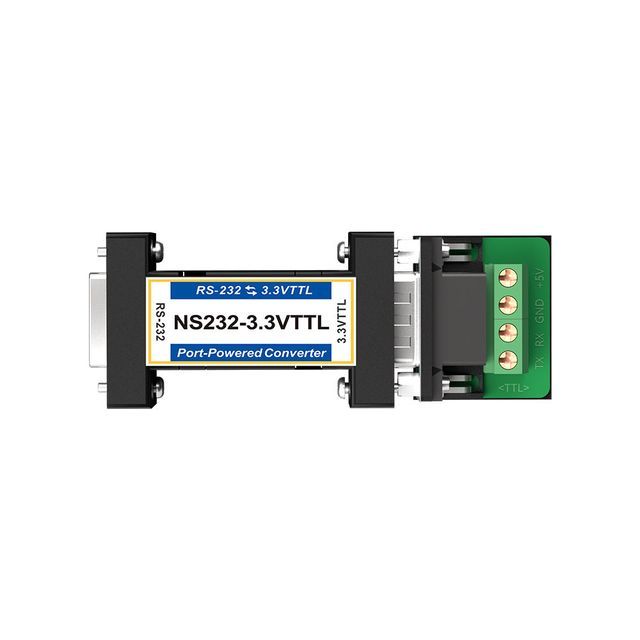

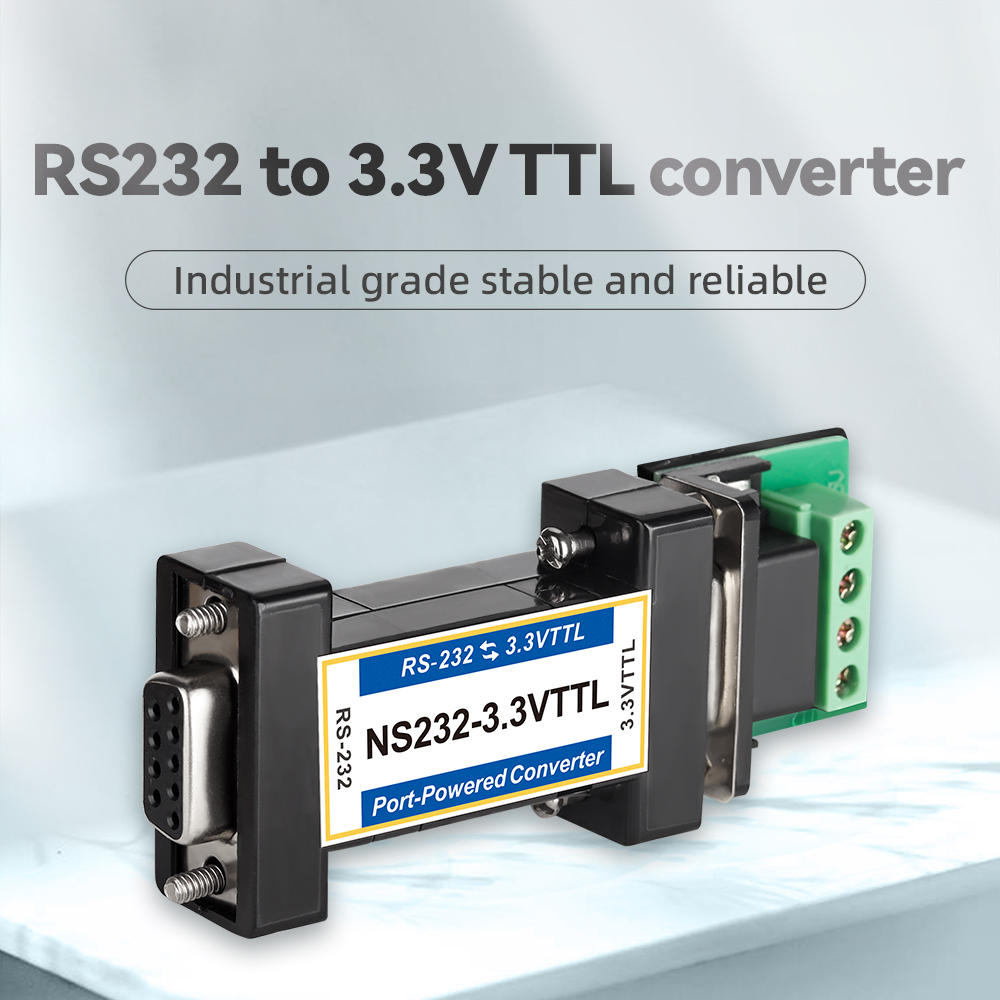

Factory wholesale industrial grade 3.3v level serial port module Rs232 to Ttl converter protocol converter

  • Supplier: Wuhan MoweStar Technology Co., Ltd.
  • Region: Hubei, China
  • Contact: Ms Mowe star
  • Price: $8.80 / 5 - 99 pieces
    $8.60 / 100 - 299 pieces
    $8.40 / >=300 pieces
  • Min. Order: 5 pieces
Product details
weight:0.5KGpayment terms:L/C, Western Union, D/P, D/A, T/T
Working current:less than 10mAchipset:ttl converter protocol converter
power supply:No external power supply required, the serial port steals powerPackaging Details:standard carton
Origin:Hubei, ChinaIsolation type:Passive non-isolated
product name:Rs232 to Ttl Converter Protocol ConverterPackage preview:
aspect:87mm*33mm*17mm (including terminals)application:rs232 to ttl protocol converter
Supply capacity:100000 pieces per monthSupplier type:manufacturer
model:NS232-3.3VTTLOperating temperature:-40℃~85℃
brand:cute starCommunication rate:300~115.2Kbps
Product Description
Product number
NS232-3.3VTTL
NS232-TTL
Function Description
1 channel RS-232 → 1 channel TTL (3.3V) passive converter
1 channel RS-232 → 1 channel → 1 channel TTL passive converter
Isolated
Passive non-isolated
power supply

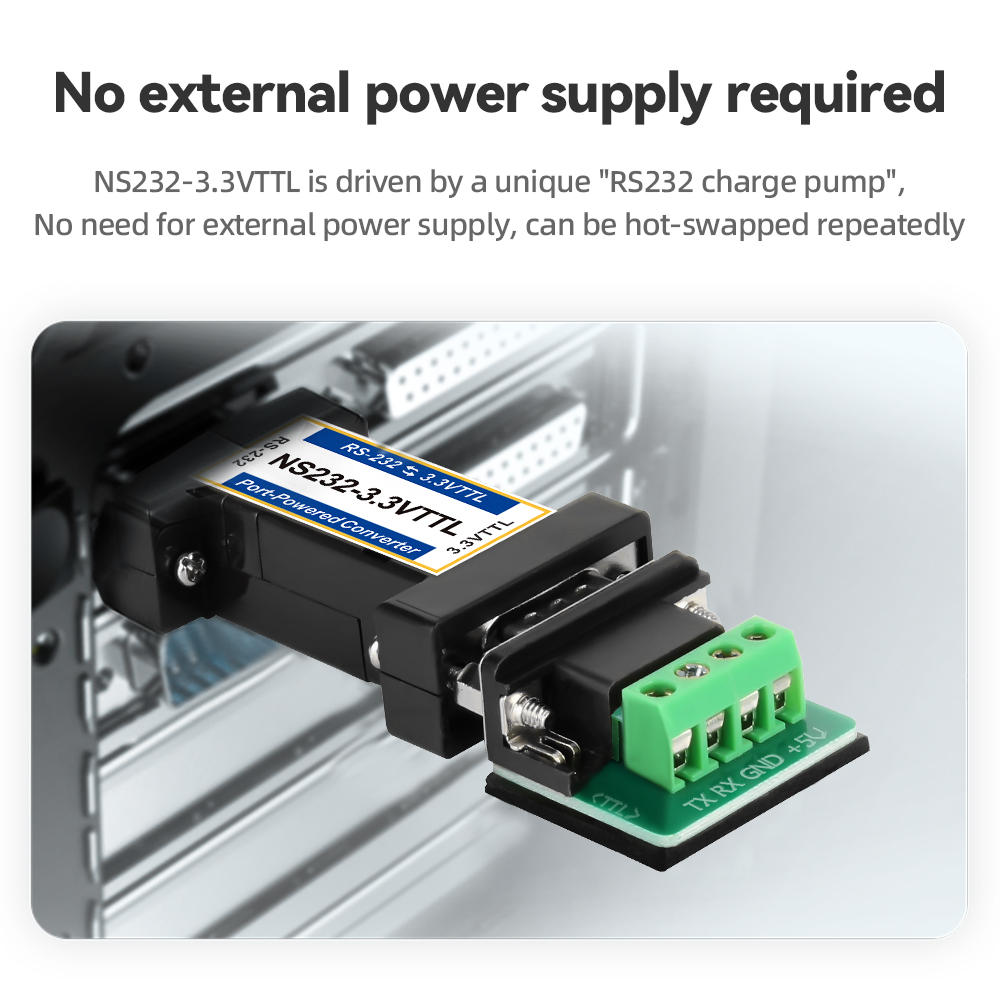

No external power supply, the serial port steals electricity
communication rate
300~115.2Kbps
Working current
less than 10mA
Communication distance
RS-232 side communication distance 5m
RS-485/RS-422 communication distance 1.2Km (19.2Kbps)
degree of protection

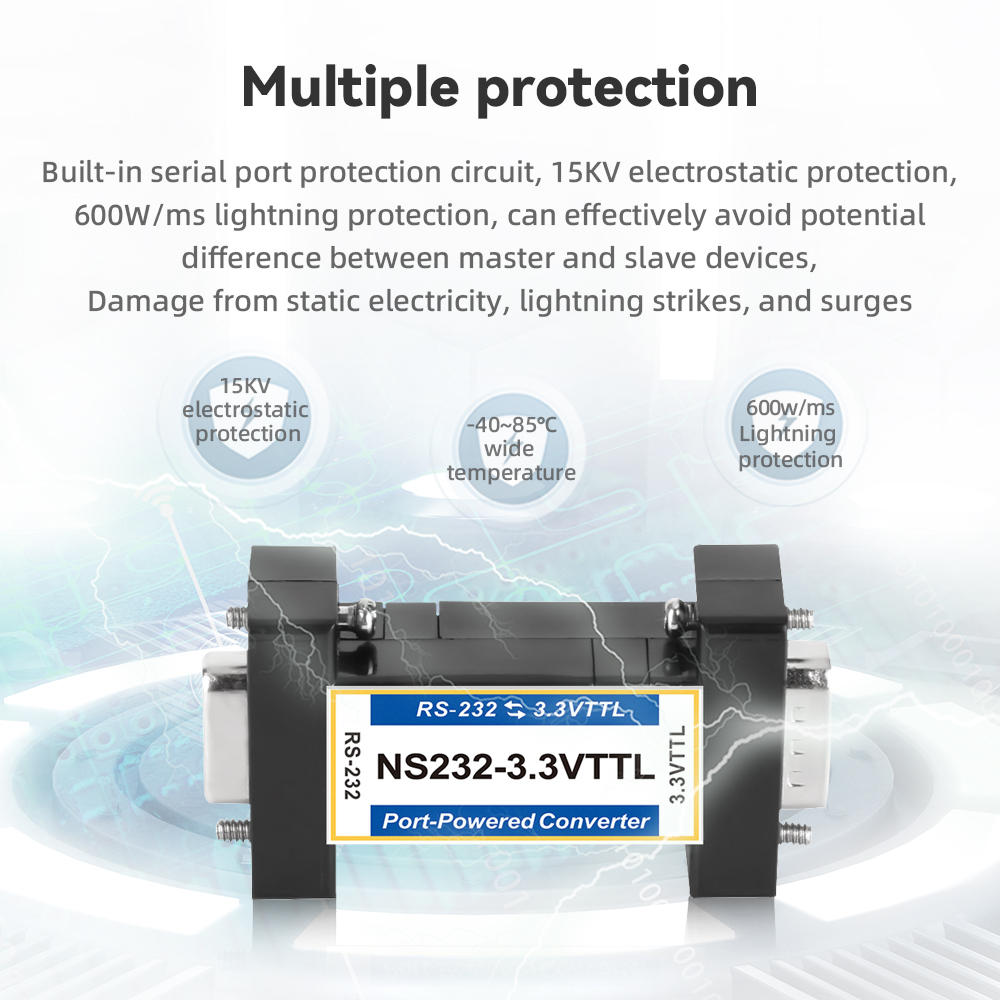

15KV electrostatic protection 600W/ms lightning protection weight 36g (including terminals)
weight
0.5Kg 0.6Kg
size
87mm X33mmX 17mm (including terminals)
107mmX33mm X17mm (including terminals)
Operating temperature
-40℃~85℃
feature:

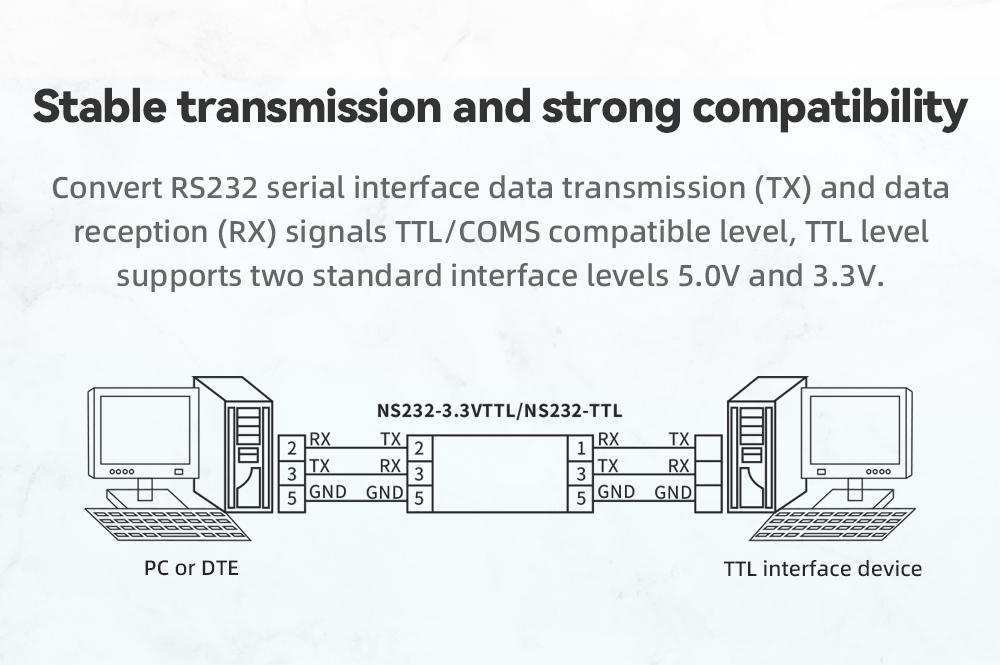

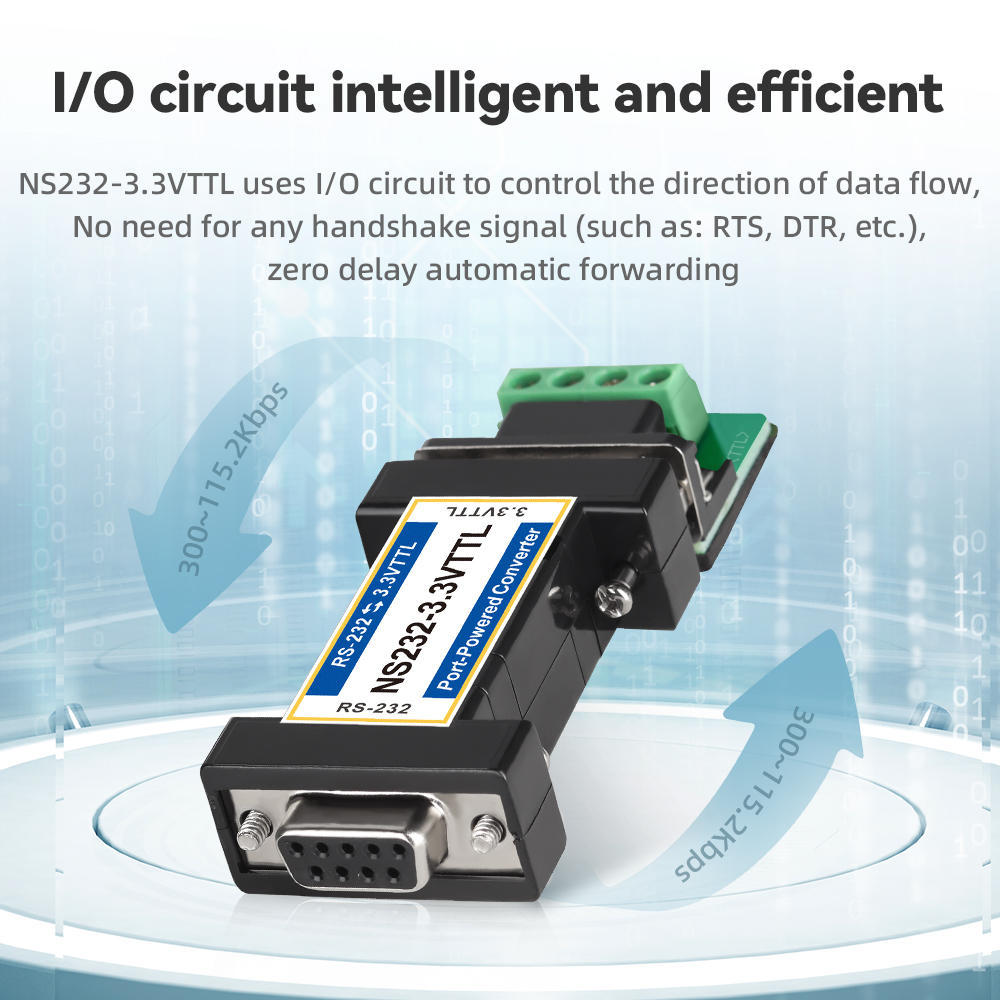

1. Two-way conversion between RS232 and TTL (3.3VTTL) level 2. Serial port stealing electricity, no external power supply required 3. Unique serial port protection circuit, supporting hot swapping 4. Intelligent flow direction control, zero delay automatic forwarding 5. Signal line 600W /ms lightning protection and 15KV anti-static protection

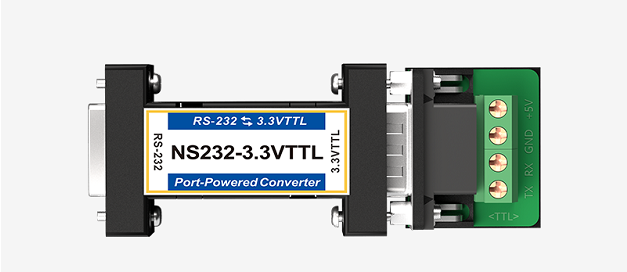

Product Image
