architecture: | MIPS BE | Supply capacity: | 1000 pieces per week |
operating system: | routing operating system | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, different payment methods for different countries |
Origin: | China | model: | RBLDF-5nD |
PoE input: | Passive PoE | brand: | Mikrotik |
Test ambient temperature: | -40°C to 70°C | aspect: | 84x84x115mm |
License level: | 3 | Packaging Details: | Standard packaging, brand new sealed box. We also pack it with wrapping film before shipping. |
chipset: | other | application: | Link to Satellite Offset Dish |
port: | Shanghai Port, China | 10/100 Ethernet ports: | 1 |
Storage size: | 16MB | storage type: | flash |
memory size: | 64MB |
Shanghai Harmbo Technology Development Co., Ltd.
our mission
1. Lowest price and high quality.
2. Fast delivery with low cost and safety.
3. Professional technical support.
4. Advanced Customer Service

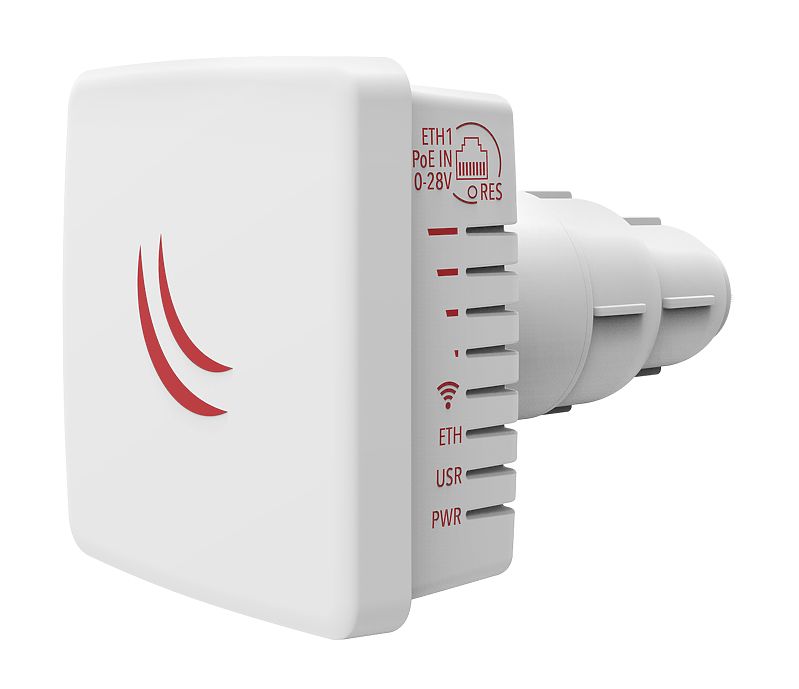

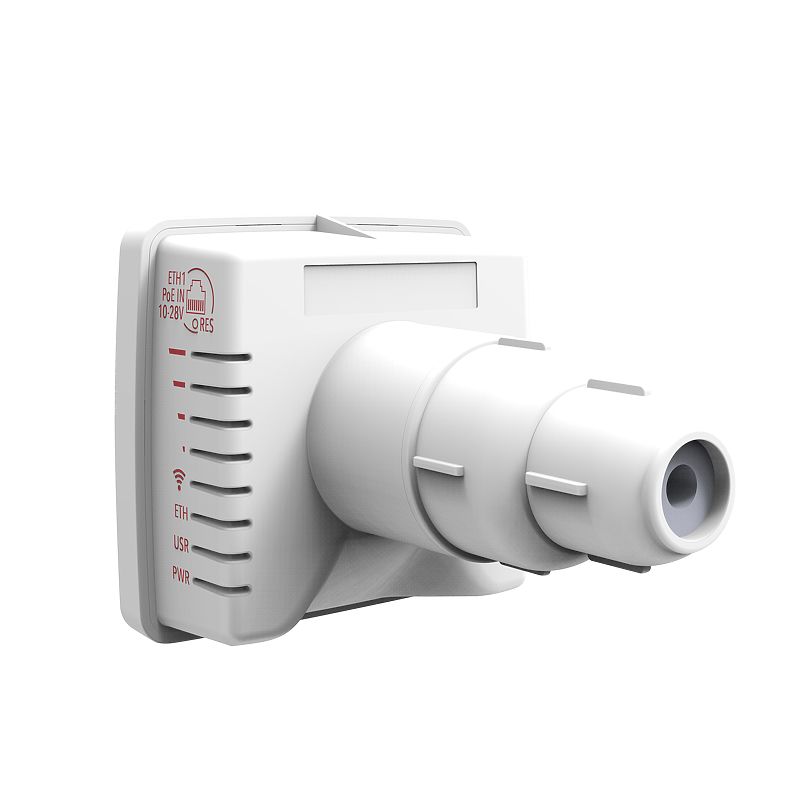

MikroTik LDF 5(RBLDF-5nD) Dual Chain 5GHz Outdoor Wireless System

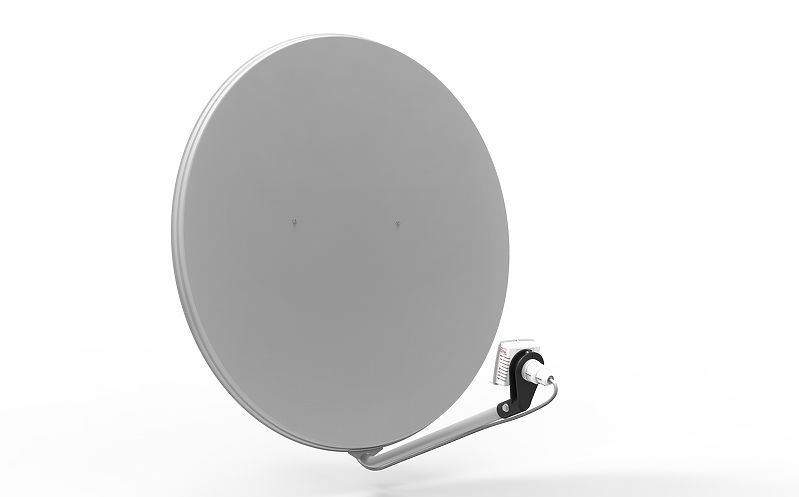

LDF (Lite Dish Feed) is an outdoor wireless system with a built-in antenna designed to be mounted on a satellite offset dish. The dish will act as a reflector, amplifying the signal.

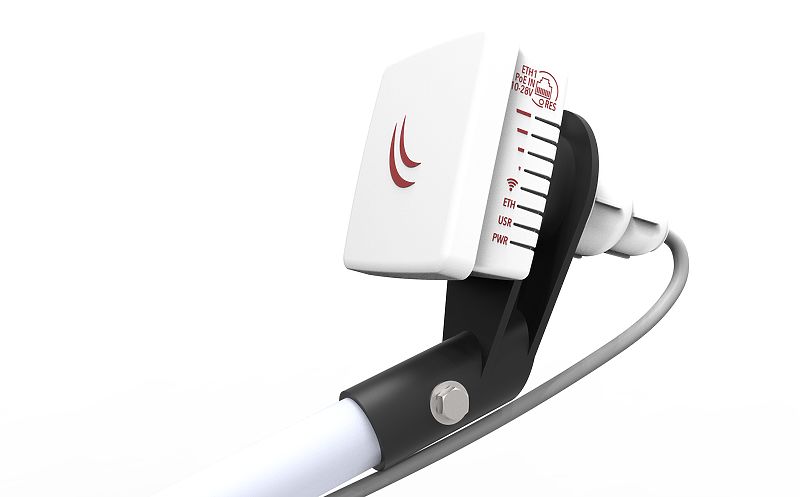

This means you can use any available satellite TV dish with offset mounts to quickly deploy a strong long-range wireless link. The offset mounts are universal and have a diameter of 40mm where the LDF can be easily placed. Since LDF itself is a small package, it makes shipping and deployment simple and inexpensive.
Antenna amplification up to 33dBi can be achieved with antennas up to 100cm in diameter. The device comes pre-installed with RouterOS and is ready to use.
- The LDF 5 US (United States) is factory locked to the 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed.
- LDF 5 (International) supports 5150MHz-5875MHz range (specific frequency range may be limited by national regulations).
detail | |
---|---|
Product Code | RBLDF-5nD |
architecture | MIPS BE |
CPU | AR9344 |
Number of CPU cores | 1 |
CPU nominal frequency | 600 MHz |
aspect | 84x84x115mm |
license level | 3 |
operating system | routing operating system |
memory size | 64MB |
storage | 16MB |
storage type | flash |
Test ambient temperature | -40°C to 70°C |
detail | |
---|---|
Power input | Passive PoE |
PoE input voltage | 10-30 volts |
Number of DC inputs | 1 (power supply input) |
Maximum power consumption | 6 watts |
detail | |
---|---|
Wireless 5 GHz maximum data rate | 300 Mbit/s |
Wireless 5 GHz Chains | 2 |
Wireless 5 GHz standard | 802.11a/n |
5 GHz antenna gain dBi | 9 |
Wireless 5 GHz Chip Model | AR9344 |
Wireless 5 GHz generation | wireless network 4 |
detail | |
---|---|
10/100 Ethernet port | 1 |
5 GHz | Emission (dB) | Receiver sensitivity |
---|---|---|
6MBit/s | 25 | -96 |
54MBit/s | 20 | -80 |
MCS0 | 25 | -96 |
MCS7 | 19 | -75 |
