product name: | 24-port Gigabit PoE injector | type: | Compatible with 24V or 48V PoE |
standard: | Passive, IEEE 802.3af/at compliant | Port pins: | 1/2- 3/6+ 4/5+&7/8- |
Supply capacity: | 100000 pieces per month | port: | Shenzhen/Hong Kong |
color: | Black | Origin: | Guangdong, China |
Certification: | CE ROHS FCC | model: | GPOE-24B |
Voltage: | 24 or 48V | Transmission rate: | 10/100/1000Mbps |
application: | transfer power and data | brand: | Processing |
Packaging Details: | 36 pieces per carton 26kg per carton size: 52*45*17CM | Warranty: | 24 months |
payment terms: | Western Union, T/T, Paypal | size: | "19 1U" |
Gigabit 24-port PoE Injector PoE Panel 24V48V Load Balance
For MikroTik Ubquiti PoE Camera IP Phone Mode B Operation

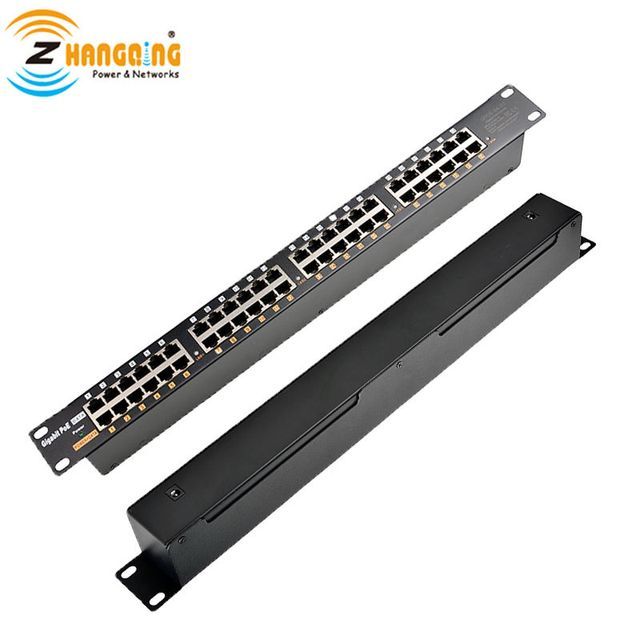

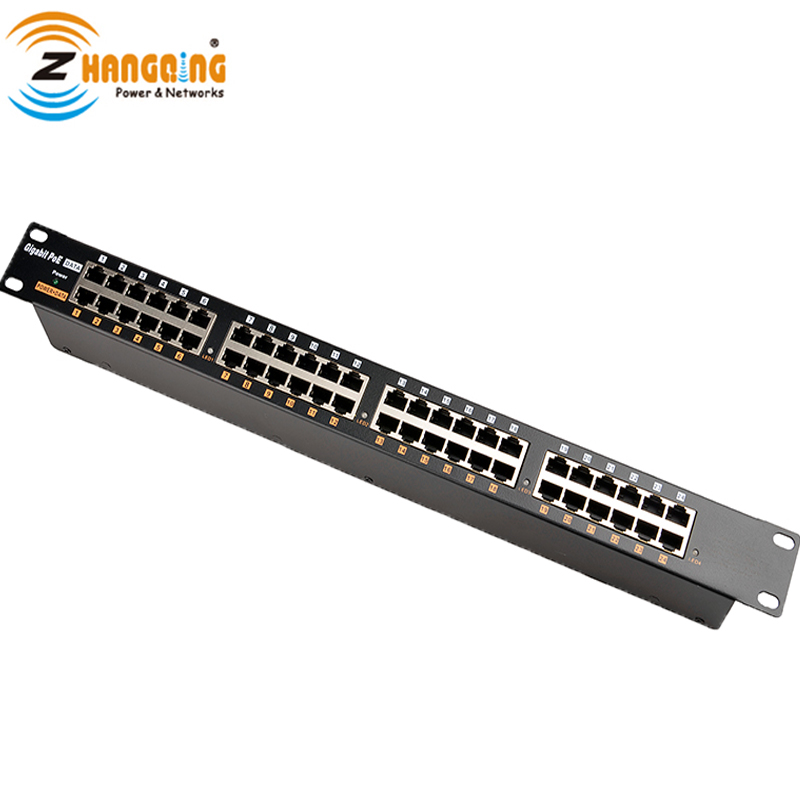

24-port Gigabit Ethernet Injector
– 24 shielded RJ-45 LANs
– 24 shielded RJ-45 LAN+POE
– All 4 data pairs active for multi-gigabit data rates
– Share data and power through isolation transformer
Power Injection on B-Mode Pairs
• Dual power inputs, up to 150 watts per power input
• Use either power supply input – if using two power supplies, each half receives power from that power supply
side only
• Load balancing through relays for low loss and high reliability

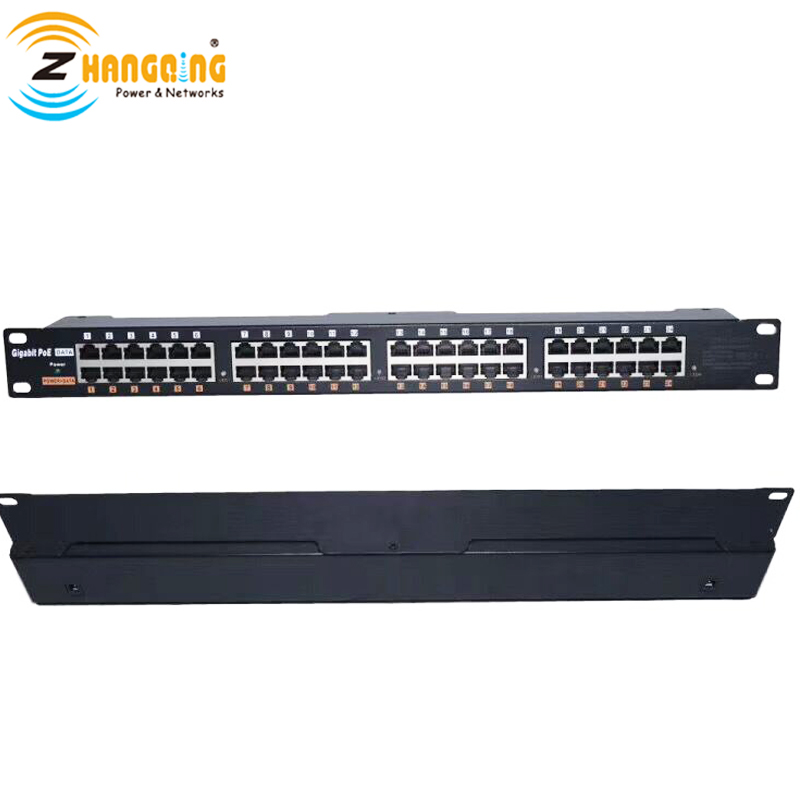

• 1U high standard rack mountable (1.75 x 19 x 2 inches)
• 650 mA automatic resettable fuse on each port
• Devices share power as needed
• Works with any Ethernet switch – passes all management information transparently

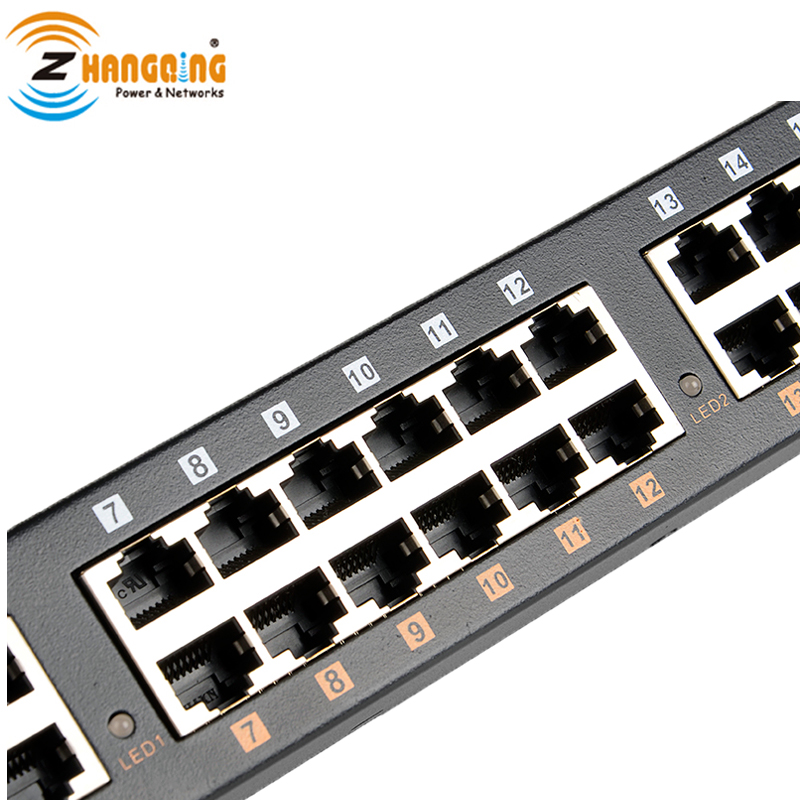

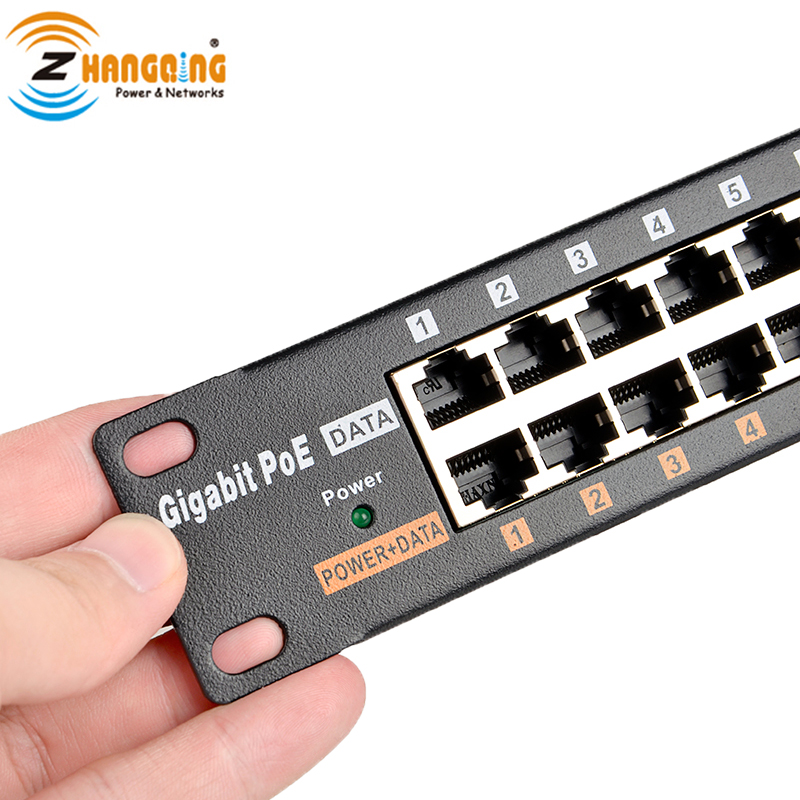

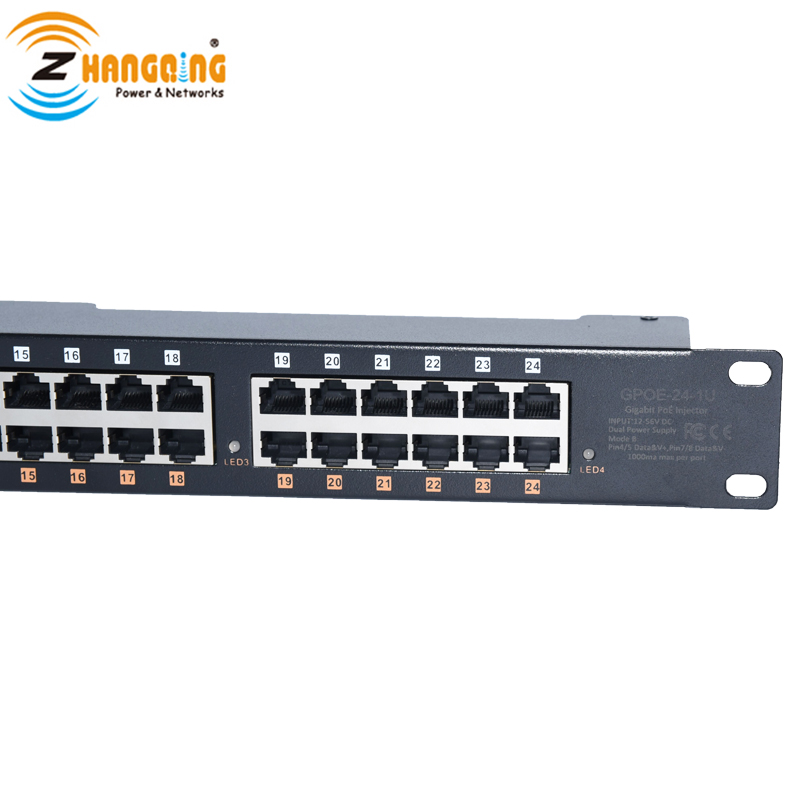

• 4 LED status indicators - – 1 green LED for mains power
– For each group of 4 POE outlets:
0 to 20mA | 20 to 400 mA | Above 400ma |
leave | green | yellow |
Many popular devices (such as Ubiquiti) use this method to centralize power - you can reach a typical access point of 328 feet with 24v power.
Connect the power you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and cut down on cable clutter. Reboot all 24 devices from one central location.
Product display:
• Ideal for IP cameras, VOIP phones, WiFi access points using 802.3af or 802.3at or passive
• Power supply range 24 to 56 volts

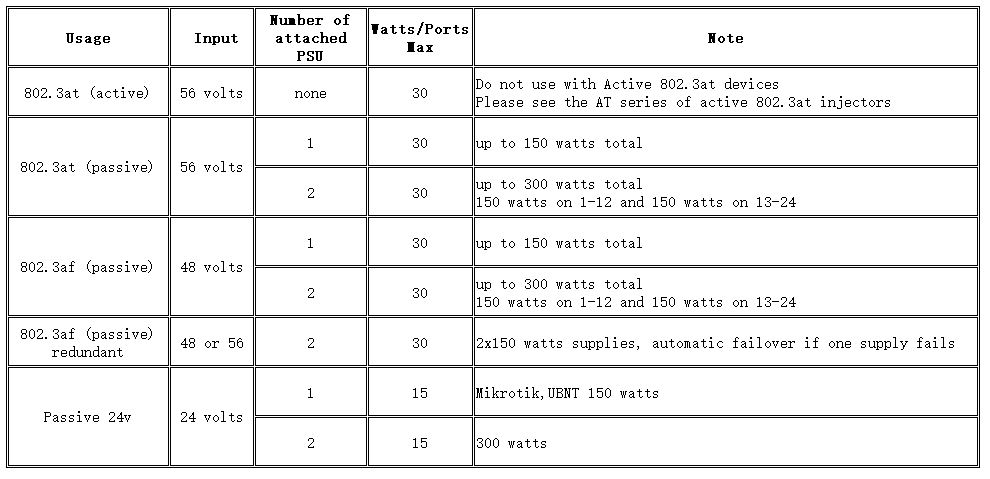

– Dual power input (2.1mm x 5.5mm) see table below
– We offer kits with power supply
• environmental
– Operating temperature range – 0 to 50 degrees Celsius
– Storage temperature range – 0 to 50 degrees Celsius
– Relative humidity range – 5% to 90%, non-condensing
– FCC rules – no RF transmitting devices in design
– This equipment complies with NFPA Standard 79, PELV, Protected Extra Low Voltage
– No cooling required, no fans required. run quietly
