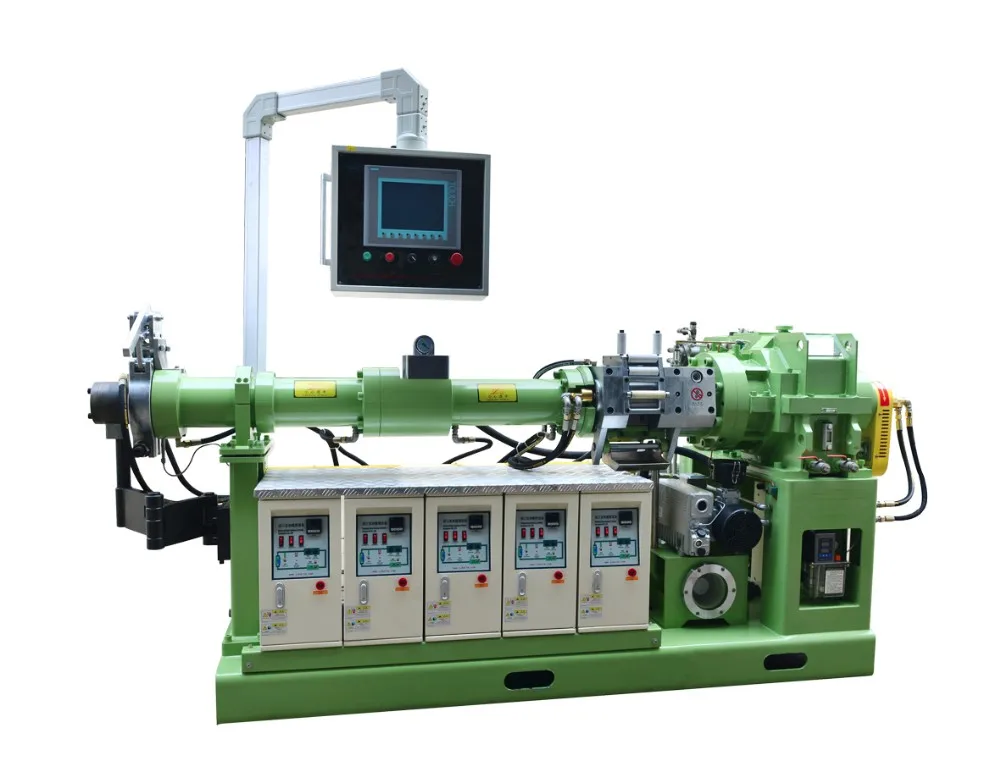

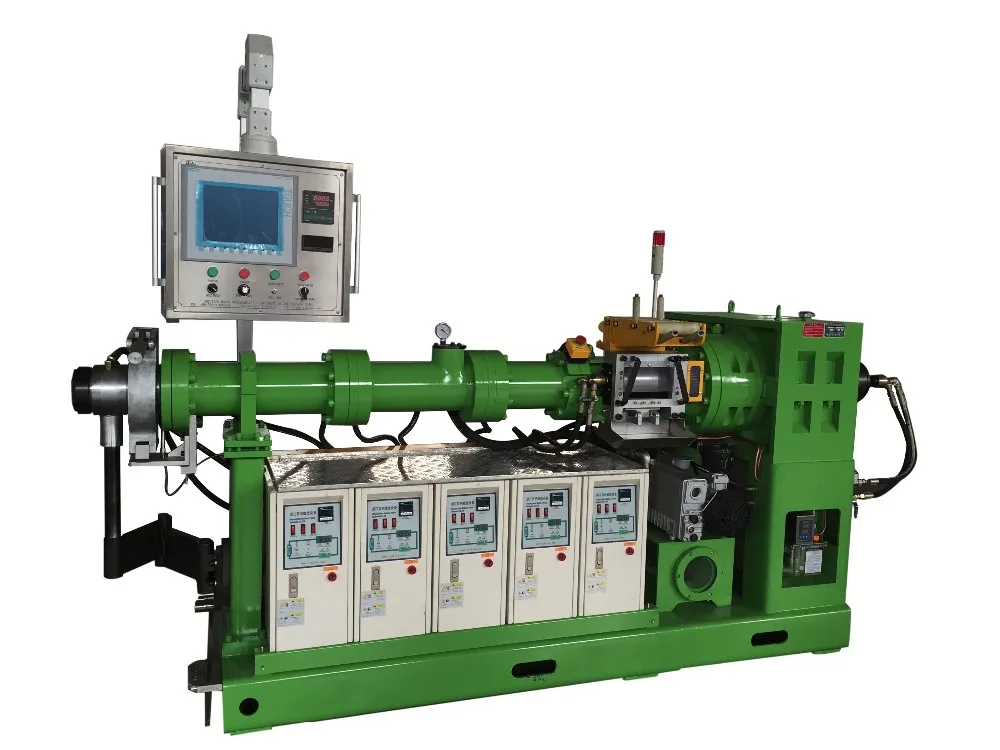

90mm 20D cold feed vacuum rubber extruder/rubber extruder machine/rubber extrude machine
-
Supplier: Zhejiang Baina Rubber & Plastic Equipment Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Gallen Woo -
Price: $46000.00 /set -
Min. Order: 1 set
| Weight: | 3500 kgs; | Place of Origin: | Zhejiang China (Mainland); |
| Certification: | CE ISO SGS; | Condition: | New; |
| Screw diameter: | 90mm; | Packaging Detail: | wooden pallet; |
| Type: | Rubber Extruder; | color: | based on customer demand; |
| Port: | Ningbo port,china; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Screw speed: | 2-55; | capacity: | 320kg/hour; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | L/D: | 20:1; |
| Power(W): | 75 kw; | Supply Ability: | 10 Set/Sets per Month; |
| Payment Terms: | L/C,T/T; | Warranty: | 2 Years; |
| Dimension(L*W*H): | 3200*1200*1620mm; | Brand Name: | BAINA; |
| Gear reducer: | 18.5:1; | Condition: | New; |
| Voltage: | Customer Request; | Vacuum system: | YES; |
| Model Number: | BNE90-01-00; | Delivery Detail: | 60 working days; |
Our production line has the model:
| Item | Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3 M high-temperature forming machine | 1 |
| 3. 8.9 m 12KW microwave vulcanization oven | 1 |
| 4. 8.9 M Hot air vulcanization oven | 2 |
| 5. 4 m Cooling water tank with drying | 1 |
| 6. Traction machine | 1 |
| 7. 16 P Chiller | 1 |
| 8. PLC control | 1 |
Various types of basic parameters:
| Item | Diameter of screw (mm) | L/D ratio | Speed of screw (r/min) | Driving power (KW) | Max output of production (kg/h) | Weight (kg) |
150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
Products are widely used in building curtain wall, steel windows and doors,aluminum alloy energy-saving windows and doors, wooden windows and doors, building deformation joint, industrial doors and windows.
Divided by specification
Building curtain wall vulcanized rubber seal(gasket)
Plastic profile casement seal
Aluminum alloy energy-saving doors and windows seal
Wooden doors and windows seal
Building deformation joint rubber seal Industrial door seal
Divided by material
EPDM rubber sealing strip(EPDM.EPDM-S)-current development trends
Thermoplastic sealing strip(Santoprene)
Silicone rubber sealing strip(Silicone)
Neoprene sealing strip(Neoprene)
Divided by adopted standard
National standard:JG/T187-2006
Japanese standard:JIS A 5756:1997
American standard:ASTM C-864-99
German standard:DIN7863,DIN5510
 |  |  | |||||
 |  |  | |||||
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.
Zhejiang Baina Rubber Equipment Co., Ltd. is a research, development, production and sales of rubber equipment manufacturing company, in cooperation with Zhejiang University is committed to the study of microwave technology, the company registered capital of 30,000,000 yuan, more than 6800 million yuan of fixed assets . An annual output of more than 120 sets of assembly line .plant is currently an area of 1.4 Square, factory area of more than 20,000 square.
Our company is cooperated wih zhejiang university in the research of developing rubber microwave vulcanization systerm successfully, which is driven by active metal roller and have been applied for a patent.
The salt bath vulcanization device has been the unique technique achieved successfully by our own research and development at home, the capability of the salt recovery system is well-known among the same competitors overseas for its envoirnmental protecting, engery saving and sewage disposal. The equipment has been applied for several patents.
Our company has also applied a patent for the Steel edge for rubber vulcanization technique.
Baina is endeavouring in research and development of the new products and is willing to solve technical difficuties through joint efforts with other companies in the same field at home and abroad. We have PLC controlled four compound microwave vulcanization production line ,salt bath vulcanization production line and rubber strips production line etc. devises to meet different needs of our customers and we also train technical workers of our customers for free.
-
