Origin: | Hunan, China | Supply capacity: | 5 units per month |
Dimensions (L*W*H): | 12*12*3M | brand: | achieve |
After-sales service provided: | Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support | Warranty: | 1 year |
payment terms: | L/C, T/T | strength: | twenty three |
weight: | 22-25 tons | Voltage: | 440V |
Applicable industries: | Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining | Health status: | new |
Unique selling point: | High operating efficiency |
technical specifications | ||||||
Cloth arm model | HGY33S-4R | HGY33P-4R | HGY33SC-4R | HGY33PC-4R | ||
Performance | maximum. Radius (m) | 33 | ||||
Free standing height, swing range | 22.7m, 400° | |||||
Working temperature (℃) | 0~60℃ | |||||
Counterweight (kg) | / | 2930 | ||||
Total weight(kg) | 22300 | 25230 | ||||
power the device | 380V/50Hz | |||||
electric motor | motor model | Y2-200L-4 | ||||
Power(kw) | 30 | |||||
Hydraulic system | System pressure (Mpa) | 32 | ||||
Flow (L/min) | 34 | 47 | 34 | 47 | ||
Fuel tank capacity(L) | 280 | |||||
control method | (wired + radio) remote control | |||||
Concrete pipeline pigging method | water clear/dry clear | |||||
String Section (m×m) | 0.75×0.75 | |||||

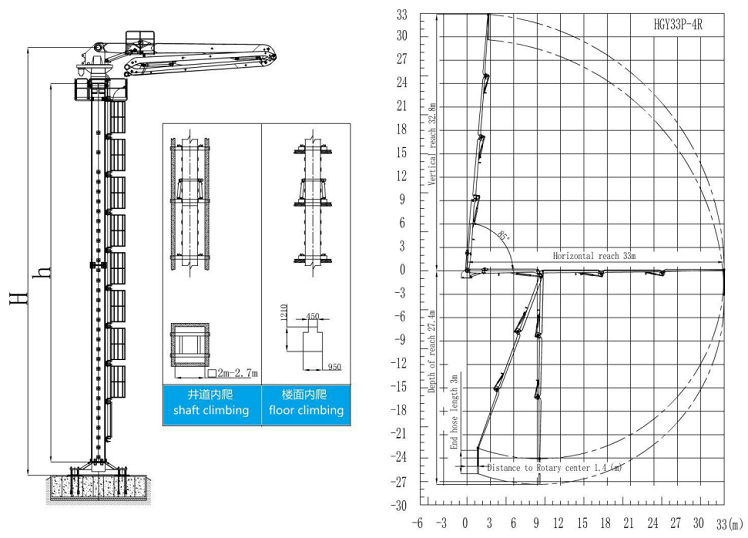

arm (boom) | Boom Model | Full hydraulic folding arm | ||||
Delivery pipe diameter | DN125mm | |||||
End hose length | DN125mm×3000mm | |||||
first quarter | Length (m) | 9.3 | ||||
joint | -2.5°~82.5° | |||||
second quarter | Length (m) | 7.9 | ||||
joint | 0°~180° | |||||
third quarter | Length (m) | 7.9 | ||||
joint | 0°~180° | |||||
fourth quarter | Length (m) | 7.9 | ||||
joint | 0°~180° | |||||
the climb | climbing mode | Cylinder jack lifting | ||||
Internal climbing step (m) | 0.52 | |||||
floor rack | Floor reserved hole | |||||
Derrick | Climbing shaft size: 2.0m-2.7m | |||||
The space between the climbing frames inside the minute | Climb (m) | 3 | ||||
allotment Concrete (m) | 6 | |||||
Rest (m) | 6 |
