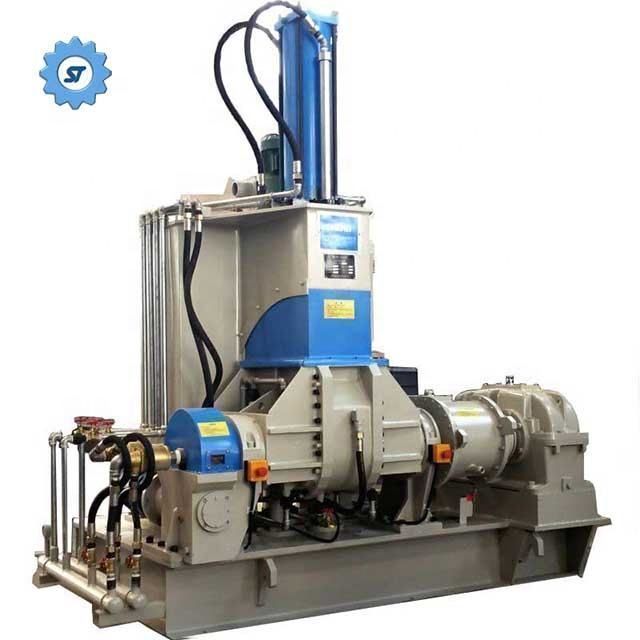

75 Intensive Internal Mixer Banbury Internal Mixer

  • Supplier: Qingdao Steady Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr Bob Cheng
  • Price: $25000.00 / 1 - 1 sets
    $24500.00 / 2 - 2 sets
    $24000.00 / >=3 sets
  • Min. Order: 1 set
Product details
Packaging Details:75 Intensive Kneader Banbury Rubber Internal Mixer Secured in container and suitable for proper handling of larger machines. Fumigation-free cabinet with tray base for small sizes. Size: Depends on the specific model purchasedbrand:stable
Weight (kg):10000 kgControl System:Electronic control system
Video shipment inspection:ifMechanical test report:if
Health status:newPower (kW):110 kW
Warranty:1.5 yearscooling method:Recycled water
Function:kneaded rubberAfter warranty service:Video technical support
Supply capacity:10 sets of 75 strong internal mixer Banbury internal mixer per monthTransmission bearing:Japan NSK
application:mixed rubber or plasticpayment terms:L/C, Western Union, T/T, PayPal, Ali E-pay
Name:75 Intensive Internal Mixer Banbury Internal MixerMain selling points:long lasting
Batch time (times/hour):6 times/hourmodel:X(S)N-75X30
Dimensions (L*W*H):3760x2146x3135mmRotor:hard chrome
Core component warranty:1.5 yearsOrigin:Shandong China
Core components:Bearings, gearboxes, motors, gearsport:Chinese port
Showroom location:Egypt, United States, Russia, Sri Lanka, Romania, MalaysiaApplicable industries:manufacturing plant
Package preview:After-sales service provided:Engineers available to service machinery overseas
Marketing Type:New Products 2020Total capacity(L):180 liters
Voltage:380V, 50HZ, 3 phasecategory:pressure kneader
Company Profile
Product Description
Applications
Plastic intensive dispersing and mixing machines are widely used in the rubber and plastic industry.
It is suitable for mastication, mixing, rubber mixing of rubber and plastic, and mixing of rubber and synthetic rubber.
The characteristics of the plastic intensive dispersing and mixing machine are as follows:
1. The plastic dispersing mixer is a kind of internal mixer whose rotors mesh with each other. The working surface of the wing and roller, the surface of the mixing chamber, the pressure head device and the working surface of the discharge device are all surfacing welding wear-resistant hard alloy, which is durable. Corrosion resistance, longer service life.
2. The shape of the rotor is cylindrical. The cooling area of ​​the large fin is large, which improves the quality of the compound rubber and improves the production efficiency. It can shorten two mixing cycles into one.
3. Under the condition of complete sealing, the materials are mixed or plasticized under a certain pressure, the temperature is controllable, the production efficiency is high, and the quality is stable.
4. The design of the helix angle and lap length of the rotor blades is reasonable, so that the material becomes
Disperse evenly.
5. The contact surface with the machine table is hard chrome-plated and polished, which is corrosion-resistant and wear-resistant.
6. The part in contact with the material adopts a jacket structure, and the water cooling or steam cooling effect is good
The heating effect is good, and it can meet the needs of plastic and rubber processing technology.
7. The rear door of the rack (or independent top door) feeds materials, which is convenient for continuous process operation of the production line.
The mixing chamber can rotate 140° forward around the front rotor to discharge the material, which is convenient for changing the pigment and cleaning the mixing chamber.
8. The electric control system adopts programmable logic controller (PLC), which has reliable control function and alarm function, and has interlock safety protection function, and has a network serial interface.
9. The motor wire of the kneading machine is copper wire, and the motor adopts a Chinese famous brand. It is extremely durable and can operate continuously for long periods of time under harsh conditions such as the dusty working environment pictured above.
mixed rubber

detailed image
We always pay attention to the processing and handling of every detail. So our machines are of guaranteed quality, long service life and trouble-free.
The sealing surface of the static ring is welded by hard alloy and bronze, and has a split structure, which is easy to disassemble, clean and replace.

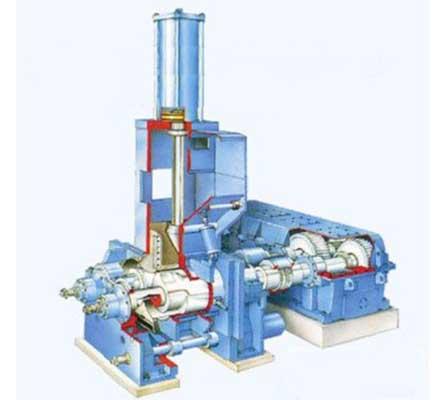

basic structure
The mixing chamber adopts internal cooling, forced circulation cooling (warm water circulation system) to ensure a better mixing temperature.

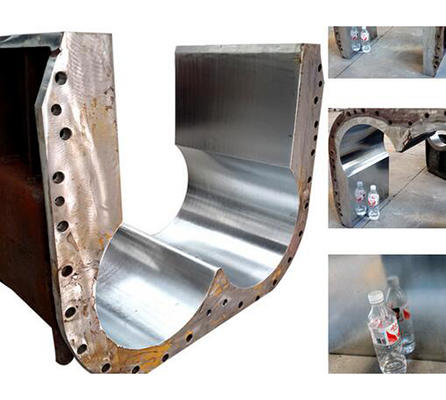

mixing chamber
The mixing chamber is cast steel with an interior chrome plated and polished to a mirror finish. The side is drilled, and the water cooling effect is good.

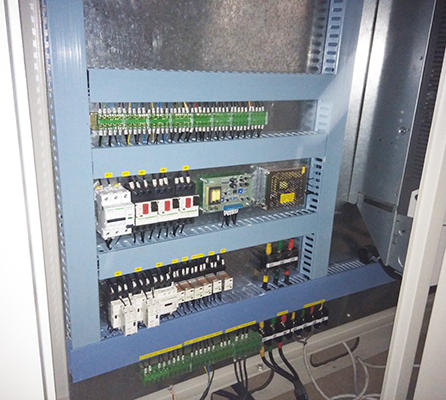

electronic product
Adopt international famous brand electronic products, work reliably. All electronics and wires in the control box are fine
The design is reasonable and the arrangement is reasonable. Therefore, wiring and operation are simple, and maintenance is easy.

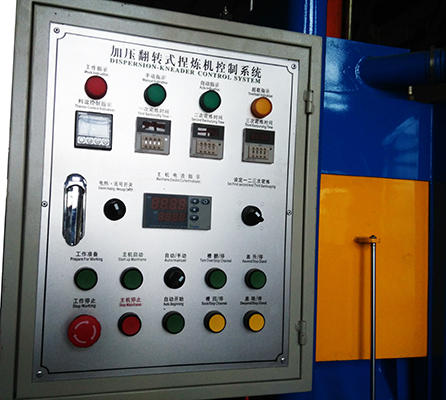

control Panel
Our kneader adopts international famous brand control system. The work is stable, accurate, reliable and trouble-free.

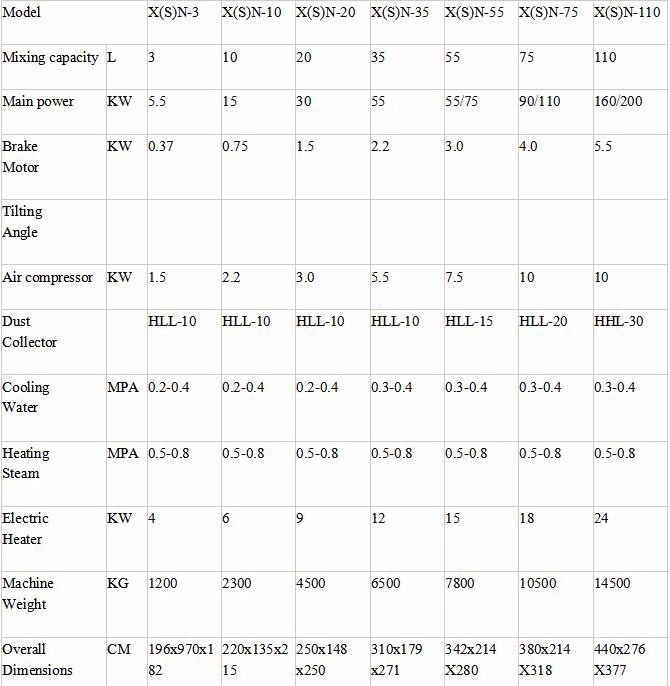

Size Information
Commonly used models for reference
customer photo
