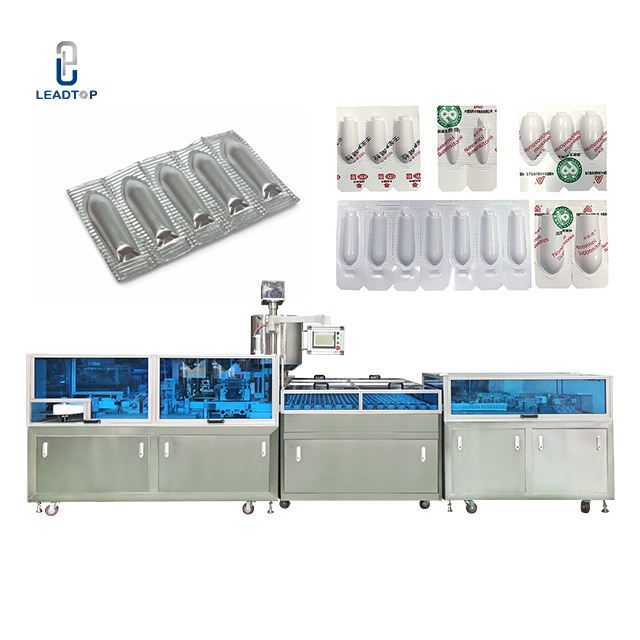

SupLab-2 suppository filling and sealing machine

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Mr Baggio Chan
Price: $60000.00 / 1 - 4 sets
$30000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Single dose:	0.5-5ml	Marketing Type:	New Products 2020
air pressure:	≥0.7Mpa	Showroom location:	United States, Colombia
brand:	LTPM	Supply capacity:	25 sets per month
Core component warranty:	5 years	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Suppositories
Weight (kg):	1000	Gas consumption:	1.5 cubic meters
output:	4500 - 5000 pieces/hour	Applicable industries:	Manufacturing plants, machinery repair shops, food and beverage plants, farms, food stores, food and beverage stores, pharmaceutical industry
Health status:	new	Voltage:	220 volts
port:	Ningbo or Shanghai port	usage:	liquid
Water Consumption:	50kg (recycled)	application:	suppositories
Origin:	Zhejiang, China	Video shipment inspection:	if
Mixing tank capacity:	30L	Mechanical test report:	if
Core components:	PLC, motor	Packaging Details:	Packed with stretch film into export standard wooden box, moisture-proof and can withstand long-term sea transportation
Dose tolerance:	<±2%	wrap:	PVC\PE
Warranty:	5 years	Main selling points:	high productivity
Dimensions:	358713881828mm

brief description

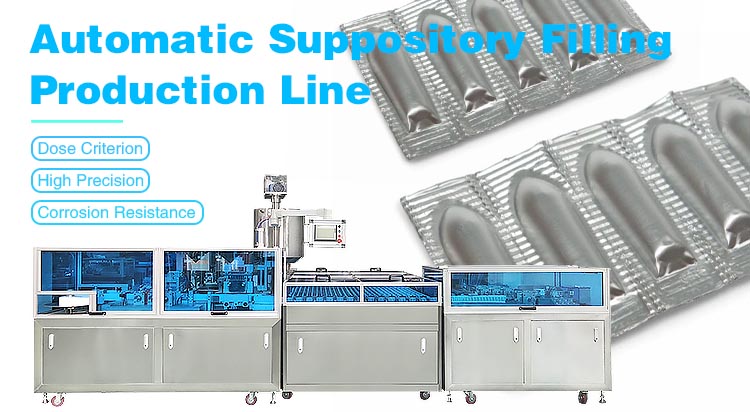

The automatic suppository filling production line has a stable and efficient manufacturing process, and the filling, freezing, sealing and other production processes complete the whole process, with a production capacity of 10,000 capsules per hour.

production process:

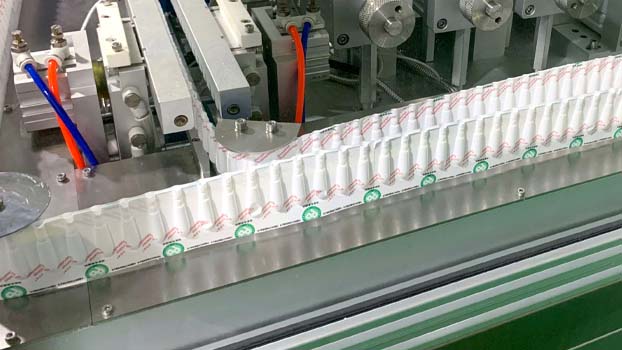

From the automatic forming of suppository shells, to the liquid medicine filling station, circulating cooling device (liquid to solid), continuous sealing of batch numbers, transmission of finished products and cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains) grains can be cut at will )

application

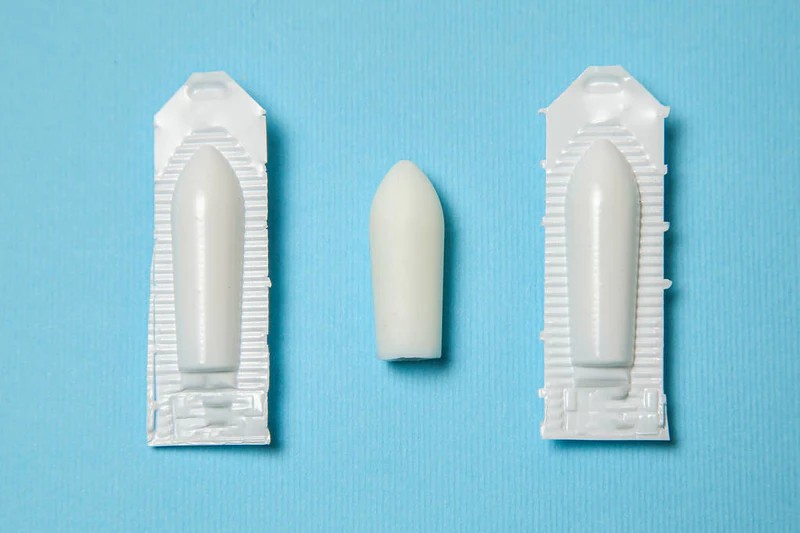

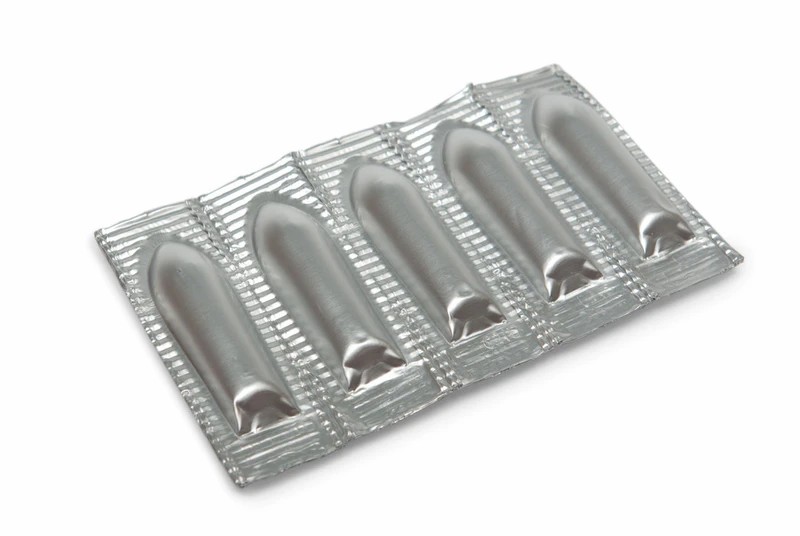

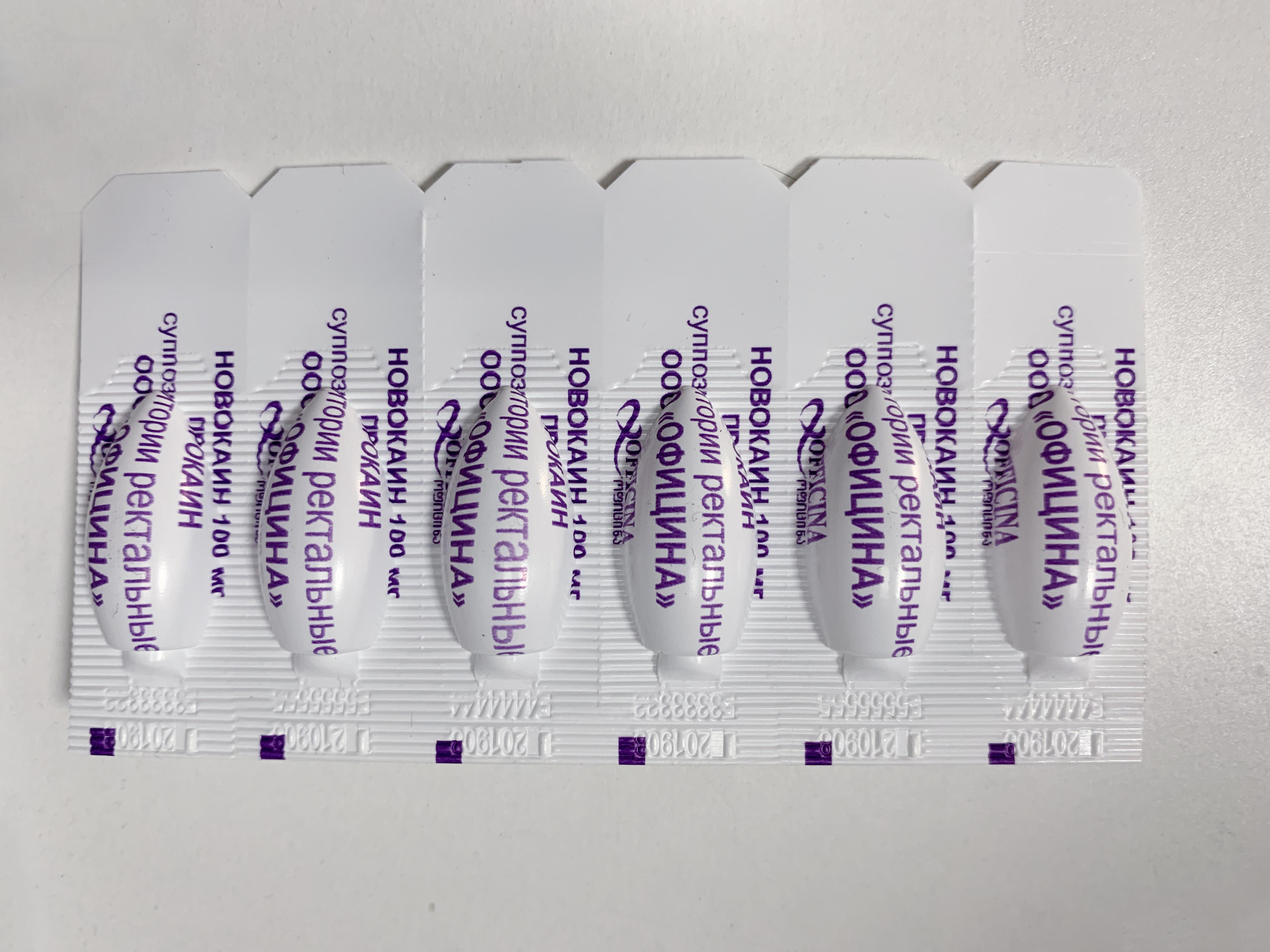

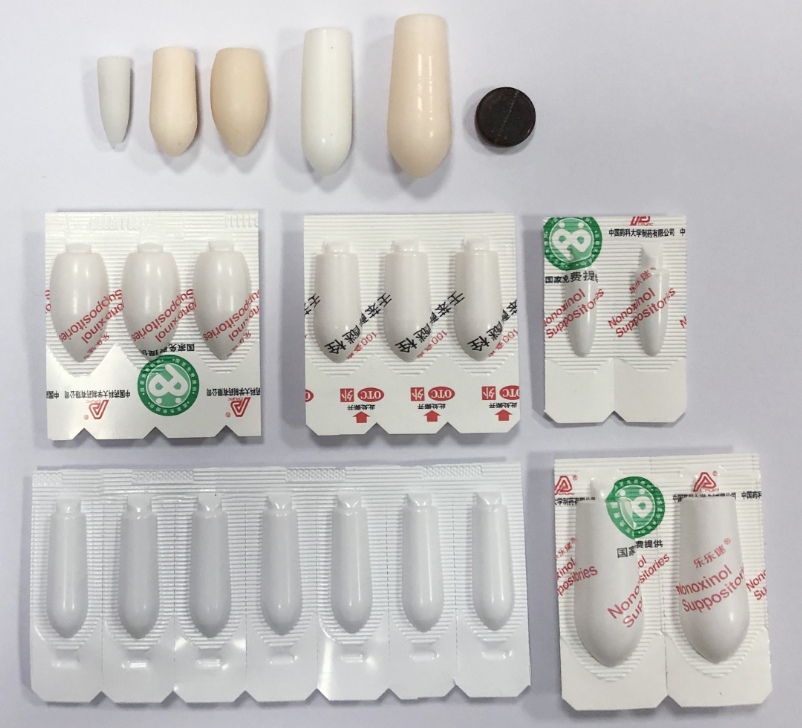

-- Suitable for making special shapes such asBullets, torpedo shapes and duckbills.

-- Adapted material:Synthetic
Fatty acid glycerin, glycerin gelatin, polyethylene glycol ETC.

main technical data

Model	SupLab-1	SupLab-3	SupLab-7	SupLab-10
output	1000-1500pcs/hour	4500-5000pcs/hour	10000pcs/hour	15000pcs/hour
single dose	0.5-5 grams	0.5-5 grams	0.5-5 grams	0.5-5 grams
allowable dose	＜±2%	＜±2%	＜±2%	＜±2%
wrap	PVC\PE	PVC\PE	PVC\PE	PVC\PE
Stirring tank capacity	20L	30L	70L	70L
air pressure	≥0.6Mpa	≥0.7Mpa	≥0.7Mpa	≥0.7Mpa
Air consumption	1.2 cubic meters	1.5 cubic meters	1.5 cubic meters	1.5 cubic meters
Water Consumption	50kg (recycled)	50kg (recycled)	50kg (recycled)	50kg (recycled)
Operating Voltage	Three-phase 380V	Three-phase 380V	Three-phase 380V	Three-phase 380V
total power	4KW	5KW	7.5KW	9.5KW
machine weight	500KG	1000KG	2000KG	2500KG
Dimensions	230012001800mm	358713881828mm	530221201809mm	596521202,150mm

feature

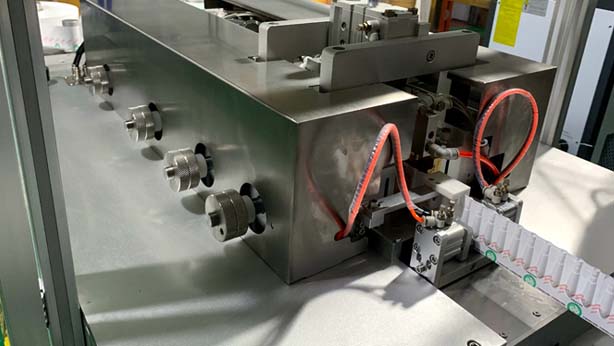

01. Plug-in linear perfusion mechanism

-- Adopt plug-in linear filling mechanism, accurate positioning, no drop, no hanging on the wall; single grain measurement 0.5-5g, filling error plus or minus 2%.

02. Production capacity

-- The production capacity is 4500-5000 grains/hour. --Adopt temperature sensor and microcomputer control system to realize high-precision constant temperature control.

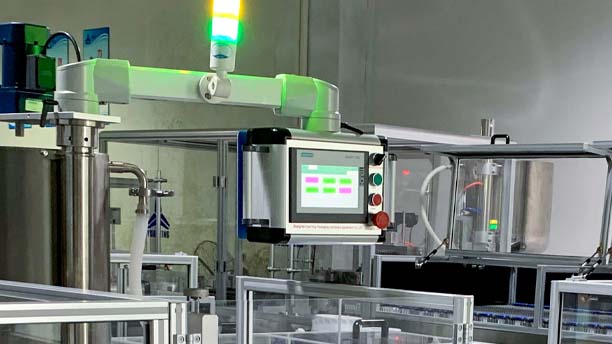

03. Siemens PLC control system

--The equipment adopts PLC programmable control and human-machine interface operation, which is easy to operate, convenient to adjust, accurate temperature control and stable operation.

04. Servo high-precision filling system

--Filling, freezing, sealing and other production processes are fully automatic. -- The stroke of the servo motor filling piston is regular, easy to observe, stable in action, free of vibration and splashing, the load can be adjusted online, high in precision, and easy to adjust!

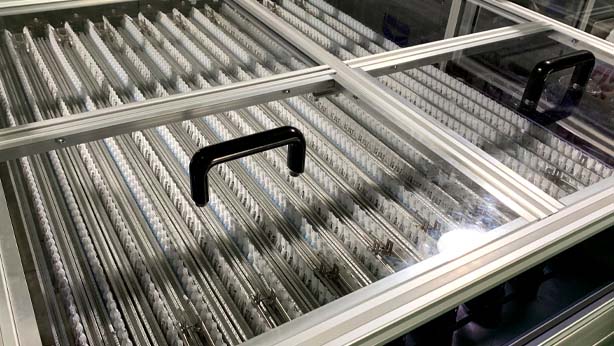

05. Unique circulating water cooling system

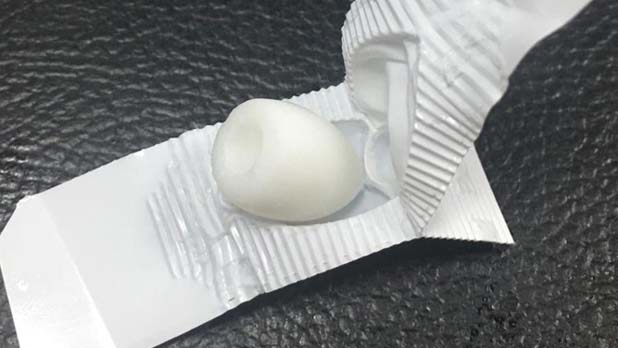

--The latest circulating water cooling technology solves the phenomenon of slag falling and easy fracture when the medicine is torn apart. ——The advantages of the unique circulating water cooling system, the tail is thick, and the residue is torn off. -- Temperature adjustable.
