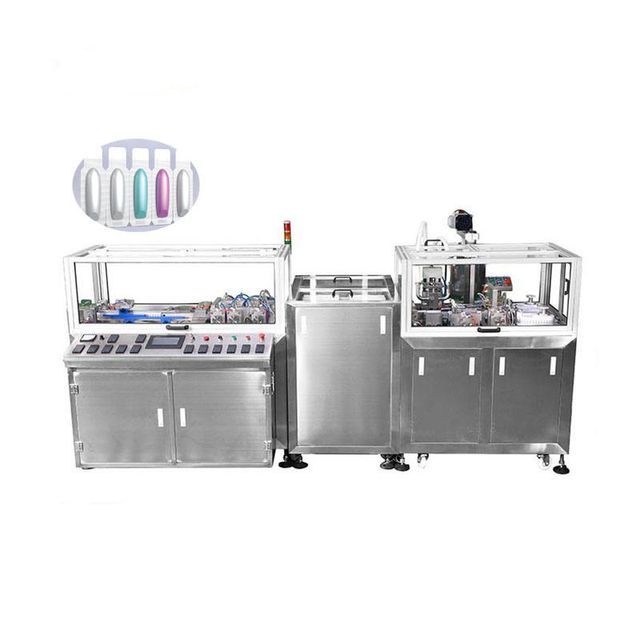

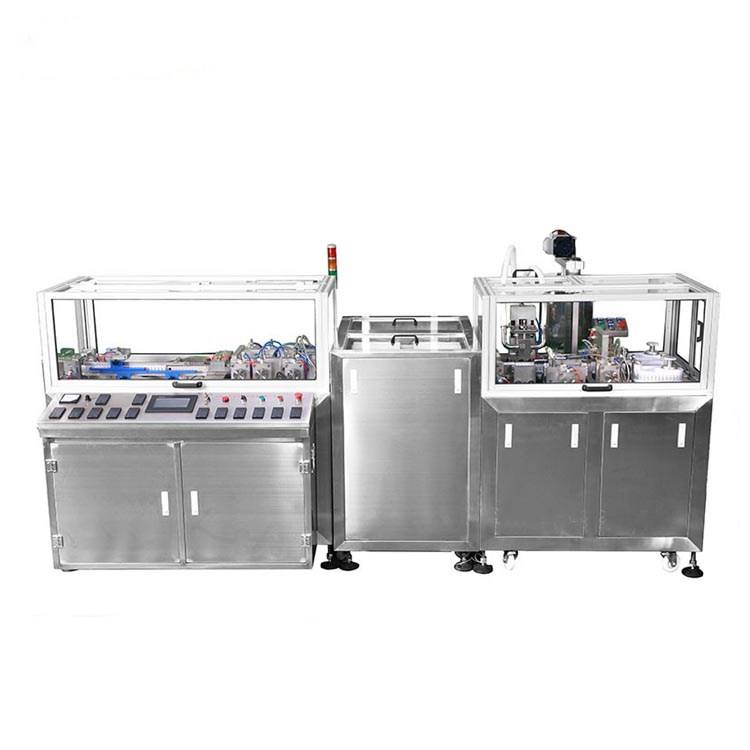

Fully Automatic Suppository Machine/Suppository Filling and Sealing Equipment

Supplier: Liaoyang Xianglong Pharmaceutical Machinery Co., Ltd.
Region: Liaoning, China
Contact: Mr MR ZHENG
Price: $32000.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	suppository machine	Showroom location:	Turkey, United Kingdom, United States, Italy, Pakistan, Russia, Spain, Australia
Automatic level:	Fully automatic	Weight (kg):	1000
Filler:	gelation	Dimensions (lengthwidthheight):	3587x1388x1828mm
Voltage:	380V/220V	Function:	forming
Core components:	PLC, engine, bearing, gearbox, motor	Mechanical test report:	if
Single dose:	0.5-5ml	strength:	5kW
port:	Dalian	Main function:	automatic packaging
Main selling points:	Easy to operate	After-sales service provided:	Overseas service machinery
Place of origin:	Liaoning, China	Marketing type:	normal product
Health status:	new	payment terms:	Letter of credit, wire transfer
product name:	Suppository production line	Key words:	solid production machine
Name:	Filling production line	Packaging details:	Export wood packaging
Video outbound inspection:	if	Warranty:	2 years
brand:	Xianglong	Core component warranty:	2 years
Applicable industries:	Food and Beverage Factory,Food and Beverage Store	usage:	suppository
Supply capacity:	500 units per month

Product Description

Suppository filling production line

1. The fully automatic suppository production line is suitable for the production of bullet-shaped, torpedo-shaped, duckbill-shaped and other special-shaped suppositories, and can meet the production of various shapes of suppositories. (Molds are made according to sample requirements.)
2. Starting from the automatic molding of the suppository shell to the filling station of the liquid medicine,
Reciprocating cooling setting (liquid to solid), continuous sealing, batch number, finished product cutting (the number of cutting particles can be set arbitrarily on the touch screen, 1-10 can be cut freely)

Disposable suppository, embedded filling, filling accuracy ±2%, filling barrel with electric heating
Insulation system, a mixer is installed on the top to make the medicine even. The medicine enters the filling head through a high-precision large tank filling pump. The medicine circulates to the filling barrel through the other end and rests before filling again next time.

detailed picture

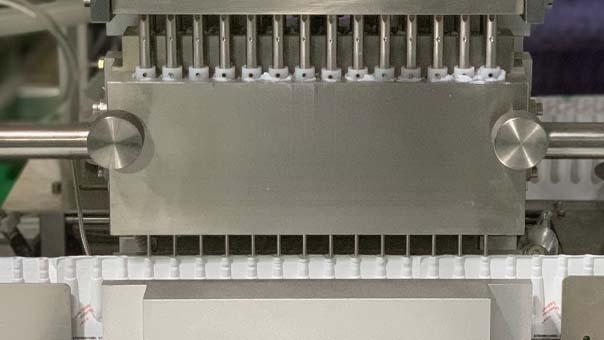

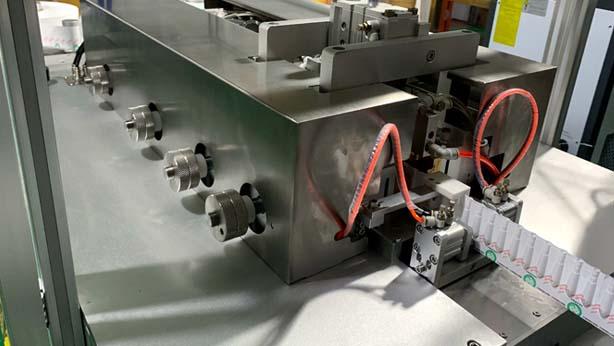

Plug-in linear perfusion mechanism

Adopting a plug-in linear filling mechanism, the positioning is accurate and does not fall or hang on the wall; single grain measurement is 0.5-5g, and the filling error is plus or minus 2%

production capacity

It adopts temperature sensor and microcomputer control system to achieve high-precision constant temperature control.

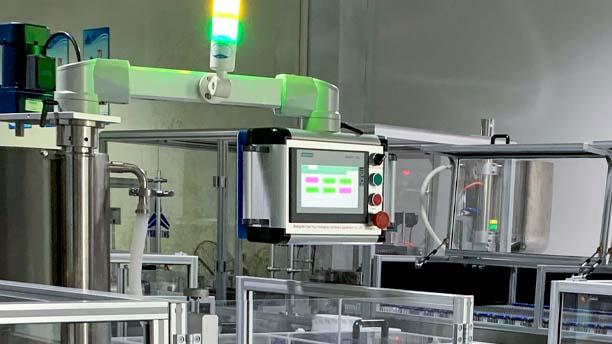

Siemens PLC control system

The equipment adopts PLC programmable control and human-machine interface operation, which is simple to operate, convenient to adjust, accurate in temperature control, and stable in operation.

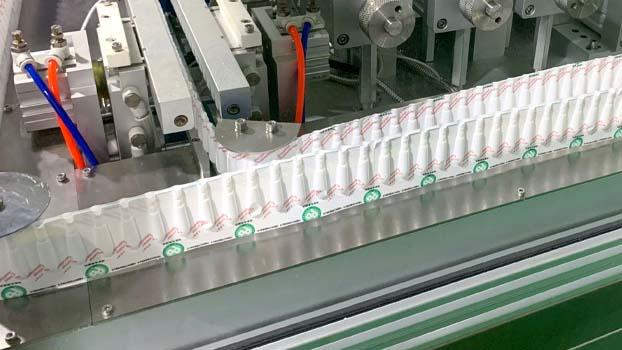

Servo high-precision filling system

The production processes such as filling, freezing and sealing are fully automated. The filling piston adopts the servo motor stroke rule, which is easy to observe, smooth action, the load is online adjustable, high precision and easy to adjust!

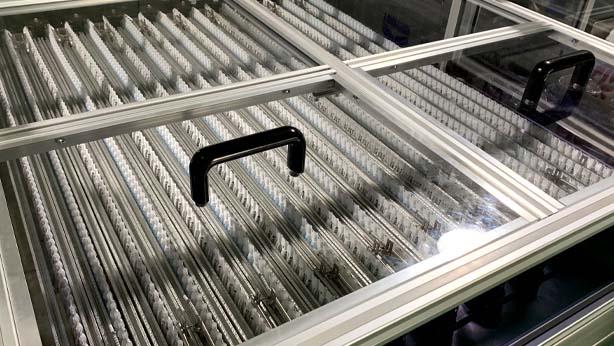

Exclusive circulating water cooling system

The latest circulating water cooling technology solves the problem of slag and easy breakage of medicines when they are torn apart. The advantage of the exclusive circulating water cooling system is that the trailing edge is thick and the residue can be removed. The temperature is adjustable.

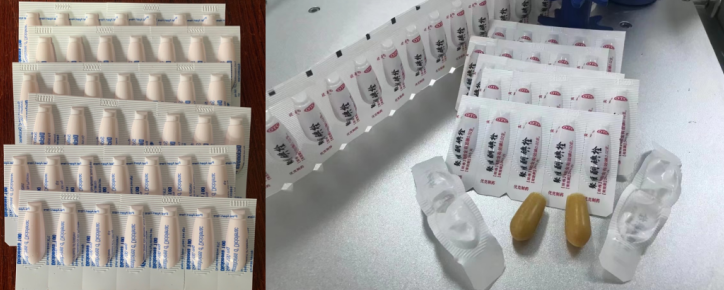

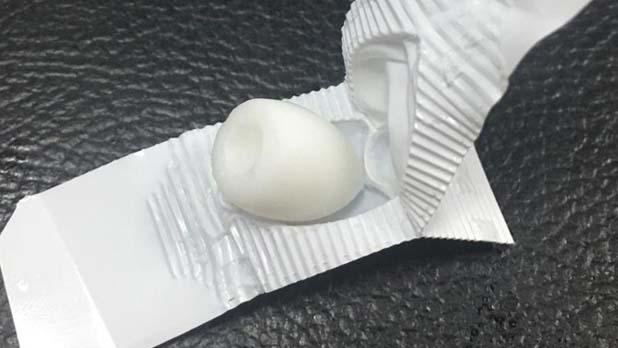

finished product

The sealing seal should be good, the appearance should be neat, and the good value should not be less than 99.%.

Technical specifications

Name	Laboratory suppository production line			Continuous suppository production line
Model	1 Litre	3 liters	7 liters
output	1,000-2,000 pieces/hour 5,000-6,000 pieces/hour			10,000-12,000 pieces/hour 15,000-18,000 pieces/hour 18,000-23,000 pieces/hour
shape	Bullets, torpedoes, duckbills and other shapes
application	Synthetic fatty acid glycerides, glycerin, gel, polyethylene glycol, etc.

Model	1 Litre	3 liters	7 liters	L10
output	1000-1500 pieces/hour	4500-5000 pieces/hour	10,000 pieces/hour	15,000 pieces/hour
single dose	0.5-5g	0.5-5g	0.5-5g	0.5-5g
allowed dose	＜±2%	＜±2%	＜±2%	＜±2%
wrap	PVC\Polyethylene	PVC\Polyethylene	PVC\Polyethylene	PVC\Polyethylene
Mixing tank capacity	20 liters	30 liters	70 liters	70 liters
air pressure	≥0.6Mpa	≥0.7Mpa	≥0.7Mpa	≥0.7Mpa
Air consumption	1.2 cubic meters	1.5 cubic meters	1.5 cubic meters	1.5 cubic meters
water consumption	50kg (recycling)	50kg (recycling)	50 kg (recycling)	50 kg (recycling)
Operating Voltage	Three-phase 380V	Three-phase 380V	Three-phase 380V	Three-phase 380V
total power	4kW	5kW	7.5kW	9.5kW
Machine weight	500kg	1000kg	2000kg	2500kg
Dimensions	230012001800	358713881828	530221201809	596521202150

Note: Data are subject to change without prior notice
