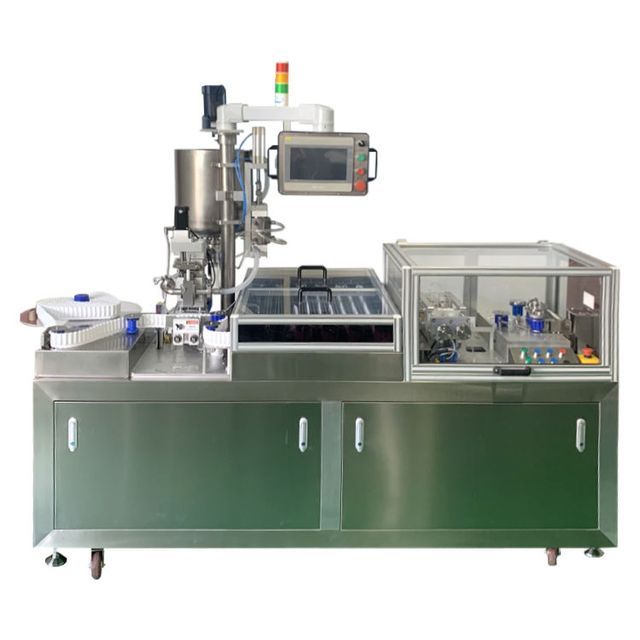

Semi-automatic bullet suppository filling and sealing machine

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Ms Serene Sun
Price: $67500.00 / 1 - 1 sets
$32000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Main selling points:	High productivity	Suppository shape:	Bullets, torpedoes, duckbills, etc.
air pressure:	0.6Mpa	Adaptable substrate:	Semi-synthetic fatty acid glycerol, glycerol gelatin, carbowax
Warranty:	5 years	Core component warranty:	5 years
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Weight (kg):	850
Packaging details:	HY-U fully automatic suppository production line, wrapped with stretch film and packed into export standard moisture-proof wooden boxes, can withstand long-term shipping	payment terms:	L/C, Western Union, D/P, D/A, T/T
brand:	Made in China for the long term	Voltage:	380V
Applicable industries:	Food and Beverage Factory	Storage container volume:	50 liters
Voltage:	Three-phase 380V	Production capacity:	4500-5000 pieces/hour
port:	Ningbo Port or Shanghai Port	Dimensions (lengthwidthheight):	2326mm2404mm1832mm
Showroom location:	United States, Pakistan, Colombia	usage:	liquid
strength:	5kW	Supply capacity:	25 suppository production line machines per month
Marketing type:	Hot Products of 2023	deviation:	<±2%
Video outbound inspection:	if	Health status:	new
Dose per unit:	0.5-4ml	Air consumption:	1.3 cubic meters/minute
Water Consumption:	50kg per lap	Mechanical test report:	if
Place of origin:	Zhejiang, China

The marked prices of our products are the range prices of the entire product series.

If you need a detailed quote, pleaseSend inquiryat the bottom of the page.

attention:1. All prices and parameters displayed above are automatically generated by the system. If you want to know accurate information, please click "Contact Supplier" to send us an email. 2. Due to the time difference, we recommend that you chooseSend us an inquiryInstead of chatting online. 3. When sending us an inquiry or message, please tell us your email or WhatsApp/WeChat/Skype, etc. so that our sales manager can contact you quickly.

Product Description

The SupLab-3 semi-automatic suppository filling production line has stable and efficient filling, sealing and other production processes, with a production capacity of 4000-5000 capsules/hour.

1. Filling accuracy is ±2%.The filling barrel is equipped with an electric heating and insulation system. There is a uniform mixer on the top for chemical production. filler

High precision, pumped to the filling head. The bucket will rest and be refilled next time.

2. After sealing and filling, the suppository enters the sealing area: heating mold (heating), sealing mold (batch number).

Technical Parameters

production capacity	4500-5000 pieces/hour
dose per unit	0.5—4ml
deviation	＜±2%
Storage container volume	50 liters
Adaptable substrate	Synthetic fatty acid glycerides, glycerol gelatin, polyethylene glycol, etc.
Suppository each distance	17.4mm
Air consumption/minute	1.3 cubic meters/minute
total power	5kW
Operating Voltage	Three-phase AC 380V
working pressure	≥0.6Mpa
Water consumption/hour	15 kg (recycling)
weight	850kg

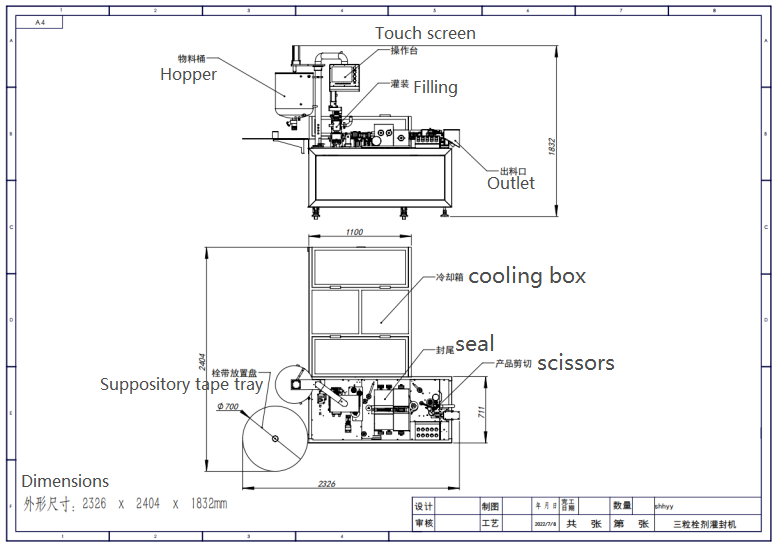

Dimensions (length × width × height)	2326 mm (length) × 2404 mm (width) × 1832 mm (height)

If you need other types of particle counting machines,

Please send inquiry to obtain

feature

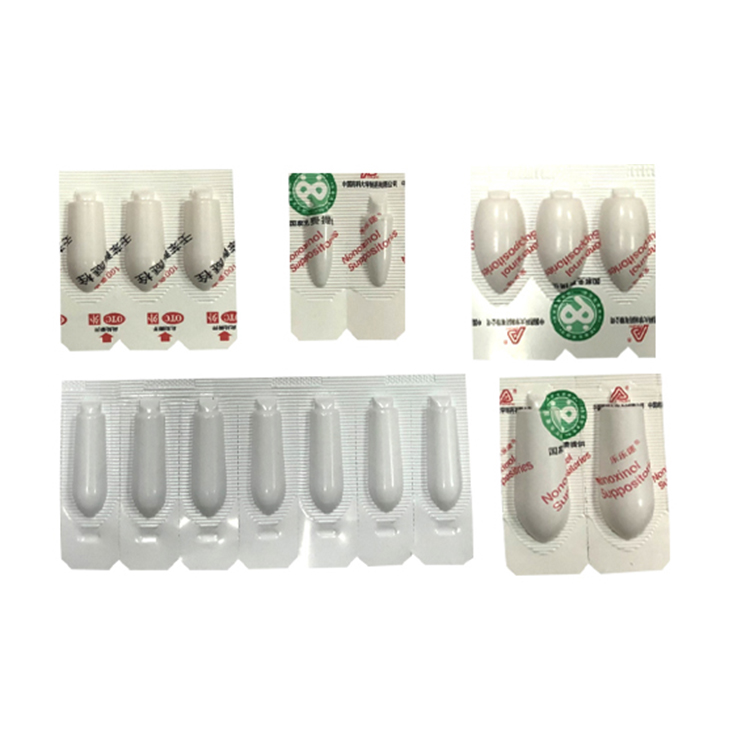

1.SupLab-3 suppository filling and sealing machine is suitable for the production of bullet-shaped, torpedo-shaped suppositories and other special shapes of suppositories.

2.PLC programmable control and human-machine interface operation, simple operation, convenient adjustment, accurate temperature control, and stable operation.

3.It adopts temperature sensor and microcomputer control system to achieve high-precision constant temperature control.

4.The liquid storage tank is made of 316L stainless steel with appropriate volume, thermal insulation and heating functions, and accurate temperature control; the tank is equipped with a stirring device to ensure the uniformity of the liquid in the tank at all times. The liquid storage tank is connected to the filling mechanism through a pipeline to insulate and circulate the liquid to ensure the fluidity of the liquid and meet the needs of filling.

5.It adopts a plug-in linear filling mechanism, with accurate positioning, no dripping, and no hanging on the wall; single grain measurement is 0.5-4ml, and the filling error is plus or minus 2%. The design is simple and reasonable, and the operation and maintenance are convenient.

Product Details

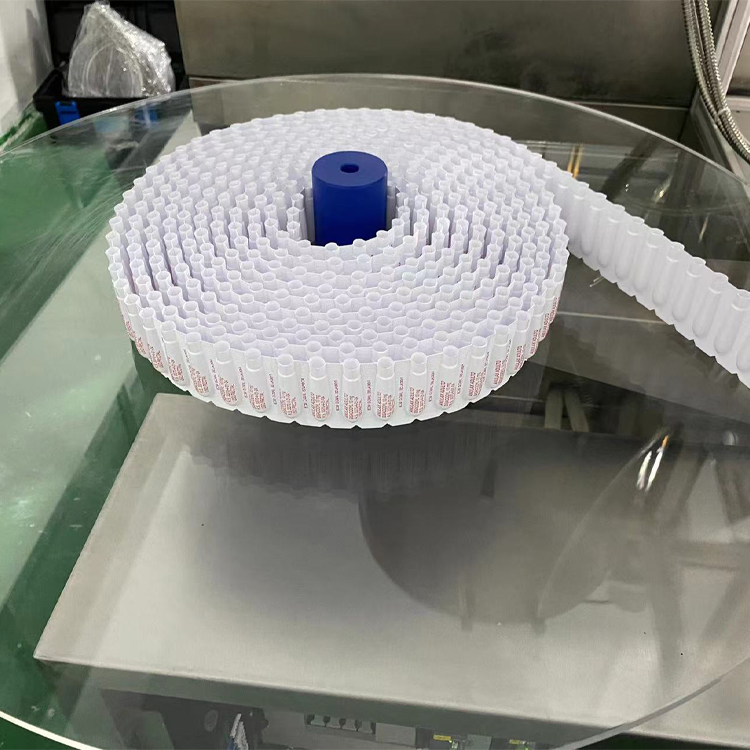

PVC/PE rolled film board

Customizable roll film

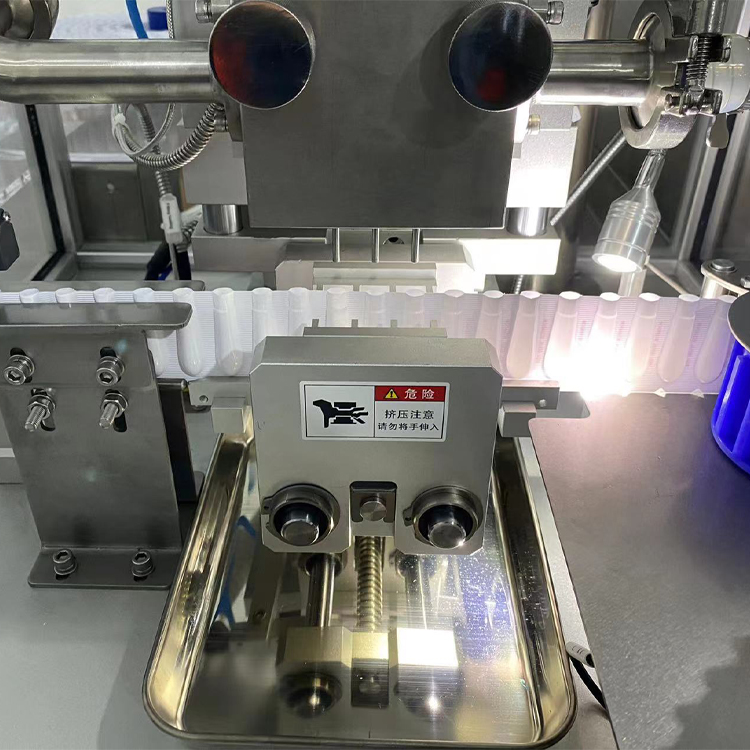

Plug-in linear perfusion mechanism

Filling accuracy is ±2%.

The filling barrel is equipped with an electric heating and insulation system.

There is a uniform mixer on the top for chemical production.

The filling accuracy is high and it is pumped to the filling head.

The bucket will rest and be refilled next time.

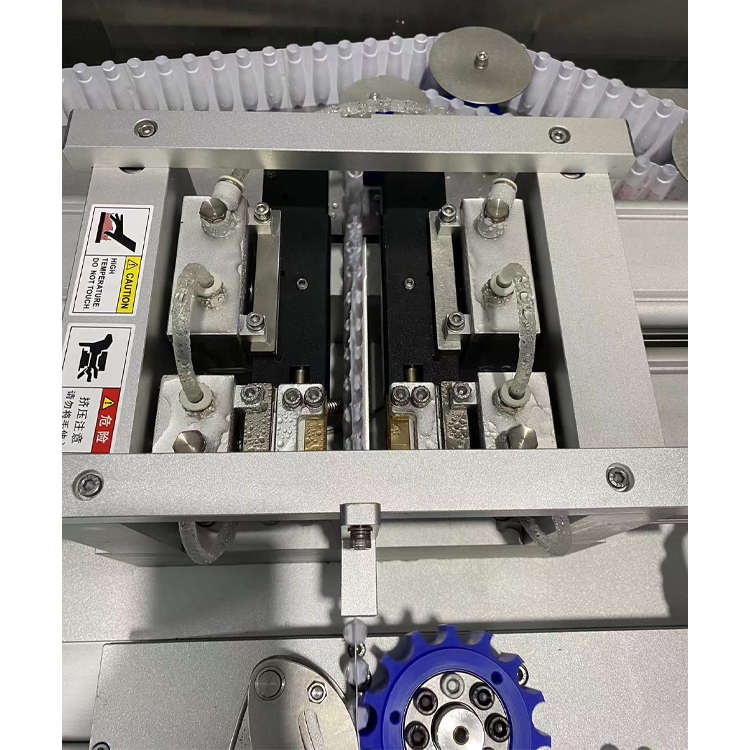

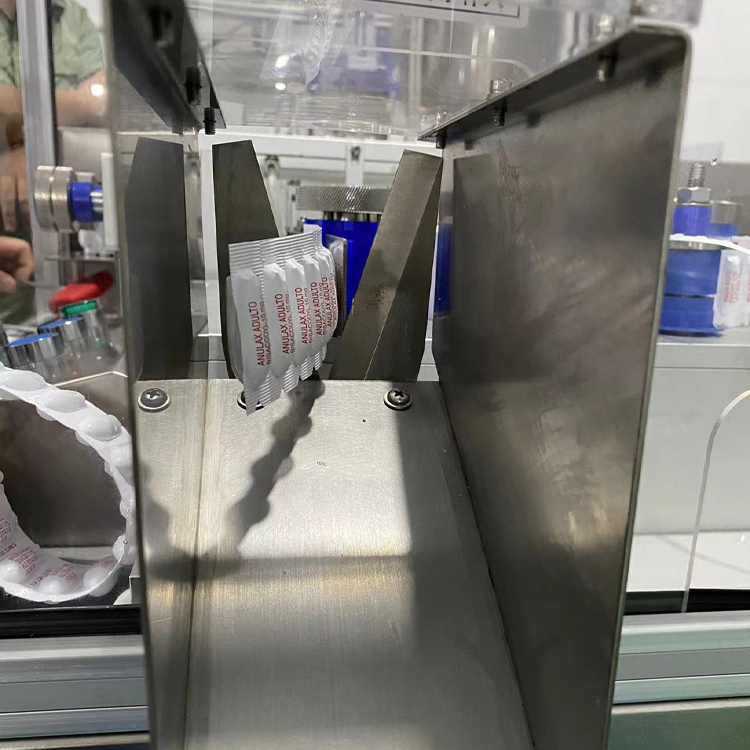

seal

gradually heat

The seal is stronger

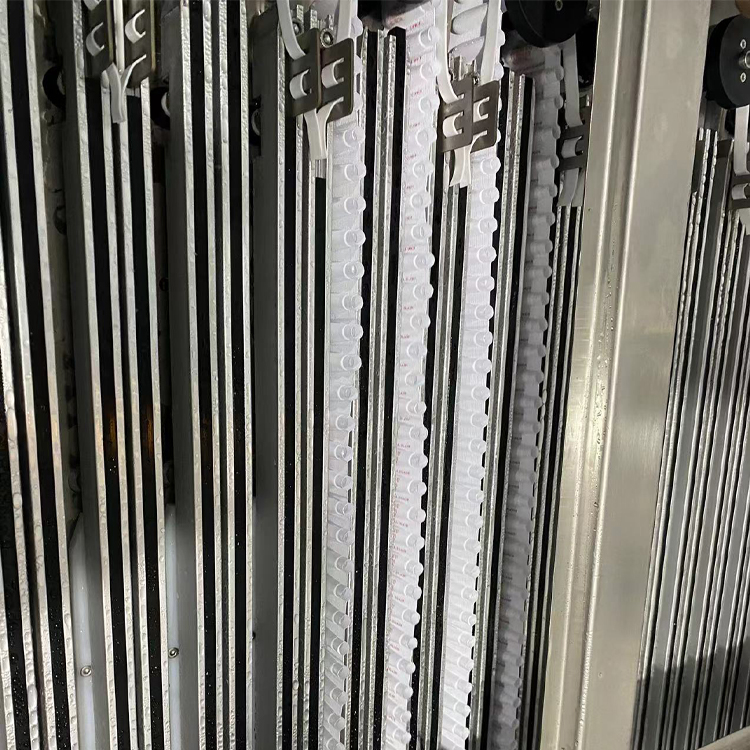

Exclusive circulating water cooling system

The latest circulating water cooling technology solves the problem of slag removal and easy breakage of products during use.
Being torn apart.

The advantages of the exclusive circulating water cooling system are that the tail edge is thick and can remove debris.

The temperature is adjustable.
