BG-80 High Efficient Tablet Film Coating Machine

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Ms Serene Sun
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Warranty:	5 years;
Port:	Ningbo,Shanghai;	Voltage:	380v 50hz three phase;
Coating Type:	Heating & Coating;	Max. tablet volume:	80Kg / time;
Applicable Industries:	Food & Beverage Factory,Farms,Food & Beverage Shops;	Place of Origin:	Zhejiang China;
Max. Load Capacity (kg):	40 kg;	Host machine weight:	600Kg;
Host machine motor power:	1.5 kw;	Hot air cleanness:	100000 level;
Condition:	New;	Local Service Location:	United States,Brazil,Peru,Pakistan,Mexico,Argentina,Chile,Colombia;
Certification:	CE,GMP;	Usage:	Pharmaceutical;
Brand Name:	LTPM China;	Showroom Location:	United States,Pakistan,Colombia;
Coating Temperature (℃):	40 - 80;	Coating Drum Diameter (mm):	820 mm;
Supply Ability:	25 Set/Sets per Month Tablet Film Coating Machine;	Exhaust blower air flow:	5268 m3/h;
After-sales Service Provided:	Online support;	Power:	3KW;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Tablet Film Coating Machine can be paid by cash,paypal;	Weight:	600Kg;
Sugar coating drum speed:	0-19 r.p.m;	Power (kW):	3;
Hot air cabinet motor power:	1.1 kw;	Dimension(LWH):	1370x1030x1950mm;
Packaging Detail:	Tablet Film Coating Machine packed export standard wooden case can afford long time sea shipment with anti-moisture function;	Key Selling Points:	High Productivity;
Exhaust cabinet motor power:	3 kw;

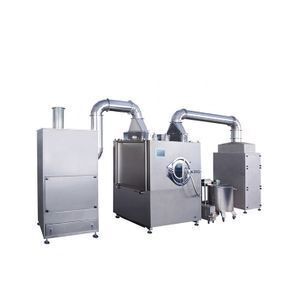

Product Description:

The machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.
This machine is made of high-quality stainless steel elaborately and meets the The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.

Technical Data:

Items \ Model				BG-40
Max. tablet volume				40Kg / time
Sugar coating drum dia.				F820mm
Feed inlet dia				F340mm
Sugar coating drum speed				2-18 r.p.m
Host machine motor power				1.1 kw
Exhaust cabinet motor power				2.2 kw
Exhaust blower air flow				5268 m³/h
Hot air cabinet motor power				1.1 kw
Air heater air flow				1685 m³/h
Air heater temp.-adjust range				~ 80 ℃
Hot air cleanness				100000 level
Peristaltic pump or lobe pump motor power				0.37kw (0.55kw)
Silicon rubber hose				F 9~16mm
External dimensions of host machine				12009001570 mm
Host machine weight				600kg
External dimensions of hot air cabinet				900x900x2000 mm
Hot air cabinet weight				450kg
External dimensions of exhaust cabinet				910x910x1700 mm
Exhaust cabinet weight				500kg
External condition	Clean Air	Pressure		³0.4Mpa
		Air consumption.		0.7m³ /min.
	Water source	Pressure		³0.15Mpa
		Pipe dia		1’’
	Steam heating type	Steam	Pressure	³0.4Mpa
			Air consumption.	80kg/h
		Power source		3 phase and 5 lines 5 kw
	Electric heating type	Power source		3 phase and 5 lines12 kw

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
