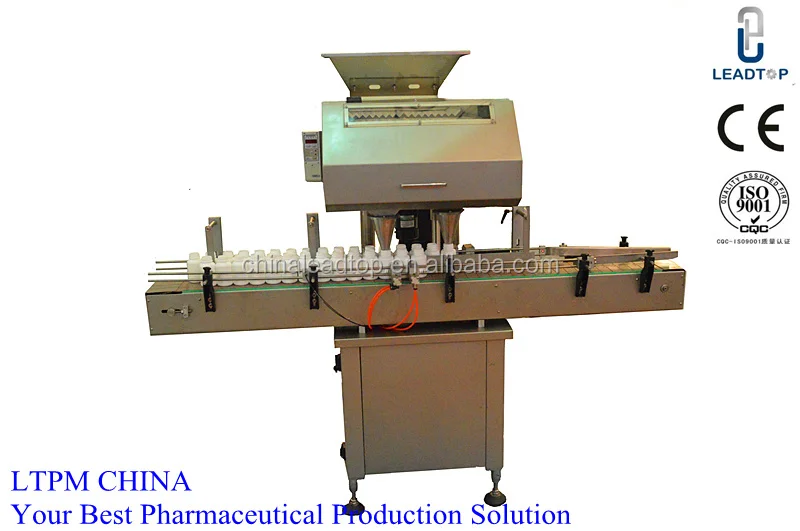

automatic Electronic Tablet Capsule Counting Machine

Simple Instruction

     The machine delivers medicine smoothly and evenly in three classes   of vibration. It adopts the most advanced international CCD sensitive   technology, which has high resolution to make up disadvantages of common   photoelectric devices many domestic manufacturers use. CCD can counteract   dust accumulated on the fluorescent screen and adjust work state   automatically to ensure accuracy of counting. Its air regulator ensures   reliability and stability of pneumatic components in work. Self-diagnostic   system monitors the whole running process of the equipment to further   guarantee correctness of counting. The machine also has inspection function   that can detect broken medicine. The machine not only has reliable running   but fast and easy changeover. Its control system can store working parameters   of various medicaments and its human machine interface is user-friendly.   Generally operators can grasp fluently.

Feature:

1. 1.        Compatibility, high accuracy,   wide application and use of the Company's original anti-dust photoelectric detection   of high technology, can count Tablets (including special-shaped tablets),   capsules, soft capsules (transparent, opaque), pill count to bottling;
2. 2.        Vibrating Hopper with guide   way;
3. 3.        Machine stops automatically   when out of bottle, and automatically rejected if wrong counting quantity.
4. 4.        Compact structure, stability   and durability, and no regular replacement parts, small footprint, the use of   low-cost;
5. 5.        To facilitate the replacement   of species, can automatically take-off and landing, demolition cleared   without any tools, convenient and quick;
6. 6.        English control panel, can   store 10 ~ 20 group of species parameters, adjusted to facilitate the use of   special;
7. 7.        Fully automatic operation,   with the Upper and Lower Union     Road, intelligent control of processes,   coordination, and no special operation, labor-saving devices.
8. 8.        Control chip imported to the United States, photoelectric sensors for Taiwan's   imports.

Main Technical Data

Model

LTEC-12

LTEC-16

LTEC-24

LTEC-32

Slide   wheel

12   Channels

16   Channels

24   Channels

32   Channels

Size   of Object

Tablet:   φ5-12mm Capsule: 00#-5# all kinds of soft capsule

Size   of bottles

20-300ml

The   diameter for bottles mouth

20-80mm

Output

4,000pcs/min

6,000pcs/min

8,000pcs/min

10,000pcs/min

Capacity

40bottles/min

60bottles/min

80bottle/min

100bottles/min

Power

0.9KW

0.9KW

1.35KW

1.35KW

Power   supply

220V   60HZ

Air   pressure

6kgs/c

Overall   dimensions(mm)

1700×1700×1900

2000×1700×1900

2800×1700×1900

3200×1700×1900
