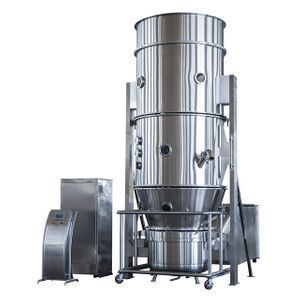

FL-200 Factory Supply High Performance Vertical fluid bed dryer granulator price

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Ms Serene Sun
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	100-180kg/batch;	Type:	Fluid Bed Drying Equipment;
Condition:	New;	Item Name:	Fluid Bed Drying Machine;
Model:	FL-200;	Heating System:	Steam,Electronic,oil and coal are available;
Brand Name:	LTPM CHINA;	Ceritification:	CE;
Voltage:	based on customer requirment;	Applicable Industries:	Hotels,Farms,Home Use,Pharmaceutical factory;
Manufacturer:	LTPM CHINA;	Certification:	CE;
Supply Ability:	8 Set/Sets per Month;	Local Service Location:	United States,Brazil,Peru,Pakistan,Argentina,Chile,Colombia;
Warranty:	1 year;	Weight:	2000kg(main machine);
Dimension(LWH):	Main Machine: 8008003500mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Key Selling Points:	High Performance;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Application:	Medicine Processing,Pharmaceutical factory;	Showroom Location:	United States,Pakistan,Colombia;
Operation System:	PLC control with touch screen operation;	Function:	Drying with granulating and drying with Coating;
Standard:	GMP;	Port:	Ningbo or Shanghai;
Packaging Detail:	Fluid Bed Drying Machine packed in Export Standard Wooden Case with anti moisture dryer inserting to ensure safety transportation during long time sea shipment.;	Power(W):	Electronic Heating: 45Kw Steam Heating: 20Kw;
After-sales Service Provided:	Online support;	Place of Origin:	Zhejiang China;

Product Description
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Application
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Functions
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Technical Parameter

Model	200
Volume (L)	670
Amount to be treated (kg/per time)	100/300
Power of fan (kw)	30
Consume of steam 0.4MPa(kg/h)	282
Consume of compressed air (m³/min)	1.1
Noise,dB (A)	(fan is installed separately) ≤75
Main machine height (m)	2.34×1.7×3.8

Customer Acceptance Picture

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
