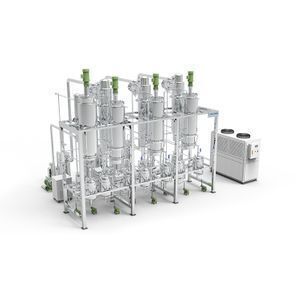

CBD oil short path distillation equipment made in China

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Ms Serene Sun
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	LTPM CHINA;	Product Type:	Cosmetic;
Receiving Method:	Continuous discharge pump;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;
Voltage:	380V 50HZ;	Feeding Mode:	Gear pump for automatic and continuous feeding;
Evaporation Area m2:	0.1;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop;
Dimension(LWH):	1400mm600mm1900~2400 mm;	Certification:	CE Certificate;
Condition:	New;	Max Speed(rpm):	50-350;
Warranty:	1 year;	Port:	NINGBO;
Equipment Height(mm):	2100;	Vacuum Level(mbar):	Low to 0.001 mbar;
Supply Ability:	12 Set/Sets per Month;	Feeding Method:	High-precision gear pump;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Place of Origin:	Zhejiang China;
Operation Temperature:	Up to 350C;	Feeding Rate L/h:	1-15;
Collection Mode:	Gear pump for automatic and continuous collection;

Product introduction

LTPM CHINA molecular distillation, also called molecular distiller, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive materialor high boiing point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical, petrochemical,spices, plastics, oil and otherfields.

Features of Molecular distillation

1.Evaporation efficiency is very high, can reduce retention time, with minimal time delay.
2.Molecular distillation system is composed of high borosilicate glass 3.3, 316L stainless steel and PTFE, so it has excellent anti-corrosion ability.
3. The main part of the molecular distillation system is made of high borosilicate glass 3.3, and the whole operation process can be well observed.
4.The high precision distillation cylinder body enables the liquid to form a complete integrated film on the heating surface.The inner wall of the barrel body is smooth and bright, not easy to stick to the material and scaling.
5.imported brand variable frequency speed reduction motor,safe and reliable in operation;equipped with self-cooling fan,it can continuous working for a long time.
6.the magnetic drive system makes it possible to seal the whole machine.the transfer bar of the drive motor does not need to pass through the main distiller.the whole set of the distillation system possess good sealability.The min vacuum pressure can reach 0.001mba.
7.the max temperature of the equipment can up to 250℃/300℃ ,accurate temperature control can achieved.
8.maximum the theroretical vacuum degree can up to 0.05 mbar or 0.001mbar.(secondary diffusion pump is needed)
9.You can free choose of scraper film forming system and self-cleaning roller system.

LTPM CHINA Instrument develop stainless steel wiped film molecular distillation based on customer's production needs. Its efficient productivity can help customers save costs to the the greatest extent

1. Modularized design for flexible options
2. Continuous feeding & collection modules design, saving labor cost and working time
3. Fully jacketed design, wide applications for different materials
4. SUS316L stainless steel, safe and reliable
5. Sight glass and quick connect design, easy to disassemble and clean

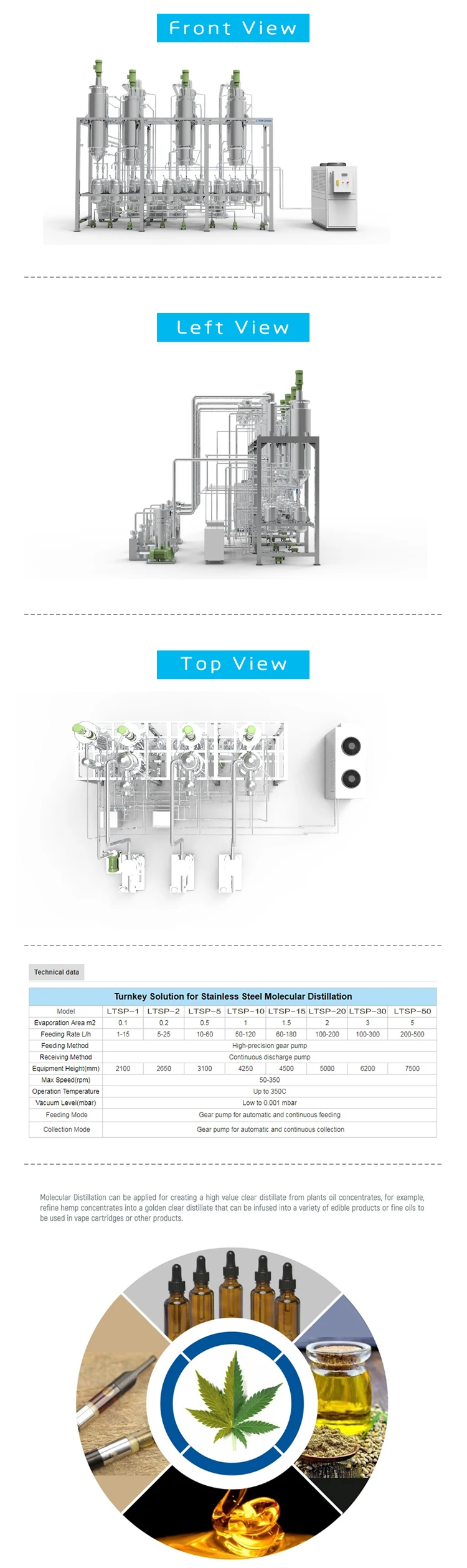

Products and parameters

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
