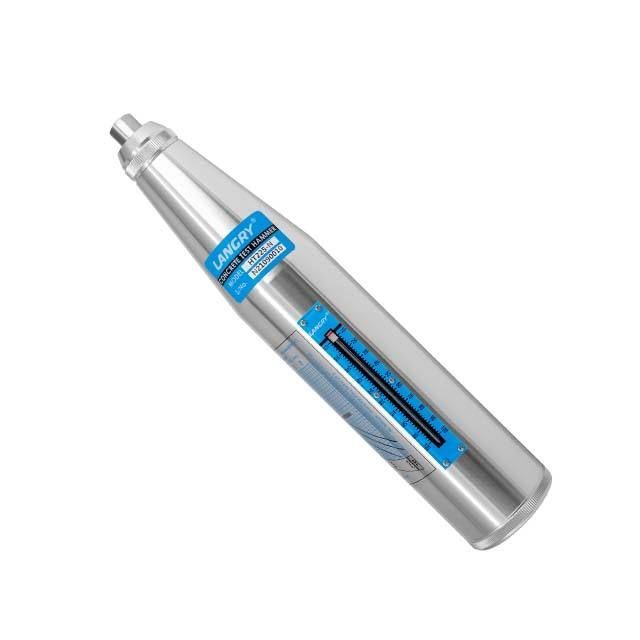

Concrete Hammer Ht225n Concrete Test Hammer Price

Concrete Hammer Ht225n Concrete Test Hammer Price

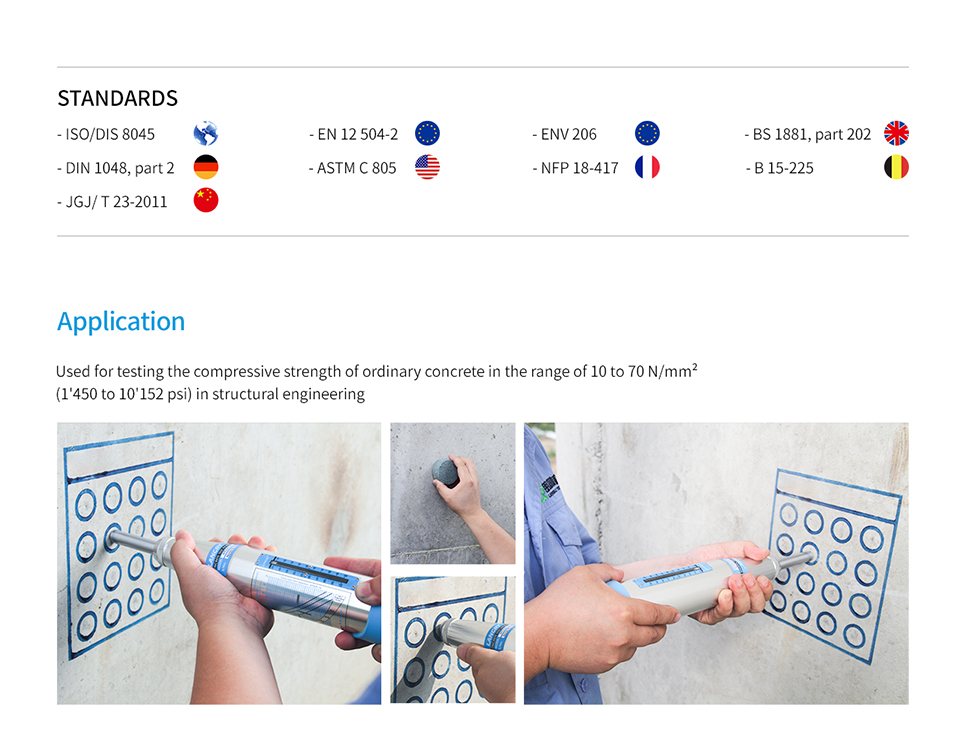

Applicable Standards and Regulations

-ISO/DIS 8045 International Standard

- EN 12 504-2 Europe

- ENV 206 Europe

- BS 1881, Part 202 UK

- DIN 1048, Part 2 Germany

- ASTM C 805 USA

- NFP 18-417 France

-B 15-225 Belgium

- JGJ/T 23-2001 China

- JJG 817-1993 China

We are a manufacturer of concrete test hammer in China, factory production, quality guaranteed, if you are interested, please send inquiry.

Application field
It is used to test the compressive strength of ordinary concrete in the range of 10-60Mpa in structural engineering

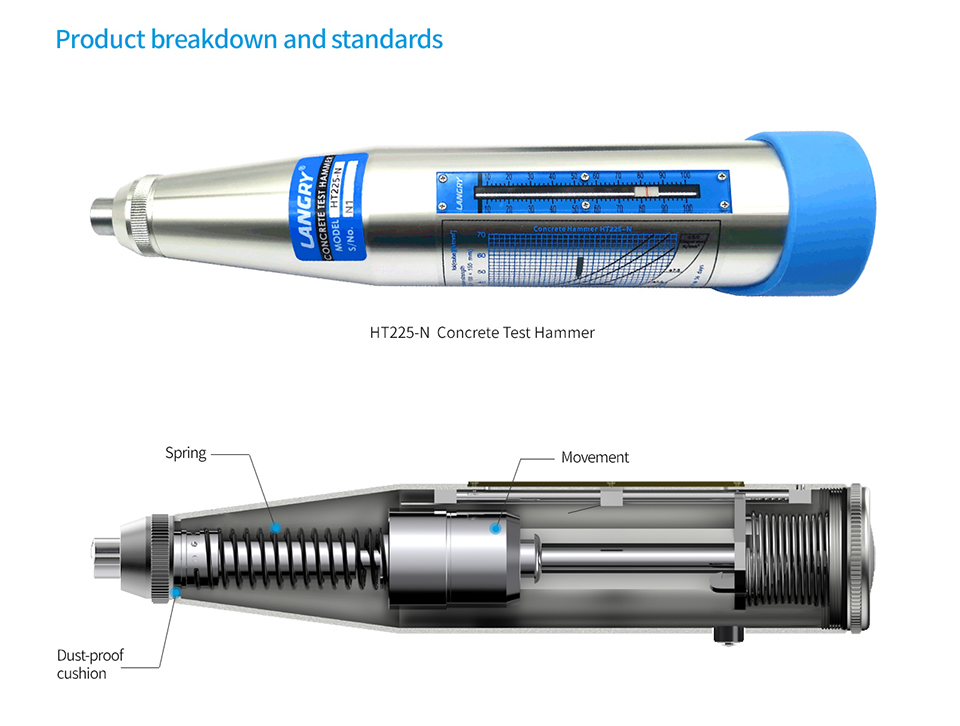

1. Product features and advantages

(1) Imported high-quality springs are more fatigue-resistant, aluminum alloy spring seat snap ring components
(2) Using CNC machining centers and other machine tools for finishing movement, the springback value is guaranteed.
(3) Silicone bracket, soft hand guard, more comfortable rebound operation.
(4) Finely grind the spherical zero-setting screw to make the rebound firing smoother.
(5) Improved pointer design, easy to adjust friction and more stable.
(6) The beautiful scale is clear and easy to read, and the parts are hard oxidized, beautiful and durable.
(7) The high-precision aluminum alloy flange is not easy to be damaged, and the high-precision hook is not easy to be empty due to wear and tear.
(8) Multiple imported dust-proof components, the movement is cleaner and the maintenance cycle is longer
(9) The super-hard 6061 aluminum alloy shell is wear-resistant, and the key stretching process is not easy to fall off.

2. Technical parameters

Standard impact energy: 2.207 J
Pointer length: 20.0±0. 2mm
Pointer friction: 0.65±0. 15N
Bounce rod spherical radius: 25±1.0mm
Elastic extension spring stiffness: 785.0±30. 0N/m
Unhook position of bouncing hammer: scale line "100" scale line
Elastic tension spring working length: 61.5±0.3mm
Bounce hammer impact length: 75±0.3mm
Jumping hammer take-off position: scale "0"
Anvil rate setting: 80 ± 2

Anvil calibration value: 80 ± 2
