20 Ton 25 Ton 30 Ton 40 Ton 50 Ton RTG Container Gantry Cranes for Seaport and Portainer Crane

Supplier: Nucleon (xinxiang) Crane Co., Ltd.
Region: Henan, China
Contact: Mr Charlie Nucleon
Price: $32000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Feature:	Portal Crane;	Product name:	container gantry cranes for seaport and container yard;
Application:	harbor storage yard outside;	GB/t24001-2004idt ISO 14001:2004:	passed;
Limited Switch:	included;	Condition:	New;
Certification:	SGS BV ISO GOST TUV;	Port:	Tinajin Shanghai Qingdao;
Emregency stop system:	included;	Brand Name:	NUCLEON;
Control Method:	cabin ground;	Supply Ability:	3000 Set/Sets per Year;
Warranty:	1 Year;	Place of Origin:	Henan China (Mainland);
Electrical parts:	siemens brand;	Span:	5-55M;
Packaging Detail:	20 25 30 40 50 Ton RTG Container Gantry Cranes for Seaport and Portainer Crane : 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;	Payment Terms:	L/C,T/T,Western Union;
Working duty:	A4;	Color:	red bule yellow orange;
After-sales Service Provided:	Field maintenance and repair service;	Max. Lifting Height:	15m;
protection for electric part:	included;	GB/t28001-2000idtISO 9001:2000:	Passed;
Rated Lifting Moment:	50KN~3000KN;	Rated Loading Capacity:	50 ton;

20 Ton 25 Ton 30 Ton 40 Ton 50 Ton RTG Container Gantry Cranes for Seaport and Portainer Crane

Product Description

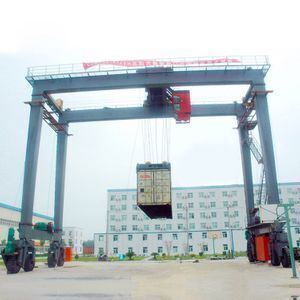

Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.

Contact us for more information !

Environmental Conditions

1,The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2,The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3,In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4,The working duty is A6-A7.
5,The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6,The crane which has the special requirement for working conditions, can be manufactured following the contracts.

technical parameters

Please contact me for customized parameters !

Model	LJ35/40-23	LightType LJ40-23
Capacity(under spreader) (t)	35,40	40
Work Duty	A7,A8	A6,A7
Span (m)	23.47	23.47
Lifting Height (m)	12.2~17.8	16.5
Stack Layers/Passing Layers	3/4~5/6	5/6
Container Model	20',40',45'	20',40',45'
Spreader Rotating Angle	±5°	±5°
Hoisting Speed (m/min)	13/26,23/52	12/18,18/28
Cross Travel Speed (m/min)	50,70	24
Long Travel Speed (m/min)	Full Load-90,Without Load-130	Full Load-20,Without Load-40
Max.Wheel Load (kN)	310	310
Total Rating (kW)	150,230	110,150
Power Supply	Electric,Diesel engine,Electric-Diesel drive

Modular design

According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module,

steel structure module, founction module, general module and etc.

The standard module production ensures product stability of quality and shortens the delivery cycle.

Advanced Manufacturing Technology

Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.

Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.

High Reliability

The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.

The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

Safety features:

1. Automatic rectify deviation control

2. Weight overload protection device

3. Top quality polyurethane buffer

4. Phase protection

5. Lifting limit switch,cross traveling limit switch,long traveling limit switch

6. Voltage lower protection function

7. Emergency stop system

8. Current overload protection system

9. Lighting system

10. Audio and video alarm system
