2017 topcon total station Topcon GTS-1002 with 350m reflecto

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Packaging Detail:Engineer case +paper carton;
Place of Origin:Beijing China (Mainland);Magnification:30X;
Dust and water proof:IP66;Supply Ability:20 Piece/Pieces per Week;
Port:Shanghai;Delivery Detail:Shipped in 2 days after payment;
Brand Name:Topcon;Three prism:8000m;
Reflectorless:350M;One prism:5000m;
Angle Measurement Accuracy:2";Model Number:GTS-1002;
Accuracy reflectorless:5mm+2ppm;Min focus:1m;
Accuracy with reflector:2mm+2ppm;Resolving power:3";
Product Description

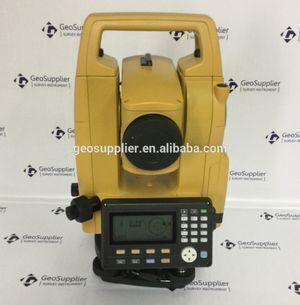

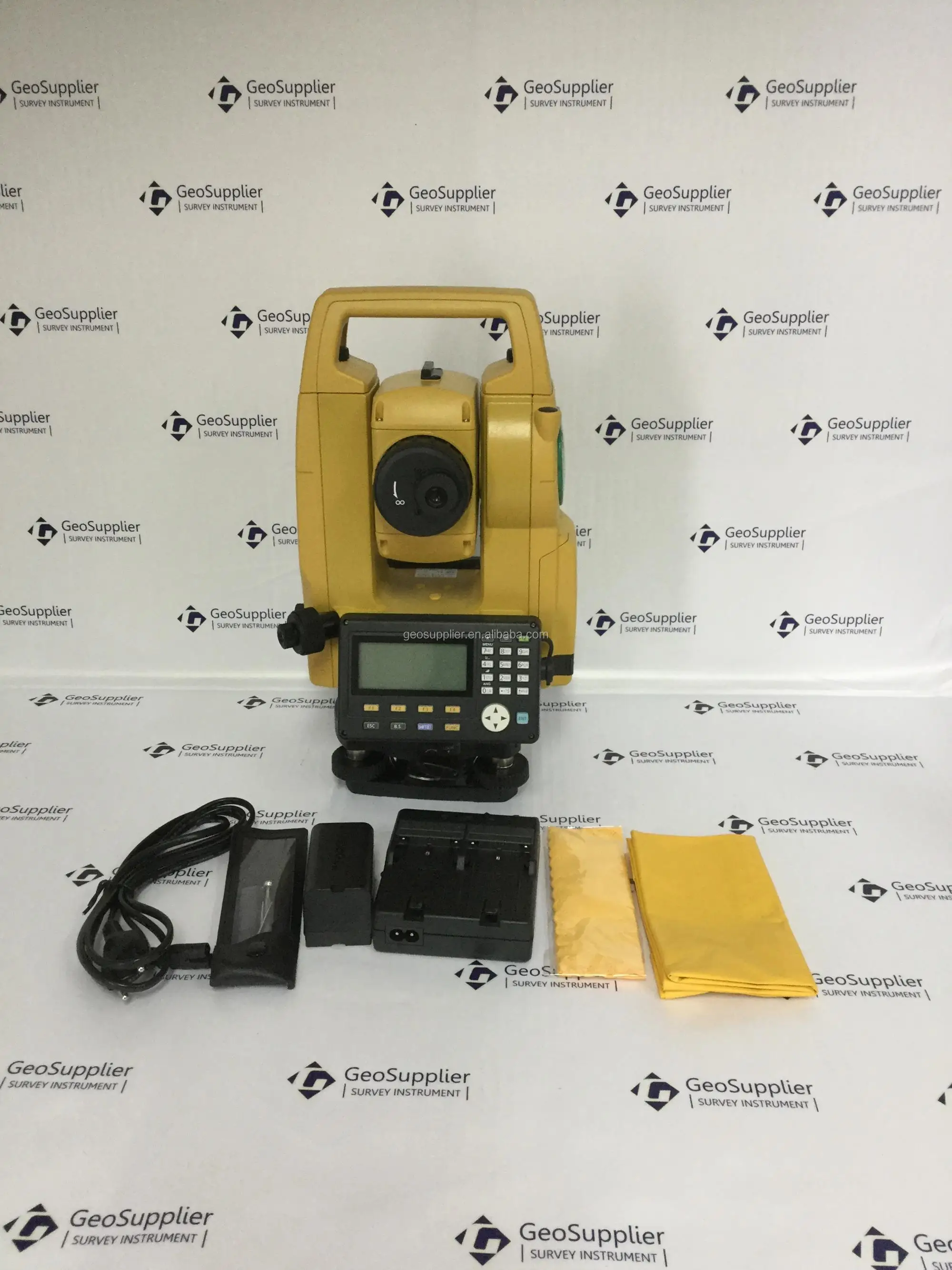

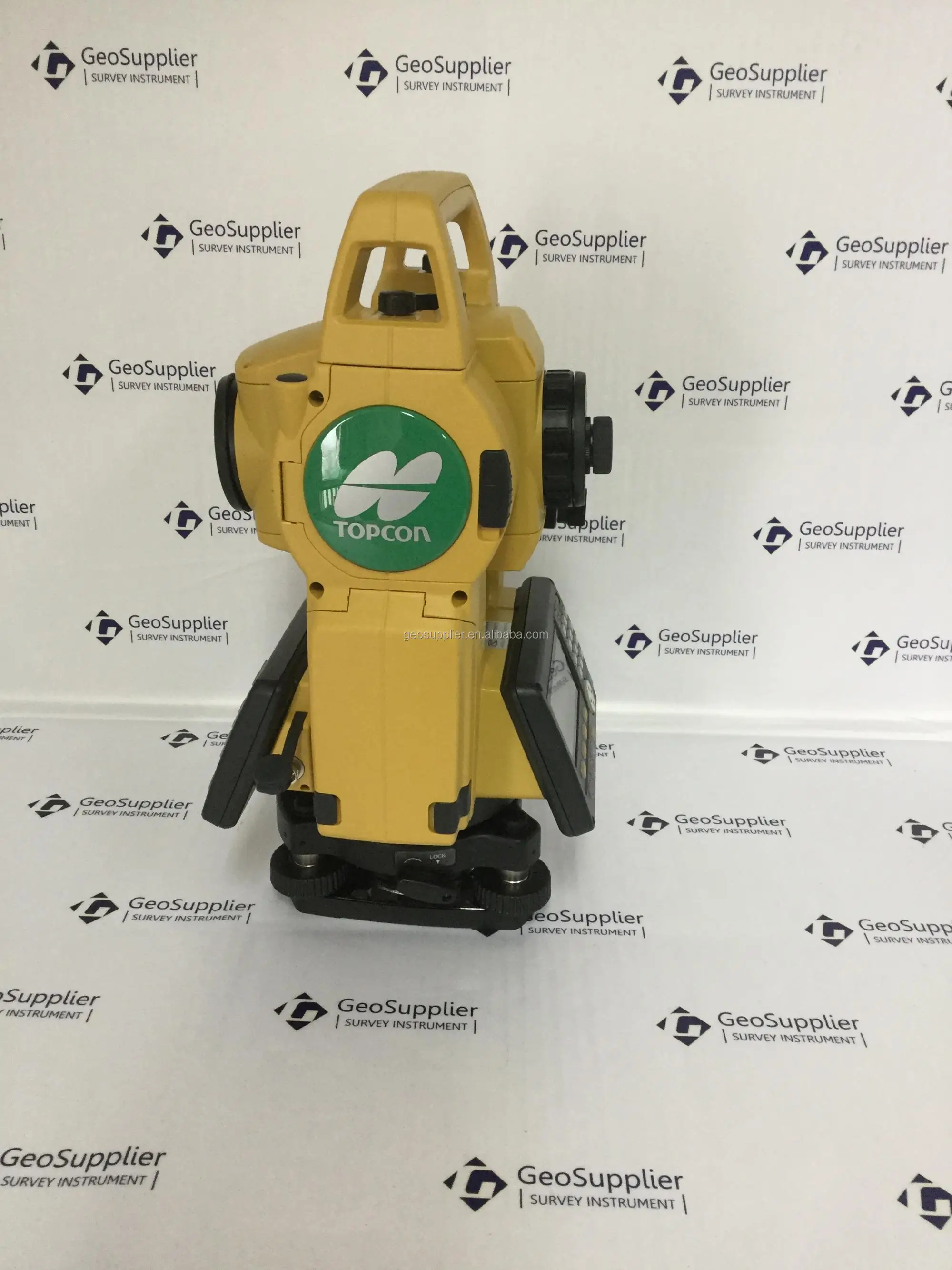

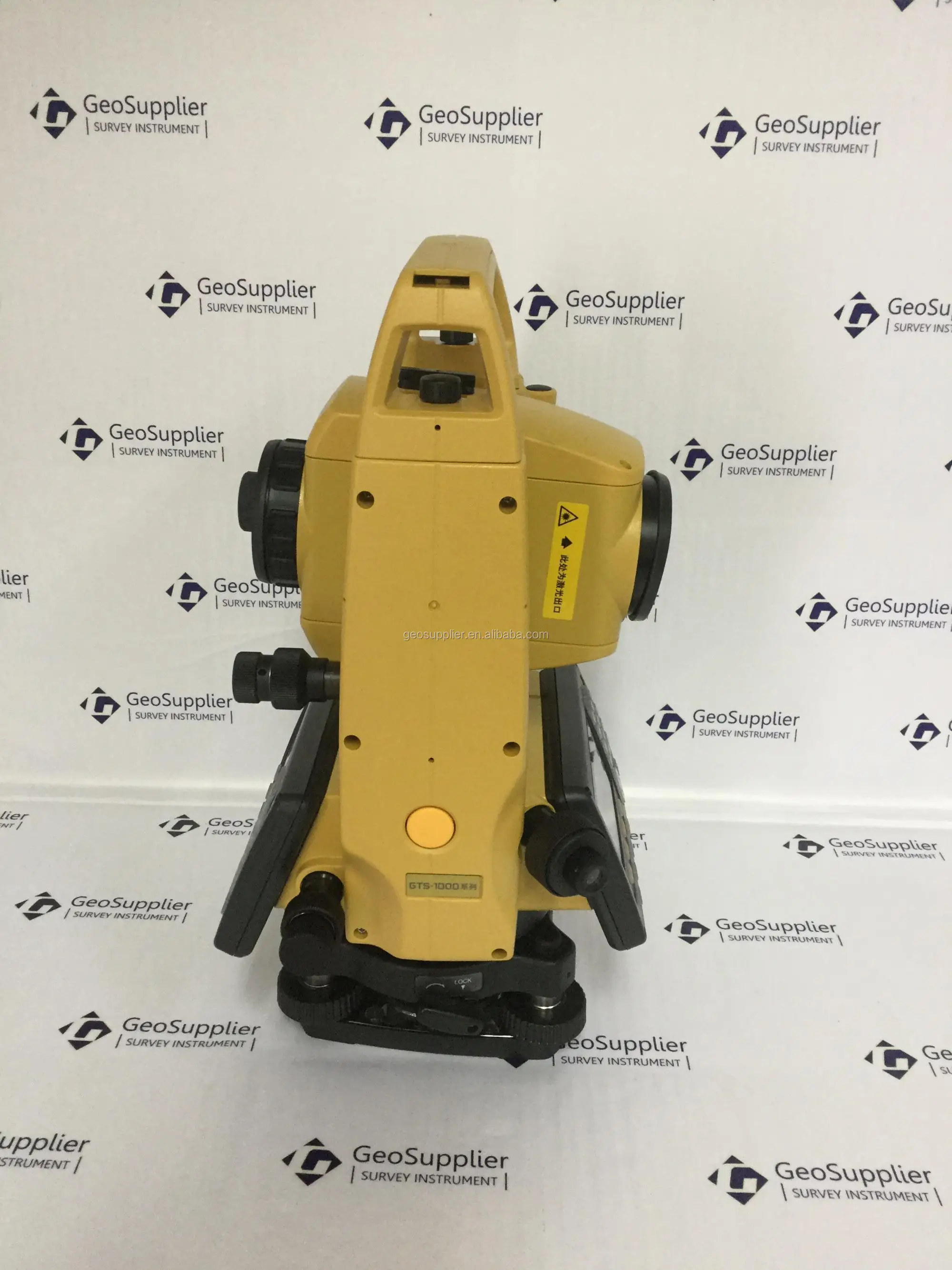

    2017 latest model topcon total station Topcon GTS-1002 with 350m reflectorless



QUICK POWERFUL DISTANCE MEASURMENT SYSTEM

 Electric level bubble

Phase technology can effectively ensure the measurement accuracy
 0.9 second fast distance measurement (for any object)
 30cm to 350m non-prism measurment
 1.3m to 500m reflector sheet measurment
 Minimum range of spotlights increase the measure range of  objects

 Unique absolute encoding technology  ensure  the realibility of accuracy under the conditions of continuous measurement

 The biaxial compensator ensures that the instrument is still at a precise level in harsh terrain.

 30cm to 350m non-prism.
 Coaxial ultra-fine light spot can provide fast and high-precision illumination instructions, even in the case of small incidence angle can still get high reliability of the distance measurement results.

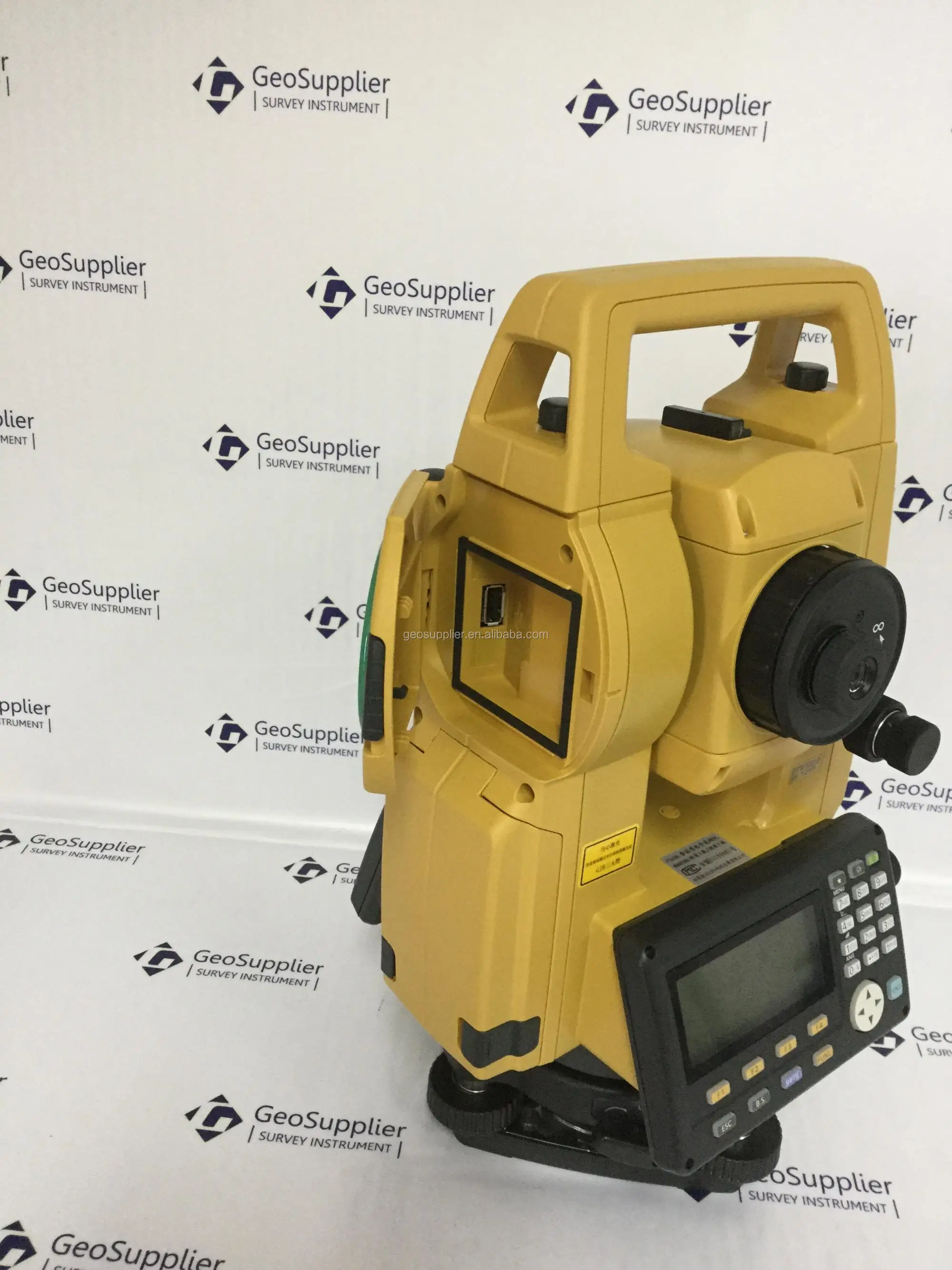

 USB-A interface can be directly inserted into the U disk. Insert the U disk and close the cover can still ensure IP66 protection level.

 Trigger keys are accessible to the surveyor to complete a series of measurement operations without looking away from the eyepiece.
 Brake screw and jog screw to ensure a stable angle measurement.

ModelGTS-1002
Telescope
Length171mm
Objective Lens DiameterTelescope:45mm, Distance meter: 48mm
Magnification30X
ImageErect
Field of view1°30’
Resolving power2.5”
Mini.focus 1.3m
Distance Measuring
Laser output level No prism: 3R level, prism / reflector 1 level
Range of distanceNon-prism :0.3 ~ 350m
Reflector :RS90N-K:1.3 ~ 500m
RS50N-K:1.3 ~ 300m
RS10N-K:1.3 ~ 100m
Mini prism :1.3 ~ 500m
Single prism :1.3 ~ 5,000m
Accuracy - Non-prism (3+2ppm×D)mm
             - Reflector (3+2ppm×D)mm
             - Prism (2+2ppm×D)mm
Measuring timeFine:0.9s , Coarse:0.7s , Tracking:0.3s
Angle Measurement
Min. Reading5” / 1”
Accuracy2”
Dual axis compensator / tilt correctionliquid-electric dual axis  compensation range ± 6 '/tilt correction
Level Sensitivity
Plate Level±6′
Circular Level10’/2mm
Optical Plummet (optional:internal laser plummet)
ImageErect
Magnification3X
Focusing range0.5m ~ ∞
Field of view
Data storage & interface
Internal memory10,000 points
External memoryUSB
Data interface RS232,USB2.0
Display / keyboardAdjustable Contrast, Backlit LCD Graphic Display /
With backlight 25 key (alphanumeric keyboard)
Operation panelDual panel
Trigger keyOn the right side of the instrument
General
Working temperature -20~+60℃
Battery typeRechargeable li-ion battery
Laser pointerCoaxial red laser
Water & dust proofIP66
Working time25 hours
Optical plummetMagnification: 3X, min focus: 0.3m (from the tribrach)


Packaging & Shipping
Packaging: Engineer case +paper carton

 Delivery date: 3 days upon payment confirmed

Our Services

 Our warranty policy:

1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.

2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.

 3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.

4.For all instrument we provide life-long technical support.

Remark:Improper use of   the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty  only aimed at the problem caused by the product quality.
