China high quality mini waste plastic small Germany tyre pyrolysis oil plant cost for sale

Supplier: Xinxiang Huayin Renewable Energy Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Zora Xu
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cooling system:	Water cooling;	Place of Origin:	Henan China (Mainland);
Packaging Detail:	wood box;	Voltage:	380V;
Supply Ability:	200 Set/Sets per Year;	Equipment Capacity:	10kg;
Condition:	New;	Applicable Industries:	waste pyrolysis;
Function:	waste tyre recycle to oil machine;	Brand Name:	Huayin;
Color:	Customer's Demand;	Payment Terms:	L/C,T/T;
Material of reactor:	Q345R/Q245R Boiler Steel;	Raw material:	Tyre rubber plastic;
Space needed:	10m Width,30-40m Length;	Certification:	CE,ISO,SGS;
Key Selling Points:	Eco-friendly;	Port:	qingdao/shanghai;
End product:	Oil,Carbon black,Steel wire,Syngas;	Fuel materia:	Coal .wood.gas.electric;
Name:	Waste tyre plastic pyrolysis machine;	After-sales Service Provided:	Field installation, commissioning and training,Online support,Video technical support;
Warranty:	1 Year;

China high quality mini waste plastic small Germany

tyre pyrolysis oil plant cost for sale

Product Description

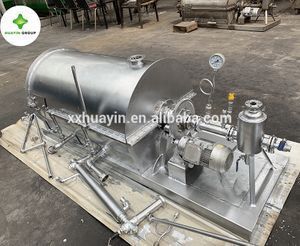

Huayin 10kg Stainless Steel Mini Waste Tire Plastic to Oil Pyrolysis Plant is specially designed to test various new materials, their feasibility and oil yield rate, etc. It is also very popular in showcasing the environmental running process to your local government and potential clients.

Worldwide, it is estimated that one billion scrap tires are produced every year. Instead of burning the tires, the pyrolysis system roasts them at a lower temperature in an atmosphere devoid of oxygen (so that no actual burning will occur). This method of roasting is called pyrolysis, and is used for many different processes. By using pyrolysis, the tire shreds are broken down into their three basic components: carbon black char, steel radials and oil/gas.

Main Features

1) Very convenient for showcasing&testing, shorter processing time;

2) Easy to operate and maintain;

3) Covering little space;

4) One labor would be ok;

5) Easy loading&unloading&transportation.

Mini type 10kg capacity tyre pyrolysis plant ready to ship

Reactor size : 1650*600*1120mm

condensing size: 1880*700*650mm

Out put

---Fuel oil

1. The main product - fuel oil produced by our waste tyre pyrolysis machine is widely used for industrial and commercial purposes.With the heating value 10592.48Kcal/Kg, this fuel oil is a kind of good heating fuel which can be applied for boiler factory, cement factory,glass factory and steel mill, etc.

2. It also can be refined to diesel by the distillation machine. The distillation diesel can be used as diesel fuel used in diesel burners or diesel generators and some diesel engines.

---Carbon black

1. This Carbon black can be directly sold to cement or brick factory mix with cement or brick for heavy color.

2. Or pellet it used for heating, just like coal, it has the heating value of 7034 kcal/kg.

---Steel wire (only for tires)

Can be sell directly.

Applicable Raw material	Approximate Oil ratio
Submarine cable	75%
Rubber cable	35%
Sole	30%
Big tires	45%-50%
Small tires	35%-40%
PP (microwave oven food box/yogurt bottles etc)	50%-75%
PE(plastic film /plastic wrap)	50%-75%
PS (smack-box/blister box)	50%-75%
ABS (engineering plastics)	40%
Leftovers of paper	Wet 15-20%, dry 60%
House garbage	35-50%
Plastic cable	80%
Plastic bag	50%
PVC (raincoat/building materials)	Not suitable
PET (water bottles/sodas beverage)	Not suitable

Packaging & Shipping

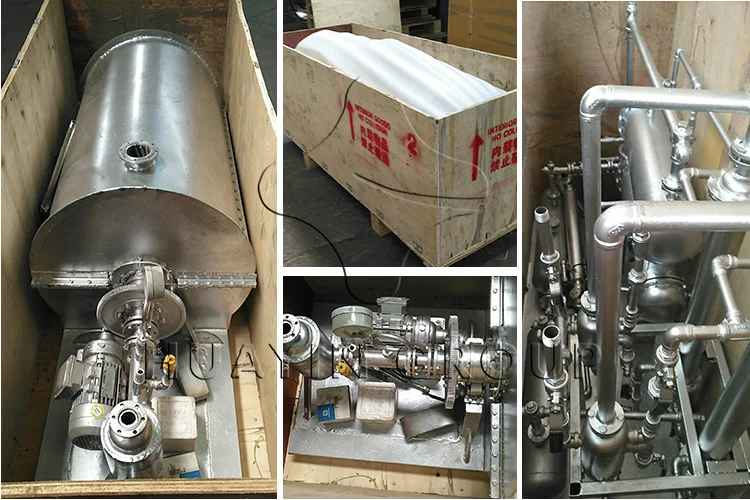

the mini tyre pyrolysis plant will be packed into 2 pieces of wooden box for shipping , the wooden box size is 1650*600*1120mm.

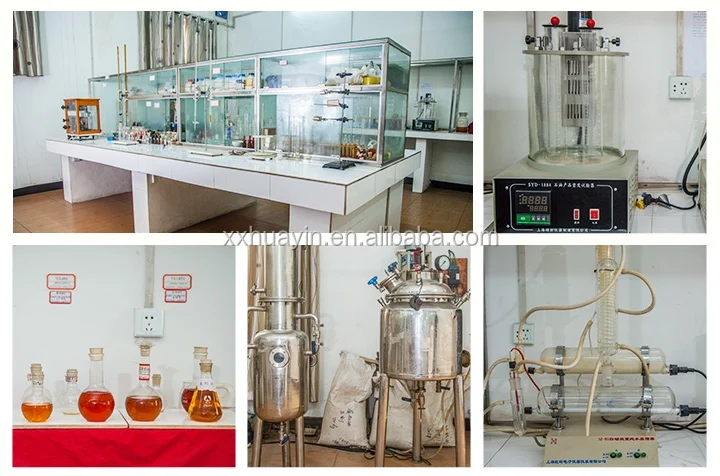

Lab

Huayin lab boasts many complicate and cutting-edge apparatus and machines, scaling machines for testing your raw material to oil feasibility, oil quality, etc. Whenever we have a new idea or clients want to process some other material, we would use our lab machines or mini testing machines to try this out.

Our Services

1.24 hours online .Your inquiry will be quick reply by email .
2. Sample testing support.
3. View our Factory.
4. Professionally and patiently introduction,details pictures and working video to show.
