Mini Spray dryer for milk powder

Product details
Weight:180kg;Brand Name:TOPTION;
Spray dryer OEM:Please contact;Application:Liquid to powder machine;
After-sales Service Provided:Online support,Video technical support,Free spare parts;Heating source:Electricity;
Power(W):3KW;Type:Spray Drying Equipment;
Single package size:60X50X150 cm;Installation:Engineer's Guidance;
Certification:CE ISO;Package Type:Standard wooden cases of rotary evaporator Base on customers requests;
Material:Stainless Steel;Application:Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Name:Spray dryer for milk powder machine;Voltage:220V;
Applicable Industries:Food & Beverage Factory,Farms,milk powder, egg powder making machine;Package Preview:https://sc02.alicdn.com/kf/HLB1MA05J9zqK1RjSZFLq6An2XXaY.jpg_640x640.jpg;
Place of Origin:Shaanxi China (Mainland);Capacity:Lab type, pilot type, industry type available;
Single gross weight:145 KG;Selling Units:Single item;
Condition:New;After-sales Service Provided:Overseas service center available;
Key Selling Points:Automatic;Warranty:12 Months;
Spray drying machine factory visit:Please contact;Dimension(L*W*H):880*810*1460mm;
Usage:Milk powder, orange juice, instant coffee powder, etc;
Product Description

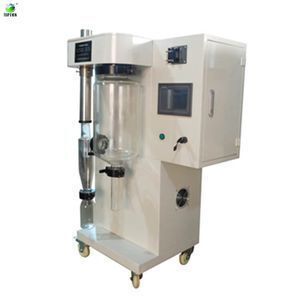

Mini Spray dryer for milk powder



Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.



Technical Parameters



Item

Unit

TP-S15

TP-S30

Max capacity

ml/h

1500-2000

3000

Temperature   range of inlet air

40℃ ~ 300℃

30℃ ~ 300℃

Temperature   range of outlet air

40℃ ~ 140℃

30℃ ~ 140℃

Spray system

/

Two-fluid nozzle

Two-fluid nozzle

Precision of   temp

±1

Dryer time

S

1.0 ~ 1.5

Speed of   squirt pump

ml/h

50 ~ 2000

3000

Nozzle size

mm

0.5/0.7/0.75/1.0/1.5/2.0

Spray   direction

/

Downwards co-current

Heater Power

/

3500W

4500W

Total power

/

4500W    220V

5500W    220V

Heat source

/

Electric

Air compressor

/

Built-in oil-free air compressor

Dried powder   restoring rate

%

≥92 (Maltodextrin>92)

Dimension

mm

940*850*1500

1700*1100*150

Maximum   moisture evaporation

Kg/h

2

3

configuration

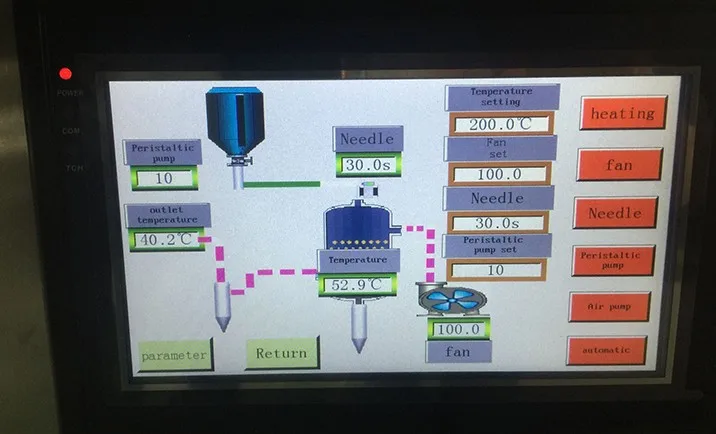

1. LCD control system, language can customize your local langage:

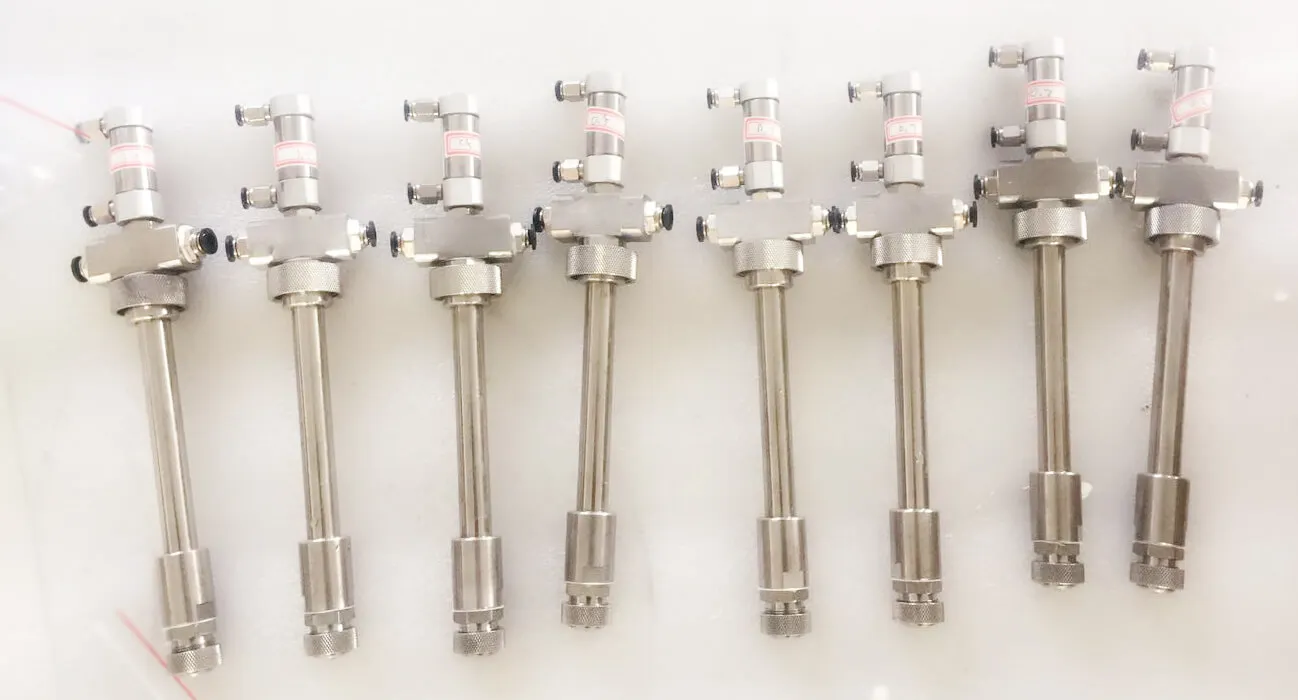

2. Two fluid spray drying nozzle can buy separately:

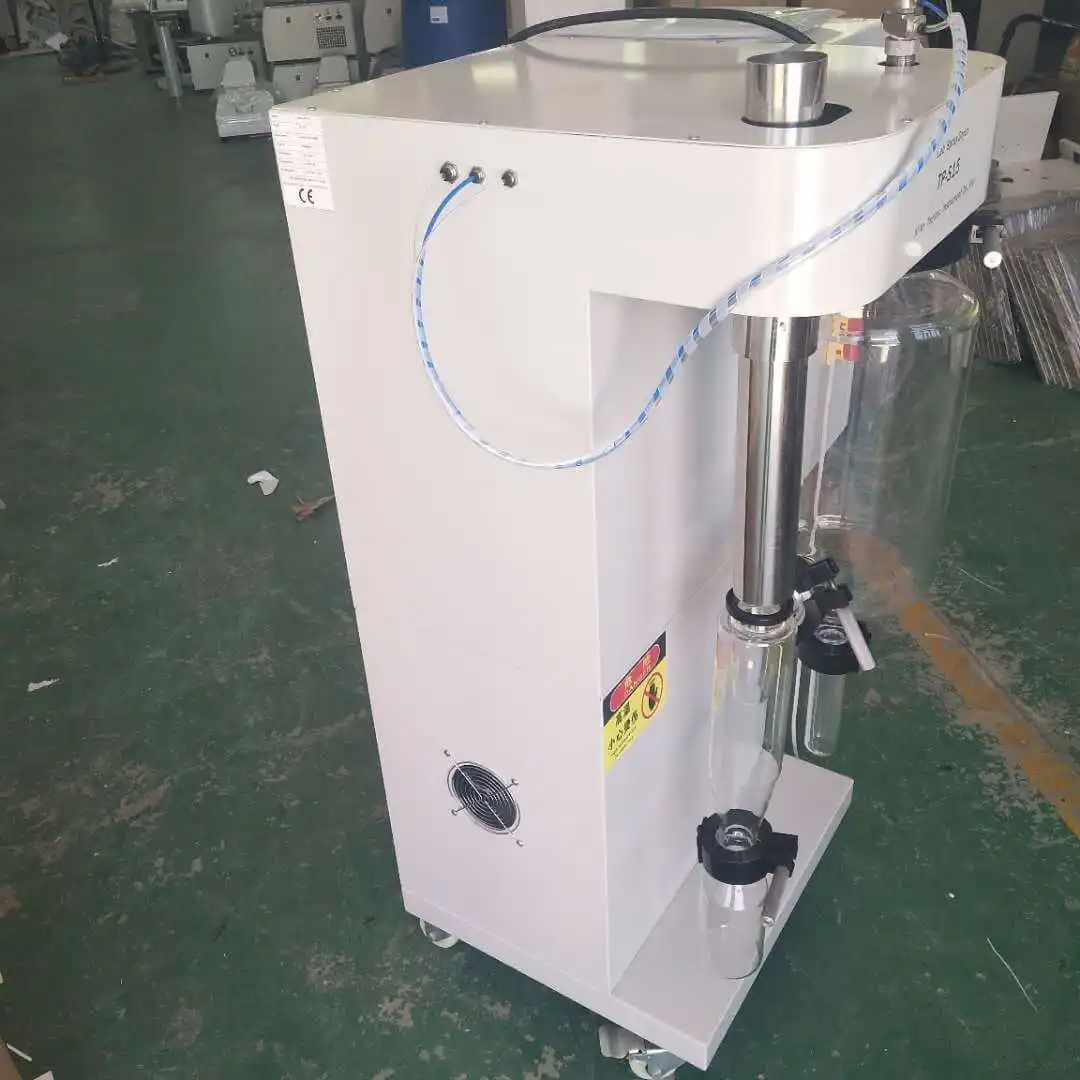

Detailed Images
